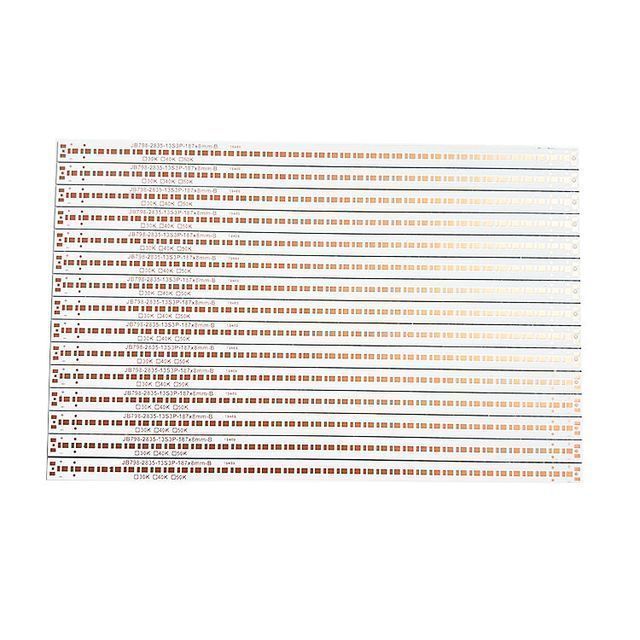

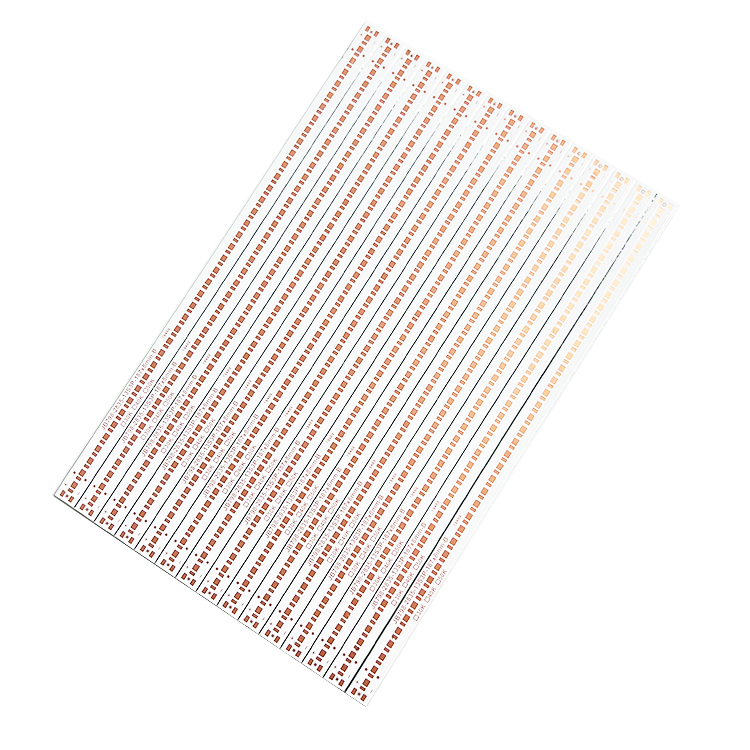

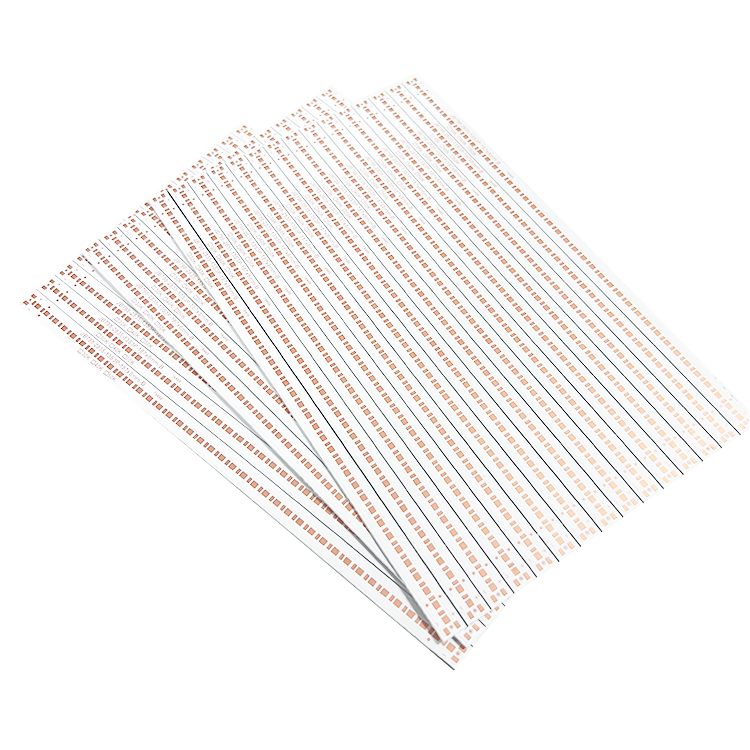

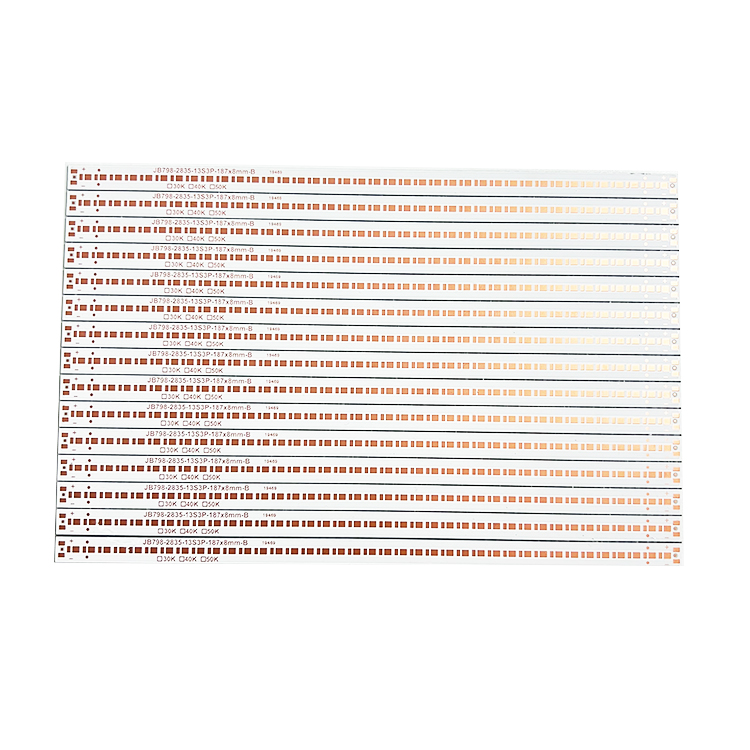

Hot selling recommended pcb manufacturers pcb&pcba electronic circuit board control board LED light bar
- 0.30 >=5 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Silkscreen: | White, black, yellow, red, blue, etc. | Package preview: | |
| test: | AOI test, functional test | Substrate: | aluminum |
| port: | Shenzhen/Guangzhou | Origin: | Guangdong, China |
| Minute Hole Size: | Single-sided 0.5/double-sided PTH0.3MM | Copper thickness: | 15UM, 25UM, 35UM, 70UM |
| Minute line width: | 0.12mm | file format: | Gerber, Protel, PowerPCB, AutoCAD, etc. |
| brand: | Guangyou | Plate thickness: | 0.4/0.6/0.8/1.0/1.2/1.5/1.6/2.0/3.0mm |
| Board Dimensions: | 1000mm*600mm | Dissecting stamping: | V-cutting, rounding, chamfering |
| Supply capacity: | 100000000 pieces per month | model: | MCPCB-21 |
| Minute line spacing: | 0.15mm | Serve: | OEM |
| delivery time: | 7 days | Packaging Details: | Sealed vacuum carton packaging |
| payment terms: | Western Union, T/T, MoneyGram | Surface treatment: | HASL, LF-HASL, OSP, ENIG |
| application: | electronics, smart home | LED PCB board size: | round/square/custom |
| Good at: | High-precision, high-density, double-sided PCB, multi-layer PCB | Solder Mask: | Green, red, blue, yellow, etc. |
| type: | metal core pcb |
Product Description
our service: |
1. 1~32 layer blank PCB manufacturing; |
2. LED PCB circuit customization; |
3. LED PCB clone; |
4. Component procurement; |
5. LED PCB assembly PCBA; |
6. Customized development plan; |
7. PCB/PCBA test. |
LED PCB board PCBA setup: |
1. PCB material: we use |
a) Advanced aluminum grades, such as 3003 5052 6063; |
b) High thermal conductivity, such as 1.5 / 2 / 3 W/mK; |
c) fr4 monolayer and multilayer. |
2. LED brand: Epistar/cree/Samsung/lumileds; |
3. LED color: RGB, WHITE, RGBW, 380NM UV, 450NM Blue, 630nm red, 660nm deep red, 730nm far red; |
4. LED package: 2835 5730 5050 5630 3030 3535 etc. |
LED circuit PCB board PCBA application: |
1. Commercial led lights: bulb lights, down lights, ceiling lights. |
2. High-power lights: led street lights, led flood lights, led high bay lights, led work lights. |
3. Special lights: traffic lights, led garden lights for plant growth; UV printer led lights, UV medical lights, UV beauty lights. |
4. Smart lights: wifi/bluetooth lights, rgb/rgbw/cct dimmable remote lights. |
5. Customized led lights. |
Quotation request: |
Please send us the Gerber file and Bom list, if you don't have the file and need our design, please send us the following information: |
1. PCB size |
2. PCB material: aluminum/fr4 (layer) |
3. Solder mask color and silk screen color |
4. PCB thickness (1/1.2/1.6/2mm) |
5. PCB copper (1oz 2oz 3oz) |
6. LED brand & model |
7. Watts & Voltage & Current |
Eight, LED board function and application |
9. Order Quantity |
10. Your Logo |
Specification
You can also customize more different types of products!
Applications:Lighting: LED exterior wall lighting, LED street lighting, LED stage lighting, LED home lighting.
