Shenzhen Fast Cheap EMS OEM Prototype PCB Supplier Manufacturer Custom Electronic Circuit Board Assembly PCBA Design Service

Supplier: Shenzhen Jingxin Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms JingXin PCBA
Price: $4.25 / 2 - 99 pieces
$3.88 / 100 - 999 pieces
$2.55 / 1000 - 9999 pieces
$0.88 / >=10000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Product Category:	Custom HDI PCBAs	Material:	FR4/CEM-1/CEM-3/FR1/Aluminum
application:	Electronic Equipment/Household Appliances	model:	PCBA-2303
Minute line width:	0.075mm	Packaging Details:	Customized, anti-static bag/vacuum packing+bubble bag,
payment terms:	Western Union, L/C, D/P, D/A, T/T, MoneyGram, Paypal	type:	metal core pcb
brand:	Jinxin PCBA	Minute Hole Size:	0.2mm
layer:	1-58 floors	Origin:	Guangdong, China
Package preview:		Minute line spacing:	0.075mm
port:	Shenzhen/Hong Kong	Certificate:	ISO9001/Iso14001/CE/ROHS
Testing service:	AOI X-Ray function test	Substrate:	FR-4
Serve:	One-stop turnkey	Copper thickness:	2 oz
Surface treatment:	HASL\OSP\Immersion Gold, HSAL/GOLD/OSP	Plate thickness:	0.2mm-7.0mm, 1.6mm
Solder mask color:	Blue.Green.Red.Black.White etc.	Board Dimensions:	550*550mm
Supply capacity:	180,000 PCB assembly prototypes per month

Company Profile

our certificate

Why choose us

*From BOM list matching, component supply to PCB assembly, all are completed in Allchips;

*BOM IN ONE BOX (our BOM list automatic matching system), 4-hour matching and standardized BOM list;

*24 hours SMT proofing;

*3-7 days trial production (less than 500 sets);

* AOI inspection, IPQC inspection, appearance inspection, simple function inspection, full-function inspection (customer guidance), etc. before shipment;

Product Description

semester	PCBA board manufacturing detailed specification
layer	1-30 floors
Material	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, FR-1, FR-2, Aluminum
plate thickness	0.4mm-4mm
The largest finished board edge	1020mm*1000mm
Minimum drilling size	0.25mm
Minimum Line Width	0.10 mm (4 million)
Minimum line spacing	0.10 mm (4 million)
Surface Finish/Treatment	HASL/HASL lead free, chemical tin, chemical gold, immersion gold immersion silver/gold, Osp, gold plating
copper thickness	1/2 oz 1 oz 2 oz 3 oz
Solder mask color	Green/Black/White/Red/Blue/Yellow
inner packaging	Vacuum packing, plastic bag
outer packaging	Standard carton packaging
Hole Tolerance	PTH: ±0.076, NTPH: ±0.05
Certificate	ISO9001,ISO14001,ROHS,CQC
Profile punching	Routing, V-CUT, Bevel
Assembly service	Provide OEM service for various printed circuit board assembly

skills requirement	Professional surface mount and through-hole soldering technology
		1206, 0805, 0603 and other components of various sizes SMT technology
		ICT (In Circuit Test), FCT (Functional Circuit Test) technology
		PCBA assembly with CE, FCC, Rohs certification
		Nitrogen reflow soldering technology for SMT
		High standard SMT&Solder assembly line
		High-density interconnection board mounting technology capabilities
Quotation & Production Request	Gerber file or PCBA file for bare PCBA board fabrication
		Bom(Bill of Material) for Assembly, PNP(Pick and Place file) and Components Position also need to be assembled
		To reduce quoting time, please provide us with the full part number of each component, the quantity per board and Order.
		Test guidelines & functional test methods to ensure quality with almost 0% scrap rate
OEM/ODM/EMS service	PCBA, PCBAA assembly: SMT & PTH & BGA
		PCBA and case design
		Component procurement
		rapid prototyping
		injection molding
		Sheet Metal Stamping
		final assembly
		Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
		Material import and product export customs clearance

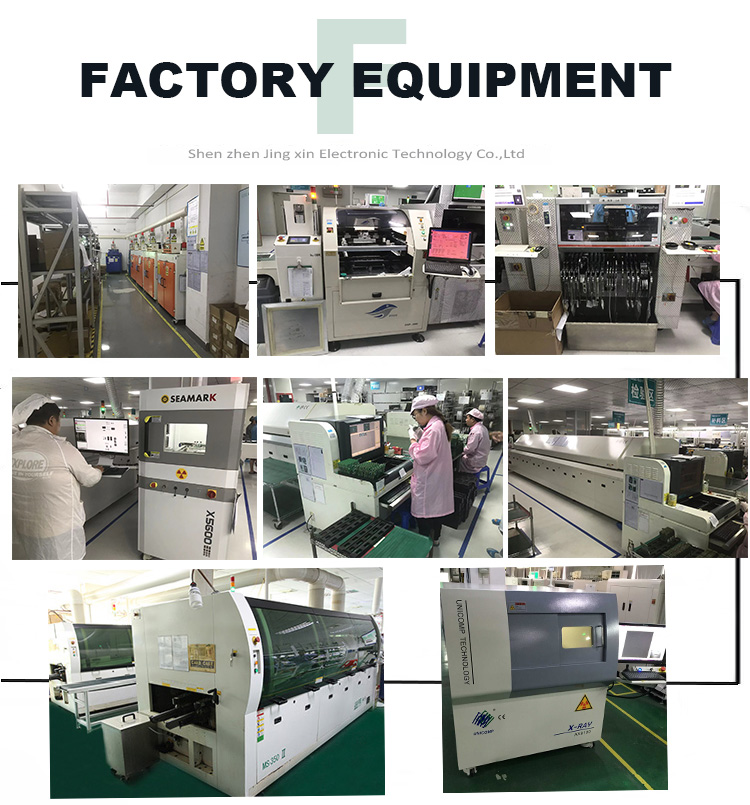

Other PCBA assembly equipment	Mounter: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4
		Reflow Oven: FolunGwin FL-RX860
		Wave soldering machine: FolunGwin ADS300
		Automated Optical Inspection (AOI): Aleader ALD-H-350B, X-RAY Inspection Service
		Fully automatic SMT stencil printing machine: FolunGwin Win-5

Main PCBA application

Bare PCBA Manufacturing
Smart home equipment PCBA
Telecom PCBA Assembly
BLE & WIFI module PCBA
IoT smart sensor PCBA assembly
Home appliance PCBA assembly
Industrial control PCBA assembly
Medical device PCBA assembly
Safety equipment-PCBA
LoRa product assembly
Payment and Energy Products PCBA
Wearable Device Assembly

JX Electronics PCBA assembly view

1) Professional surface mount and through-hole soldering technology

2) SMT technology for components of various sizes such as 1206, 0805, 0603
3) ICT (In Circuit Test), FCT (Functional Circuit Test) technology.
4) PCBA assembly with CE, FCC, Rohs certification
5) SMT nitrogen reflow technology.
6) High standard SMT&solder assembly line
7) High-density interconnection board mounting technology capabilities.

production process

our service

rapid prototyping

24 Hour Fast Turnaround Electronic PCB Prototyping Rapid Prototyping Turnkey Electronic PCB Assembly
High-end manufacturers in 7 days: Rigid, Flex,
Rigid-Flex, HDI, Metal Core, 10-40 layers etc. Manufacturing on demand

Strong Supply Chain Management

Includes a wide range of qualified dealers and a large selection of stocks. Components are ready to ship or assemble
100,000+ parts inventory assemblies
2000m² component warehouse
800+ qualified suppliers
50+ expert procurement team
20+ seconds instant results
7,000,000+ parts real-time inventory and prices

Prototyping (quick turns available)

Standard Electronics PCB 1-10 layers FR4 Original build time 72 hours + shipping time 48 hours Emergency build time 48 hours
+ Delivery time 48h · ExtraUrgentbuild time 24h + Delivery time 24h Advanced Electronics PCB (10-40 layers, HDI,
Military, etc.) · Original build time 10-12 days + shipping time 48 hours

Mass production · Small and medium batches · Competitive prices · Minimal. Board thickness 0.2mm · Min. trace/spacing 3.5 million ·
quick turn available
Full Service Turnkey Electronic PCB Assembly Solutions Electronic PCB Manufacturing, Assembly
Procurement and in-house assembly, providing overall project management

Other Products

Factory Wholesale Balancer Smart Switch PCBA OEM Service PCB Board Multilayer PCBA PCB Manufacturer PCB Service

$0.88 - $4.25 / piece
GPS locator PCB circuit board PCBA belt project development service

$1.01 - $4.25 / piece
OEM Printed Circuit Board PCB Assembly PCBA for Audio System Home Theater

$0.88 - $4.25 / piece
Cheap GSM Wifi LBS Locator PCBA GPS Tracker Module

$1.01 - $4.25 / piece
