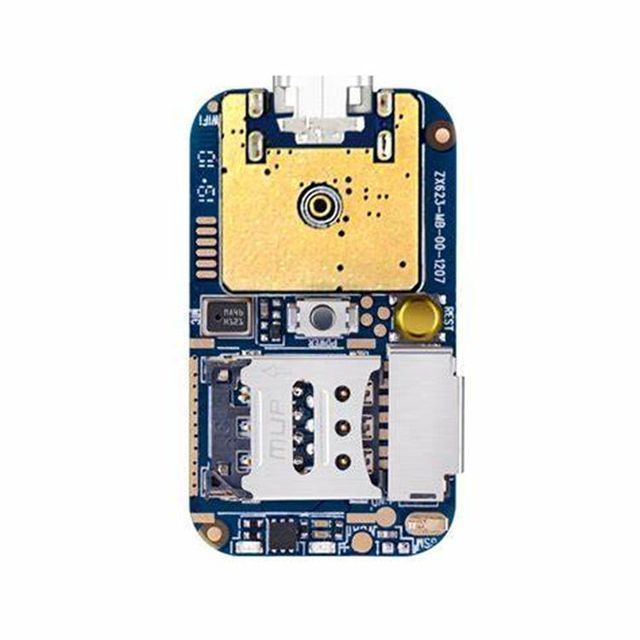

Cheap GSM Wifi LBS Locator PCBA GPS Tracker Module

Product details
Supply capacity:180000 pieces/dayFloor:1 - 32 floors
Certificate:ISO9001/Iso14001/CE/ROHSmodel:JXPCBA-001
minute. Line spacing:0.3 millionPackaging Details:Customized, anti-static bag/vacuum packing+bubble bag,
application:Electronic Equipment/Household AppliancesServe:One-stop turnkey
Material:FR4/CEM-1/CEM-3/FR1/Aluminumminute. Hole size:0.3 million
Packaging Preview:payment terms:Western Union, T/T, MoneyGram, Paypal
type:high density circuit boardCopper Thickness:2 oz
Test service:AOI X-Ray ICT functional testplace of origin; place of origin:China
brand:JXPCBAProduct Category:Custom HDI PCBA
Substrate:FR4/CEM-1/CEM-3/Hi TG/Aluminum/RogersBoard size:500*500mm
minute. Line width:0.3 millionSolder Mask Color:Blue, green, red, black, white, etc.
port:Hong Kong ShenzhenSurface treatment:HASL\OSP\Immersion Gold,HASL\OSP\Immersion Gold
Plate thickness:0.2mm - 7.0mm, 1.6mm
Product Description
EMS One Stop Service SMT DIP Electronic Multilayer PCBA PCB Board Assembly


PCB Technical Specifications

layers

1,2,4,6, up to 32 floors

plate

FR-4, Glass Epoxy, FR4 High Tg, Rohs Compliant, Aluminum, Rogers, etc.

PCB type

Hard, flexible, rigid and flexible

shape

Any shape: rectangle, circle, slot, cutout, complex, irregular, etc.

Maximum PCB size

22inch*22inch or 550mm*550mm LED PCBA board: 500*1200MM

plate thickness

0.4~4.0mm

Thickness tolerance

± 10%

copper thickness

1/2OZ 1OZ 2OZ 3OZ

Copper Thickness Tolerance

± 0.25 oz

Solder mask

Green, red, white, yellow, blue, black, etc.

silk screen

White, yellow, black or negative, etc.

surface treatment

HASL, Nickel, Imm Gold, Imm Tin, Imm Silver, OSP, etc.

Minimum drilling diameter

0.01'', 0.25mm. or 10 mil

PCB cutting

cut, V-score, tab-routed

PCB Assembly Capability

Mounting accuracy

QFP, SOP, PLCC, BGA

SMT Connectivity

1206, 0805, 0603, 0402, 0201

Certificate

ISO9001,ISO14001,ROHS,CQC

Assembly service

PCB fabrication, component sourcing and in-house assembly, providing overall project management
