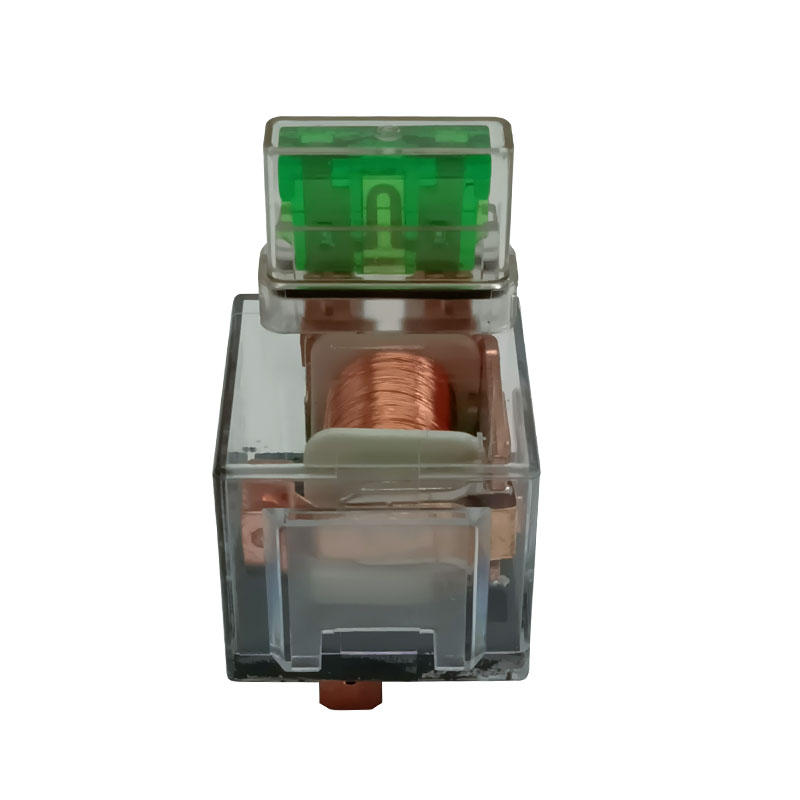

12V Automotive Relay 4 Pin Automotive Relay Automotive Waterproof Relay

Supplier: Yueqing Kuanghong Electronic Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Huang
Price: $1.16 / 25 - 99 pieces
$1.15 / 100 - 999 pieces
$1.14 / 1000 - 9999 pieces
$1.13 / >=10000 pieces
Min. Order: 25 pieces

Click here to contact

Product details

Voltage:	12V	size:	53.528.528.5mm
Name:	automotive relay	Contact materials:	silver alloy
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	brand:	Kuang Hong , Kuang Hong
Rated current:	40A	Year:	common
Package preview:		shape:	square
Electrical life:	100,000 operations	engine:	common
Packaging Details:	25PCS a box 100PCS a box	Origin:	Zhejiang, China
color:	Black	feature:	Voltage 12V
Warranty:	1 month	Model:	common
Car equipment:	common	Contact list:	1Z(1C)/1H(1A)

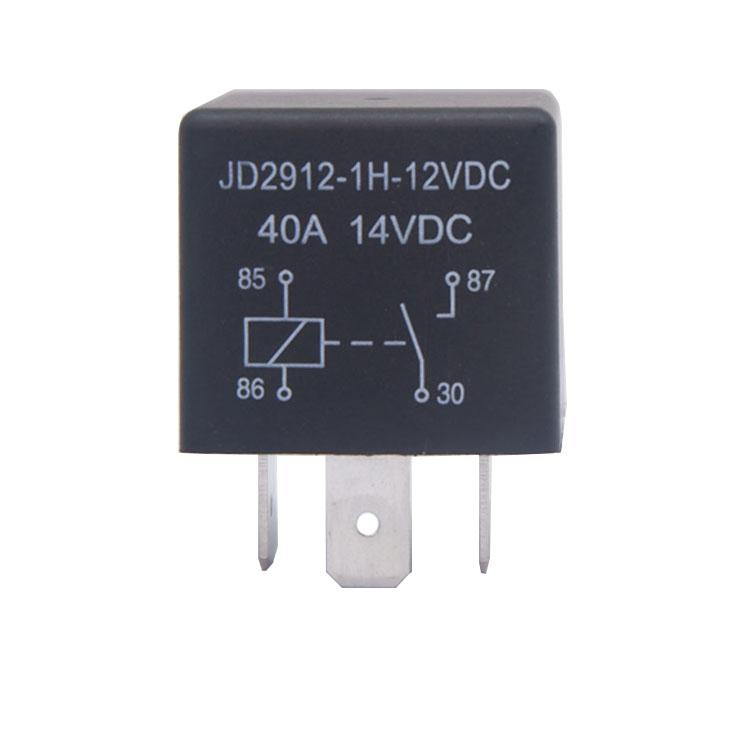

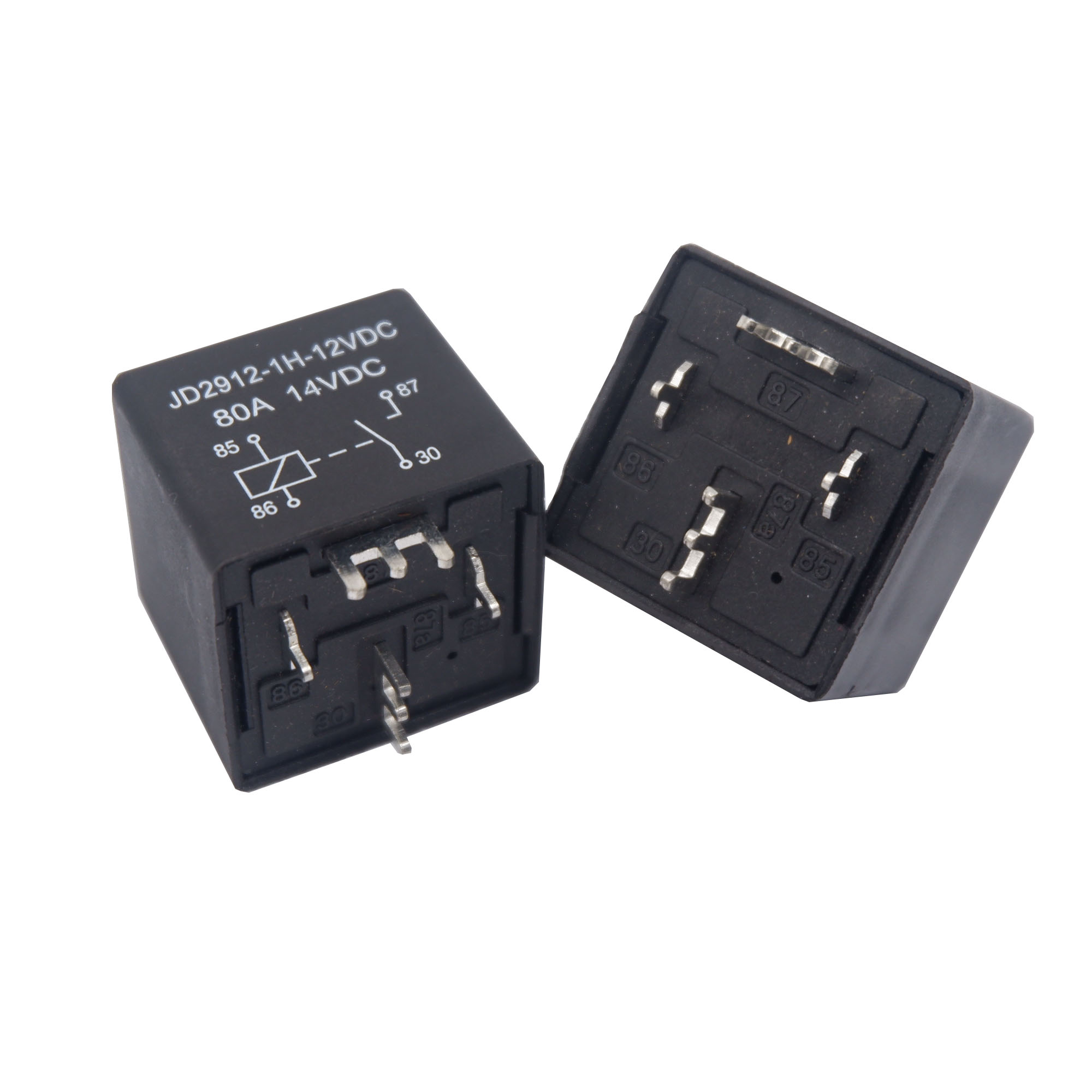

model:	40A-12V four-legged bare back	Original serial number:	JD2912
Coil power:	1.8W

Product Description

Name	automotive relay
contact material	silver alloy
color	Black
shape	square
size	53.528.528.5mm
feature	Voltage 12V

Contact information

contact material	AgSno12
Contact list	1Z(1C)/1H(1A)
contact rating	No: 40A 14VDC
Contact resistance	100mMax at 6VDC 1A
Maximum switching current	40A
Maximum Switching Voltage	75V DC
Maximum Switching Power	560W
Life Expectancy Electrical	100,000 operations (30 operations/minute)
life expectancy machinery	100,000 operations

Coil Specifications

Nominal voltage (VDC)			36
Coil resistance (Ω)	1.8W	720
Maximum working voltage (VDC)			21.6~25.2
Hybrid release voltage (VDC)			3.6~10.8
Maximum Applicable Voltage (VDC)			42

feature

temperature range			-30℃~+80℃
Vibration resistance			10~55Hz,1.5mm
Impact resistance	extreme operation	10 grams
		damage limit	100 g
humidity			40%~85%
Insulation resistance			100mΩ min at 500VDC
safety standard			Chinese Society for Electrical Engineering
Dielectric strength between open contacts			500VAC (one minute/second)
Between contact and coil			750VAC (one minute/second)
operating time			7 milliseconds
launch date			5 milliseconds
