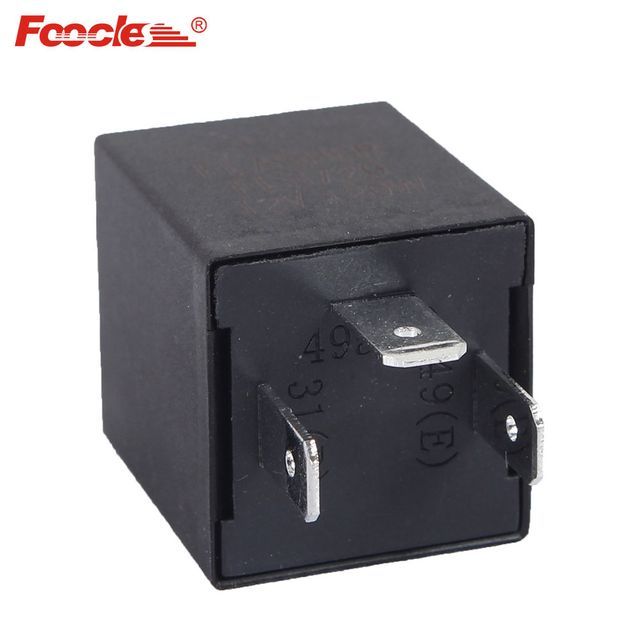

OEM Manufacturer Car Flasher Relay LED 3 Pin Flasher Relay
-
Supplier: Zhejiang Feileisi Electrical Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Ross Wang -
Price: $0.66 / 50 - 499 pieces
$0.55 / 500 - 1999 pieces
$0.42 / >=2000 pieces -
Min. Order: 50 pieces
Product details
| shell: | Nylon 66 | payment terms: | Western Union, T/T |
| reference number. : | 4PB002710001,4DM004420025,4DM00336000,4DB003750057,4DB003750018,54201001,BGE201045,130262100,0335200028,4DB00289500,1R1089,0335 2 00066,0335200023,4DB002478041,0335200068,1R1766,994301,4DM004420197,4DM00364004,54201152 | according to: | PA66 enhanced |
| Origin: | Zhejiang, China | engine: | ( AT180), 2.2 (ST184), 2.4 D (LN150, LN145), 3.0 v6, 2.0 Turbo 4WD (ST185), 2.4 i 4WD, 3.3 (MCV31_), 2.4 D (LN85_), 4.2 (FJ45_P), 4.0 (FJ62_G) ,3.0 i Bi-Turbo (JZA80_),1.8 Turbo-D (CV10_),2.4 D 4WD (LN1_),3.0 Turbo (MA70_),2.4 TD 4WD (LN165_, LN170_, LN190_),1.6 (AE92),3 |
| Model: | Land Cruiser (_J6_), Corolla station wagon (_E9_), 406 coupe (_8C), 406 (8B), Camry hatchback (_V1_), Camry saloon (_V1_), Camry station wagon (_V1_ ), SUPRA(_A7_), HILUX VI Pickup (_N1_), SUPRA (_A8_), MR 2 I (AW1_), Camry Sedan (_V3_), Camry (_V1_), CELICA Coupe (_T18_), MR 2 III (ZZW3_), LAND CRUISER pickup (_J4_), HILUX V pickup (_N_, KZN1_, VZN1_), Land Cruiser (_J4_, _J5_) | Mobile spring: | QSN6.5 |
| car brand: | common | Packaging Details: | 25pcs/box 500pcs/box 32.5*32.5*29.5cm 16KG/17.5KG |
| armature: | DT4C | model: | FLS720 |
| brand: | Forcles | Fixed bridge: | A3 |
| Enameled wire: | Copper (0.12,0.08) | Voltage: | 12V |
| Rated current: | 20A | braided wire: | pure copper |
| core: | DT4C | Warranty: | 1 year |
| Auto Parts: | Peugeot, Toyota | Contact list: | 1A, 1B, 1C, 1U, 2A |
| Original equipment number: | 46010,81980 | Year: | 1988-1999,1997-2004,1984-1990,1968-2001,1989-1994,1983-1988,1995-2005,2001-2006,1987-1995,1991-1997,1980-1991,1999-2007,1 969 - 2001,1983-1988,1993-2002,1991-1997,1986-1993,1997-2006 |
| yoke: | DT4C |
Specification
feature
* Surface mount technology, advanced technology

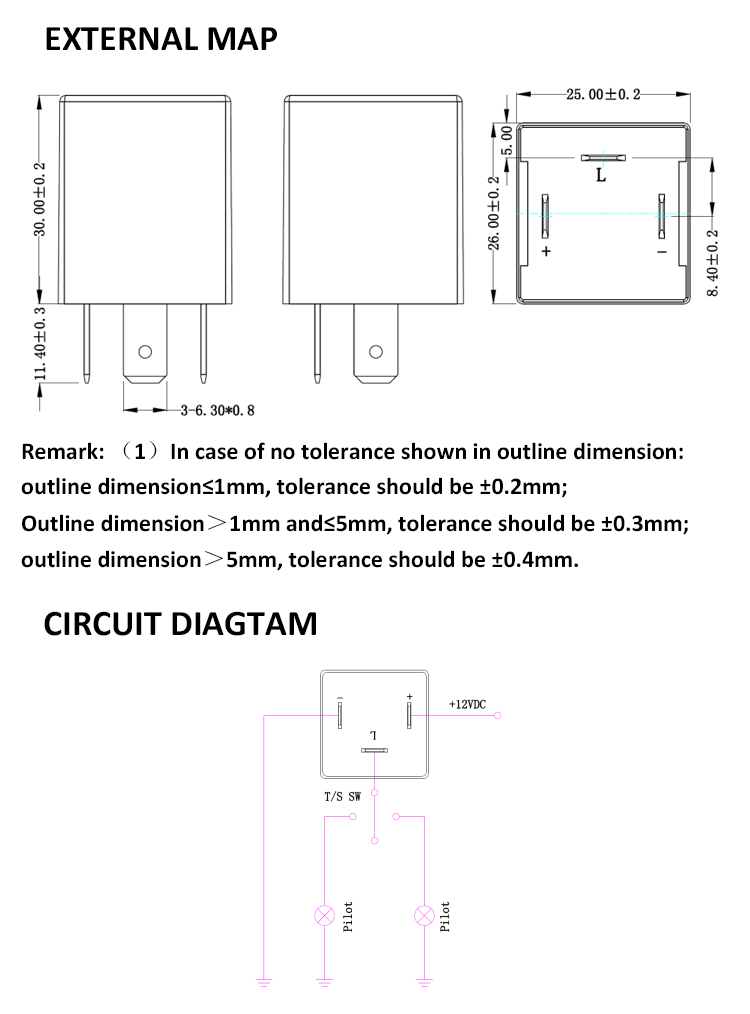

* Protection class: IP50*Dimensions: 25.0X26.0X30.5
Specification | ||||
coil voltage | 12VDC | 24VDC | ||
Operating Voltage | 11VDC~15VDC | 22VDC~30VDC | ||
Test voltage | 13VDC±0.2VDC | 26VDC±0.4VDC | ||
switching power supply | 20℃±2℃ | |||
test temperature | 21W~150W | |||
Lamp failure warning | >140 times/min | |||
Flashing frequency | 60~120 times per minute | |||
duty cycle | 30%~70% | |||
ambient temperature | -40℃~+80℃ | |||
Life | 400 working hours | |||
