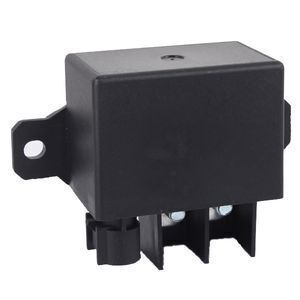

Car Parts Ec290 Preheating Relay Starter C1393315

Supplier: Zhejiang Feileisi Electrical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ross Wang
Price: $4.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	100000 Piece/Pieces per Month;	Model Number:	FLS860;
Release voltage:	≥2.4VDC;	Rated coil power:	4.1W;
Warranty:	1;	Max,Operating Current:	150A;
Voltage:	12V;	Packaging Detail:	1pcs/box 50pcs/ctn 402225.5cm 12KG/13KG;
Size:	987140mm;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Contact Material:	AgSno2;	Place of Origin:	Zhejiang China;
Rated Current:	>50A;	Operating time:	<30mS;
Release time:	<15mS;	pull in voltage:	≤17VDC;
Car Make:	Truck;	Contact Form:	1 from A;
Port:	Ningbo;	Coil Data:	141Ω±10%;
Brand Name:	Foocles;

Car Parts Ec290 Preheating Relay Starter C1393315

Product Description

Relay Features:

Limit off current 150A
1 Terminal limit continuous current 180A
Stability of base structure
Dust cover IP6K5
Outline dimensions: 98*71*40

Relay Specification:

Contact Form	1A
Contact Material	AgSno2
Max. Operating Current	150A
Coil Data	141Ω±10% resistance(680Ω) / 35Ω±10% resistance(250Ω)
Rated voltage of coil	24VDC/12VDC
Rated coil power	4.1W
Pull in voltage	≤17VDC/≤8VDC
Release voltage	≥2.4VDC / ≥1.2VDC
Operate Time	<30mS
Release time	<15mS
Electrical life	100000 times
Mechanical life	1000000 times
Life Between coil&contacts	500VAC/1min
Ambient temperature	-40℃~+85℃
Protection catagory	IP6K5
Terminal type	Insert coil / Screw terminals load
Installation method	Flange mounting

External Dimension:

Remark:(1)In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;

Outline dimension>1mm and≤5mm, tolerance should be ±0.3mm; outline dimension>5mm,

tolerance should be ±0.4mm.

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
