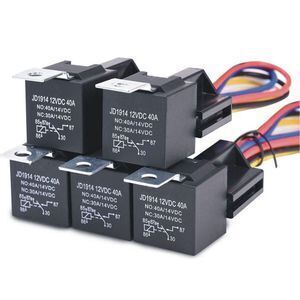

5 pack 30/40 amp 12v waterproof spdt relay

Supplier: Zhejiang Feileisi Electrical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ross Wang
Price: $0.35 / >=25 pieces
Min. Order: 25 pieces

Click here to contact

Product details

Contact Material:	AgSno2;	Port:	Ningbo;
Mechanical Llife:	1000000 Cycles;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Max.Operating Voltage:	27VDC;	Ambient Temperature:	-40°C~+85°C;
Theory:	Electromagnetic Relay;	Contact Load:	Low Power;
Size:	Miniature;	Model Number:	FLS820-1;
Place of Origin:	Zhejiang China;	Operate/Release Time:	10ms/10ms;
Supply Ability:	500000 Piece/Pieces per Month;	Contact Form:	1A, 1B, 1C, 1U, 2A;
Protect Feature:	Sealed;	Usage:	Auto;
Nominal Operating Power:	1.6W, 1.8W;	Max,Operating Current:	40A;
Packaging Detail:	25pcs/box 500pcs/ctn 32.532.529.5cm 16KG/17.5KG;	Electrical Life:	100000 Cycles;
Brand Name:	Foocles;	Rated Voltage:	DC12V/24V;

5 pack 30/40 amp 12v waterproof spdt relay

Product Description

Relay Features:

40A switching capability
1 form A,I form B,1 form C,
1 form U,2 form A contact form
Various mounting terminations available
Sealed IP67 and dust cover types available
Outline dimensions: 28.0 X28.0X25.0

Relay Specification:

Contact Form	1A, 1B, 1C, 1U, 2A
Contact Material	AgSno2
Max. Operating Current	40A
Max. Operating Voltage	27VDC
Insulation Resistance	100MΩ
Rated Load(Resistive load)	1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Dielectric Strength(Coil and Contact)	500VAC
Ambient Temperature	-40°C~+85°C
Operate/Release Time	10ms/10ms
Mechanical Life	1 X10⁶
Electrical Life(min)	1 X10⁵
Terminal Type	Terminal

Coil Ratings:

Normal voltage(VDC)	Pick-up voltage(VDC)	Drop-out voltage(VDC)	Coil resistance(Q±10%)	Parallel resistance(Q±5%)	Equivalent resistance(Q±10%)	Power consumption(W)	Max. allowable overdrive voltage(VDC)
Normal voltage(VDC)	Pick-up voltage(VDC)	Drop-out voltage(VDC)	Coil resistance(Q±10%)	Parallel resistance(Q±5%)	Equivalent resistance(Q±10%)	Power consumption(W)	20℃	85℃
12	8.4	1.2	90	-	-	1.6	20.2	15.7
12	8.4	1.2	80	680	79.5	1.8	20.2	15.7
24	16.8	2.4	360	-	-	1.6	40.5	31.5
24	16.8	2.4	320	2700	317.6	1.8	40.5	31.5

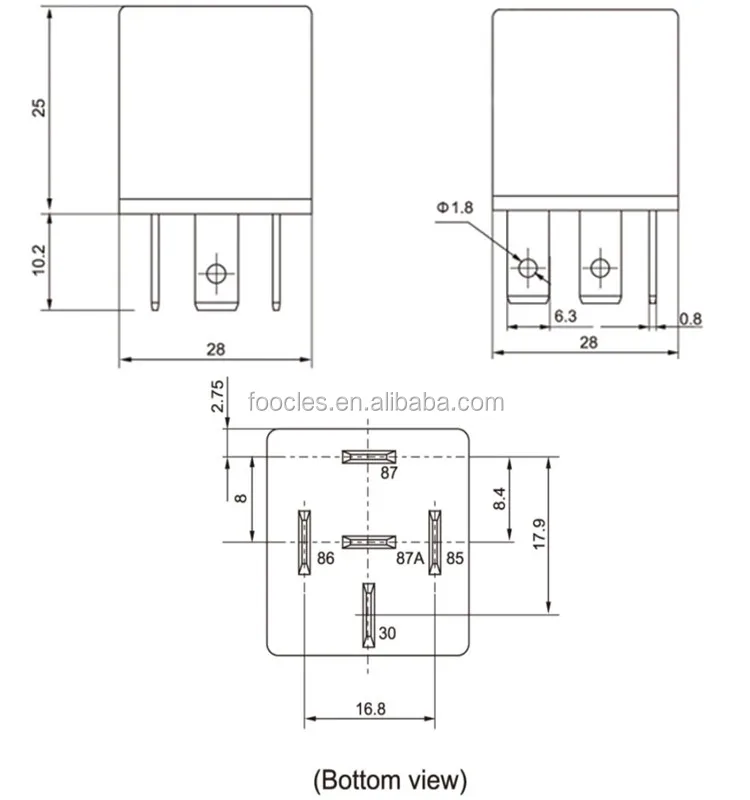

External Dimension:

Remark:(1)In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;

Outline dimension>1mm and≤5mm, tolerance should be ±0.3mm; outline dimension>5mm,

tolerance should be ±0.4mm.
