Video shipment inspection: | if | payment terms: | L/C, Western Union, D/P, T/T |
Main selling points: | high productivity | Marketing Type: | Hot Products of 2021 |
Health status: | new | Core components: | engine, bearing |
type: | Grain Processing Equipment | use: | remove bad seeds |
product name: | seed gravity separator | Origin: | Hebei china |
color: | customer request | weight: | 3200 kg |
Choose Efficiency: | 98.5% | Packaging Details: | Factory standard packaging |
Function: | processed grains | Showroom location: | Kazakhstan, Nigeria |
Warranty: | 2 years | Advantage: | High capacity |
Core component warranty: | 2 years | port: | Tianjin Port, China |
Supply capacity: | 100 sets per month | After warranty service: | Serve |
Dimensions (L*W*H): | 3810*2960*2935 | brand: | Helida |
Applicable industries: | Food & Beverage Store,Farm,Food & Beverage Factory,Food Store | capacity: | 8000 kg/h |
Certification: | International Organization for Standardization | Mechanical test report: | if |
Power (kW): | 14.32 | OEM service: | screen customization |
Production capacity (kg/hour): | 8000 - 10000 | Scope of supply: | seed processing plant |
Mesh Size(mm): | 3150*1380 | | |
Product overview

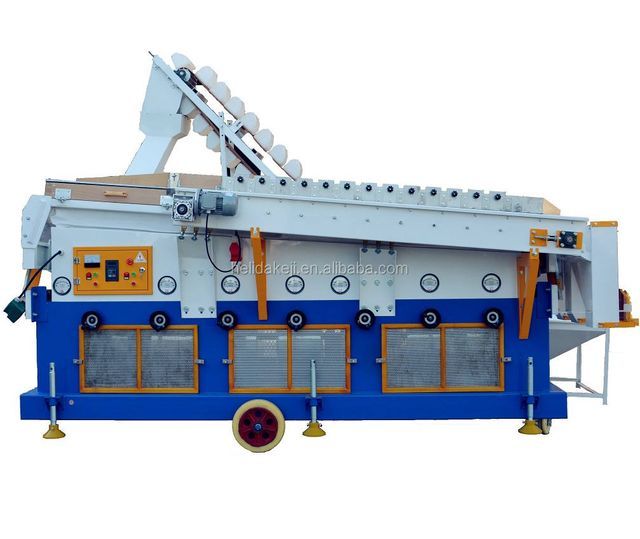

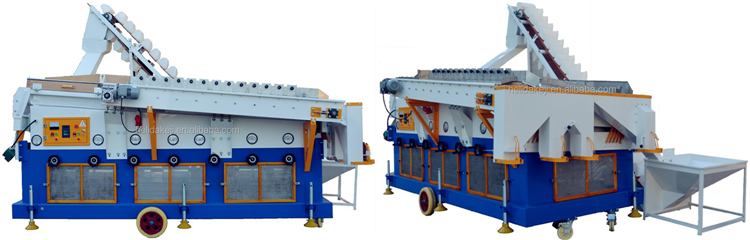

5XZ-8 gravity separator

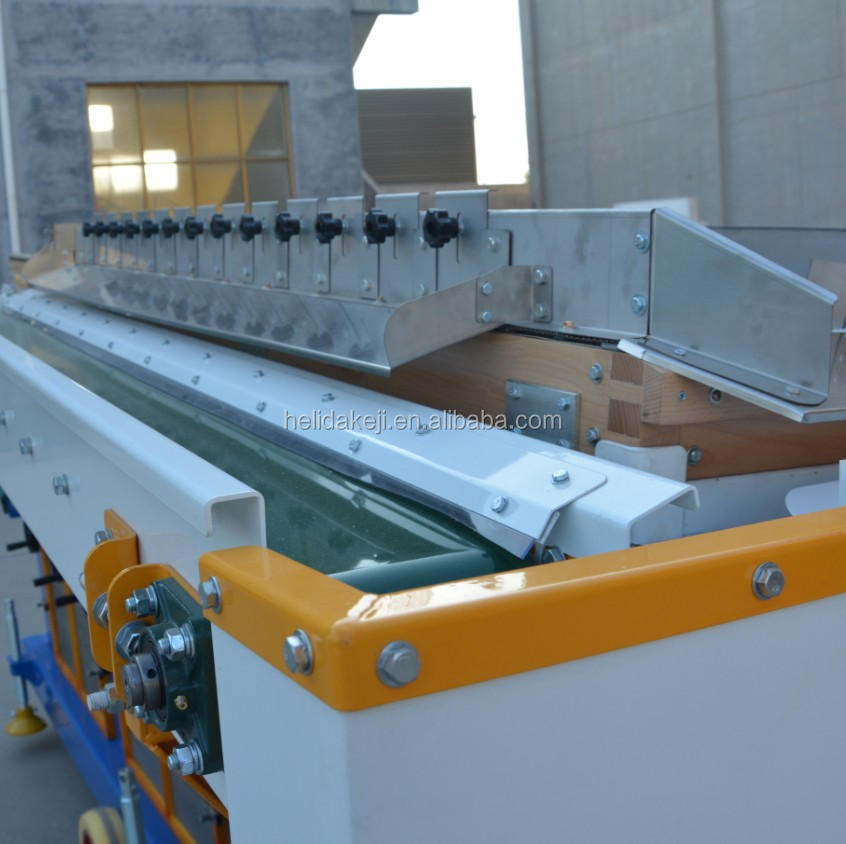

Notable features• Rectangular tabletops offer greater capacity and precision, allowing for quick and easy type interchange. • Dynamic fan balancing with individually adjustable air controls for each fan for precise airflow control. • All fans are mounted on a common shaft. • Wide range variable table swing speed. • Wide range of variable inclination of the deck both horizontally and vertically. • Air chamber, frit assembly and spout are self-cleaning. • Belt guard provided. • Sieve reciprocating motion is provided by eccentric and connecting rod. • Heavy-duty, sturdy structural frame absorbs vibration. • Seed collection spout with bag holder. •The eccentric device is balanced, so that the deck has a smooth swing action.
Teff, sunflower seeds, sorghum, rice, red kidney beans, oilseeds, peanuts, pine nuts, millet, fennel, corn seeds, coffee beans, cocoa beans, sorghum seeds, almonds, adzuki beans, barley, black beans, black sesame, cassia seeds, All of these seed cleaning grading machines are available
List of functions
compact sizesafety frame
simple control
Easy to maintain
Versatility
product specification
product name | Model | Dimensions: length*width*height (mm) | Capacity(T/H) | strength | Weight (kg) | Mesh size(mm) |
gravity separator | 5XZ-8 | 4060*1800*2800 | 8 | 14.32 | 3200 | 3150*1380 |

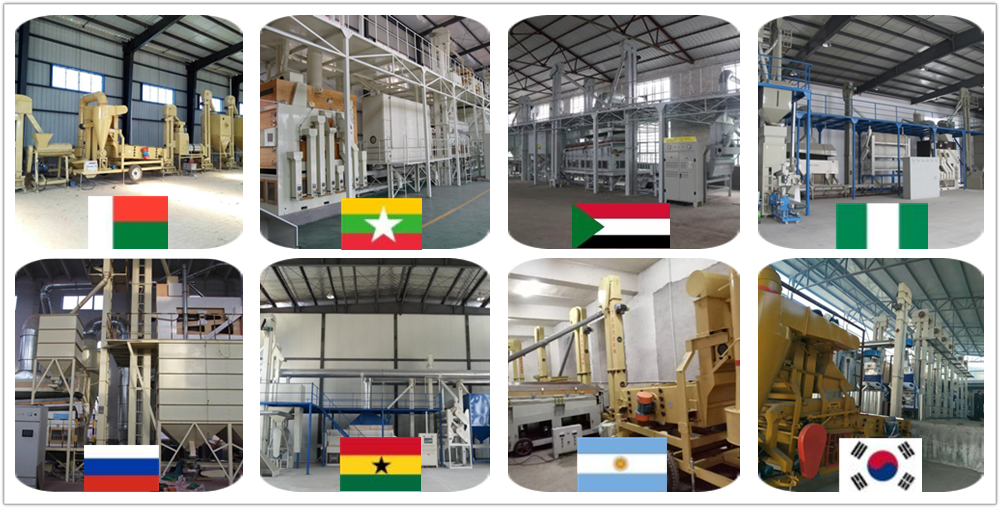

successful project
We are a stone removing machinery manufacturer in China, specialized in agricultural machinery business for more than 10 years. Our products are not only widely used in our local area, but also exported to more than 30 countries around the world, such as the United States, Germany, South Korea, and Argentina.
