usage: | Grain seed cleaning and screening | Supply capacity: | 100 Chia Seeds Weekly Grain Gravity Separator |
Showroom location: | not any | Place of origin: | Henan, China |

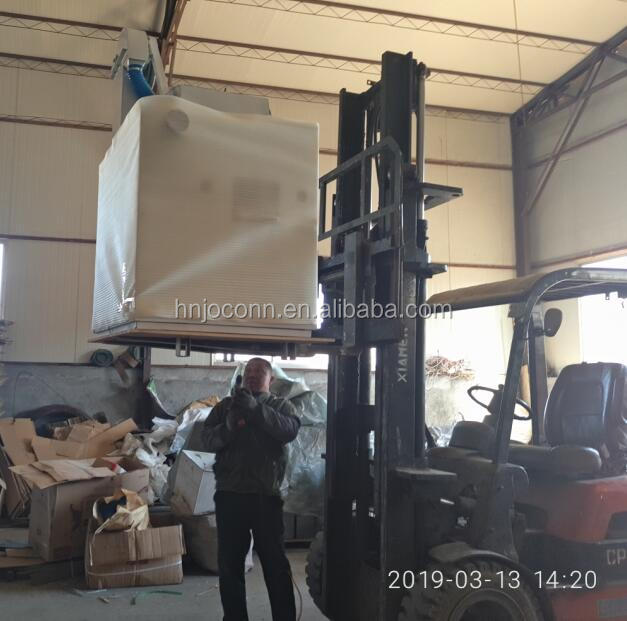

Packaging details: | Grain gravity separator wooden box | feature: | high efficiency |
Dimensions (length*width*height): | 1170*910*1890mm | Screening method: | Wind, gravity, vibration |
Health status: | new | Core component warranty: | 2 years |
Warranty: | 1.5 years | Name: | Grain seed cleaning and screening machine |
Marketing type: | New products for 2022 | After-sales service provided: | Engineers can repair machinery overseas |
type: | Cleaning, screening and grading | capacity: | 900-1000kg/hour |
Video outbound inspection: | if | brand: | Qiao Kang |
weight: | 220kg | application: | Agriculture, Breeding Farm, Seed Industry |
strength: | 2.2kW | pack: | wooden box |
Core components: | Engine, motor | Processing material: | Corn, wheat, sesame, soybeans, cocoa, coffee beans |
Power (kW): | 2.2kW | use: | Screen cleaning |
Applicable industries: | Hotels, manufacturing plants, machine repair shops, food and beverage plants, farms, restaurants, household, retail, food and beverage stores, others | Production capacity (kg/hour): | 400-500 |
Main selling points: | multifunctional | Mechanical test report: | if |
port: | Qingdao Harbor Grain Gravity Separator | Package preview: | |
payment terms: | Western Union, wire transfer, MoneyGram |
Sesame gravity sorting machine/Chia seed grain gravity sorting machine/Hemp seed gravity sorting machine
Whatsapp/WeChat +86 15093228930
Introduction to Grain Seed Cleaning and Screening Machine
Combining winnowing and specific gravity screening based on differences in size, weight or shape of materials.
Working principle of chia seed grain gravity separator ------
Using the positive pressure method, useThe combined effect of airflow and vibration frictionOn the material, the material with a larger specific gravity settles to the bottom layer and moves to a high point through the vibration friction of the screen surface, while the material with a smaller specific gravity is suspended by the air flow. The surface flow of the material layer is low. The purpose of separation is achieved through the specific gravity of various materials.
Grain seed cleaning and screening machine canEffectively removes impuritiesIn materials (mildewed grains, insect-eaten grains, black powder grains, bran grains, sprout grains, heavy miscellaneous grains, small miscellaneous grains, dust, etc.).
Grain seed cleaning and screening machines are widely used in the sorting and processing of corn, wheat, rice, cassia, soybeans, vegetables and other crop seeds and feed seeds, horticultural seeds, forestry seeds and other seeds.
This machine can choose different sieves and gravity tools for cleaning and screening according to the customer's grains/seeds. Custom sieves and gravity tools are also available.
feature
1. The entire frame is made of high-quality steel plates.Anti-rust treatment, sturdy and durable, extending service life.
2. The hopper is located under the machine and is equipped with a lift, making it more convenient to add materials; the entry and exit baffles are easy to operate.
3. Wind selection, vibration screening, gravity screening, multiple screening, higher accuracy.
4. Suitable for various materials, agriculture, animal husbandry, forestry, seed industry, etc.
5. The whole machine has the characteristics of simple structure, flexible operation, low power consumption, stable operation, and strong applicability. Users can choose to replace the screen plate and weight screen to screen different materials, thereby achieving simple grading and implementing one machine for multiple uses.
6. The selection speed is fast, the selection is clean, the closed structure is clean and dust-free, suitable for indoor operations, and the operation is simple.Especially suitable for large and medium-sized livestock farms.
7 The chia seed grain gravity separator can quickly remove moldy particles that are eaten by insects in the feed, effectively avoiding the negative consequences such as mass death and infertility of livestock due to eating moldy feed.
parameter
medium sizeOdell |
JCJXJ-101 fully enclosed |
JCJXJ-102 semi-closed |
aspect |
1170*910*1880MM |
1170*890*1880MM |
weight |
220kg |
220kg |
capacity |
900-1000kg/hour |
900-1000kg/hour |
Cleaning and screening rate |
>95% |
95% |
Filter method |
Air separation, vibrating screen, gravity separation |
Air separation, vibrating screen, gravity separation |

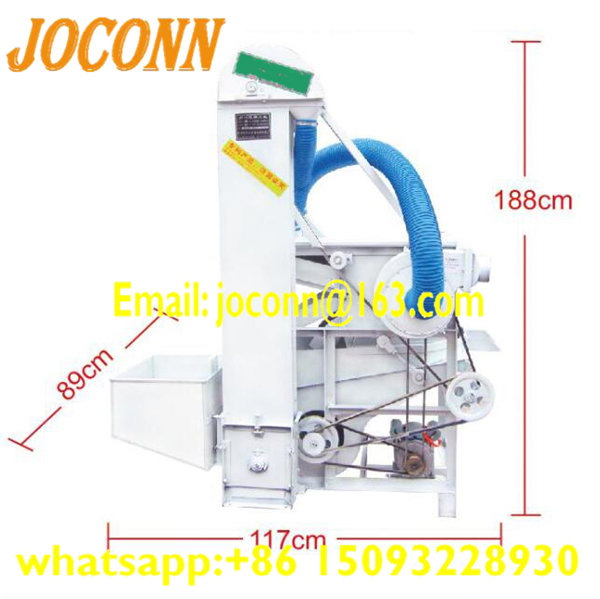

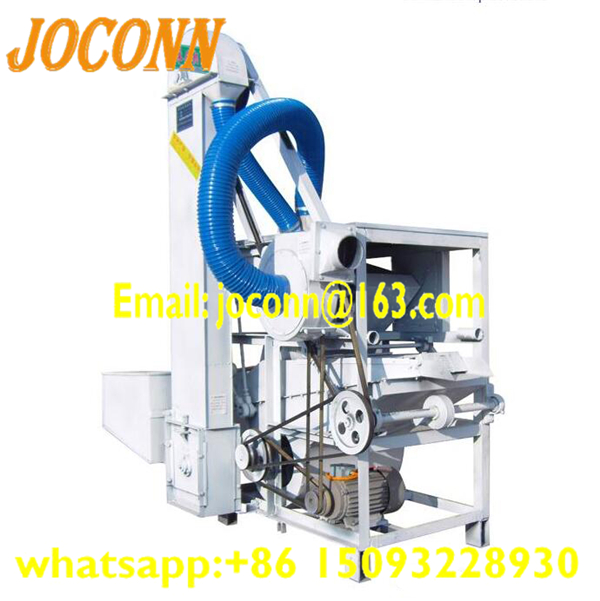

1 semi-closed model

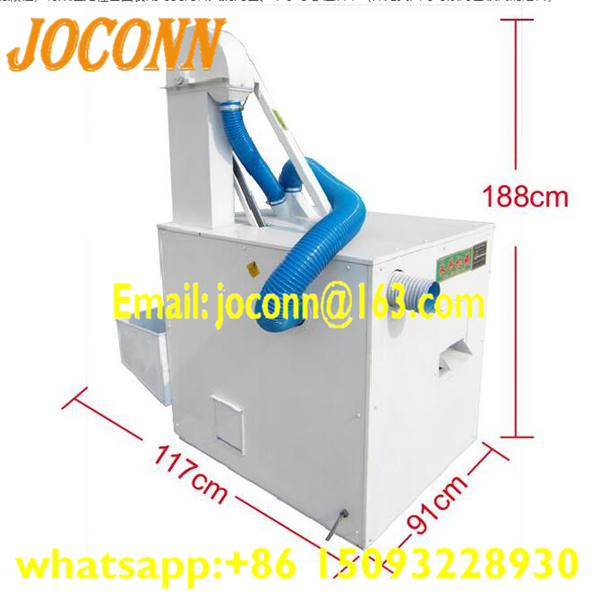

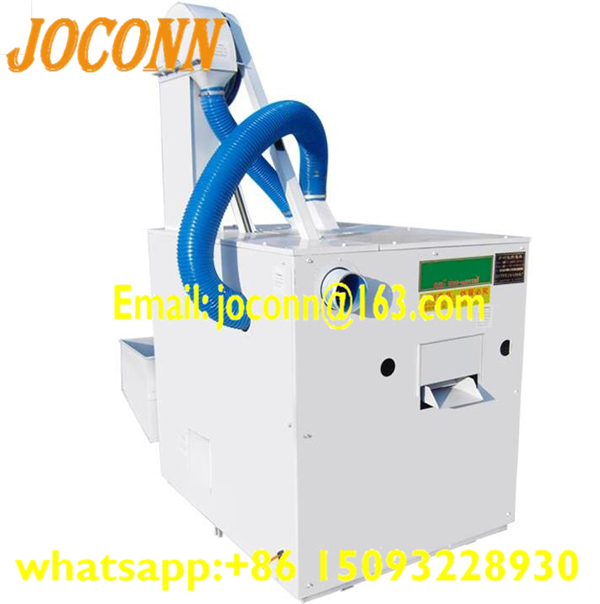

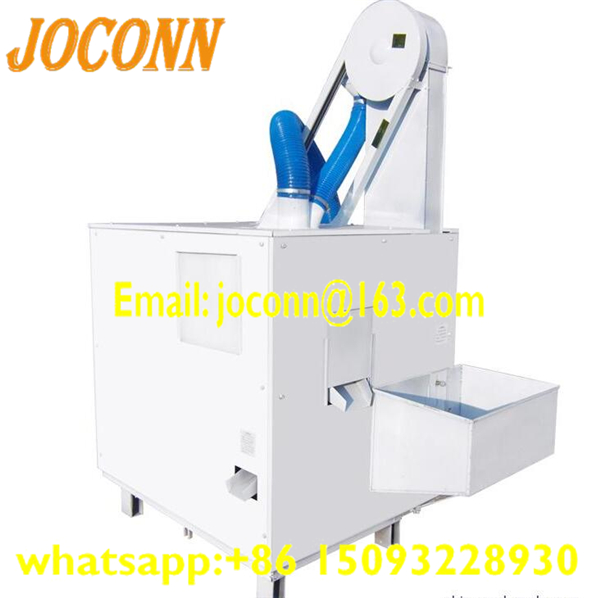

2. Fully enclosed model

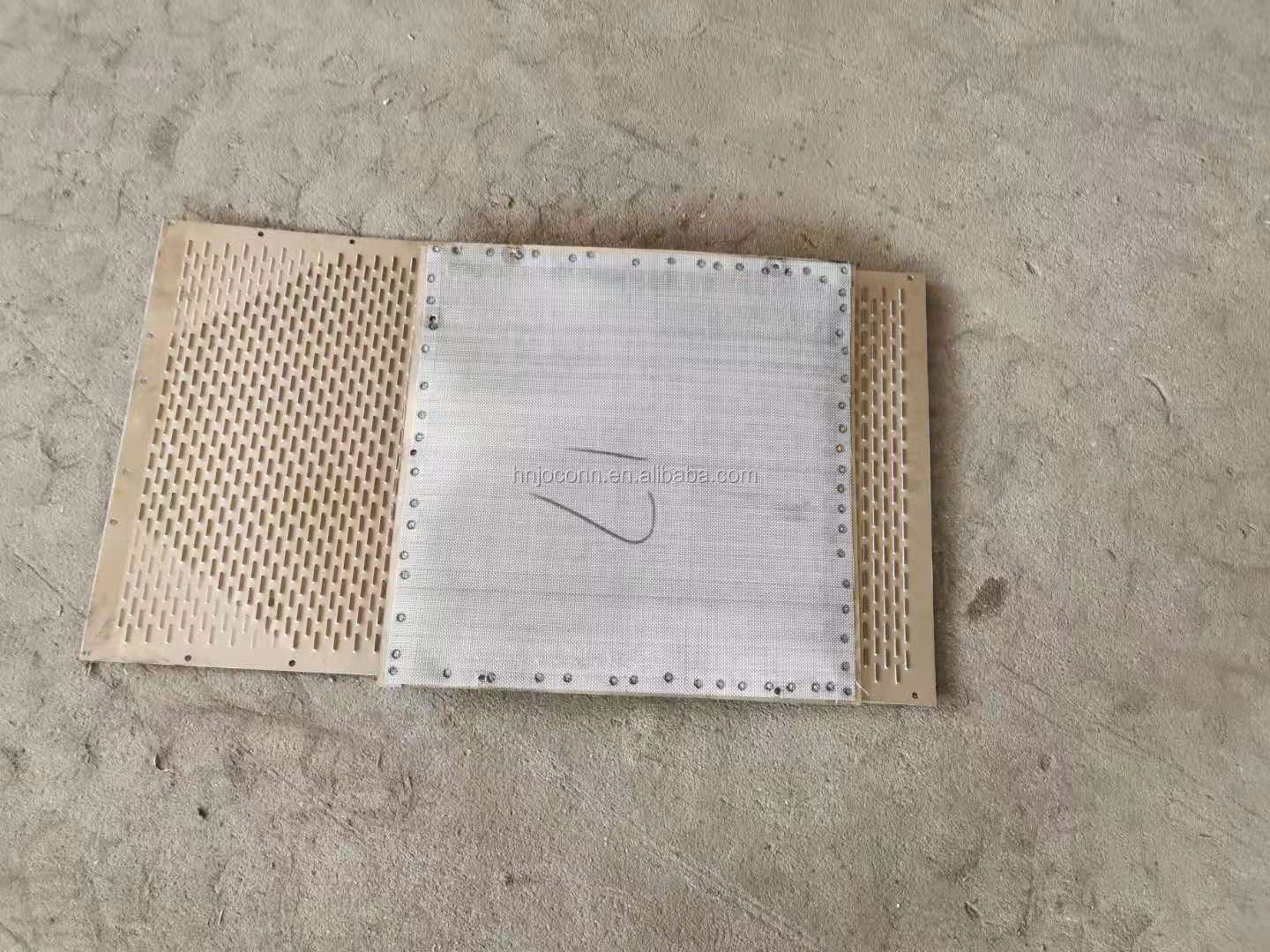

Screen
work effect
