Cam-loc Swivel Anchor 4 1/2" * 2 3/8" EU 8RD API Standard Oil & Gas Equipment

Supplier: WEIFANG VICTORY MACHINERY TECHNOLOGY CO., LTD.
Region: shandong, China
Contact: Ms Ceci Li
Price: $410.00 / 10 - 29 pieces
$375.00 / >=30 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Local service location:	not any	Mechanical test report:	if
Package preview:		application:	oilfield
Marketing Type:	2019 Hot Products	MOQ:	1
model:	4 1/2" * 2 3/8" EU	quality::	good/stable
type:	Downhole Tools	Core components:	blade
After warranty service:	online support	model:	4 1/2" * 2 3/8" EU
type:	connect to PCP	Health status:	new
Warranty:	1 year	Packaging Details:	Carton
Core component warranty:	6 months	standard:	API
pack::	Carton/Plywood Box	Video shipment inspection:	if
Applicable industries:	Energy and Mining, Oil and Gas Underground Tools	payment terms:	T/T, Western Union
port:	Qingdao Port, Shanghai Port, Guangzhou Port, Ningbo Port, Tianjin Port	use:	For connecting PCP stators and anchors
brand:	victory	Showroom location:	not any
Supply capacity:	1500 pieces per month

Product Description

The Cam-Loc Progressive Cavity Pump (PCP) Anchor combines proven cam-lock action with an independent slide activation mechanism. Additional bypasses allow for additional flow area and prevent sand bridges around the tool. Specialized coatings are available to prevent corrosion or scaling and reduce erosion.

Operation:

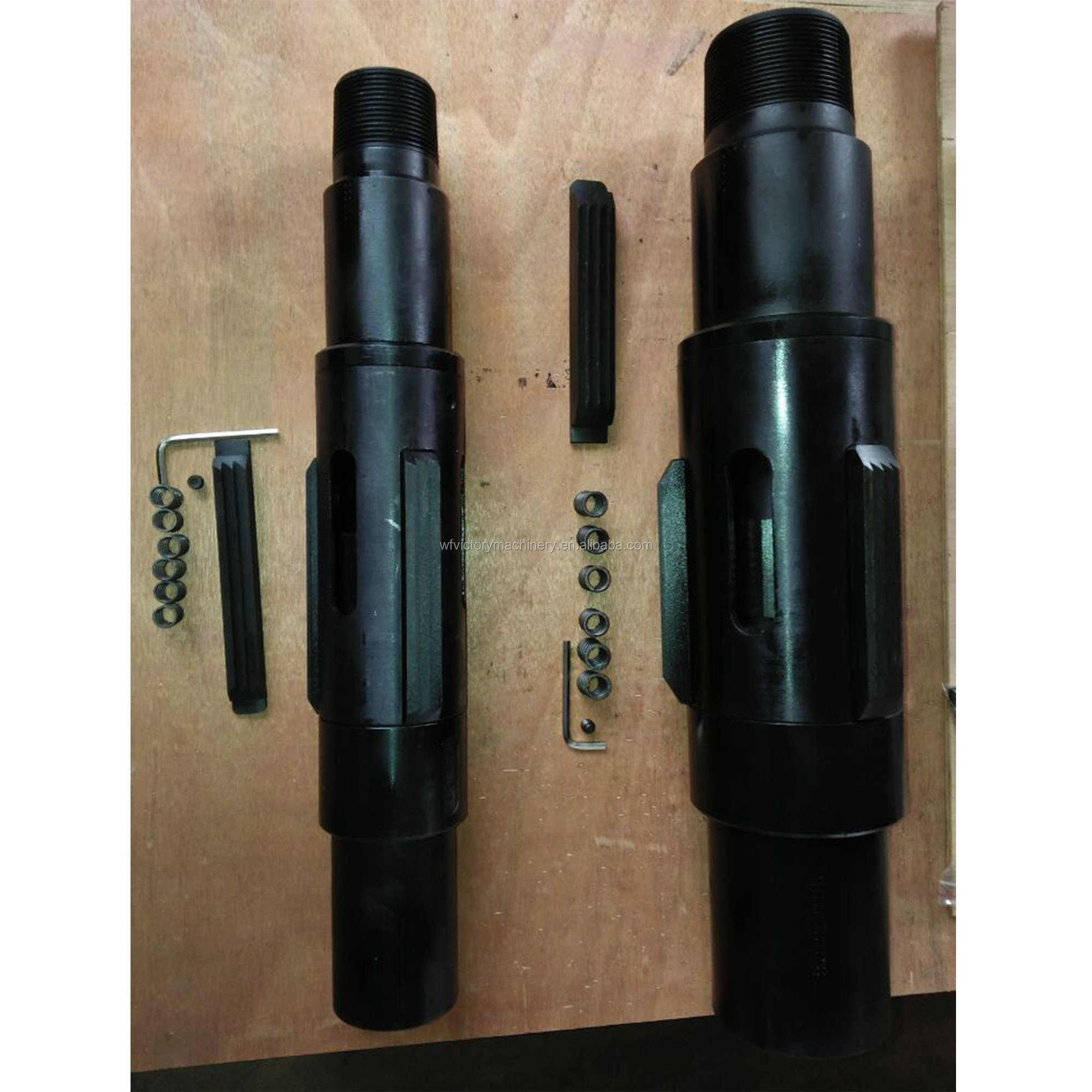

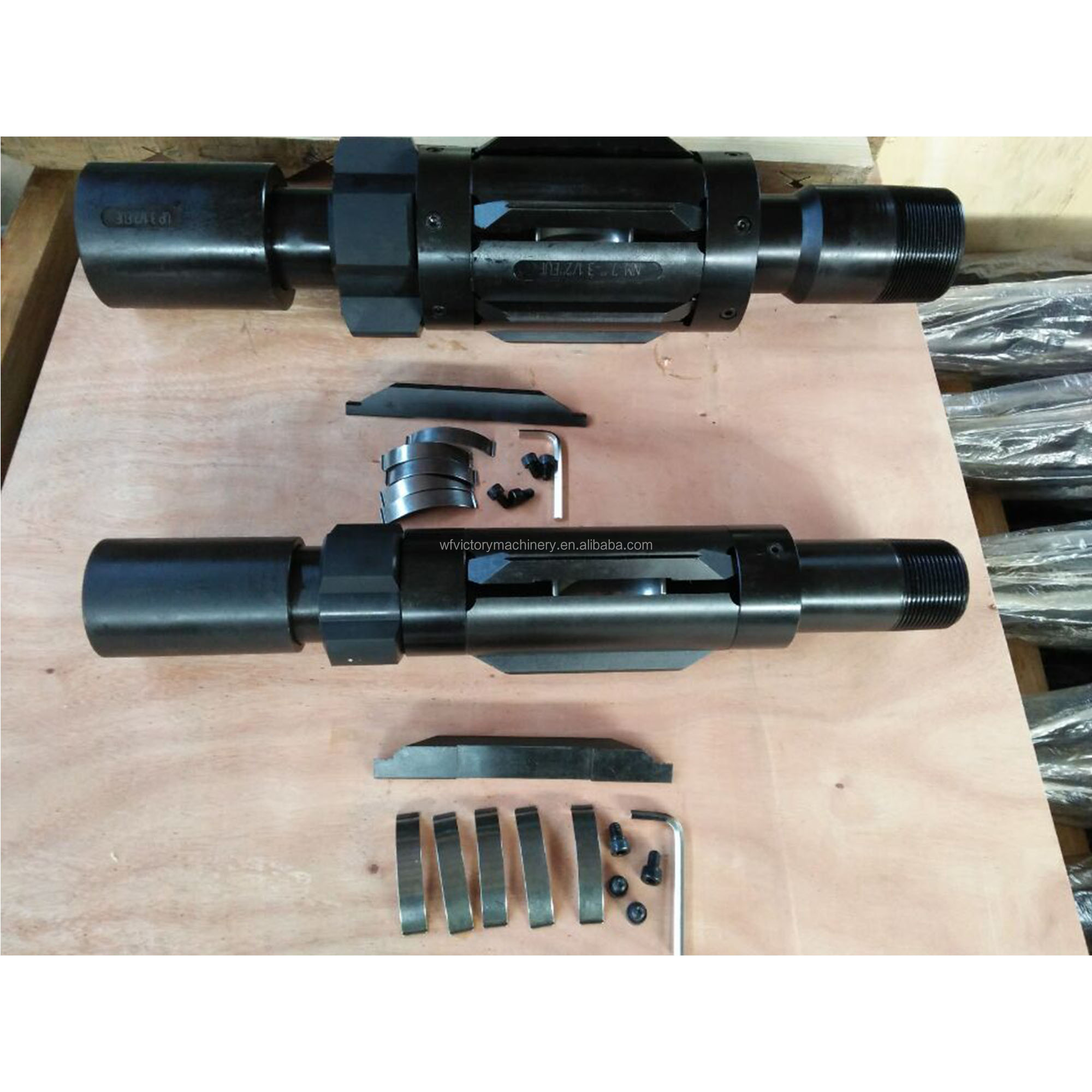

Cam-Loc anchors use separate slips and drag blocks to eliminate premature slip wear during installation. As the slips run in the bore, the spring retracts the slips into the body. The drag block centers the tool and provides frictional interference to deploy the slips when torque is applied.

When torque is applied, the cam profile moves under the slips and forces them outward. The cam drives the slips into contact with the casing ID. Large, vertical teeth grip the sleeve securely, preventing clockwise rotation while still allowing the vertical movement of the tube to expand or contract.

Using separate slips and drag blocks provides greater cross-sectional area for each component, which translates into more area for load distribution in each section. The result is less wear on the slips, drag blocks and casing ID, resulting in increased service life.

application
Applications requiring protection of pump components from rotation.

benefit
* Provides greater cross-sectional area of each component via separate sliders and drag blocks
* Less wear on slips, resistance block and casing inner diameter
* Avoid sand bridges and extra flow areas around tools
* Protection against corrosion, scaling and erosion by special coating
*Use frictional interference to spread out the slide when torque is applied
*Easy to install

feature
apply to
*2.375 inches (60.3mm) EUE
*2.875 inches (73.0mm) EUE
*3.5" (88.9mm) EUE
*4.5 inches (114.3mm) EUE
threaded connection

*Pump rotates clockwise to lock
*Replaceable slips and drag blocks
* Reusable and repairable
*Anchor sizes cover casing ID ranges from 4.5 to 10.75 inches (144.3 to 273.1 mm)

torsion anchor
