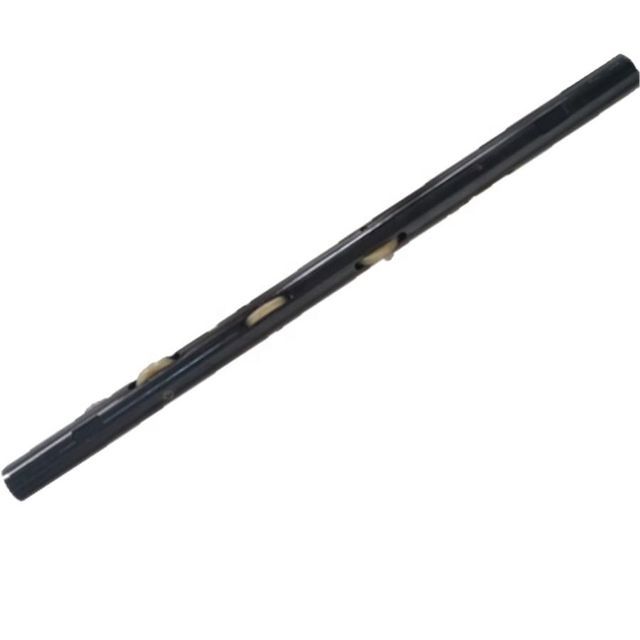

Puyang factory wheel roller guide / sucker rod centralizer sucker rod

Supplier: Puyang Renhe Industry Co., Ltd.
Region: Henan, China
Contact: Ms Lowen Liu
Price: $30.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Material:	Alloy steel (carbon steel) and nylon	After warranty service:	Video technical support, online support
port:	Tianjin/Qingdao Port	Core component warranty:	not available
brand:	Renhe	Showroom location:	not any
payment terms:	L/C, T/T	Core components:	zhengtangzhuang
Applicable industries:	Energy and Mining	Mechanical test report:	if
Supply capacity:	10000 pieces per month	Package preview:
Warranty:	unavailable	Health status:	new

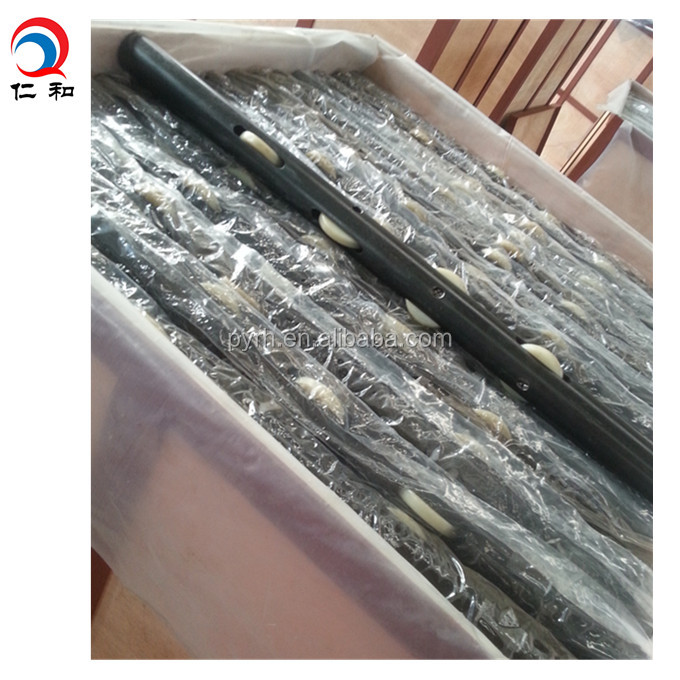

Packaging Details:	Plywood boxes	Certification:	ISO9001:2008
Marketing Type:	normal product	Local service location:	not any
Video shipment inspection:	if

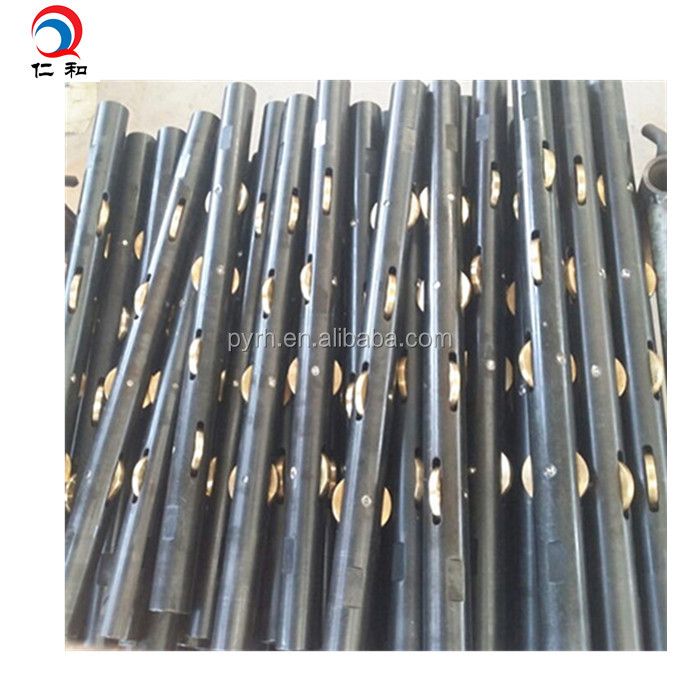

Puyang factory pump rod roller guide

1. The roller centralizer should be installed:

1) On the first two or three rods above the downhole pump.

2) Intermittent occurrences throughout the rod indicating wear on the rod or tubing.

3) Where the hole skew occurs is known.

4) On the first two or three rods below the stuffing box.

2. Technical parameters

Specification	Dimensions (inches)
Specification	diameter	length	groove length
5/8'' Rod/2-3/8'' Tube	1.50	27	1.80
3/4'' Rod/2-3/8'' Tube	1.50	27	1.80
5/8'' Rod/2-7/8'' Tube	1.50	27	2.25
3/4'' Rod/2-7/8'' Tube	1.50	27	2.28
7/8'' Rod/2-7/8'' Tubing	1.625	27	2.28
1'' rod/2-7/8'' tubing	2.0	29	2.28
3/4'' Rod/3-1/2'' Tube	1.50	31	2.75
7/8'' rod/3-12'' tubing	1.625	31	2.75
1'' rod/3-1/2'' tubing	2.0	31	2.75

3. Temperature attention

Standard models are suitable for applications with wellbore temperatures up to 175°F. (with glass fiber reinforced nylon 6 wheels), for use at higher temperatures special metal wheels are used.

4. Materials

guide/coupler

Standard guide/coupling bodies are machined from 35CrMo.

special material

Other metals, such as steel, are available through special "orders" for certain needs

Specifications for additional strength and/or corrosion resistance,

Wheels and Rolling Pins

Wheels mounted on stainless steel journals and tumblers, standard wheels, suitable for applications up to 175°F, made of glass fiber reinforced nylon 6

5. Sucker rod roller centralizer parts
