2019 Factory price tubing anchor for oil filed

Supplier: Puyang Renhe Industry Co., Ltd.
Region: Henan, China
Contact: Ms Lowen Liu
Price: $650.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Type:	new;	Use:	Oil;
Material:	Carbon Steel;	Payment Terms:	T/T;
Package Preview:	;	Applicable Industries:	Energy & Mining;
Supply Ability:	1000 Piece/Pieces per Month;	Connection thread:	2 7/8 EUE B*P;
Port:	Tianjin Port/Qingdao Port;	Model Number:	API;
Packaging Detail:	as per consumer's need;

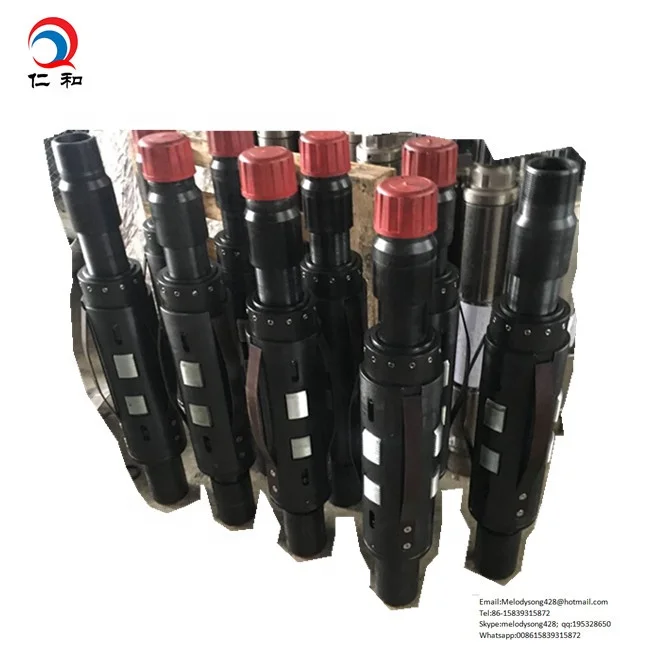

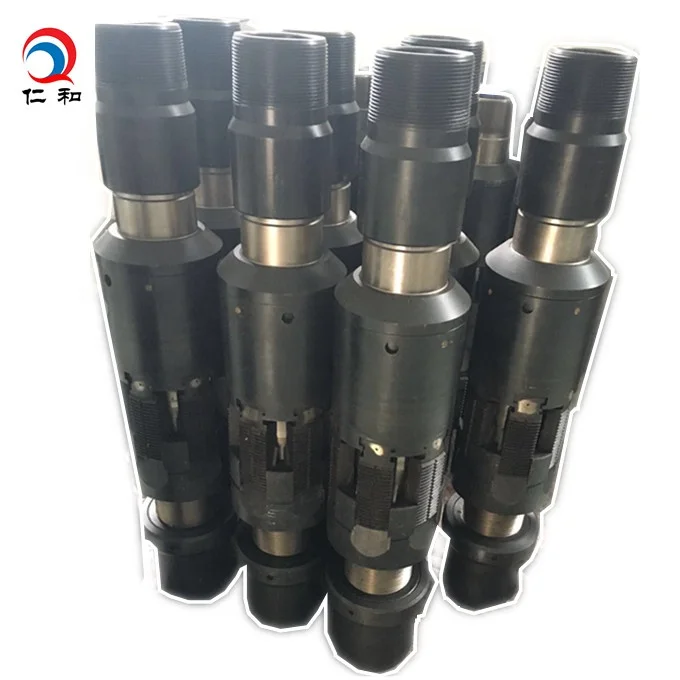

2019 Factory price Tubing Anchor for Oil field

1.Breif Intrduction

Our tubing anchor anchor the tubing string in a rod pumping well .The tubing anchor effectively reduce rod, tubing, and

casing wear. This cuts operating costs. Elimination of breathing and buckling of the tubing string also increases production

by lengthening the effective stroke of the pump, which increases volumetric efficiency. Based on proven technology, the Anchor uses hydraulically activated hold-down slips to provide an anchoring point for the tieback or workstring during stimulation operations. These tubing anchors

are the most economical and effective insurance you can buy against premature repairs and downtime.

2.Technical and Specification

Model	Length (mm)	Max OD (mm)	Min ID (mm)	Pressure(MPa)	Max OD when teeth open	Setting Pressure (MPa)	Connecting Thread	Casing ID to be used
51/2"	580	115	62	25	128	8-12	2-7/8 TBG	121-124
7"	660	150	76	25	168	8-12	3 1/2 TBG	155-166
9 5/8"	970	208	76	25	245	8-12	3 1/2 TBG	218-240
9 5/8"	970	208	98	25	245	8-12	4 1/2 TBG	218-240
