MPQ: | 1000pcs/inner box | speed: | blow quickly |
Production date code: | 2023 | shape: | square |
Package: | recording | type: | square fuse |

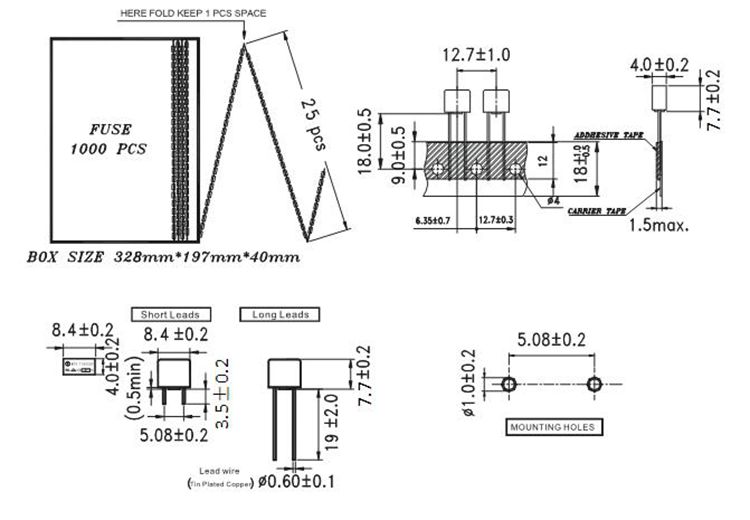

Packaging Details: | Tape packing 1000pcs per inner box, 10pcs inner box per outer carton. The outer box size is 58X36X23HCM | brand: | Anfu |
model: | MTS1100A | feature: | low voltage |
application: | circuit overcurrent protection, thermal | Dimensions/dimensions: | 8x4x7.7MM |
MOQ: | 30000PCS | port: | Shenzhen |
Packaging/Case: | Thermoplastic 94 V-0 | Cross reference: | radial leads |
Supply capacity: | 3,000,000 pieces per day | payment terms: | Western Union, T/T |
Package preview: | series: | MTS/MFS | |
describe: | Micro Micro Fuses | Rated voltage: | 250V |
color: | Black | Origin: | Guangdong, China |
Name: | Micro Micro Fuses | Installation type: | insert |
Amp range: | 500mA~20A |

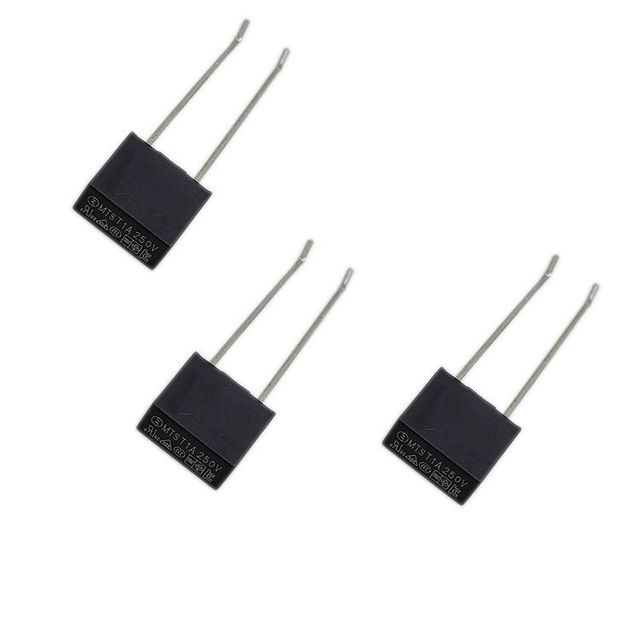

MTS Square Slow Blow Time Delay Radial Leaded Subminiature Micro Fuse 8x4MM 250V 300V
This product is suitable for overcurrent protection of various electronic equipment circuits. Widely used in battery charging, consumer electronics, power supplies, industrial controllers and other industries.

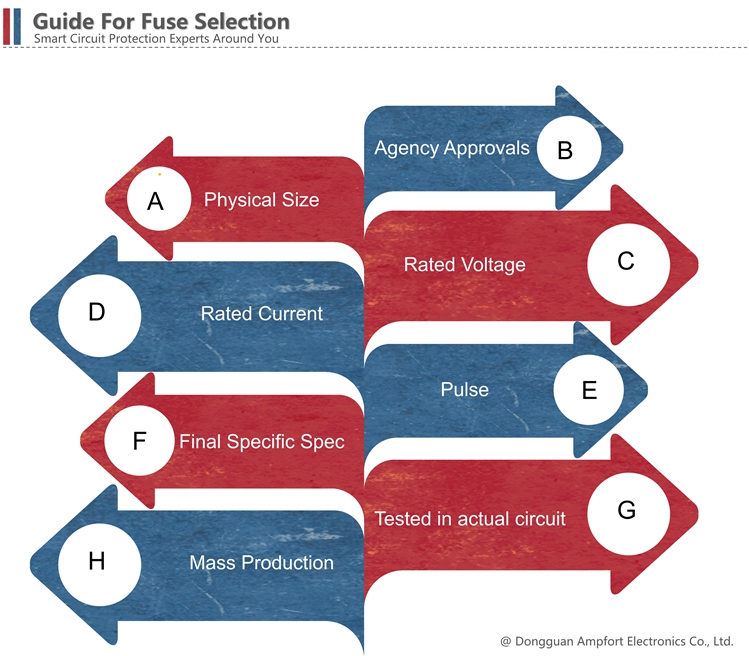

AMPFORT Miniature Fuses Selection Guide | |||||
series | Dimensions (mm) | hit type | Voltage | current range | interrupt rating |
multifunction controller | 8x4x5 | act fast | 250V/300V | 0.05~25A | 35A@250V/300V |
mobile communication center | 8x4x5 | blow slowly | 250V/300V | 0.05~25A | 35A@250V/300V |
MFS | 8x4x7.7 | act fast | 250V | 0.05~20A | 35~50A@250V |
MTS | 8x4x7.7 | blow slowly | 250V | 0.05~20A | 35~50A@250V |
network file system | 8x4x7.7 | Fact acting | 300V | 0.05~20A | 35~50A@300V |
New Taiwan dollar | 8x4x7.7 | blow slowly | 300V | 0.05~20A | 35~50A@300V |
flight management system | 8x4x7.7 | Fast acting | 350V/400V/500V | 0.05~20A | 35~50A@300V/400V/500V |
Transcranial Magnetic Stimulation | 8x4x7.7 | blow slowly | 350V/400V/500V | 0.05~20A | 35~50A@300V/400V/500V |
96th floor | 12x6x9 | act fast | 125V/250V/300V/350V/500V | 0.05~20A |
100A@500V 400A@125V/250V 100A@300V/350V |
96 tons | 12x6x9 | blow slowly | 125V/250V/300V/350V/500V | 0.05~20A |
100A@500V 400A@125V/250V 100A@300V/350V |
application
flat screen tv | industrial equipment |
LCD Monitor | Power Adapter |
Lighting system | audio/video system |
medical equipment | LCD Backlight Inverter |
Table of contents No. |
ampere score |
Voltage score |
maximum voltage drop (mv) |
I2TM melting Points (A2.S) |
MTS0050A |
50mA |
250V |
1600 |
0.015 |
MTS0063A |
63 mA |
250V |
1600 |
0.016 |
MTS0080A |
80 mA |
250V |
1500 |
0.017 |
MTS0100A |
100mA |
250V |
1500 |
0.02 |
MTS0125A |
125mA |
250V |
760 |
0.10 |
MTS0160A |
160mA |
250V |
500 |
0.15 |
MTS0200A |
200mA |
250V |
260 |
0.21 |
MTS0250A |
250mA |
250V |
240 |
0.48 |
MTS0315A |
315mA |
250V |
220 |
0.78 |
MTS0400A |
400mA |
250V |
200 |
1.22 |
MTS0500A |
500mA |
250V |
190 |
2.11 |
MTS0630A |
630mA |
250V |
180 |
2.88 |
MTS0800A |
800mAh |
250V |
160 |
3.92 |
MTS1100A |
1A |
250V |
140 |
5.77 |
MTS1125A |
1.25A |
250V |
130 |
8.34 |
MTS1160A |
1.6A |
250V |
120 |
13.60 |
MTS1200A |
2A |
250V |
100 |
26 |
MTS1250A |
2.5A |
250V |
100 |
42 |
MTS1300A |
3A |
250V |
100 |
45 |
MTS1315A |
3.15A |
250V |
100 |
Post-90s |
MTS1350A |
3.5A |
250V |
100 |
100 |
MTS1400A |
4A |
250V |
100 |
120 |
MTS1500A |
5A |
250V |
100 |
170 |
MTS1630A |
6.3A |
250V |
100 |
290 |
MTS1800A |
8A |
250V |
100 |
320 |
MTS2100A |
10A |
250V |
95 |
450 |
MTS2100A |
12A |
250V |
95 |
460 |
MTS2100A |
15A |
250V |
85 |
480 |
MTS2100A |
16A |
250V |
85 |
515 |
MTS2100A |
20A |
250V |
85 |
960 |
Material details
No. | Part Name | Material |
1 | cap |
Black or brown thermoplastic polyamide PA 6.6, UL 94 V-0 |
2 |
according to |
Black or brown thermoplastic polyamide PA 6.6, UL 94 V-0 |
3 | fuse element | alloy |
operating characteristics
% rated current (In) |
blowing time |
150%* at |
at least 60 minutes |
210%* at |
up to 2 minutes |
275%* in |
400ms~10s |
400%* in |
150 milliseconds ~ 3 seconds |
1000%* in |
20ms~150ms |
