Sales unit: | single product | Gross weight per piece: | 0.002 kg |
Pay: | trade assurance | Single package size: | 2X1X1 cm |
type: | fuse | application: | power supply |
Packaging Preview: | place of origin; place of origin: | the Philippines | |
delivery time: | within 1 day | Card: | small fuse |
Shipping method: | DHL | model: | 0216.050MXP |
data sheet: | contact us! | Bale: | standard packaging |

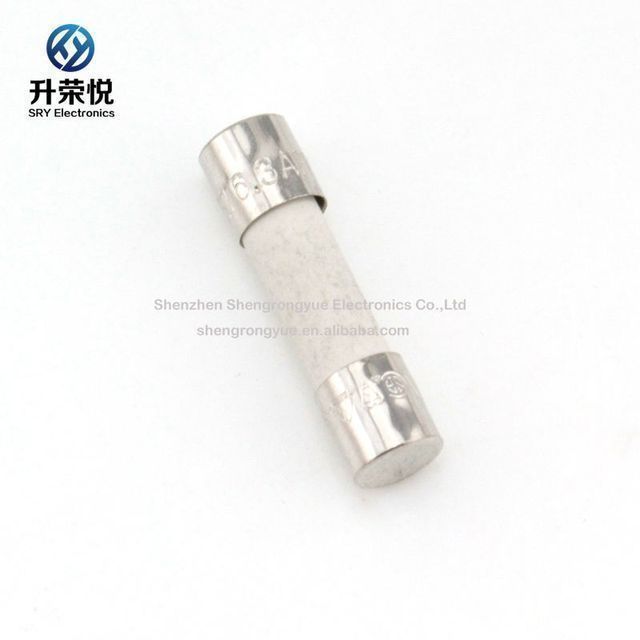

5x20mm fast acting ceramic body box fuse designed to IEC specifications.
feature:
application:
Used as supplementary protection in electrical appliances or used equipment to provide individual protection for components or internal circuits.
Littelfuse, Axial Lead & Box Fuses, 5×20 mm > Quick Action > 216 Series, Taiwan Design
Model |
Amplifier code |
Ampere rating |
Rated voltage (V) |
interrupt rating |
Nominal Cold Resistance (Ohms) |
Nominal melting I2t (a2second) |
Nominal voltage drop at rated current (mV) |
Maximum power dissipation at 1.5ln(W) |
Institutional Approval |
|
0216.050
|
.050
|
0.05
|
250
|
1500A@250VAC
|
15.9000
|
0.00019
|
10000
|
1.6
|
||
0216.063
|
.063
|
0.063
|
250
|
10.4500
|
0.00054
|
8800
|
1.6
|
|||
0216.080
|
.080
|
0.080
|
250
|
7.8850
|
0.00084
|
7600
|
1.6
|
|||
0216.100
|
.100
|
0.1
|
250
|
5.7925
|
0.00450
|
7000
|
1.6
|
|||
0216.125
|
.125
|
0.125
|
250
|
3.6750
|
0.00546
|
5000
|
1.6
|
|||
0216.160
|
.160
|
0.16
|
250
|
5.3490
|
0.00576
|
4300
|
1.6
|
|||
0216.200
|
.200
|
0.2
|
250
|
3.3500
|
0.00439
|
3500
|
1.6
|
|||
0216.250
|
.250
|
0.25
|
250
|
2.3500
|
0.00891
|
2800
|
2.5
|
|||
0216.315
|
.315
|
0.315
|
250
|
1.8500
|
0.01000
|
2500
|
2.5
|
|||
0216.500
|
.500
|
0.5
|
250
|
0.8660
|
0.16500
|
1800
|
2.5
|
|||
0216.630
|
.630
|
0.63
|
250
|
0.4650
|
0.17500
|
1500
|
2.5
|
|||
0216.800
|
.800
|
0.8
|
250
|
0.2950
|
0.28500
|
1200
|
2.5
|
|||
0216001.
|
001.
|
1
|
250
|
0.2370
|
0.18000
|
1000
|
2.5
|
|||
02161.25
|
1.25
|
1.25
|
250
|
0.1530
|
0.48000
|
800
|
4
|
|||
021601.6
|
01.6
|
1.6
|
250
|
0.1112
|
1.00500
|
600
|
4
|
|||
0216002.
|
002.
|
2
|
250
|
0.0764
|
1.87000
|
500
|
4
|
|||
021602.5
|
02.5
|
2.5
|
250
|
0.0584
|
2.69500
|
400
|
4
|
|||
02163.15
|
3.15
|
3.15
|
250
|
0.0368
|
6.70000
|
350
|
4
|
|||
0216004.
|
004.
|
4
|
250
|
0.0247
|
14.99500
|
300
|
4
|
|||
0216005.
|
005.
|
5
|
250
|
0.0183
|
27.46000
|
250
|
4
|
|||
021606.3
|
06.3
|
6.3
|
250
|
0.0137
|
56.43000
|
200
|
4
|
|||
0216008.
|
008.
|
8
|
250
|
0.0123
|
64.31500
|
200
|
4
|
|||
0216010.
|
010.
|
10
|
250
|
0.0079
|
154.34000
|
200
|
4
|
|||
021612.5
|
12.5
|
12.5
|
250
|
0.0057
|
235.00000
|
200
|
4
|
|||
0216016.
|
016.
|
16
|
250
|
750A@250VAC
|
0.0040
|
462.50000
|
200
|
4.5
|
