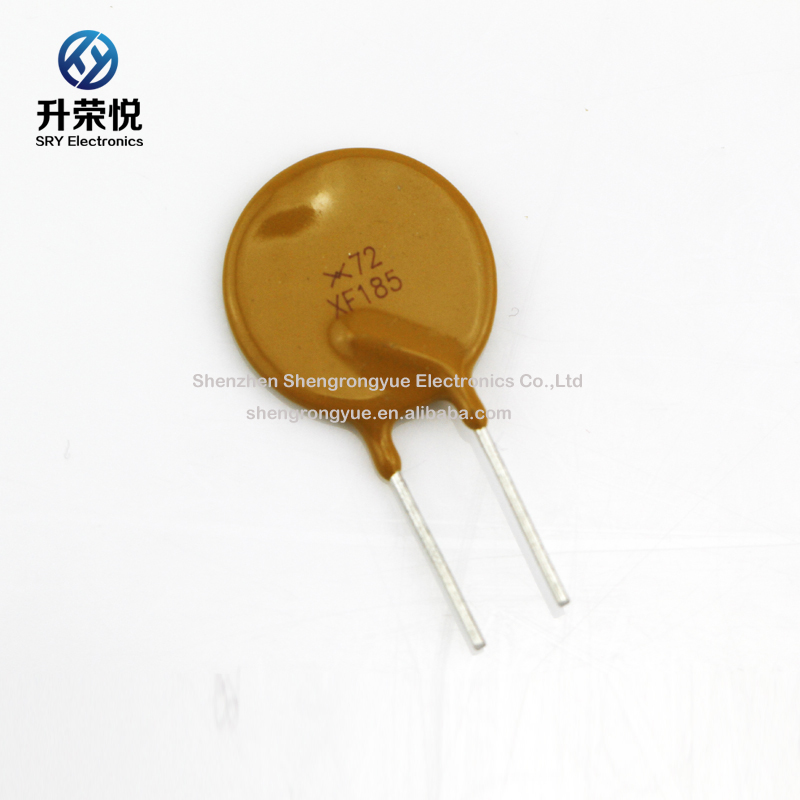

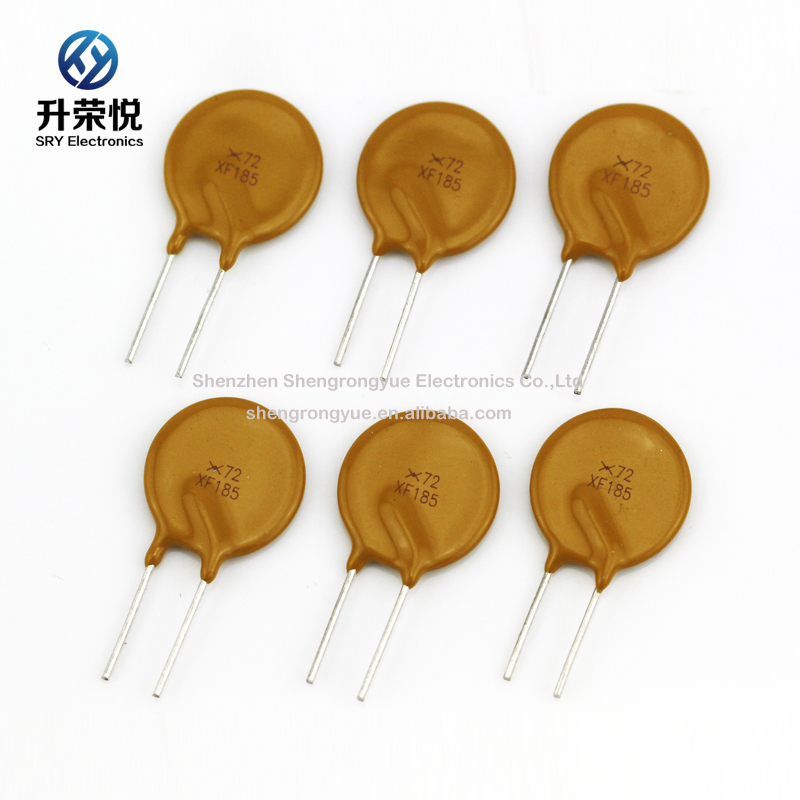

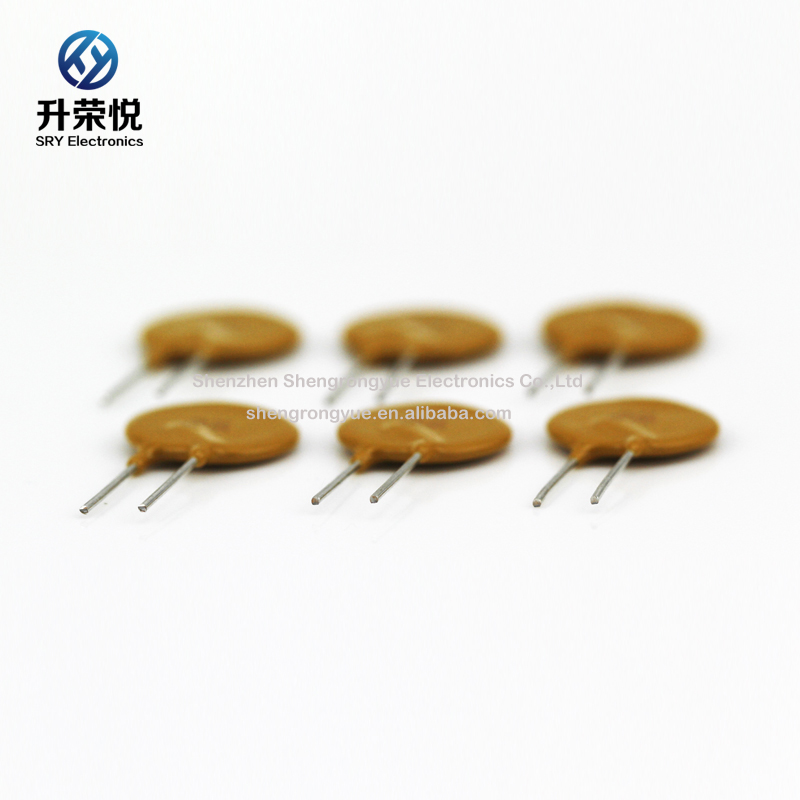

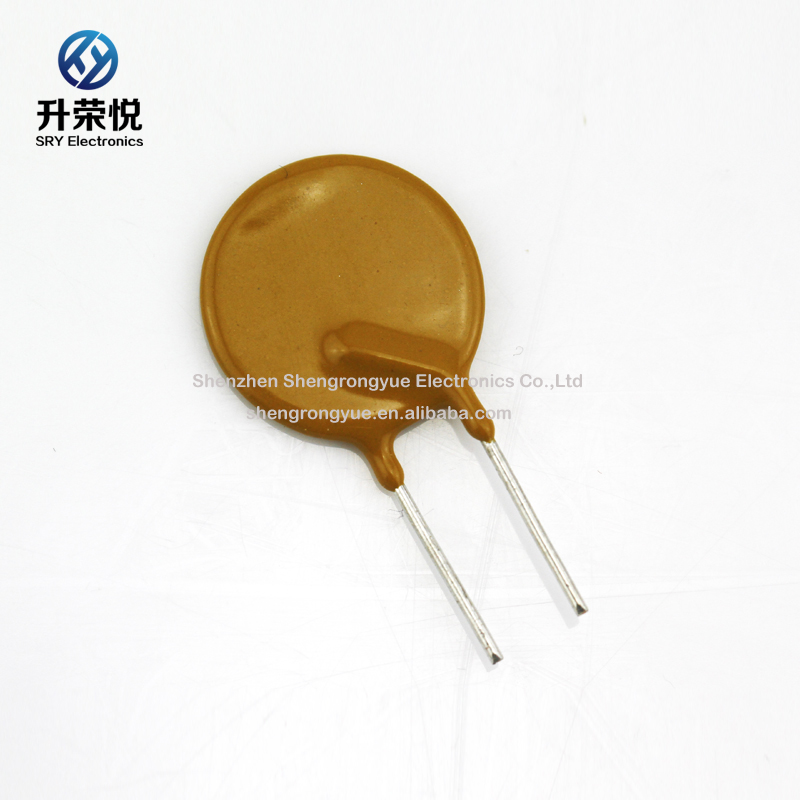

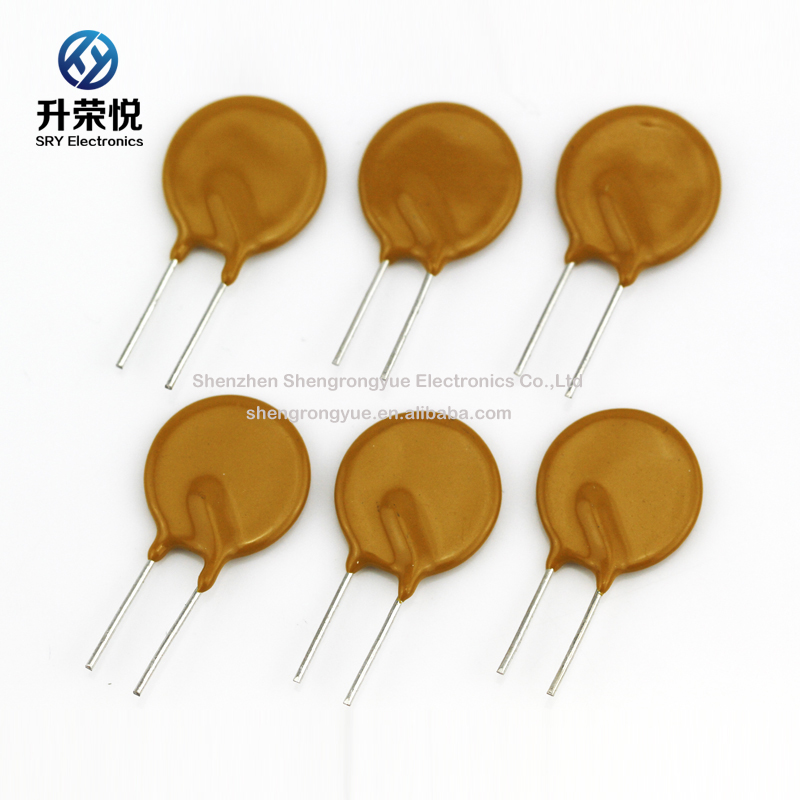

Tyco/Raychem PPTC self-recovery fuse DIP fuse 200mA-5A 72V Ploy Switch self-recovery fuse

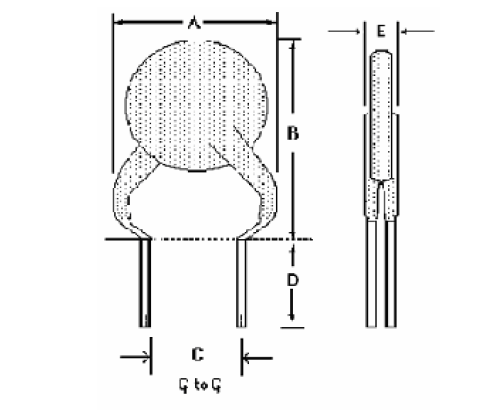

Tyco/Raychem, Radial Leaded Resettable Fuses, 72V Series, USA Design
part
number |
i hold
(A) |
love to travel
(A) |
maximum voltage
(DC) (AC RMS) |
Maximum current
(DCADC) (Arkhams) |
Palladium type
(W) |
longest time
- trip (as) |
Minimum speed
(Ω) |
maximum absorption rate
(Ω) |
max R1
(Ω) |
Lead size
[mm2(AWG)] |
RXEF020
|
0.20
|
0.40
|
72 72
|
40 40
|
0.41
|
1.00 2.2
|
1.83
|
2.75
|
4.40
|
[0.205 mm2(twenty four)]
|
RXEF025
|
0.25
|
0.50
|
72 72
|
40 40
|
0.45
|
1.25 2.5
|
1.25
|
1.95
|
3.00
|
[0.205 mm2(twenty four)]
|
RXEF030
|
0.30
|
0.60
|
72 72
|
40 40
|
0.49
|
1.50 3.0
|
0.88
|
1.33
|
2.10
|
[0.205 mm2(twenty four)]
|
RXEF040
|
0.40
|
0.80
|
72 72
|
40 40
|
0.56
|
2.00 3.8
|
0.55
|
0.86
|
1.29
|
[0.205 mm2(twenty four)]
|
RXEF050
|
0.50
|
1.00
|
72 72
|
40 40
|
0.77
|
2.50 4.0
|
0.50
|
0.77
|
1.17
|
[0.205 mm2(twenty four)]
|
RXEF065
|
0.65
|
1.30
|
72 72
|
40 40
|
0.88
|
3.25 5.3
|
0.31
|
0.48
|
0.72
|
[0.205 mm2(twenty four)]
|
RXEF075
|
0.75
|
1.50
|
72 72
|
40 40
|
0.92
|
3.75 6.3
|
0.25
|
0.40
|
0.60
|
[0.205 mm2(twenty four)]
|
RXEF090
|
0.90
|
1.80
|
72 72
|
40 40
|
0.99
|
4.50 7.2
|
0.20
|
0.31
|
0.47
|
[0.205 mm2(twenty four)]
|
RXEF110
|
1.10
|
2.20
|
72 72
|
40 40
|
1.50
|
5.50 8.2
|
0.15
|
0.25
|
0.38
|
[0.520 mm2(20)]
|
RXEF135
|
1.35
|
2.70
|
72 72
|
40 40
|
1.70
|
6.75 9.6
|
0.12
|
0.19
|
0.30
|
[0.520 mm2(20)]
|
RXEF160
|
1.60
|
3.20
|
72 72
|
40 40
|
1.90
|
8.00 11.4
|
0.09
|
0.14
|
0.22
|
[0.520 mm2(20)]
|
RXEF185
|
1.85
|
3.70
|
72 72
|
40 40
|
2.10
|
9.25 12.6
|
0.08
|
0.12
|
0.19
|
[0.520 mm2(20)]
|
RXEF250
|
2.50
|
5.00
|
72 72
|
40 40
|
2.50
|
12.50 15.6
|
0.05
|
0.08
|
0.13
|
[0.520 mm2(20)]
|
RXEF300
|
3.00
|
6.00
|
72 72
|
40 40
|
2.80
|
15.00 19.8
|
0.04
|
0.06
|
0.10
|
[0.520 mm2(20)]
|
RXEF375
|
3.75
|
7.50
|
72 72
|
40 40
|
3.20
|
18.75 24.0
|
0.03
|
0.05
|
0.08
|
[0.520 mm2(20)]
|
Vmaximum= Maximum voltage that the device can withstand without damage at rated current (Imax).
Imaximum= Maximum fault current (Imax) that the device can withstand without damage at rated voltage.
Icatch= Holding current: Maximum current the device will maintain for 4 hours without tripping 25ohC still air.
Itravel=Trip Current: The minimum current at which the device trips within 25 secondsohC still air.
phosphorusdPower consumed by the device when in a tripped state at = 25ohC still air.
rightI= Minimum/maximum resistance of the device in its initial (unsoldered) state.
rightup to 1Maximum resistance of the device at = 25ohC is measured one hour after tripping.
Caution = Operation beyond specified ratings may cause damage and may result in arcing and flames.
