New Arrival Surge Protector TP10DB Surge Protector 10kV SPD Black Lightning Arrester IP67

Supplier: Shenzhen Ruilongyuan Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Juan Ms
Price: $2.39 / 100 - 999 pieces
$2.32 / 1000 - 4999 pieces
$2.26 / >=5000 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Dimensions/dimensions:	6034.513.85mm	describe:	LED Street Light Surge Protector
illumination:	Parking Lot/Lot Lighting; Wall Washers	Maximum temperature limit:	70°C
Package preview:		sample:	usable
Warranty:	1 year	model:	TP10DB

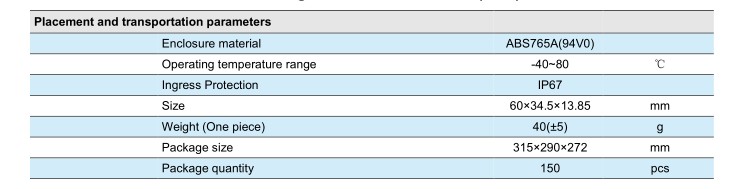

pack:	150pcs/box	Packaging Details:	Commodity size: 6034.513.85mm Weight (one piece): 55g Package size: 39.526.728.5CM Package: 150 pieces/box Gross weight: 8.52KG
Rated operating temperature:	-40°C to +80°C	application:	Outdoor and Commercial Lights
Supplier type:	original manufacturer	Packaging/Case:	ABS765A (94V0)
Executive standard:	UL14494th	type:	lightning arrester
application:	medical equipment	Package dimensions:	315290272mm
Rated Current (Amps):	5kA	Payment/Payment:	20210501
Response time:	25ns	Supply capacity:	1,000,000 pieces per month
technology:	UVT ultra-low voltage	Operating temperature:	-40°C to +80°C
manufacturer:	Shenzhen Ruilongyuan Electronics Co., Ltd.	Maximum discharge current:	10kA, 8/20μs
Card:	Ryzen	place of origin; place of origin:	Guangdong, China
Current - Peak Pulse (8/20µs):	10kA	Weight (one piece):	50(±5)g
Nominal discharge voltage:	10kV, 1.2/50μs	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal
Installation type:	interior of the lamp	Rated Voltage - AC:	10kV
Ingress protection:	IP67	Voltage:	277V AC
port:	Shenzhen, Hong Kong	feature:	Waterproof and dustproof
Voltage - Rated AC:	277V

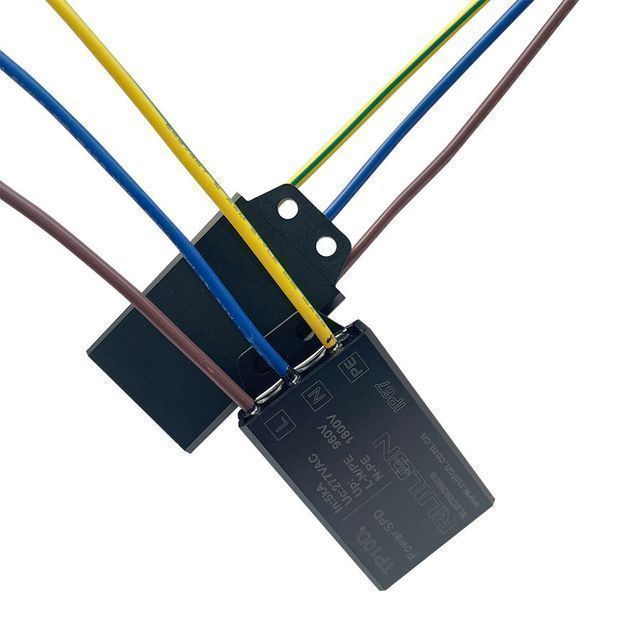

New Arrival Surge Protector TP10DB Surge Protector 10kV SPD Black Lightning Arrester IP67

Product Description

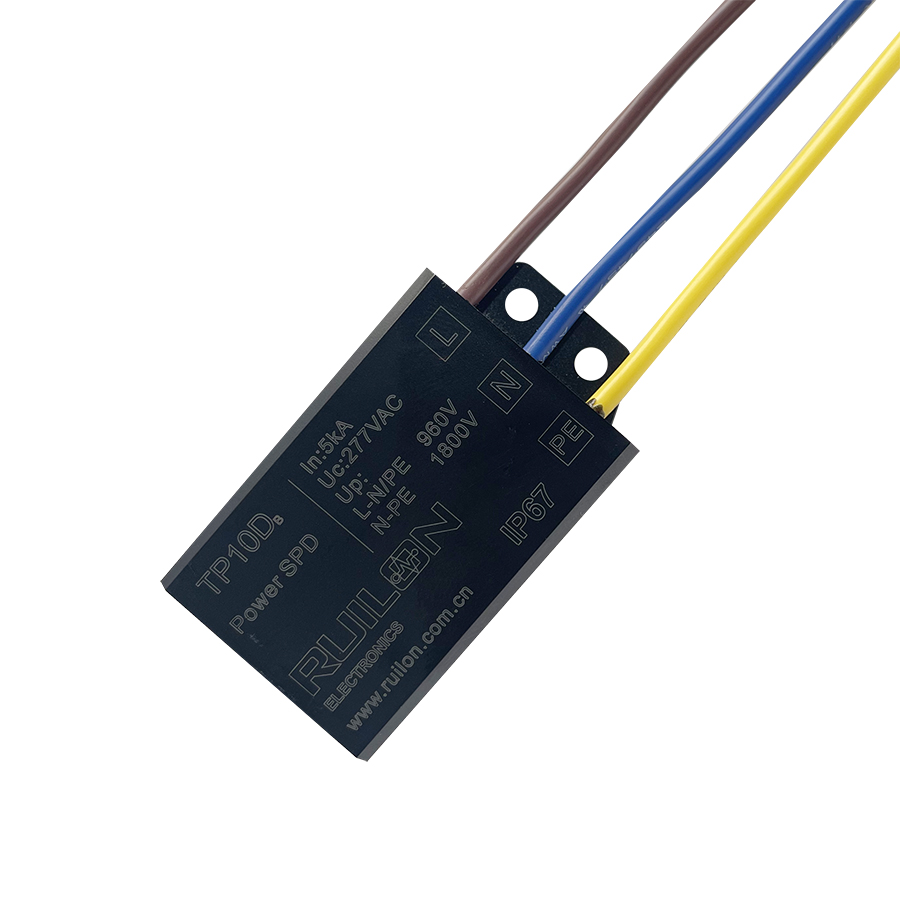

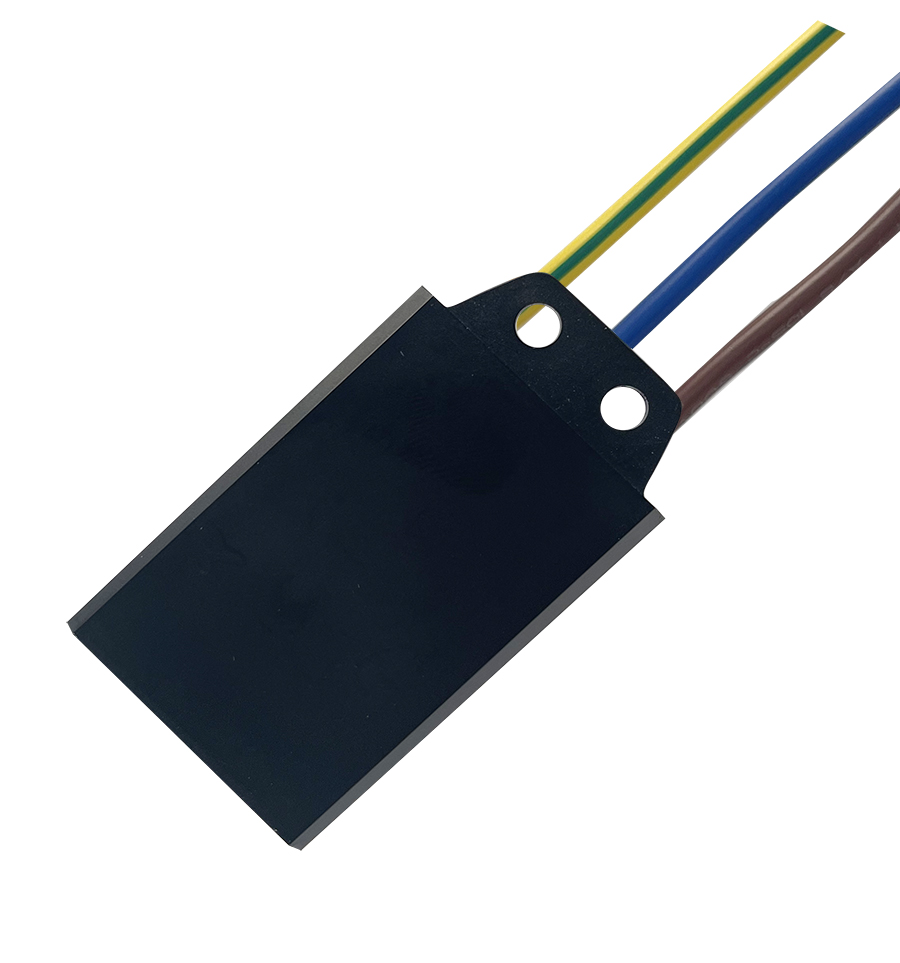

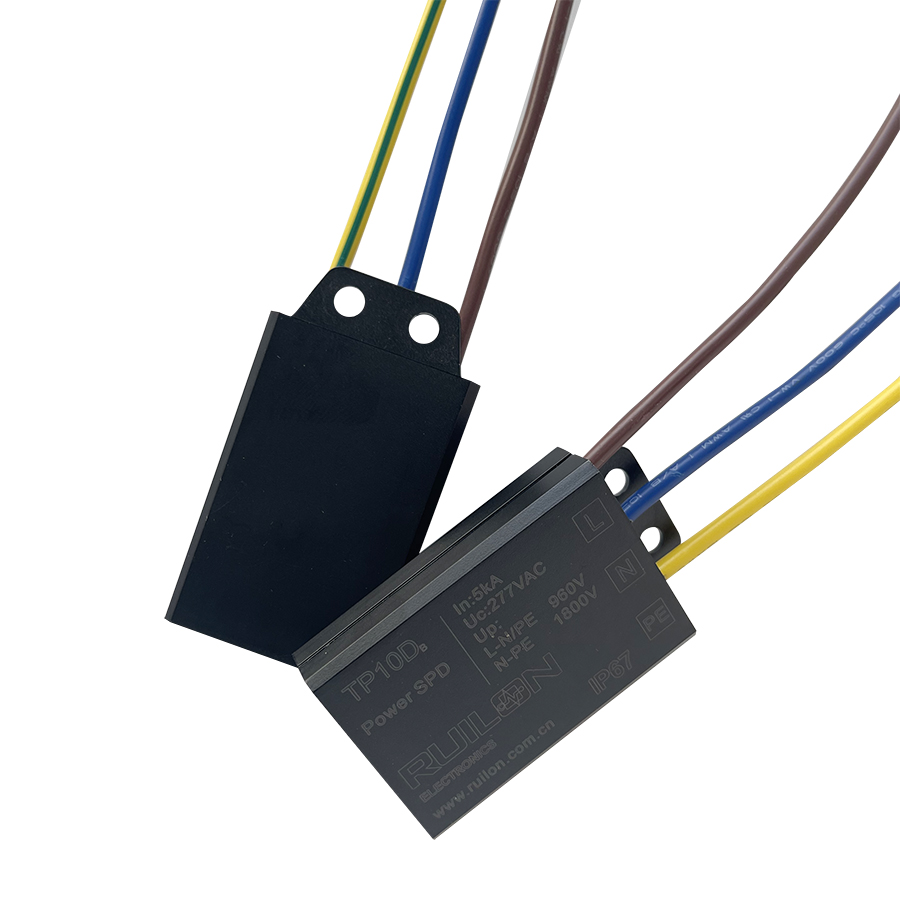

TP10DB is a power surge protector, which is used for surge protection of street lamps (Class I, Class II), landscape lighting and other commercial lighting power supplies, as well as surge protection of security, electrical appliances, sockets and other power ports. The TP10DB has a fully sealed enclosure that is waterproof, dustproof and IP67 rated. The lightning protection device adopts full mode protection and adopts UVT technology function. The product is small and comes with L, N and PE cables for easy installation and application. The maximum lightning protection current of the product is 10kA, and it can withstand the impact of 10kV surge voltage.

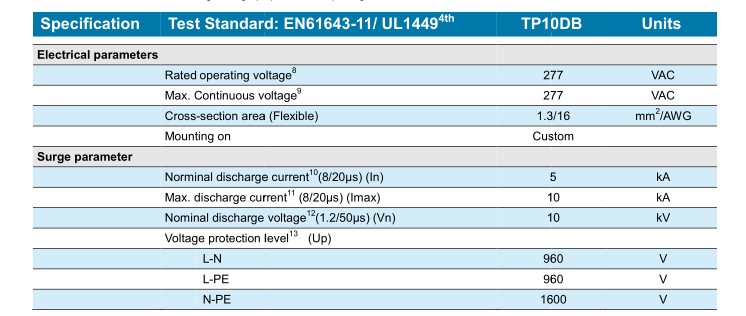

TP10DB features:
Nominal discharge voltage: 10kV, 1.2/50μs
Maximum discharge current: 10kA, 8/20μs
Executive standard: UL14494th
Parallel SPD devices
UVT ultra-low voltage technology, more adequate protection
With wire, easy to connect
Ultra-thin shape: 60*34.5*13.85, easy to reset
IP67 waterproof and dustproof

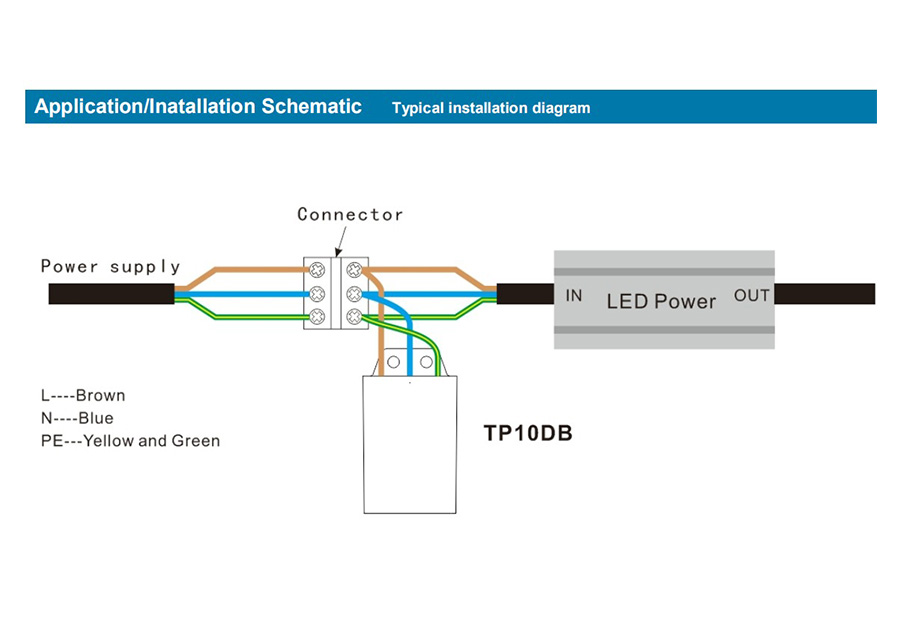

Install Class I and Class II fixtures that comply with 110 to 277VAC rated voltage.

application:

Outdoor and Commercial LED Lighting

Roadway lighting
traffic lighting

digital signage
Security Power

Wall washer
Parking lot/lot lighting

flood lighting
tunnel lighting

street lighting

Lightning arresters are used to prevent induced lightning. At present, the hazards of lightning strikes are mainly concentrated in electrical and electronic aspects, of which 98% are caused by induction lightning. Lightning rods are used to prevent direct lightning strikes, mainly as lightning rods for buildings.

Function:

(1) Prevent the power supply from burning out
(2) 8/20μs waveform test, 10kV can withstand 15 lightning strikes.
Protection performance: (1) Limit test, 10kV can be struck 100 times, with multiple resistances, good lightning protection effect.
(2) UVT technology absorbs part of the high and low voltage of the surge, and the residual voltage is low.
(3) Install Class I and Class II lamps that meet the rated voltage of 10~277VAC...
