Street Light 10kV SPD for LED Power&LED Driver

Product details
Packaging Details:150PCS/box 31*29*28CM 10.05KGSOperating Voltage:220VAC
application:power supply systemFunction:Protect
payment terms:L/C, T/T, Western Union, Paypalstrength:air conditioner
port:Shenzhen, Hong Kongmodel:TAL22010/TAL22010N/TAL22010T
place of origin; place of origin:Guangdong, Chinaproduct name:Street Light 10kV SPD for LED Power&LED Driver
Supply capacity:100000 pieces per weekProcessing:OK
brand:Ryzensample:1
Installation method:13.5*37.6*81MMstructure:with various electronic components
Protection class:IP67

Street Light 10kV SPD for LED Power&LED Driver

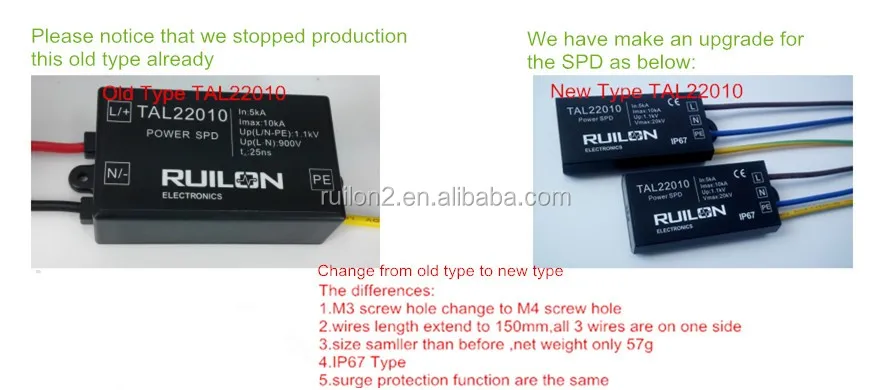

1. Upgrade notice



1 year warranty, contact skype: candy-ruilon



2.Packaging carton picture



Contact skype: candy-ruilon

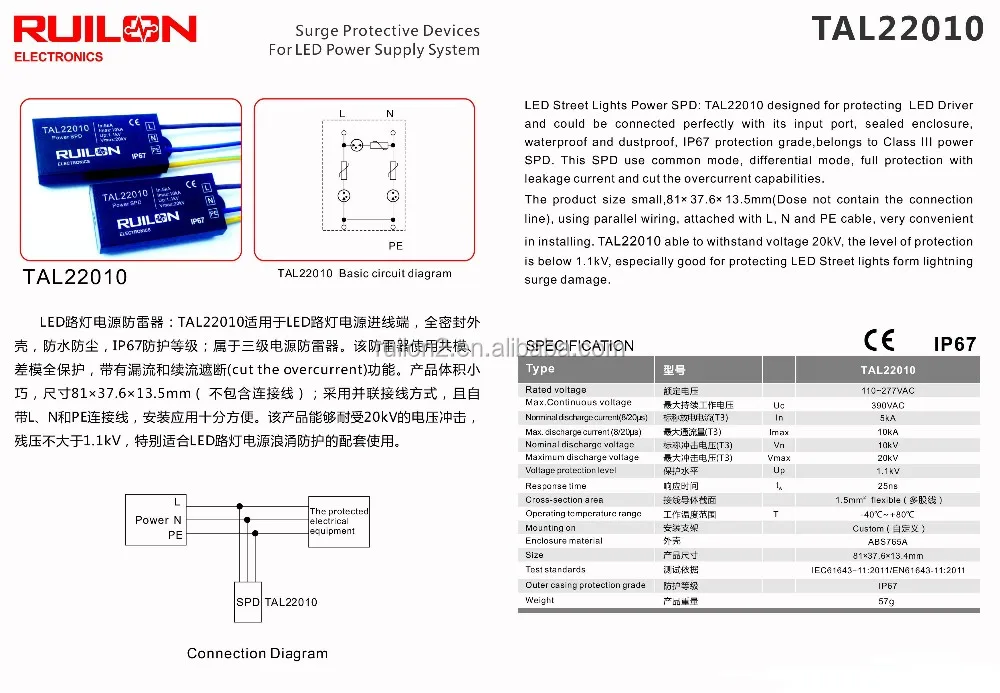

2. structure,App display:

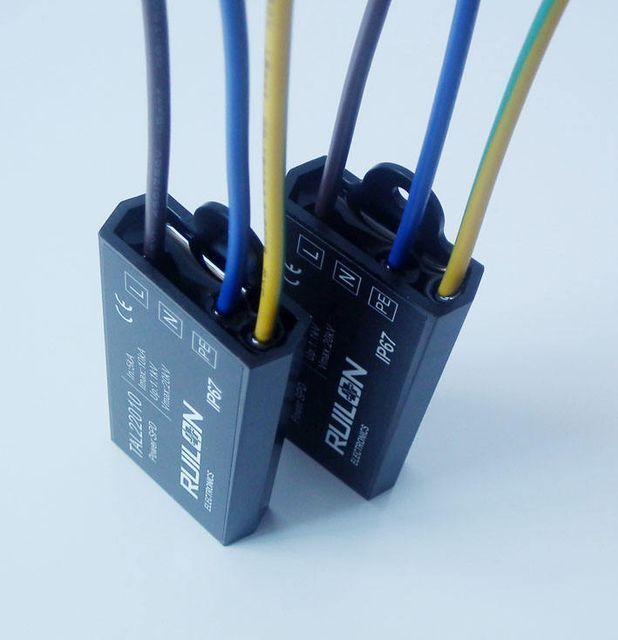

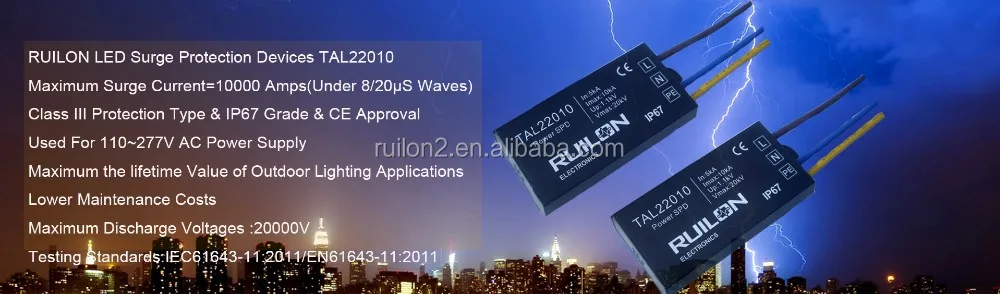

LED street light power surge protector: TAL22010 is specially designed to protect 220V LED driver, can be perfectly connected to its input port, sealed shell, waterproof and dustproof, IP67 protection level, belongs to class III power surge protector. The SPD adopts common mode, differential mode, leakage current comprehensive protection and cut off overcurrent capability. The product is small in size, 81×37.6×13.5mm (including installation holes), adopts parallel wiring, and has L, N, PE lines attached, which is very convenient for installation. The maximum discharge current is 10kA/line, the nominal discharge current is 5kA/line, the withstand voltage is 20kV, and the protection level is below 1.1kV. It is especially suitable for protecting LED street lights from lightning surge damage.



3. Parameters:

typeTAL22010
patentYes, we have a patent certificate, all rights belong to Ryzen
Warranty10 years

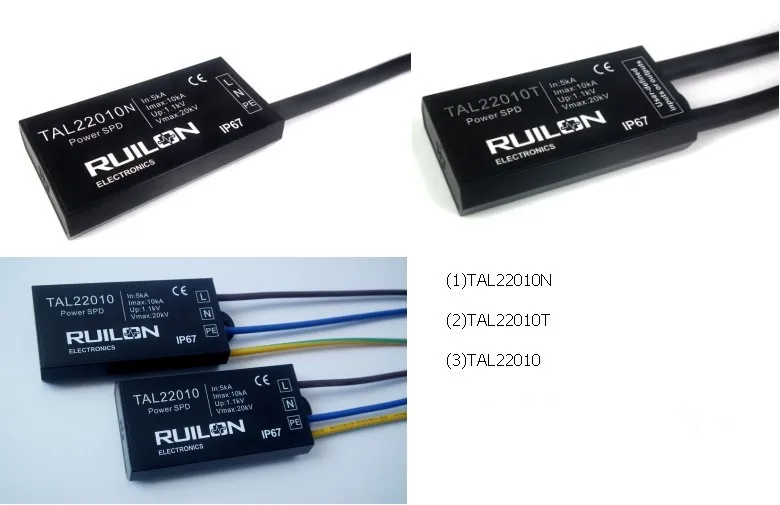

connection method

Parallel and Series Options

(TAL22010N: Parallel connection)

(TAL22010T: in series)

(TAL22010: Parallel connection)

full protection

Yes, surges between protections:

1.L&N 2.N&Ground 3.Ground&L

certifiedCE certification
Testing StandardIEC61643-11:2012/EN61643-11:2012
Nominal working voltage (UC)110~277V
Maximum continuous working voltage (UN)560VDC (320VAC)
Nominal discharge current (In)5KA
vn10kV
Maximum discharge current (Imax)10KA
Wanks20kV
Protection level (top)1.1KV
Working frequency (f)50-60 Hz
Response time (tA)25nS
size13.5*37.6*81mm
Operating temperature-40~+80℃
degree of protectionIP67
Testing StandardGB18802.1-2011, EN61643-11
featureMoisture-proof/Waterproof/Dustproof/Fireproof
net weight per unit57 grams
All components inside are certifiedUL & CE & Rohs certification
screw holeM4
outer material94-V0 Grade Shell Cases







4. Main application of surge protection module:



• highway



• country roads



• PARKING LOT



• Area lighting

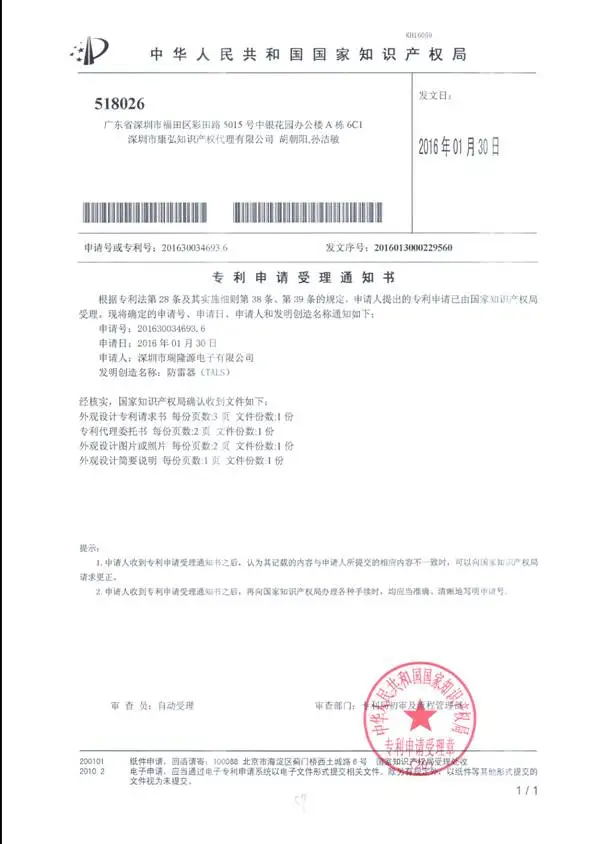

5. Our patent certificate:

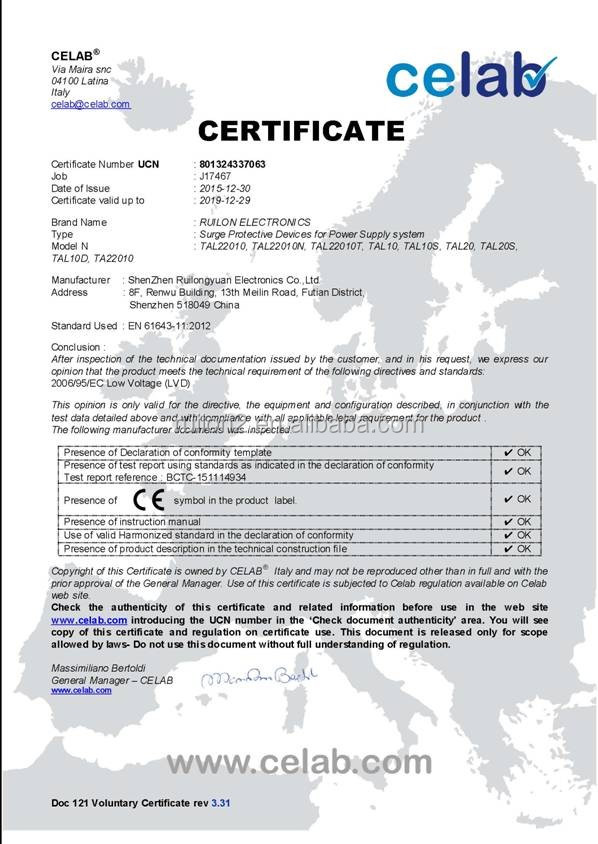

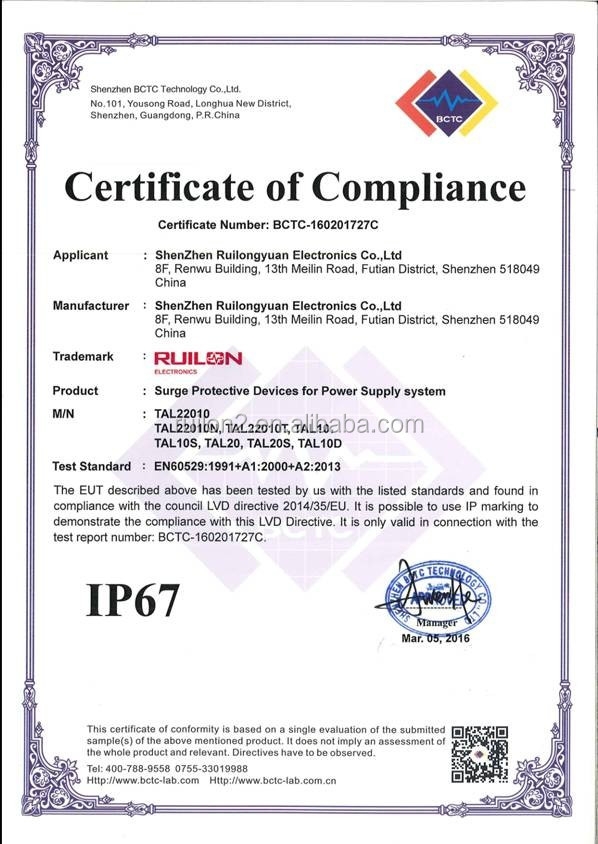

6. CE certification, IP67 certification, ISO certification









7. Our exhibitions:









8. Our team:

Welcome to our laboratory for testing! Click below"send"Send your inquiry now!
