spd three-phase POE surge protection phone surge protection

Click here to contact

Product details

Screw torque:	5N*m	Product Size:	90mm×18mm×68mm
brand:	left ventricle	Nominal operating voltage Unpv:	220 VAC (50-60 Hz)
Packaging details:	carton	Remote signaling contact switching:	125Vac/1A,125Vdc/0.2A
Supply capacity:	10,000 pieces per month	Enclosure rating:	IP20
temperature range:	-40℃...+80℃	Nominal discharge current (8/20μs)In:	20kA
port:	Shenzhen	model:	LXYB40PV4
Maximum discharge current:	40	Maximum discharge current 8/20μs)Imax:	40kA
Place of origin:	Guangdong, China	Number of poles:	4
payment terms:	wire transfer	Voltage protection level In@Up:	≤1.7kV
type:	T2	Shell material and flame retardant grade:	Mineral nylon PA6,V0
Rated voltage:	220 volts	Nominal discharge current:	20

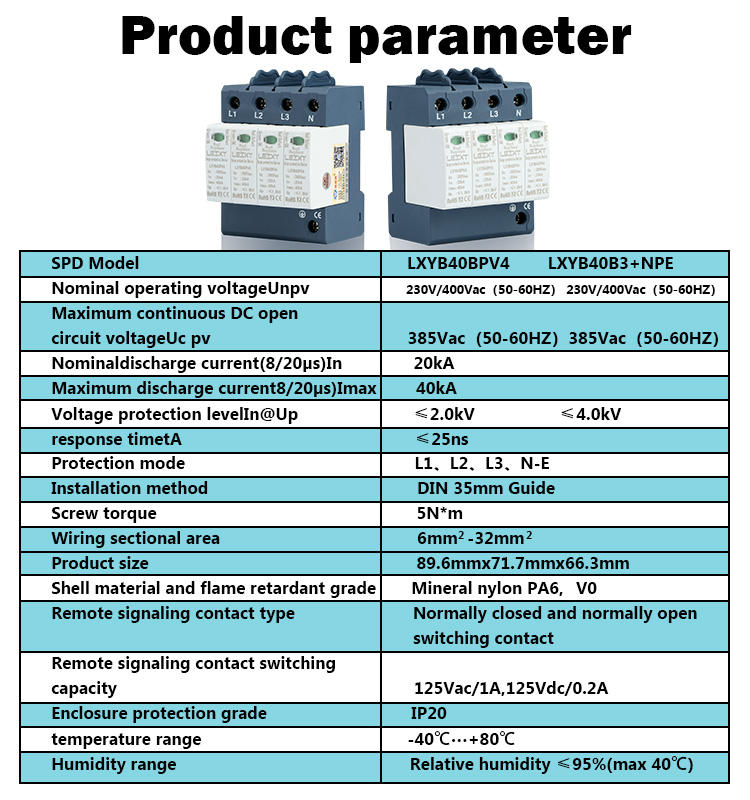

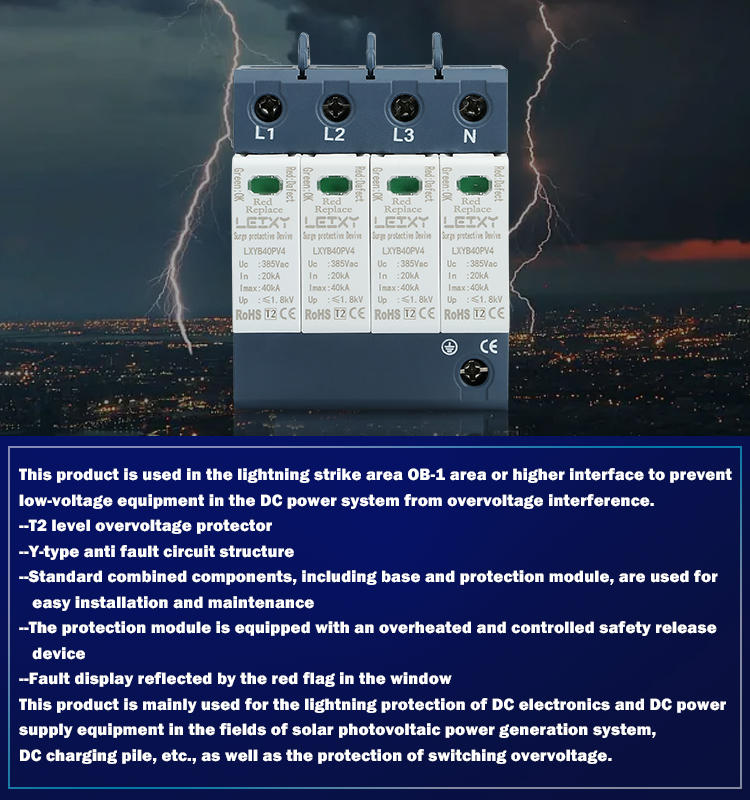

Model	LXYB40PV4
Nominal operating voltage Unpv	230V/400Vac (50-60HZ)
Maximum operating voltage, U.	40kA
Maximum continuous DC open circuit voltage Uc pv	385Vac (50-60HZ)
Voltage protection level In@Up	≤2.0kV
Voltage protection level, Up(8/20uS)	1.7kV
Response time tA	<25 nanoseconds

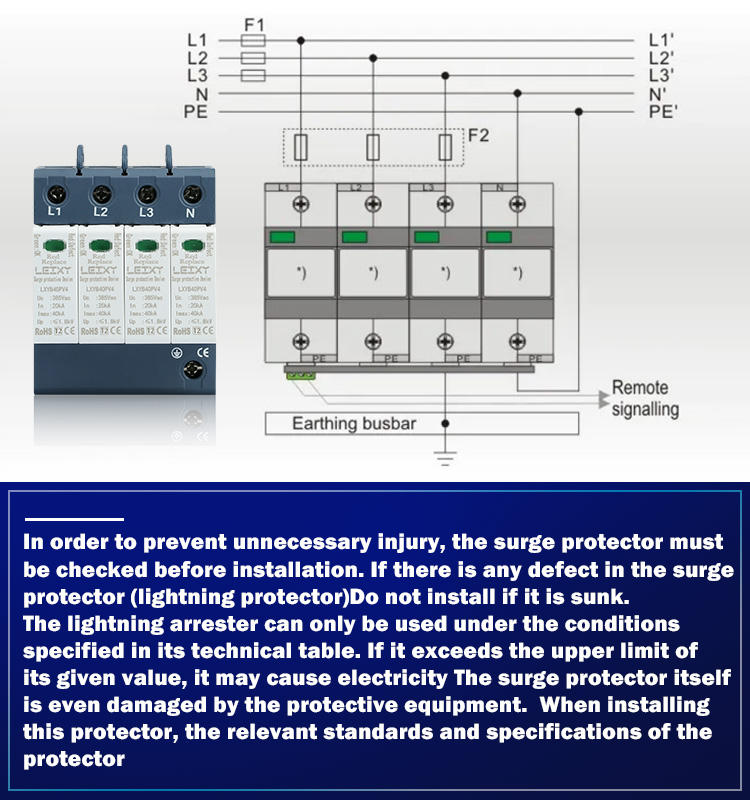

protection method	L1, L2, L3, NE
installation method	DIN 35mm rail
Screw torque	5N*m
Wiring cross-sectional area	6mm2-32mm2
Shell material and flame retardant grade	Mineral nylon PA6, VO

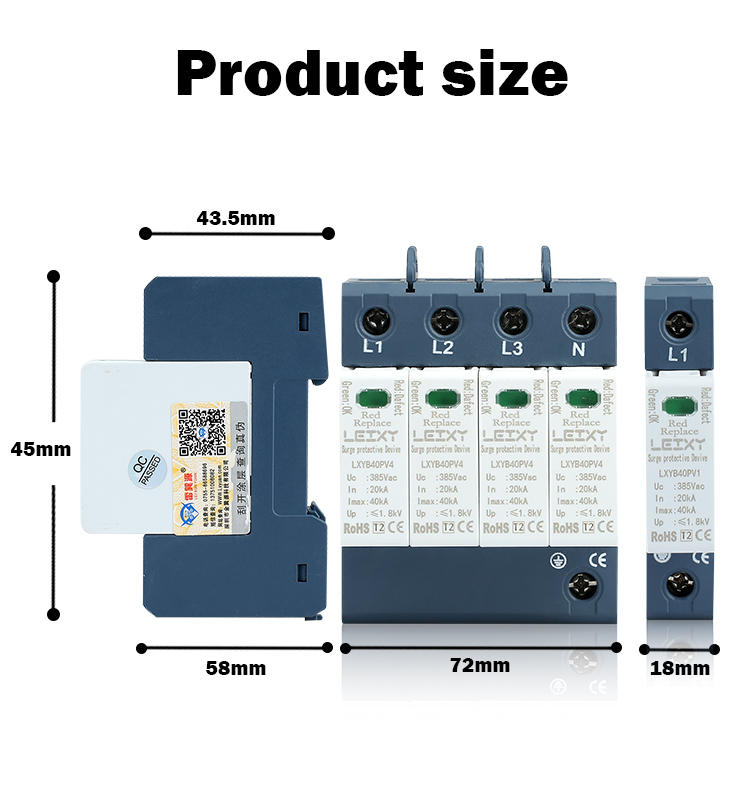

Product Size	89.6mmx71.7mmx66.3mm
Remote signaling contact type	Mineral nylon PA6, VO
Enclosure rating	IP20
temperature range	40°C...+80°C
Humidity range	Relative humidity <95% (maximum 40℃)
