1000v Solar Photovoltaic DC Power Supply Spd/surge Protector Solar Surge Protector Device

Supplier: Shenzhen Kailifeng Industry Co., Limited.
Region: Guangdong, China
Contact: Mr Jack Liu
Price: $5.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Maximum discharge current:	40	Key words:	1000v surge protector
Nominal discharge current:	20	brand:	KERS
Certificate:	CE/ROHS/ISO9001	type:	T2
model:	KHYS1000-40KA/2	payment terms:	L/C, Western Union, T/T, Paypal
Number of poles:	2	port:	Shenzhen, Guangzhou, Hong Kong
application:	Electronic equipment	place of origin; place of origin:	Guangdong, China
Package preview:		exist:	20KA
Protection class:	C	Quality:	40KA
Health status:	100% brand new	Warranty:	5 years
United Nations:	12VDC - 1000VDC	Packaging Details:	Standard export package for air freight. If you have special requirements, we can make adjustments to suit you.
Rated voltage:	12V-1000VDC	up:	≤2.5KV
Supply capacity:	2000 pieces of DC surge protector per week

Features:
This product is a parallel power surge protector (abbreviation: SPD). SPD can effectively prevent permanent damage or instantaneous interruption of systems and equipment caused by overvoltage and overcurrent, other transient surge voltages caused by lightning, industrial noise, etc. ◆ Has work and module deterioration indication function.

◆ Equipped with a temperature-controlled circuit breaker and a built-in overcurrent fuse protector to completely avoid fire. ◆ This product adopts modular design and has good sealing performance. ◆ Large intake air volume, low leakage power, fast response and long service life. ◆ Suitable for lightning protection of distribution boxes or floor distribution boxes, power distribution rooms, distribution cabinets, computer rooms, and information system room distribution boxes.

Product Description

1000v Solar Photovoltaic DC Power Supply Spd/surge Protector Solar Surge Protector Device

Specification

type	KLF1000-40KA/2	KLF1000-40KA/3	KLF1000-40KA/4
Protection class:	C			C	C
Working voltage (Un):	1000V			220V/380V	220V/380V
Nominal discharge current (8/20μs) (In):	20KA			50KA	60KA
maximum. Discharge current (8/20μs) (Imax.):	40KA			100KA	120KA
Voltage protection level (upper):	≤2.0KV	≤2.5KV	≤3.0KV
Response time:	< 25 ns
Leakage current:	≤20μA
working environment:	Temperature -40℃+80℃; relative humidity <95%;

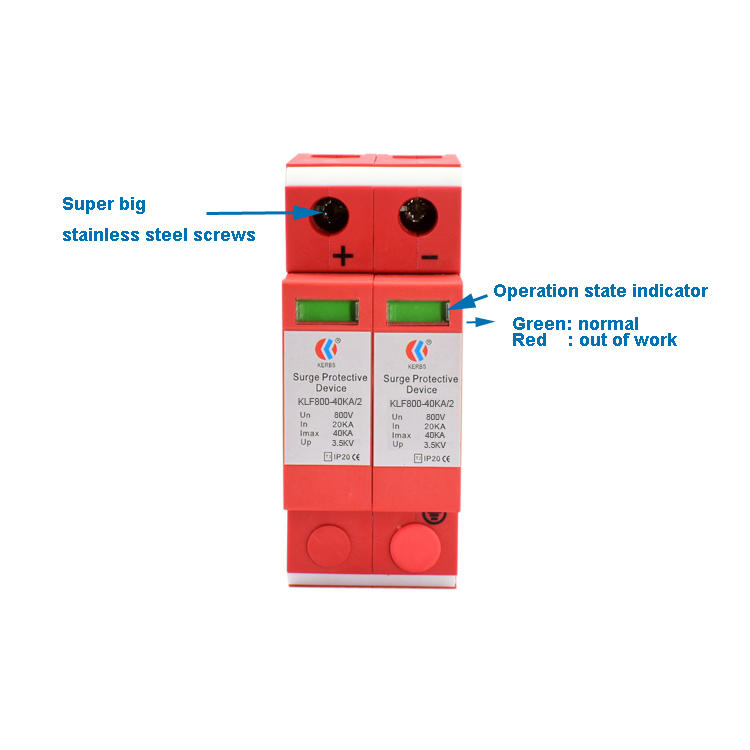

Indicates deterioration:	green (normal), red (failure)
Protection mode:	+/-~PE	+/PE, -/PE	+/-,+/-~PE
Shell material:	PBT

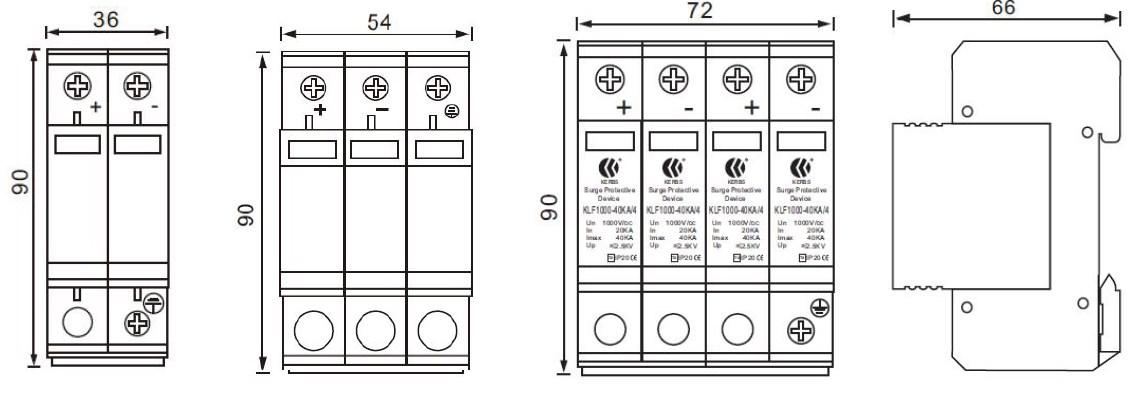

Dimensions (mm):	90×36×66	90×54×66	90×72×65
Weight (kg):	0.25	0.42	0.53
