ZOII DC 500V 1000V SPD Surge Protector 20kA 40kA 60kA 2P Photovoltaic Solar System Lightning Arrester Protector

Supplier: Zhejiang Zhiyi Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Sophie Zhang
Price: $1.50 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

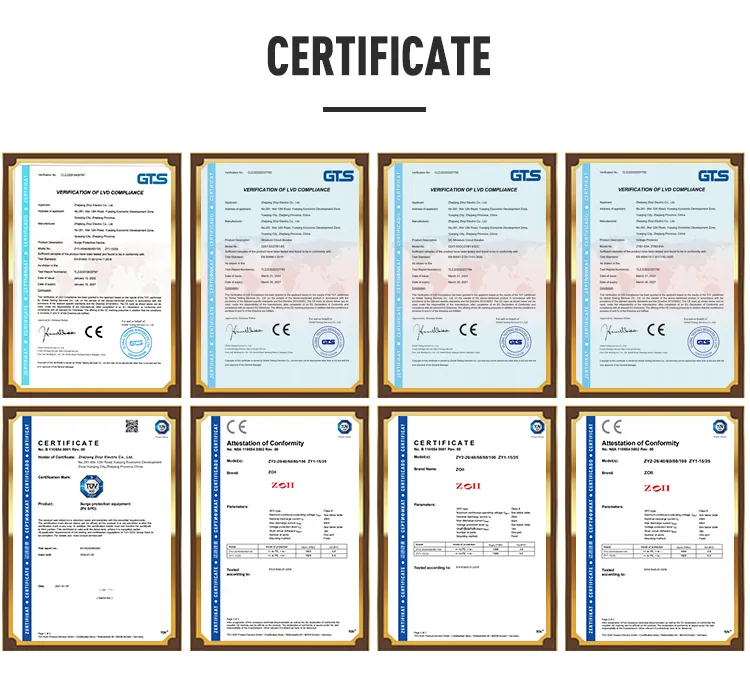

Certification:	GB/T18802.1	color:	Red
Operating temperature:	-3.0℃~+70℃	Packaging Details:	Standard export carton
Rated voltage:	DC 500V 800V 1000V 1200V	model:	ZY2-40
product name:	lightning arrester	Origin:	Zhejiang, China
Nominal discharge current:	20	Warranty:	1 year
type:	others	Supply capacity:	1000 pieces per week
Maximum discharge current:	40	Number of poles:	2
application:	Electronic equipment	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Package preview:

Related Products

Product Description

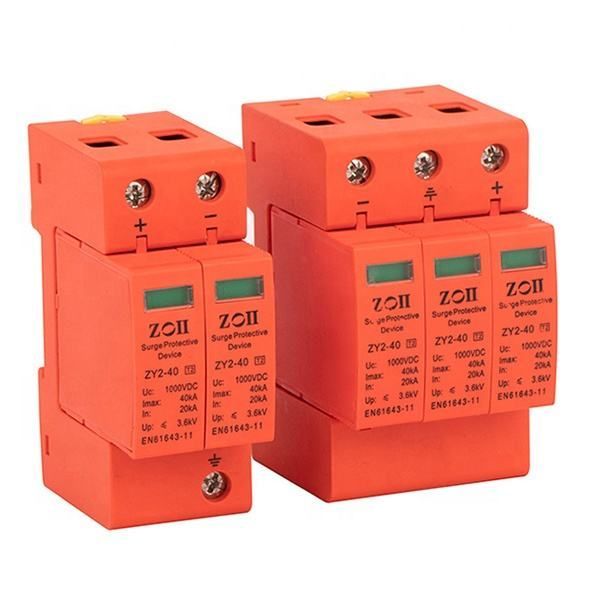

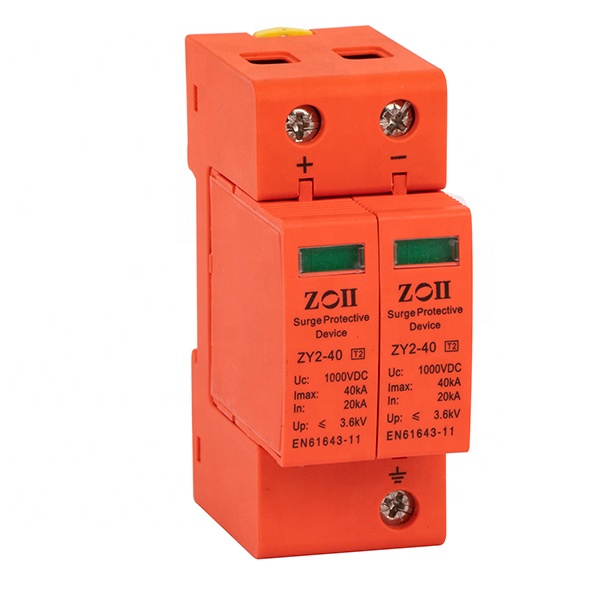

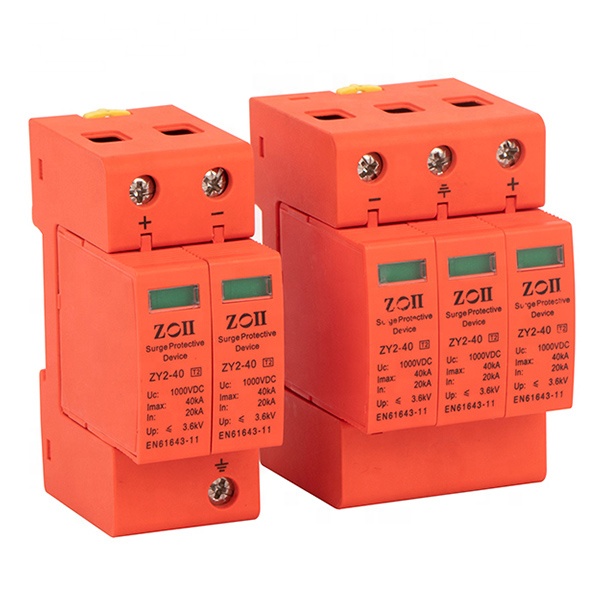

ZOII DC 500V 1000V SPD Surge Protector 20kA 40kA 60kA 2P Photovoltaic Solar System Lightning Arrester Protector

ZY2-40DC series is a class C surge protector, specially designed for lightning surge voltage protection in the field of photovoltaic power generation
power supply network. These units must be installed in parallel on the DC network to be protected and provide common and
Differential mode protection. Our products are suitable for the main operating voltages in the photovoltaic field: 500, 600, 800, 900 and
1000 volts DC.

Product parameters

product name	DC Surge Protector SPD
model	ZY2-40
Strategy	1P, 2P, 3P, 4P
classification test	II
UN (DC voltage)	1200
Uc (DC voltage)	1000
In(8/20)us (kA)	20
Imax(8/20)us (kA)	40
Up (kV)	3.8
Hardwire capacity(mm²)	4~25 people
Flexible wiring capacity (mm²)	4~16 years old
Stripping length(mm)	10
degree of protection	IP40
Terminal Screw Tightening Torque	multiple sclerosis
Installation Environment	No obvious impact vibration
Altitude (m)	≤ 2000
Operating temperature	-40~+70
Relative humidity	30%~90%
how to install	Install H35-7.5/DIN35 steel mounting rail
color	Color can be customized
