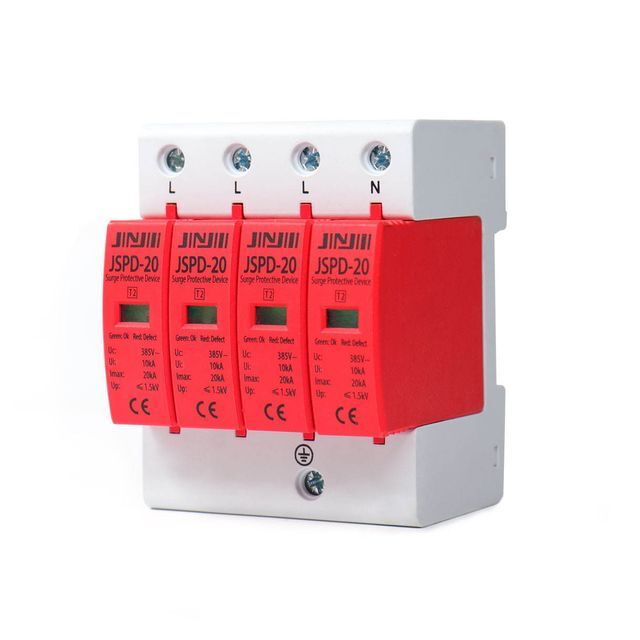

20KA 40KA 60KA surge protector device 3p 4p AC SPD for lightning protection
-
Supplier: Zhejiang Jinji Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Ben Shen -
Price: $0.50 / 100 - 999 pieces
$0.45 / 1000 - 9999 pieces
$0.43 / 10000 - 49999 pieces
$0.42 / >=50000 pieces -
Min. Order: 100 pieces
Product details
| Supply capacity: | 1,000,000 pieces/month | Number of poles: | 4 |
| Warranty: | 2 years | model: | JSPD |
| Packaging Details: | carton, wooden box, pallet | port: | Ningbo/Shanghai |
| Material: | High standard plastic silver copper | Certificate: | Chief Executive |
| type: | T2 | Packaging Preview: | |
| place of origin; place of origin: | Zhejiang, China | color: | red/OEM/ODM |
| product name: | surge protection device | brand: | golden rooster |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | standard: | IEC/EN 60947-2 |
| Rated voltage: | 285V | Maximum discharge current: | 120000 |
Product parameters
model | JSPD-20 | JSPD-40 | JSPD-60 | JSPD-80 | JSPD-100 |
Polish | 1P/2P/3P/4P | 1P/2P/3P/4P | 1P/2P/3P/4P | 1P/2P/3P/4P | 1P/2P/3P/4P |
type | T2 | T2 | T2 | T2 | T2 |
UC: | 385V | 385V | 385V | 385V | 385V |
interface: | 10KA | 20KA | 30KA | 40KA | 60KA |
maximum: | 20KA | 40KA | 60KA | 80KA | 100KA |
up: | ≤1.5KV | ≤1.8KV | ≤2.0KV | ≤2.2KV | ≤2.4KV |
Certificate | Chief Executive | Chief Executive | Chief Executive | Chief Executive | Chief Executive |
