RUILON LED SPD TAL22010

Supplier: Shenzhen Ruilongyuan Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Juan Ms
Price: $3.00 / 150 - 2999 pieces
$2.80 / 3000 - 14999 pieces
$2.70 / >=15000 pieces
Min. Order: 150 pieces

Click here to contact

Product details

Packaging Details:	150pcs/box 402928CM Gross weight: 10.85kgs	place of origin; place of origin:	Guangdong, China
feature:	Waterproof/Dustproof/Fireproof	payment terms:	wire transfer, paypal
Intellectual property level:	IP67	Maximum discharge current below 8/20μS:	10kA
Application products:	LED street light/lamp power supply	Supply capacity:	100,000 pieces per week
product name:	Ryzen LED SPD TAL22010	port:	Shenzhen, Hong Kong
model:	TAL22010	Nominal discharge current below 8/20μS:	5kA
Warranty:	1 year	Packaging Preview:
Applied supply voltage:	110~277V	brand:	Raylon
Installation method:	8137.613.5mm	Certificate:	CE certification

Ryzen LED SPD TAL22010

1 year warranty, contact skype: candy-ruilon WhatsApp/WeChat: 0086-18312484331

Product Description

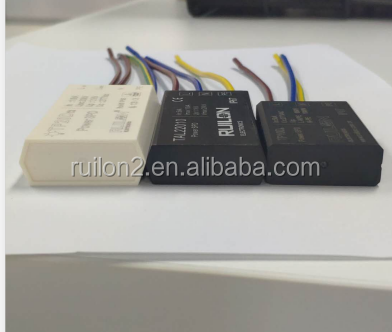

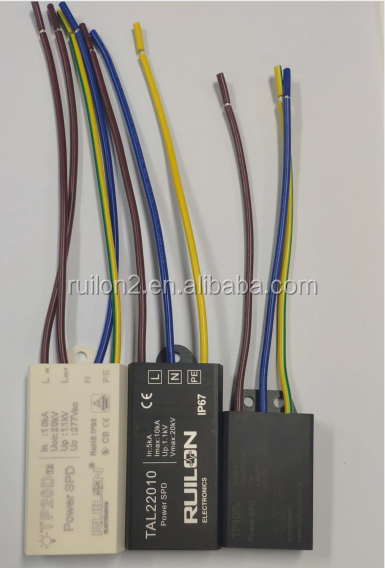

1. structure,Application show:

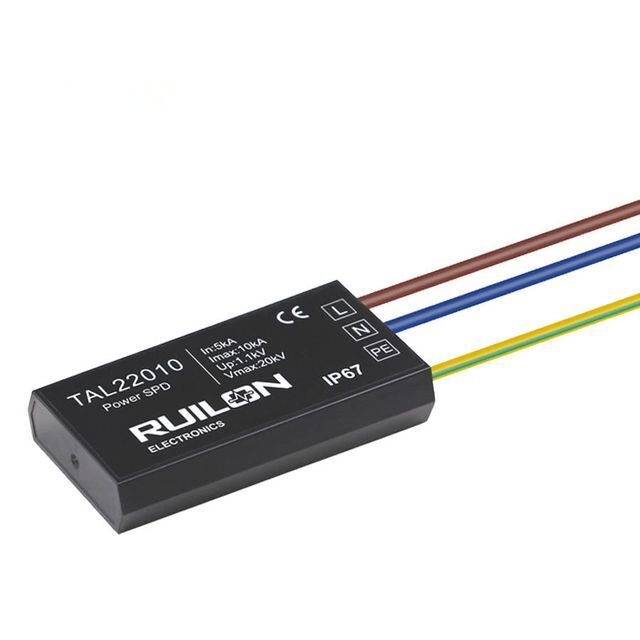

LED street light power SPD: TAL22010 is specially designed to protect 220V LED Driver, can be perfectly connected to its input port, sealed case, waterproof and dustproof, IP67 protection grade, belongs to class III power SPD, used to protect class I lamps. The SPD adopts common mode, differential mode, full protection of leakage current and overcurrent cut-off function. The product size is small, 81 × 37.6 × 13.5mm (including installation holes), with parallel wiring, with L, N, PE wires, and the installation is very convenient. The maximum discharge current is 10kA/line, the nominal discharge current is 5kA/line, the withstand voltage is 20kV, and the protection level is below 1.1kV, which is especially beneficial to protect LED street lamps from lightning and surge damage.

2. Product Specifications:

Patent certification	Yes, it is Ryzen's patent
type	TAL22010
Warranty	1 year
Connection method	Parallel & Series Options (TAL22010N: Parallel) (TAL22010T: in series) (TAL22010: Parallel) (TP10C320A: in series)
full protection	Yes, protect against surges between: LN,NG/PE,LG/PE
Certification	UL and CE certified
standard test	IEC61643-11:2012/EN61643-11:2012
Rated working voltage (Un)	110~277VAC
Maximum continuous working voltage (Uc)	390V AC
Nominal discharge current (In) 8/20μS	5KA
Nominal discharge voltage (Vn) 1.2/50μS	10kV
Maximum discharge current (Imax)8/20μS	10KA
Maximum discharge voltage (Vmax) 1.2/50μS	20kV
Protection class (top)	1.1KV
residual voltage	Liquid nitrogen: 960V L-PE/G: 960V N-PE/G: 960V
Operating frequency (f)	50-60Hz
Response time (tA)	25ns
size	8137.613.5mm
Operating temperature	-40~+80℃
Protection class	IP67
standard test	GB18802.1-2011, EN61643-11
feature	Moisture/Water/Dustproof/Fireproof
Net weight per unit	62 grams
All internal components are certified	UL&CE&Rohs certified
screw hole	M4
outer material	Class 94-V0 shells
