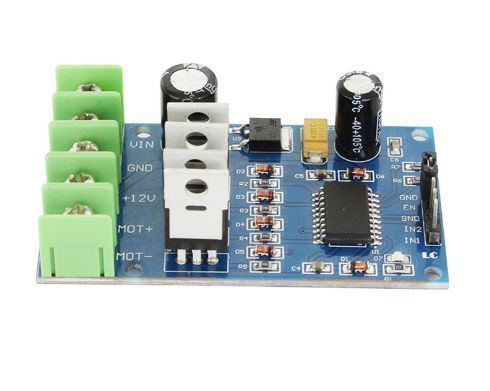

170W high power H-bridge motor drive module, suitable for NMOS braking duty cycle, suitable for DC 5-40V motor 4 external NMOS tubes, two PWM inputs

describe:

The high-power H-bridge motor drive module consists of a single H-bridge driver and 4
External NMOS tube. The calorific value is small, and the braking effect is good.

Product parameters:
1. Using full bridge driver chip + low resistance 55V110ANMOS,
The motor can turn back and forth.
2. Two PWM inputs, the duty cycle can be adjusted between 0-100%. Instant braking ability.
3. Working voltage 10-40V, power below 170W
4. The control is simple and convenient. Only 3 input lines are required to control the motor
5. The chip has built-in dead time hardware control, which is more suitable for frequent commutation.
Reduce the loss of the pipeline itself.
6. The back of the module is tin-plated. Conductors can carry large currents.
7. Support 5V, 3..3V logic input. It is suitable for direct control of IO ports of various single-chip microcomputers.
It is also possible to control the forward and reverse rotation of the motor through the analog input.
8. Board size: 38.8*67.5mm

instruct:

1. Forward and reverse control:

IN1=1; IN2=0. The motor is running forward.

IN1=0; IN2=1. The motor rotates negatively.

IN1=0; IN2=0. The motor is braking

2. PWM speed regulation:

IN1=PWM pulse (0-100%); IN2=0. Forward rotation speed is adjustable.

Input 1=0; IN2=PWM pulse (0-100%). Negative rotation speed is adjustable.

Enter 1=0; enter 2=0. The motor is braking.

Package includes:

1X 170W high power H-bridge driver board
