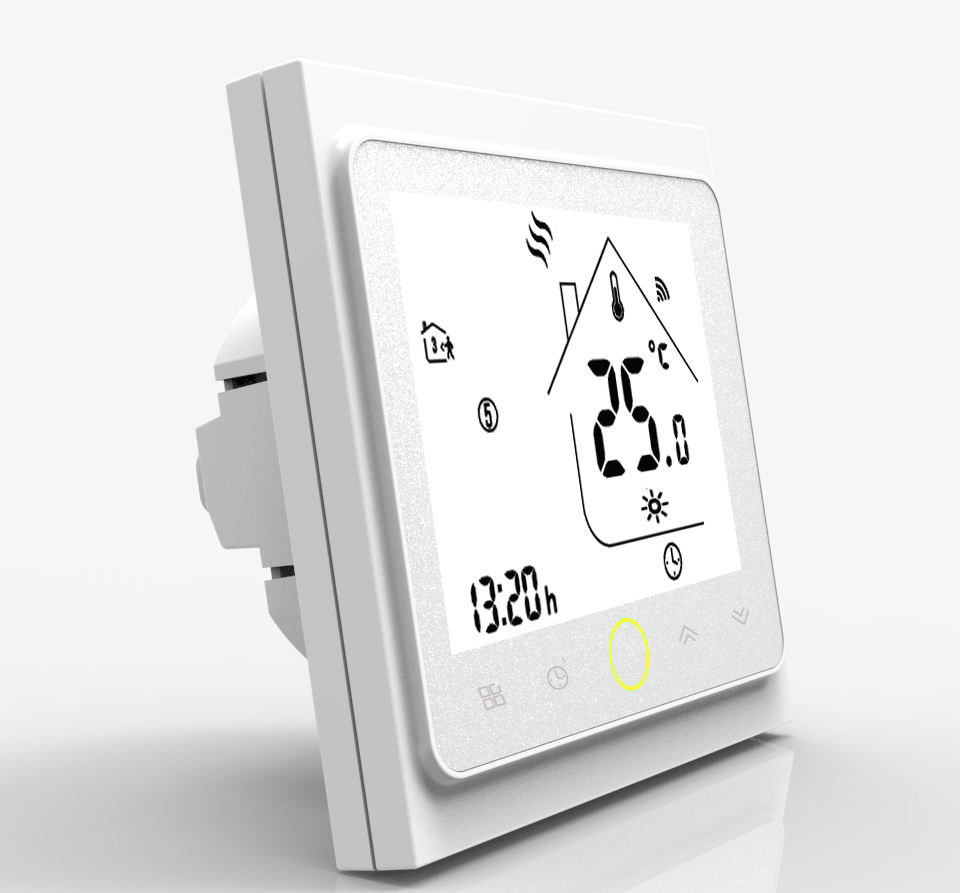

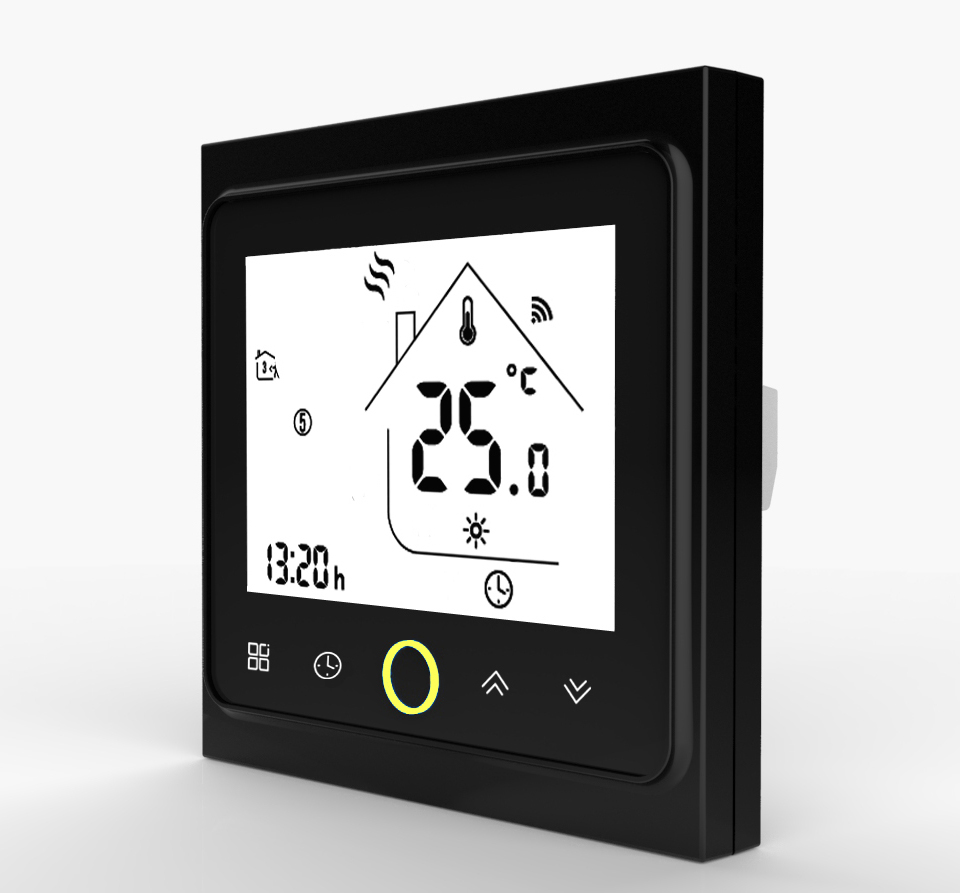

WiFi Smart Thermostat Temperature Controller for Water Heating/Electric Floor Water/Gas Boiler Works with Alexa Google Home

Wi-Fi Thermostat Temperature Controller for Water/Electric Floor Heating Water/Gas Boiler Works with Alexa Google Home 3A 16A

Note: BHT-002GA / BHT-002GALW / BHT-002GC / BHT-002GCLW does not include floor sensor
notes:

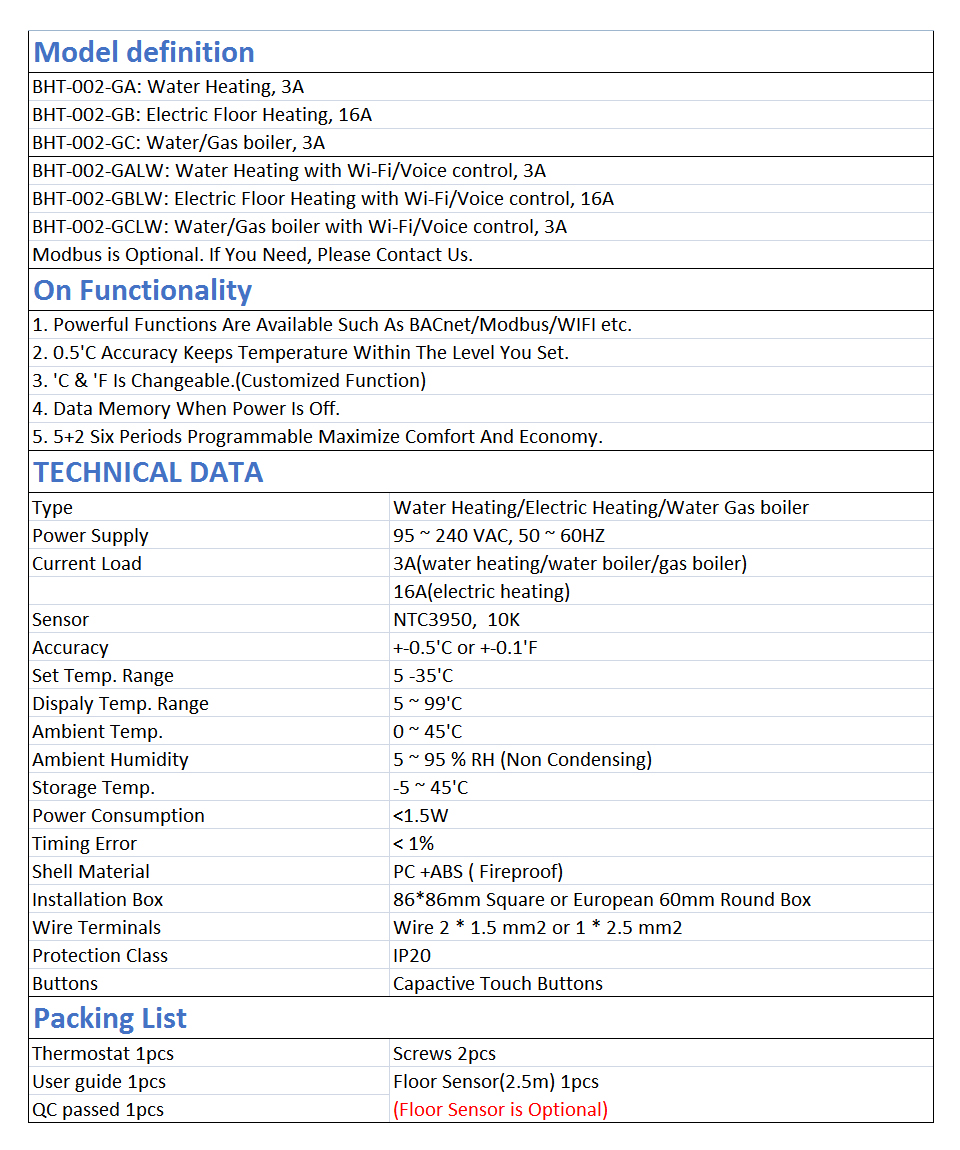

Model: BHT-002-GA/The BHT-002-GB/BHT-002-GC does not include Wi-Fi functionality.

Model: BHT-002-GALW/BHT-002-GBLW/BHT-002-GCLW/ Wi-Fi function included.

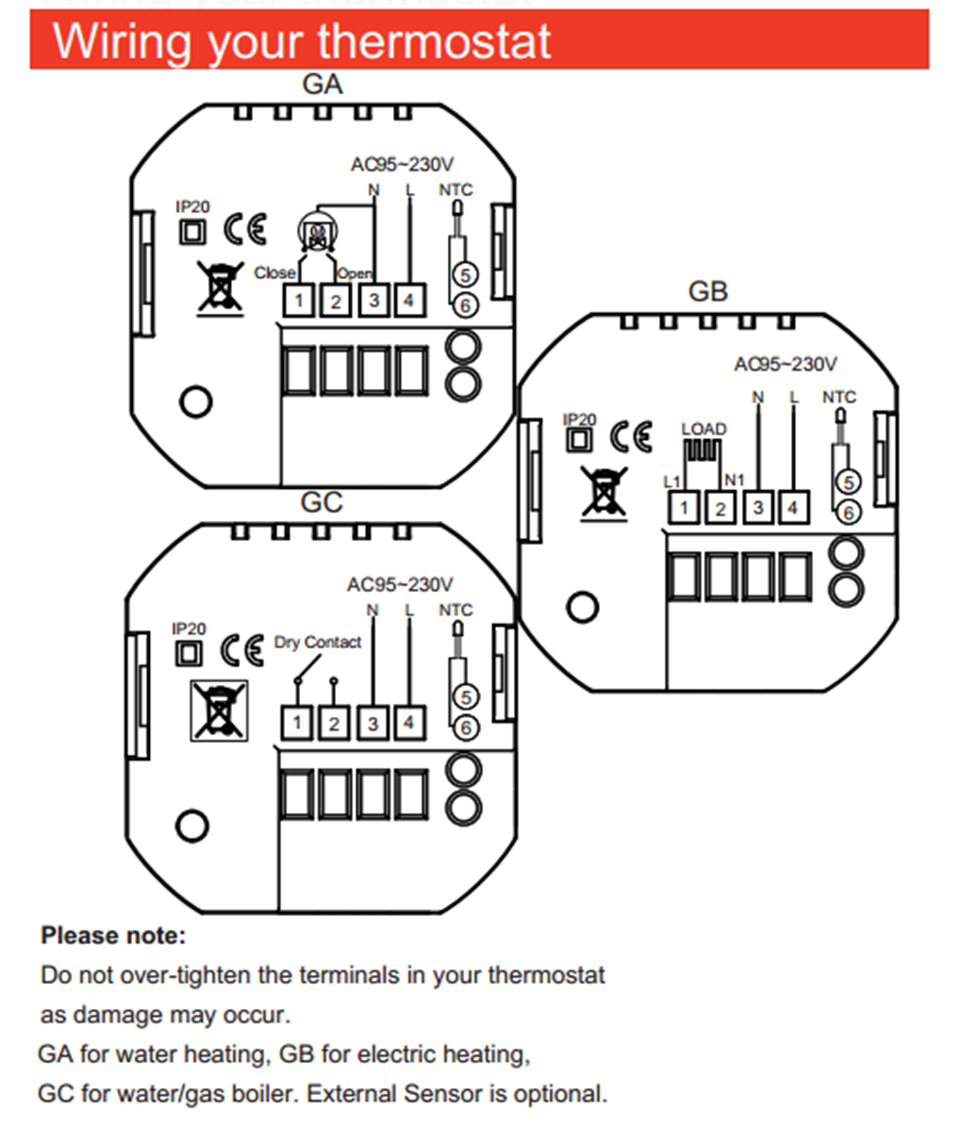

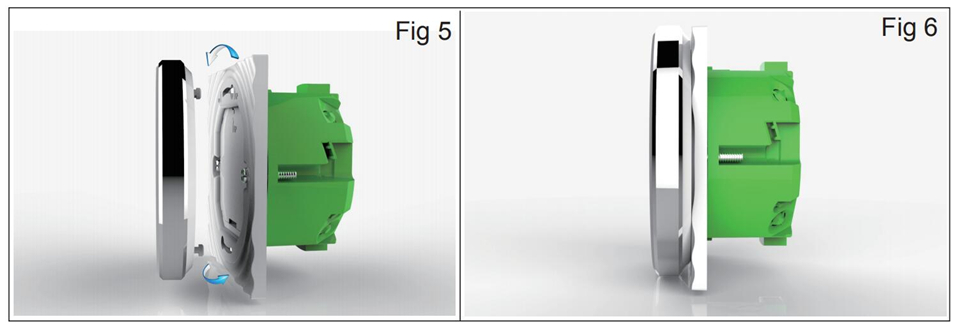

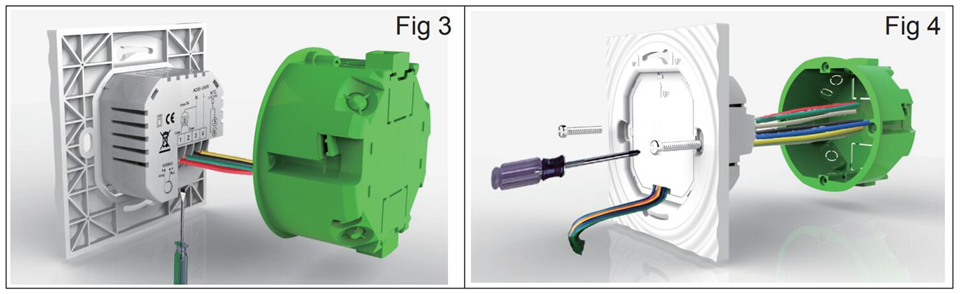

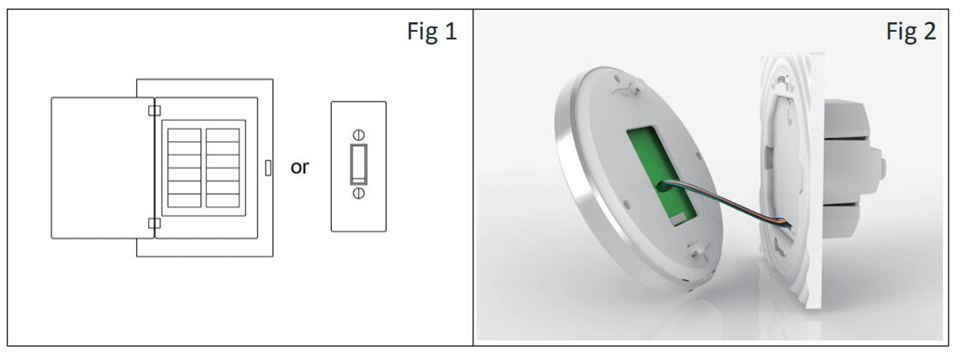

INSTALLING YOUR THERMOSTAT Fits inside a standard 86mm beat box or a European 60mm beat box Step 1. Keep the power off. See Figure 1 Step 2. Rotate the LCD section to remove the mounting plate. See Figure 2. Step 3. Connect the power supply and plug the load into the corresponding terminal. (See "Wiring the Thermostat" and Figure 3 for details). Step 4. Fix the mounting plate to the wall with the screws in the box. As shown in Figure 4. Step 5. Rotate and fix the thermostat body and mounting plate. See Figure 5.

Step 6. The installation is complete. See Figure 6.
