Date Logger Server Software Wireless Round Soil 8 in 1 LORA LORAWAN RS485 Moisture Temperature EC PH Salinity NPK Sensor

  • Supplier: Honde Technology Co., Ltd.
  • Region: Beijing, China
  • Contact: Mr Marvin Li
  • Price: $138.00 / 1 - 9 pieces
    $135.00 / 10 - 99 pieces
    $130.00 / >=100 pieces
  • Min. Order: 1 piece
Click here to contact
Product details
application:Agricultural soil testerFree cloud servers and software:Available
product name:Soil Moisture Temperature EC Salinity NPK PH 8 in 1 Sensorbrand:Hundtek
model:RD-S8IN1-R-02shell material:Epoxy resin
calibration:Modbus commandPackaging details:1 unit/box
Place of origin:Beijing ChinaGross weight of single piece:0.800kg
series:soil sensorSignal output:Standard MODBUS-RTU/RS485
feature:8-in-1 soil sensorRS485 to USB converter:Free shipping
Sales unit:Single productMinimum order quantity:1
Installation type:Server softwareWireless type:GPRS/4G/LORA/LORAWAN/WIFI
Package preview:waterproof:IP68
usage:soil sensortype:soil sensor
Output:RS485describe:Buried underground, soil 8-in-1 sensor
Single piece packaging size:15X12X4 cmtheory:roosevelt
Product Description
product name

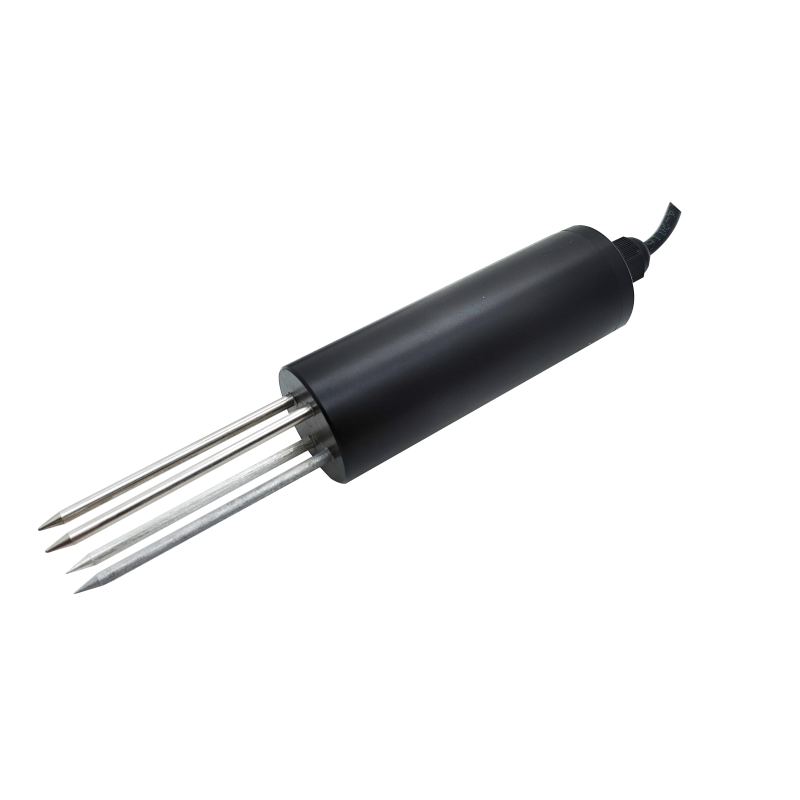

8-in-1 Soil Moisture Temperature EC PH Salinity NPK Sensor
Probe type
Probe electrode
Measurement parameters
Soil temperature moisture EC PH salinity N, P, K
Soil moisture measurement range
0～100%(V/V)
soil temperature range
-40~80℃
Soil EC measurement range
0~20000us/cm
Soil salinity measurement range
0~1000ppm
Soil nitrogen, phosphorus and potassium measurement range
0~1999mg/kg
Soil pH measurement range
3-9pm
Soil moisture accuracy
2% in the range of 0-50%, 3% in the range of 53-100%
Soil temperature accuracy
±0.5℃（25℃）
Soil conductivity accuracy
±3% within the range of 0-10000us/cm; ±5% within the range of 10000-20000us/cm
Soil salinity accuracy
±3% within the range of 0-5000ppm; ±5% within the range of 5000-10000ppm
Soil nitrogen, phosphorus and potassium accuracy
±2% full scale
Soil pH accuracy
±0.3ph
soil moisture resolution
0.1%
soil temperature resolution
0.1℃
Soil EC resolution
10 microseconds/cm
Soil salinity resolution
1 ppm
Soil nitrogen, phosphorus and potassium resolution
1 mg/kg (mg/L)
Soil pH resolution
0.1ph
output signal
A: RS485 (standard Modbus-RTU protocol, device default address: 01)


Wireless output signal
Answer: Lola/Lolawang
B：GPRS
C：WIFI
Data: 4G
Cloud servers and software
Supporting servers and software can be provided to view real-time data on PC or mobile devices
voltage
5-30VDC
range of working temperature
-40℃～80℃
stable schedule
5 seconds after power on
Sealing material
ABS engineering plastics, epoxy resin
waterproof level
IP68
Cable specifications
Standard 2 meters (other cable lengths can be customized, up to 1200 meters)

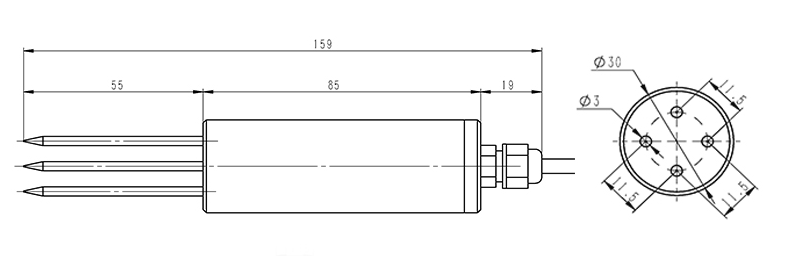

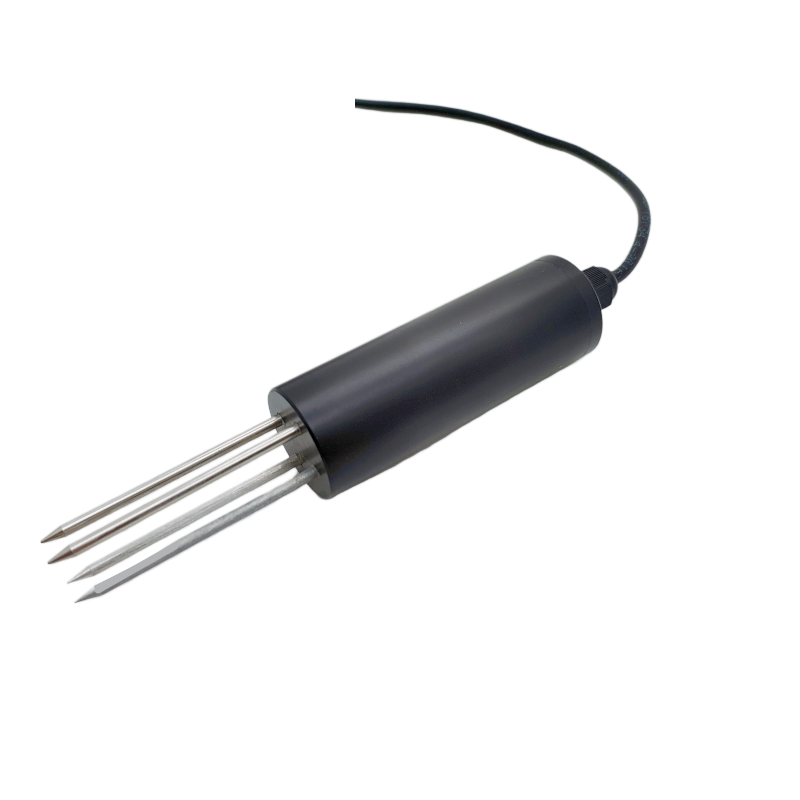

detailed picture





Feature 1

The sensor integrates eight parameters: soil moisture content, temperature, conductivity, salinity, N, P, K, and PH.







Feature 2

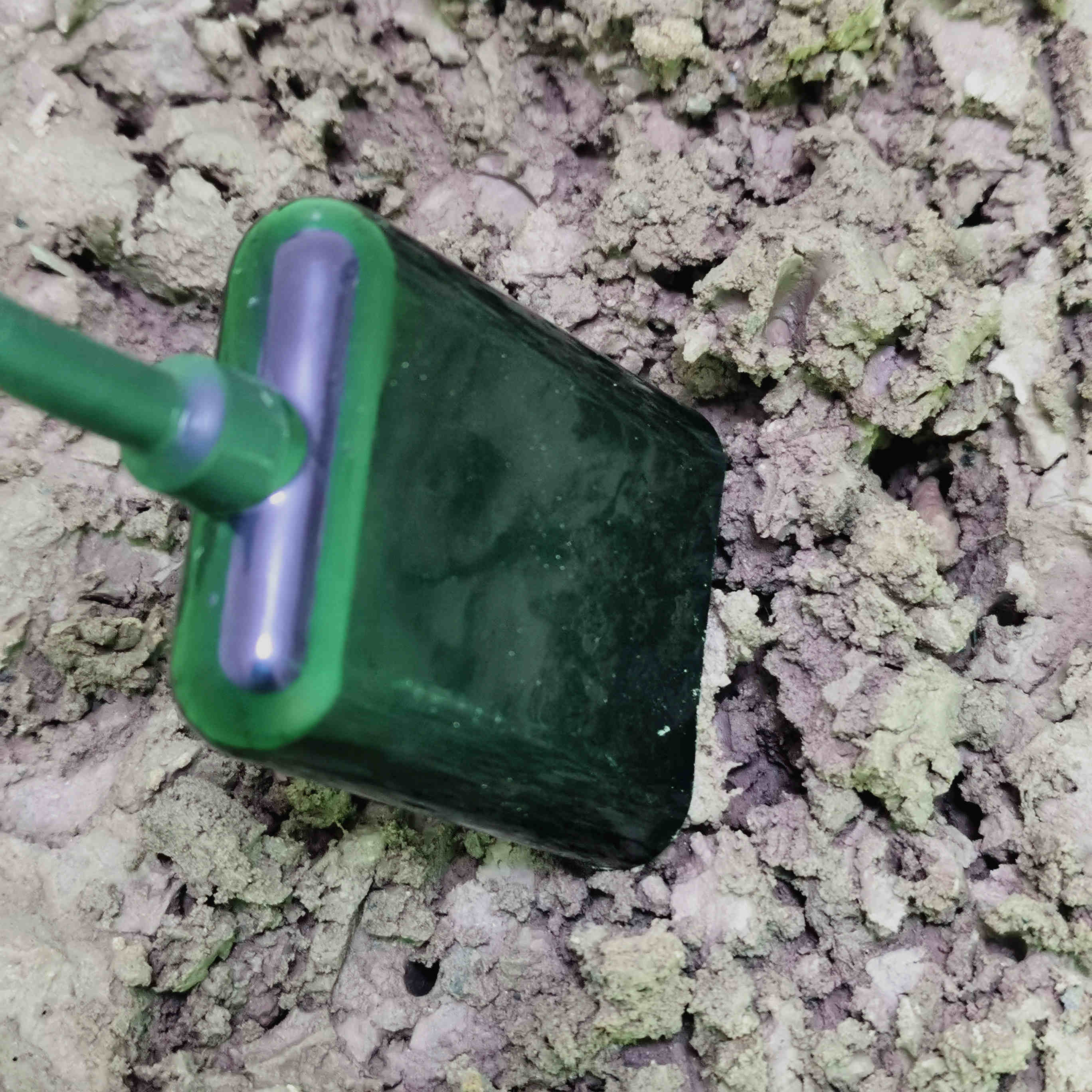

ABS engineering plastic, epoxy resin, waterproof grade IP68, can be buried in water and soil for long-term dynamic testing







Feature 3

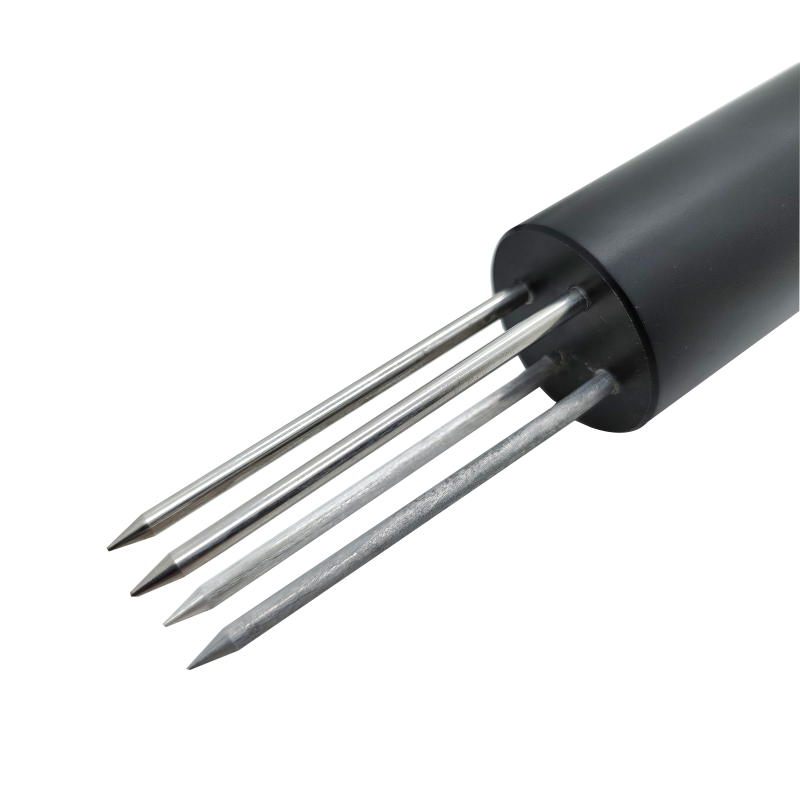

Austenitic 316 stainless steel, anti-rust, anti-electrolysis, fully sealed, and resistant to acid and alkali corrosion.








Feature 4

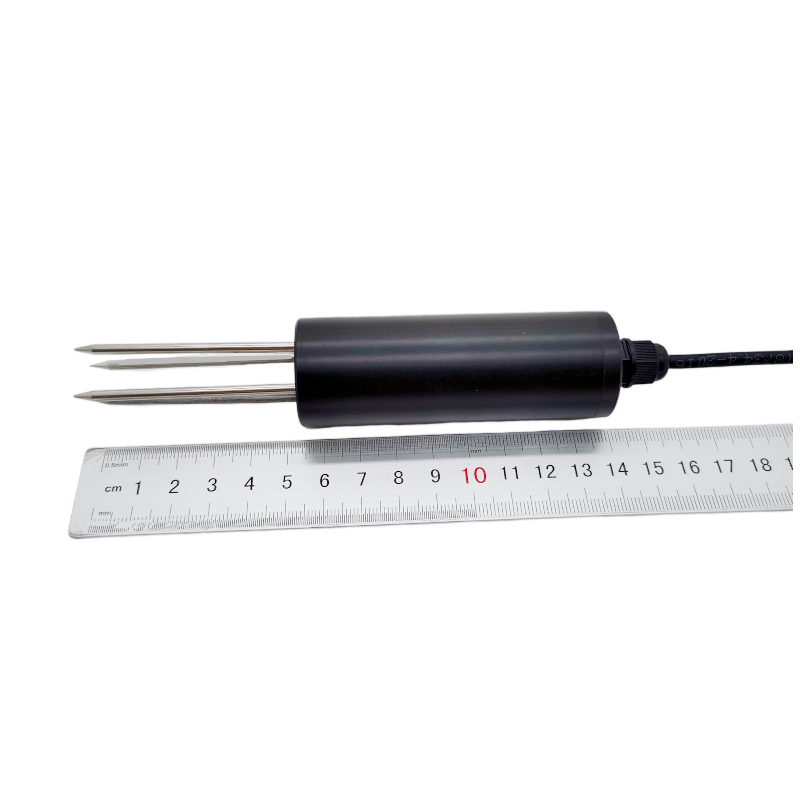

Small size, high precision, low threshold, few steps, fast measurement speed, no reagents required, and unlimited detection times.
Advantage

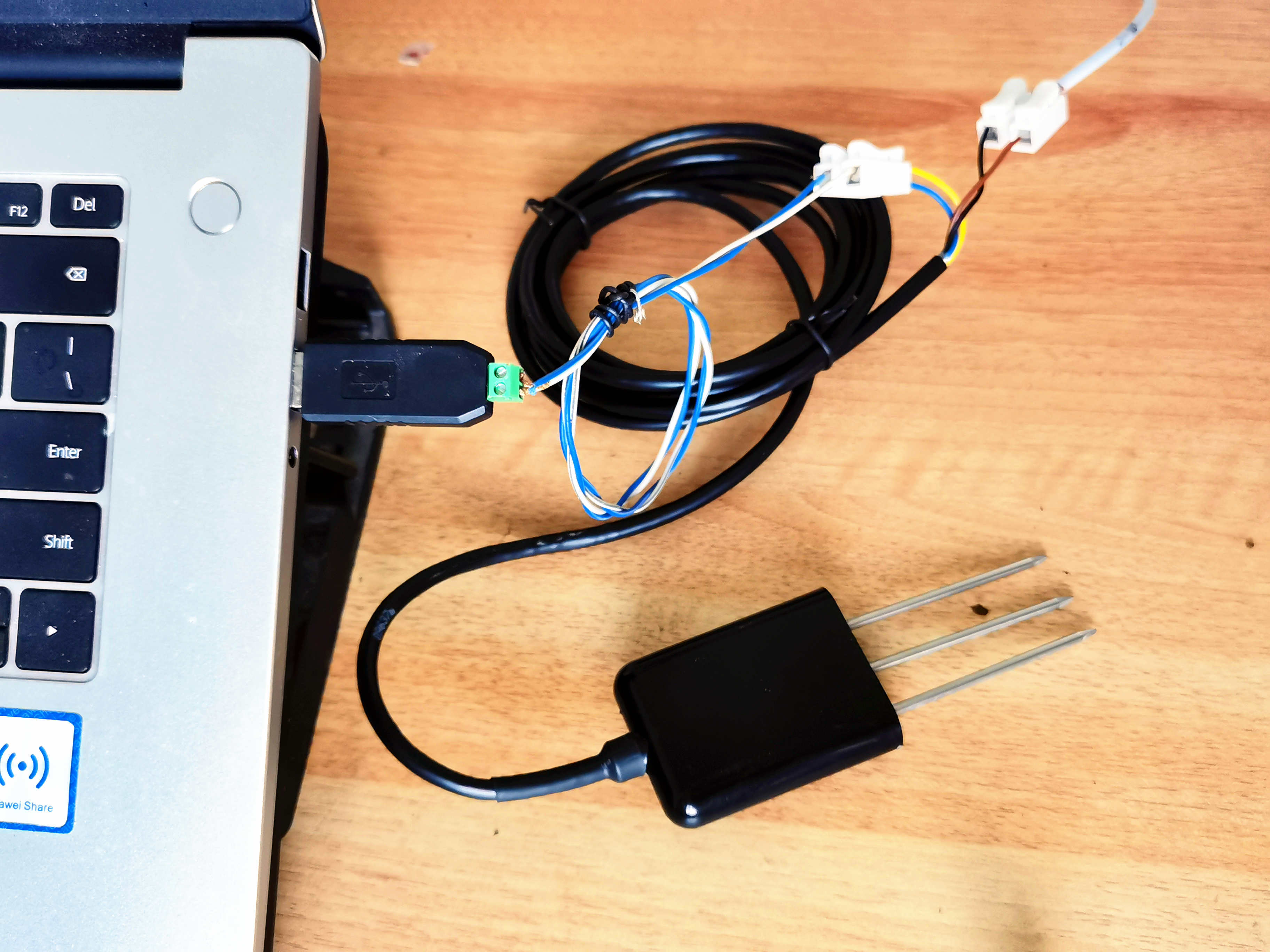

Advantage 1: Free delivery of test kits

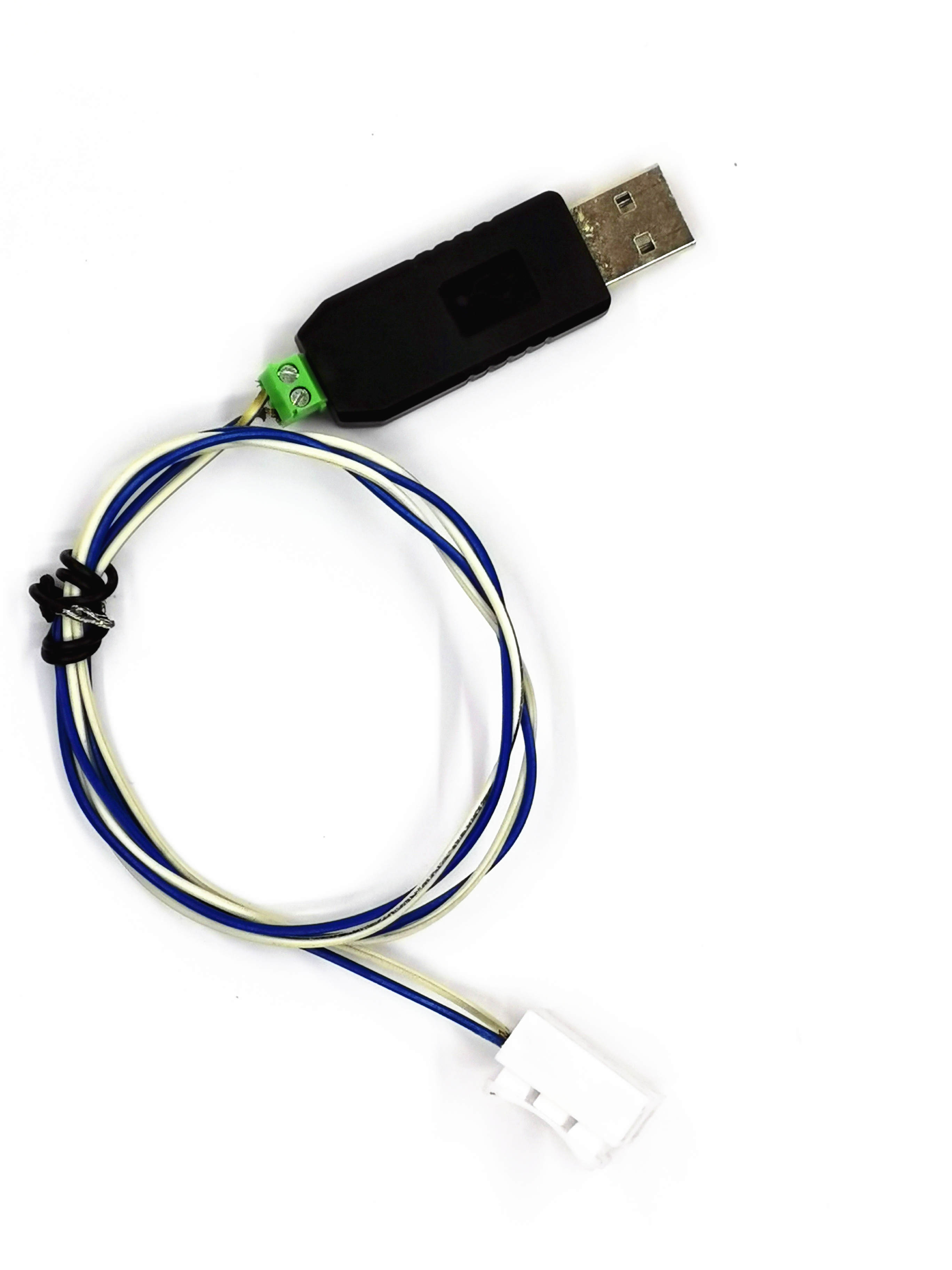

Free RS485 to USB converterfreely

Converter can connect the sensor directly to the PC

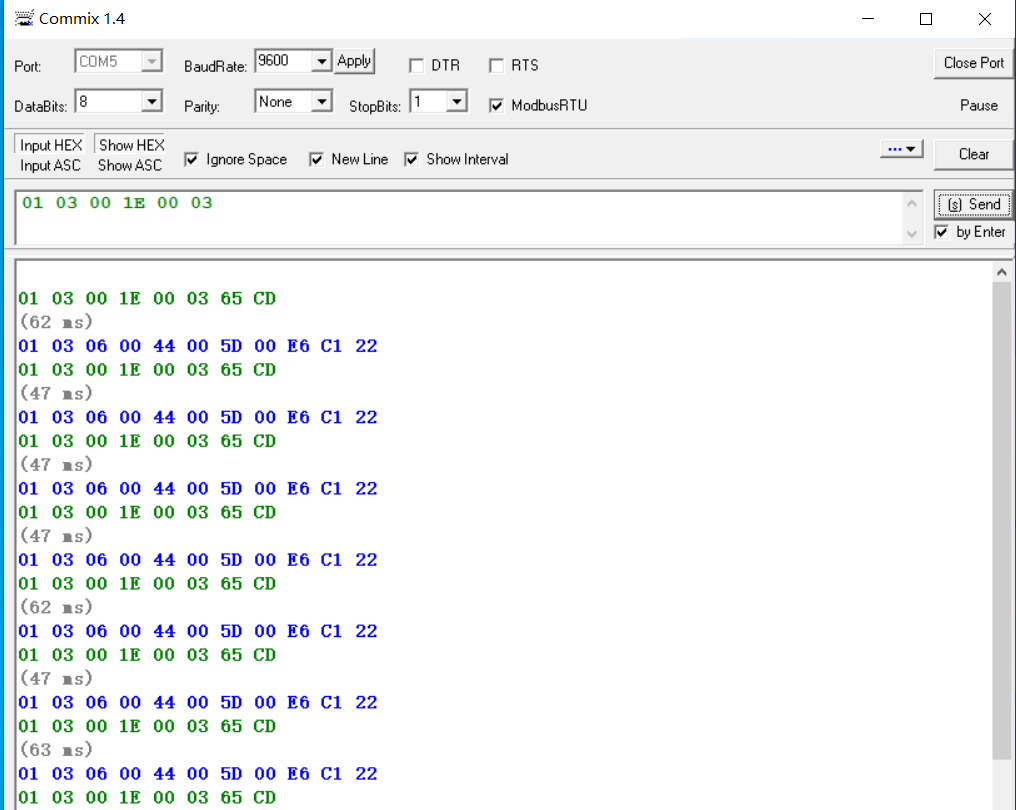

Free English version of serial port debugging softwarefreely

So you can test soil data directly after receiving the sample, without the need for other accessories.

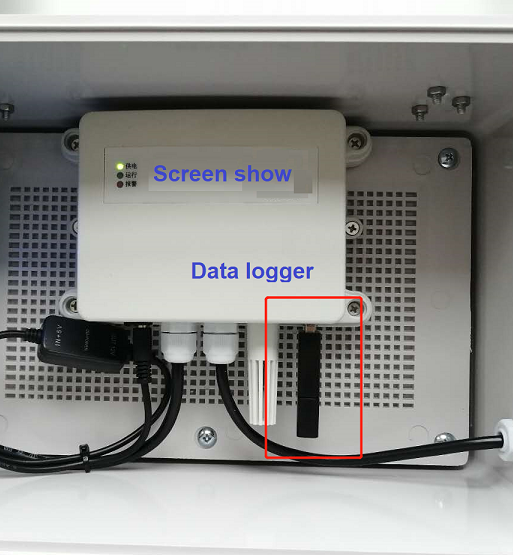

Advantage 2: The terminal with screen and the data logger with SD card can be customized.
*Please consult customer service for detailed prices.

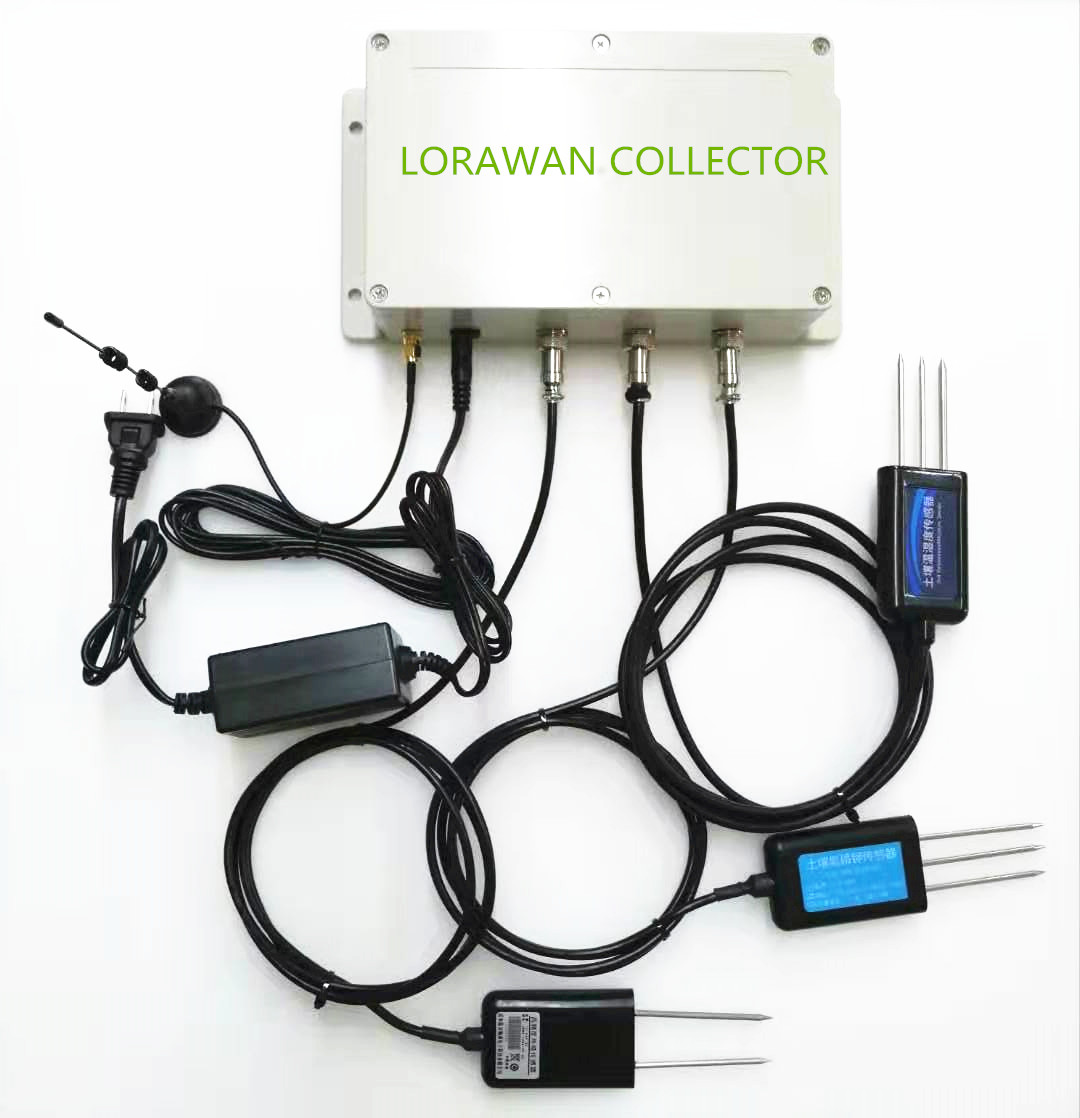

Advantage three: LORA/LORAWAN/GPRS/4G/WIFI wireless modules can be customized.
*Please consult customer service for detailed prices.
Advantage 4: Provide supporting cloud servers and software to view real-time data on PC or mobile phone
*Please consult customer service for detailed prices.
