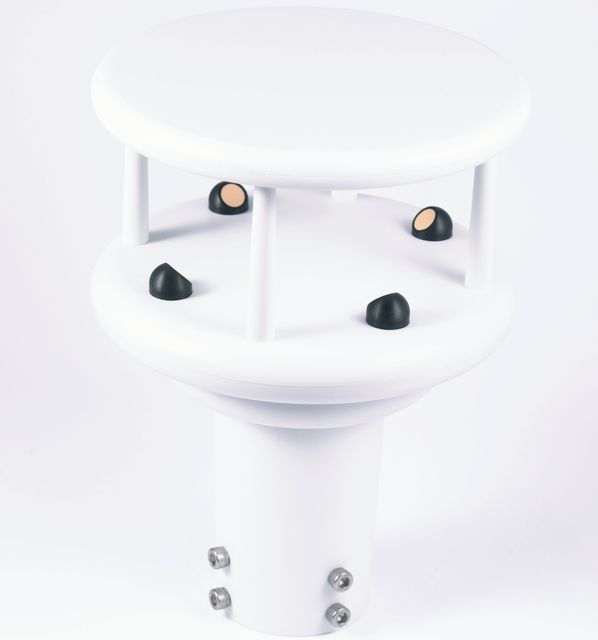

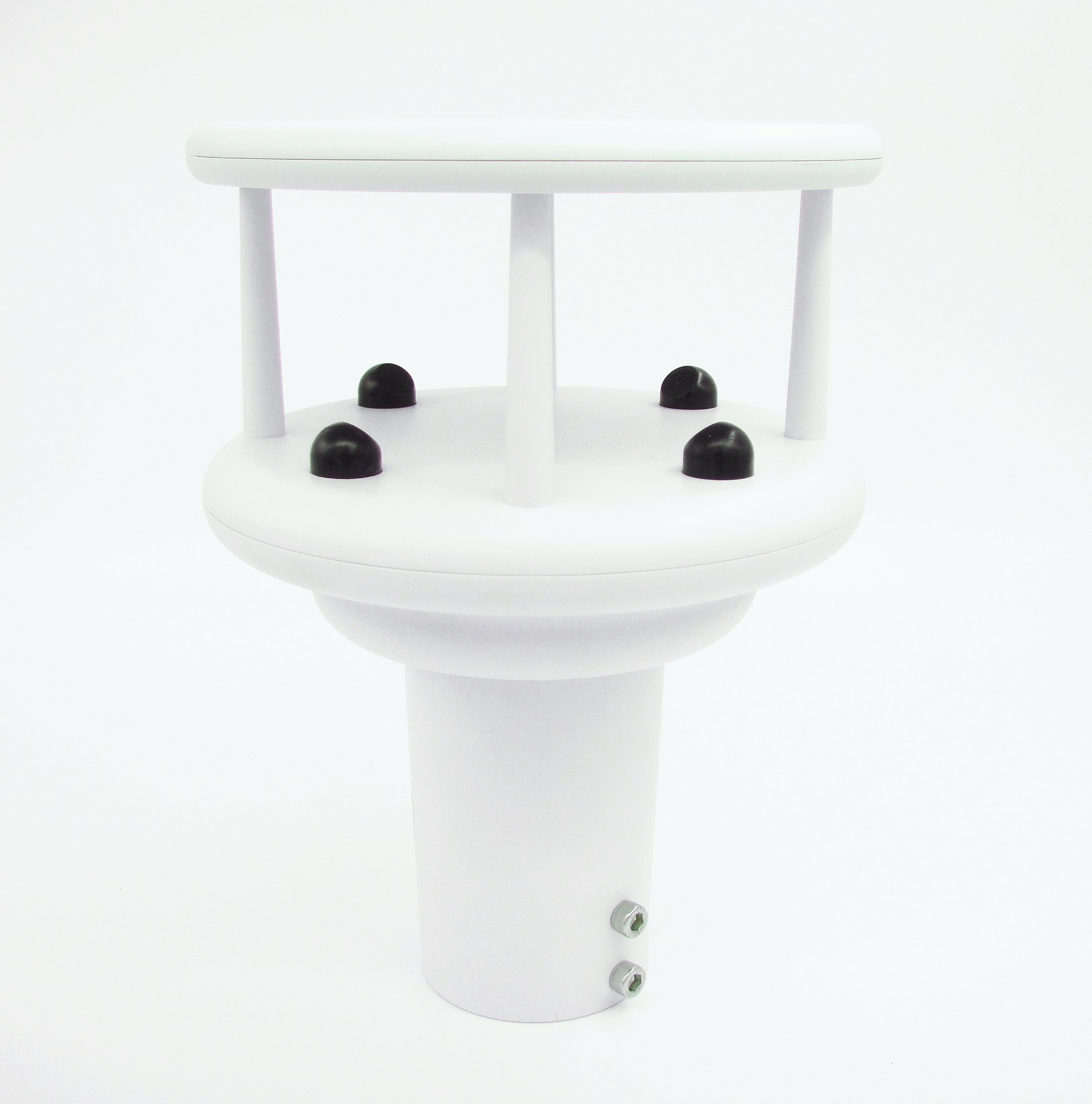

High-precision two-in-one ultrasonic wind speed and direction weather station

Supplier: Honde Technology Co., Ltd.
Region: Beijing, China
Contact: Mr Marvin Li
Price: $20.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	Western Union, T/T, MoneyGram, PayPal	Customization support:	OEM,ODM,OBM
model:	HD-WSM-U-02-01	Application-1:	Wind Energy Weather Station
Packaging Details:	1/box	Application-4:	road weather station
Supply capacity:	1000 pieces per month	Origin:	Beijing China
Key words:	Two-in-one ultrasonic wind speed and wind direction	Application-2:	Environmental weather station
Application-3:	agricultural weather station	type:	ultrasound
application:	Environmental protection of agricultural roads, roads, smart street lights	MOQ:	1
Material:	atomic absorption spectrometry	product name:	Secondary Meteorological Parameters Weather Station
Warranty:	1 year below normal, 1 year	port:	Tianjin Xingang
Package preview:		brand:	Hongde Technology

Product Description

Measurement parameters
parameter name	2 in 1: Ultrasonic wind speed and direction
parameter	Measuring range	solve	accuracy
wind speed	0-60m/s	0.01m/s	(0-30m/s) ±0.3m/s or ±3%FS
wind direction	0-360°	0.1°	±2°
* Other customizable parameters	Temperature, humidity, air pressure, rainfall, radiation, illuminance, ultraviolet rays, PM2.5, PM10, CO, SO2, NO2, CO2, O3, noise
Technical Parameters
Stablize	Less than 1% over the lifetime of the sensor
Response time	less than 10 seconds
warm up time	30S (SO2\NO2\CO\O3 12 hours)
Working current	DC12V≤60ma (HCD6815) -DC12V≤180ma
energy consumption	DC12V≤0.72W (HCD6815); DC12V≤2.16W
life	Except SO2\NO2\CO\O3\PM2.5\PM10 (1 year in normal environment, high pollution environment is not guaranteed), Lifespan not less than 3 years
output	RS485, MODBUS communication protocol

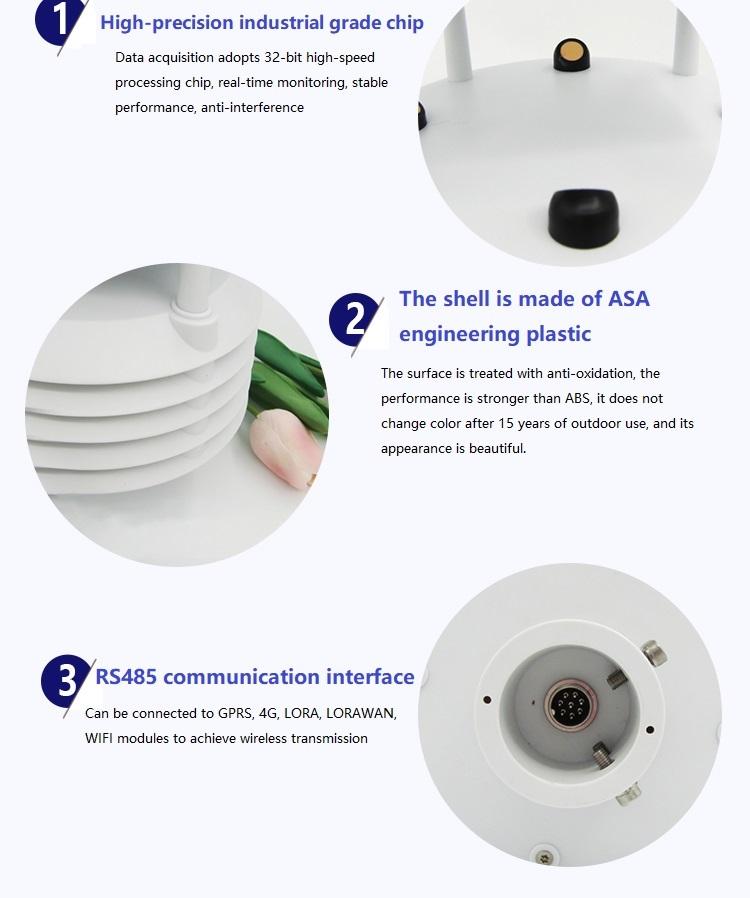

building materials	ASA engineering plastics
working environment	Temperature -30～70℃, working humidity: 0-100%
Storage conditions	-40～60℃
standard cable length	3 meters
The farthest lead length	RS485 1000 meters
degree of protection	IP65
Electronic compass	Elective
Global Positioning System	Elective
Wireless transmission
Wireless transmission	LORA/LORAWAN, GPRS, 4G, WIFI

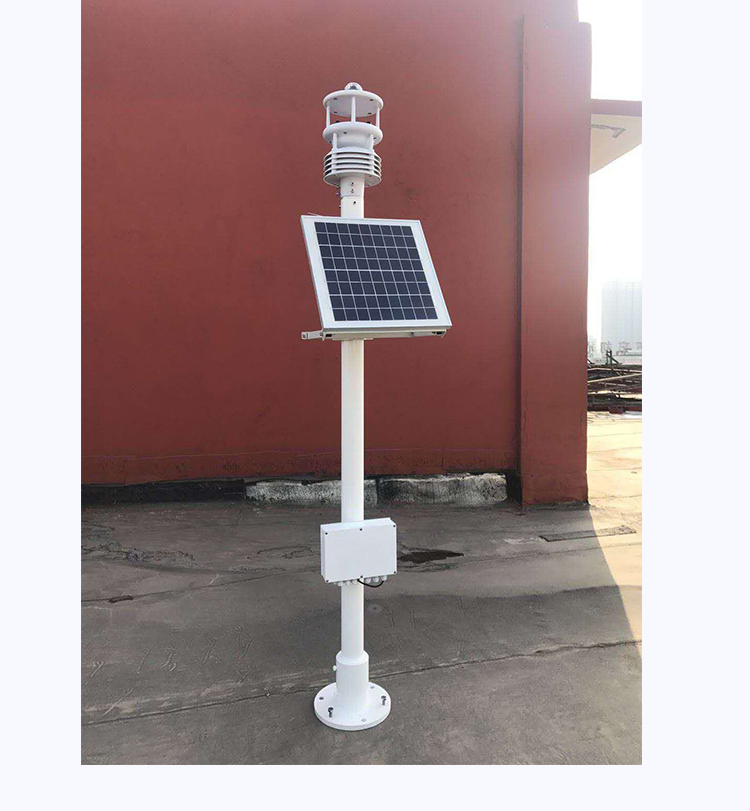

Mounting Accessories
Pole	1.5m, 2m, 3m high, other heights can be customized
Equipment case	stainless steel waterproof
Ground cage	Matching ground cages can be provided for burial into the ground
lightning rod	Optional (for use in thunderstorms)
LED display	Elective
7 inch touch screen	Elective
Surveillance cameras	Elective

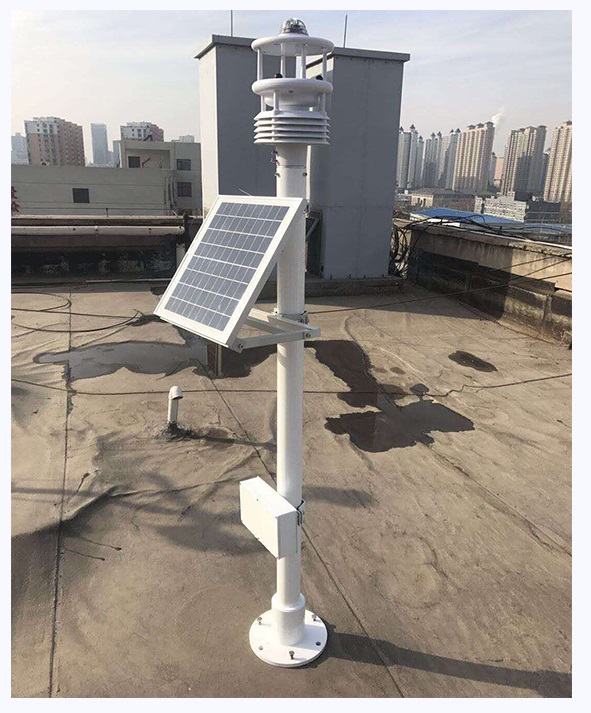

The Sun can generate system
Solar panels	Power can be customized
Solar Controller	Supporting controllers are available
Mounting brackets	Supporting brackets are available
