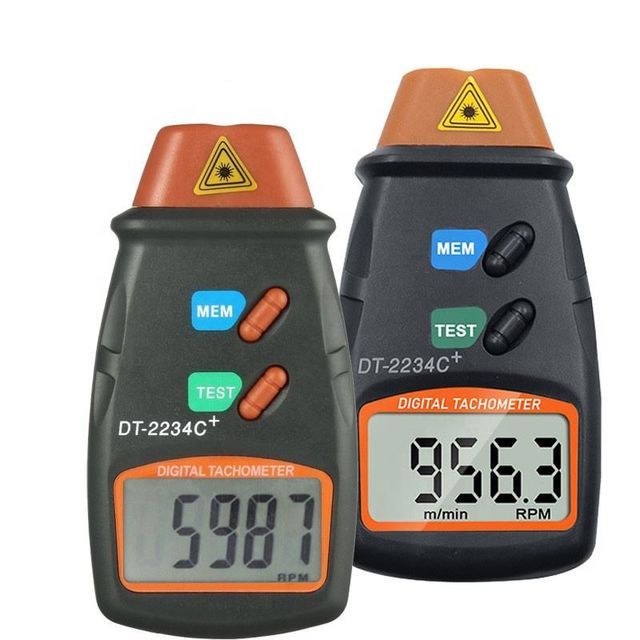

New Digital Laser Tachometer RPM Meter Non-Contact Motor Speedometer Spin Rotation

Supplier: Shenzhen Shengtaixin Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr shaosheng xu
Price: $4.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Item Type:	Non-Contact RPM Laser Photo Tachometer	model:	DT-2234C
Mirror Length:	L50 x W25mm	brand:	The original
Scan diameter:	17mm	Origin:	China
output:	less than 1mw	payment terms:	Western Union, T/T, MoneyGram
port:	China	Material:	Hard shell ABS plastic
type:	measuring instrument	Customization support:	OEM production
Used for:	Measuring the speed of lathe motors and machines	Battery length:	L44 x W25 x D16mm
Packaging Details:	1 piece in a box	Net size:	L130 x W65mm

New Digital Laser Tachometer RPM Meter Non-Contact Motor Speedometer Spin Rotation

Display: 5-digit 18mm high character liquid crystal display

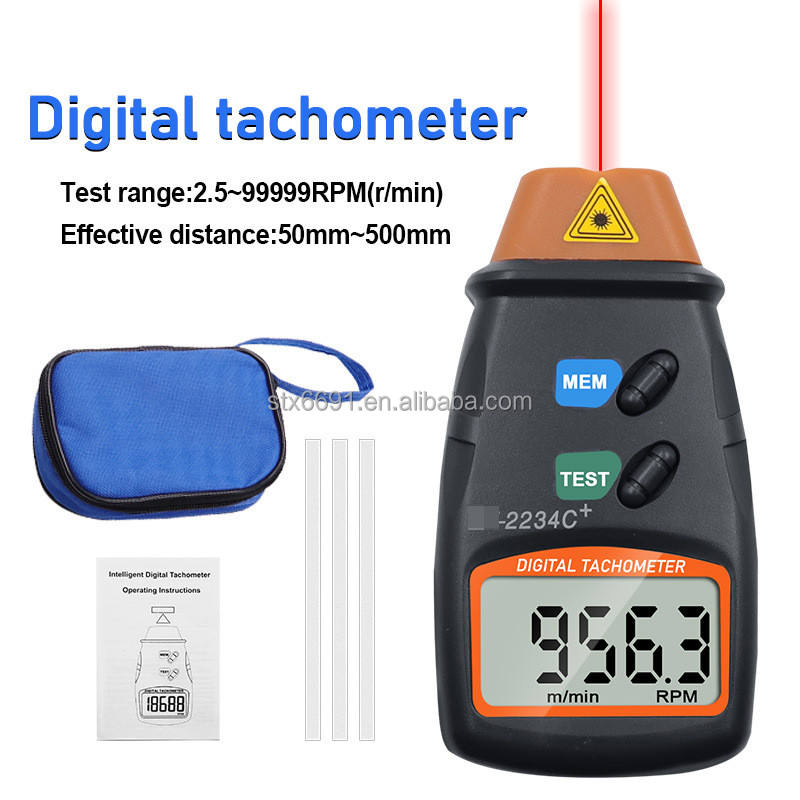

Test range: 2.5RPM ~ 99,999RPM (rev/min)
solve:
0.1RPM (rev/min) (2.5~999.9RPM)
1RPM (revolutions per minute) (above 1000RPM)
Measurement accuracy: ± (0.05%+1 word)
Sampling time: 0.8 seconds (over 60 rpm)
Effective measurement distance: 50mm～500mm (laser light source)
Time base: 6MHz quartz crystal oscillator
Range selection: automatic switching
Power supply: single 6F22 9V battery
Power consumption: about 35mA

Automatic memory maximum value, minimum value, last measured value

feature:

large LCD display

Wide measurement range and high resolution. Durable to use.

Digital display gives exact RPM with guess or error. It's a great measuring tool

In wood and metal working, it is used to accurately measure the speed of lathes.

The rotational speed of motors and machine parts.

The shell is engineered to fit comfortably in either hand.

Last value/minute. Values are automatically stored in memory and can be displayed in rotation at any time.

Wide measuring range and high resolution

Large screen display, clear reading

Light weight, hard ABS plastic shell, beautiful appearance, easy to use.
