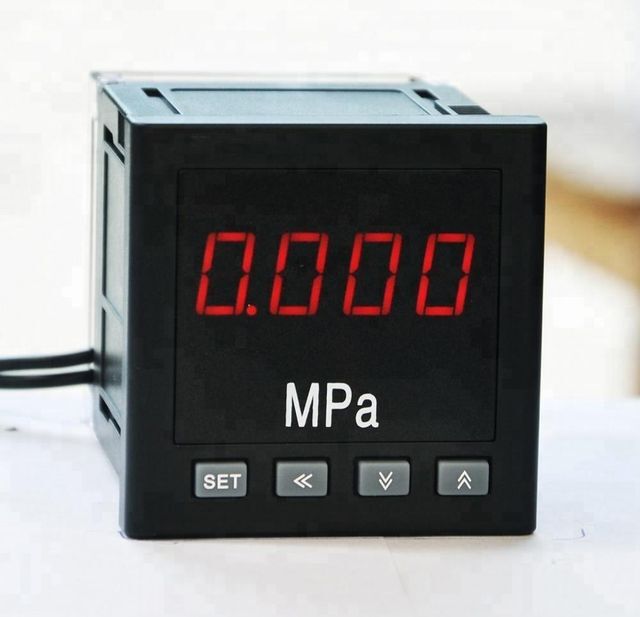

Digital meter 80*80 mm

Supplier: Wei Dian Union (Hubei) Technology Co., Ltd.
Region: Hubei, China
Contact: Mr Sandy He
Price: $11.65 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

brand:	WDLYCH	aspect:	72*72mm
Packaging Details:	Inner color box with standard export carton	exhibit:	LED display
standard:	GB/T22264-2008	Warranty:	18 months

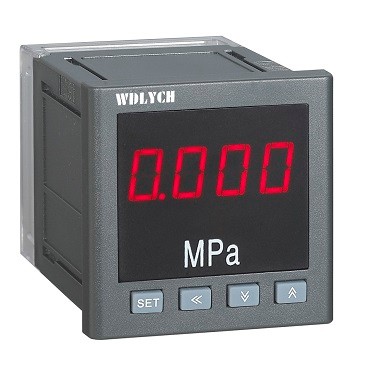

type:	digital intelligence	product name:	Digital MPa Meter
Digital Display:	4 digits	Supply capacity:	10000 pieces per month
port:	Shanghai	place of origin; place of origin:	Hubei, China
payment terms:	L/C,T/T,Western Union	Certificate:	CE/ISO9001:2008
Model:	WD-AL	model:	WD-AL
Measurement:	pressure

Product Description

The WD-BL single-phase tachometer is used to measure and monitor electrical distribution systems. This series of meters can measure rmp in power distribution or other applications.

It combines measurement, analysis and action to make information clearer and easier to operate.

technical parameter

Performance	technical parameter
Measurement input display	Voltage	Rated value	AC100V/450V/690V
		overload	Continue: 1.2 times; Moment: 10 times
		energy consumption	﹤1VA
		impedance	≥500kΩ
		Accuracy class	0.5
	current	Rated value	DC4-20mA/0-20mA AC1A/5A
		overload	Continue: 1.2 times; Moment: 10 times
		energy consumption	﹤0.4VA
		impedance	﹤2mΩ
	strength		0.5
	power factor		0.5
	frequency		0.5
strength	Voltage		AC/DC85-265V, DC24V, AC380V, 440V, 690V
	energy consumption		≤ 5VA
output	communicate		RS485 MODBUS-RTU protocol
	relay output		Line alarm output
	transmit output		1-3 rows of transmission output, 4-20mA/0-20mA
surroundings	working environment		-25-55℃
	storage environment		-20-75℃

Model selection

Model	Dimensions (mm)
WD-9L	96*96-93
WD-3L	80*80-93
WD-AL	72*72-93
WD-BL	96*48-93
WD-DL	48*48-81

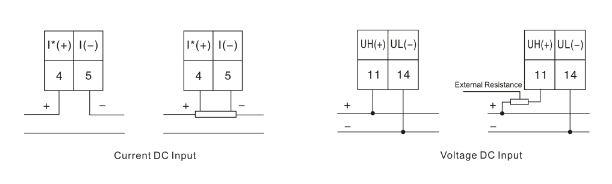

Wiring diagram
