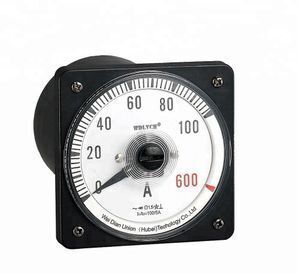

100/5A 110mm Round Type Overload Analog Ammeter

Supplier: Wei Dian Union (Hubei) Technology Co., Ltd.
Region: Hubei, China
Contact: Mr Sandy He
Price: $16.85 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Operating Temperature:	-40-65℃;	Accuracy Class:	1.5%;
Display:	Analog Only;	Port:	Shanghai;
Supply Ability:	10000 Piece/Pieces per Month;	Display Type:	Analog Only;
Model Number:	WDG110-ACA;	Packaging Detail:	Inner color box with outer standard export carton;
Place of Origin:	Hubei China;	Supply Voltage:	AC220V;
Guarantee:	18 Months;	Payment Terms:	L/C,T/T,Western Union;
Product Name:	Analog Ammeter;	Standard:	GB/T7676-1998;
Dimension:	110*110mm;	Measuring Range:	0-1000A;
Brand Name:	WDLYCH;	Dimensions:	110*110mm;
Type:	Marine Type;	Shell Material:	ABS Plastic Shell Housing;
Structure:	Moving Coil;	Certificate:	CCS/CE;
Usage:	Current measurement;

Product Description

This type of meters are analog electric measuring instruments, widely used in measuring AC/DC current, voltage, frequency, power, power factor, insulation resistance and synchroscope indicating in AC/DC transmitting & distribution power system, switchboard, other electric & non-electric instruments.

Our 96*96mm, 72*72mm square meter, 110*110mm, 80*80mm square round meter, improved in structure, material, seals according to environmental conditions & demands in marine industry, which let our meter have the ability of not only advanced technology, resonable structure, good quality, but also good appearance, light weight, anti-mechanical force and different climates.

Technical Parameters

Item	Technical Data	International Standard
Technical Standard	GB/T7676-1998	IEC60092-50
Environment Standard	GB8355-1987	IEC92-504-74
Safety Standard	GB4793-20	IEC61010
Working Temperature	-40℃-65℃
Temperature Influence	-13-33℃, 100% comply with accuracy class
Indicating Angle	240-270° (Synchroscope meter:360°)
Color of Shell	Black/white , board frame , terminal plate : Black
Color of Dial Plate	Black/white, other colors are available on requests
Mounting	Vertical mounting
Dimension	110110mm, 8080mm
Dimension	9696mm, 7272mm, 48*48mm
Overshoot	Less than 20% when scale reaches to 2/3
Insulation Withstand	Circuit & shell: AC2600V/1 minute(Water area)
Vibration Resistance	24.5m/s²
Impact Resistance	147m/s²
Material	Shell/terminal board: ABS; Cover: Transparent Glass

Ordering Code

Wiring Diagram

Our Service

Consultative Minute-by-minute Technology Support

Wei Dian Union offers all-rounded technology support service, solves problems effectively, helps customers to lift operation efficiency, saves time and lowers down product damage expense.

● Better system design

● Application solution

● Operation & maintenance instruction

● Troubleshooting hotline

Entire Users Service

Wei Dian Union focuses on study on users experience in various aspects and levels for better meeting customers' existing and potential demands, and offers high value added butler service.

● Solution support

● Demand management support

● Technology consult support

● Delivery support

Transportation Service

DHL, TNT, UPS and Fedex are our long-term logistic partner, which will guarantee all of our products to ship quickly and safely to customers outside.

FAQ

1. Who is Wei Dian Union?

Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man, including domestic and international sales. Our team is young, which guarantee us more vitality.

2. Is your company manufacturer or trading company?

Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.

3. What is the warranty of your products? and how about your quality?

All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality control, besides our own technical team.

4. How about your payment term and shipment?

We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.

5. What's your advantage? Why should I choose your company?

Price: Compared with other famous company, our cost is much lower;

Quality: We have strict quality control, each meters have to accept life-time testing & inspection.

Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
