type: | water quality sensor | Output: | RS485 output |
Single piece packaging size: | 10X5X5 cm | Instrument/Transmitter: | No |
brand: | Hong Deqi | Place of origin: | Beijing China |
theory: | Electrochemical principles | Packaging details: | 1 piece/pack |
Certification: | CE | Sales unit: | Single product |
Correction method: | laboratory comparison | output signal: | 4-20mA |
Package preview: | Protection level: | IP68 | |
Warranty: | 1 year | Installation type: | put in water |
Minimum order quantity: | 1 | model: | RD-WQRC-02 |
product name: | HONDETECH chlorine sensor | series: | water quality sensor |
usage: | Residual chlorine in water | Gross weight of single piece: | 0.500kg |
Temperature compensation: | automatic / manual | describe: | Free residual chlorine sensor, HONDETECH residual chlorine sensor |
feature: | High accuracy | Communication signal: | RS485-MODBUS |

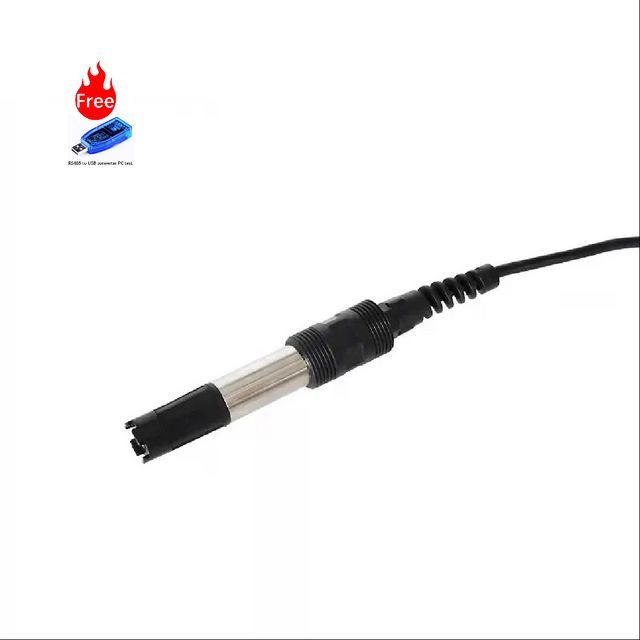

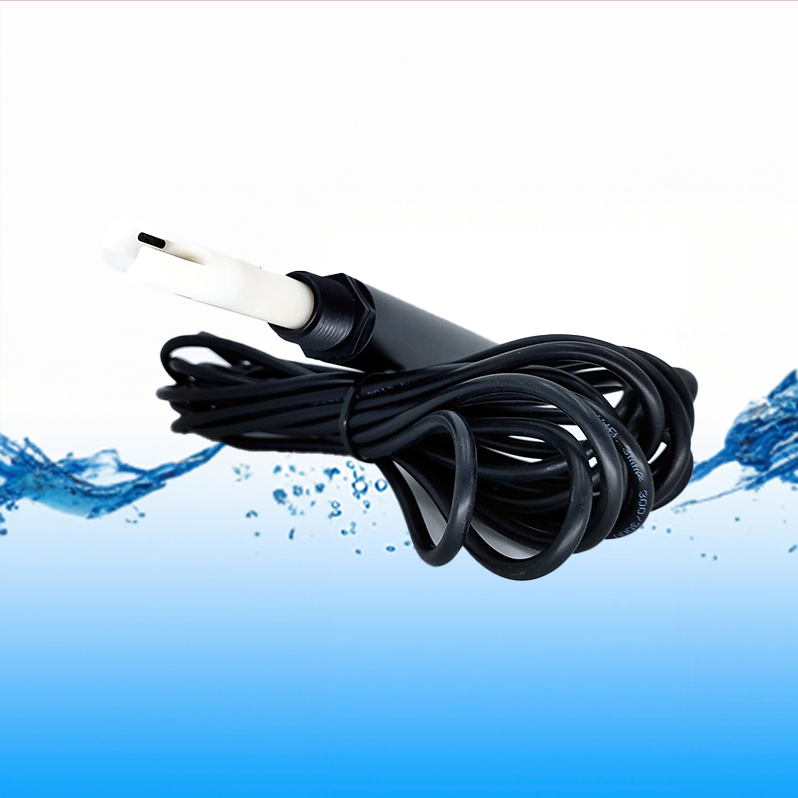

product name | Residual chlorine sensor | |
Input residual chlorine sensor | 1 | |
Measuring range | 0.00-20.00mg/L | |
measurement accuracy | 2%/±10ppb HOCI | |
temperature range | 0-60.0℃ | |
Temperature compensation | automatic | |
output signal | RS485/4-20mA | |
Withstand voltage range | 0-1 bar | |
Material | PC+316 stainless steel | |
Wire | 3/4NPT | |
cable length | Straight out 5m signal line | |
Protection level | IP68 | |
Flow-through residual chlorine sensor | ||
Measuring range | 0.00-20.00mg/L | |
measurement accuracy | ±1mV | |
Temperature compensation range | -25-130℃ | |
Current signal output | 4-20mA (adjustable) | |
Data communication | RS485 (MODBUS protocol) | |
Current signal output load | <750MPa | |
Material | personal computer | |
Operating temperature | 0-65℃ | |
Protection level | IP68 |
