Radar narrow beam 3-in-1 30-meter water level, surface velocity and flow sensor for river flood warning system

  • Supplier: Honde Technology Co., Ltd.
  • Region: Beijing, China
  • Contact: Mr Marvin Li
  • Price: $1930.80 / 1 - 8 pieces
    $1910.80 / 9 - 98 pieces
    $1890.80 / >=99 pieces
  • Min. Order: 1 piece
Product details
Key words:Radar typeport:Tianjin Xingang
type:Flow SensorsMeasurement principle:Planar Microstrip Array Antenna CW + PCR
Packaging details:1 unit/boxWireless output:GPRS/4G/WIFI/LORA/LORAWAN
product name:Radar water flow water level water flow three-in-one sensorMaximum range:7m/40m
MOQ:1Supply capacity:1000 pieces per month
Water speed measurement range:0.03-20m/spayment terms:Western Union, Wire Transfer, MoneyGram, PayPal
Place of origin:Beijing ChinaCustomization support:OEM, ODM
Package preview:Warranty:Normally 1 year, 1 year
model:RD-600s-8application:water flow measurement
brand:HundtekSpeed ​​measurement accuracy:±0.01m/s;±1%FS
Product Description
Measurement parameters
product name
Radar water flow water level water flow 3 in 1 meter
Flow measurement system
Measurement principle
Radar planar microstrip array antenna CW + PCR
operating mode
Manual, automatic, telemetry
Applicable environment
24 hours, rainy days
Operating Voltage
3.5~4.35VDC
Relative humidity range
20%~80%
Storage temperature range
-30℃~80℃
Working current
12VDC input, working mode: ≤300mA Standby mode:
Lightning protection level
6KV
physical size
160*100*80 (mm)
weight
1 kg
degree of protection
IP68
radar flow sensor
Flow measurement range
0.03-20m/s
Flow measurement accuracy
±0.01m/s; ±1%FS
Traffic radar frequency
24GHz
Radio wave emission angle
12°
Radio wave emission standard power
100 mW
Measurement direction
Automatically recognizes water flow direction and built-in vertical angle correction
radar water level gauge
Water level measurement range
0.2~40m/0.2~7m
Water level measurement accuracy
±2mm
water level radar frequency
60GHz/80GHz
Radar power
10 mW
Antenna angle
data transmission system
Data transfer type
RS485/ RS232/4~20mA
wireless module
GPRS/4G/WIFI/LORA/LORAWAN
Cloud servers and software
Support supporting servers and software to view real-time data on PC
detailed image






Feature one:IP68 waterproof cast aluminum body.


Fully enclosed shell, IP68 waterproof, no fear of rain or snow









Feature two:60GHz water level, high-precision measurement
Water level and flow are integrated to facilitate debugging and management.ent, 60GHz high-frequency signal, with extremely high accuracy and resolution;
(We also offer 80GHZ for your choice)

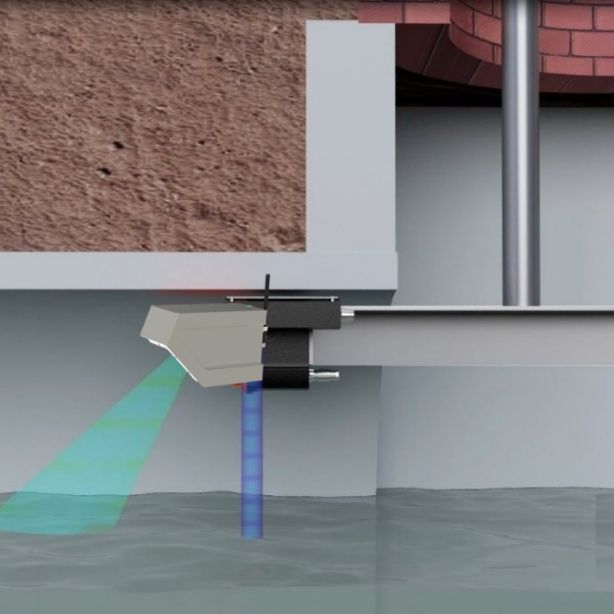

Feature 3: Non-contact measurement

Non-contact measurement, not affected by debris






Feature 4:
Various wireless output methods

RS485 modbus protocol can use LORA/LORAWAN/GPRS/4G/WIFI wireless data transmission, and the LORA LORAWAN frequency can be customized.




Feature 5:
Has supporting cloud servers and software

Use our wireless module to send supporting cloud servers and software, view real-time data on a PC or mobile phone, and download Excel data.

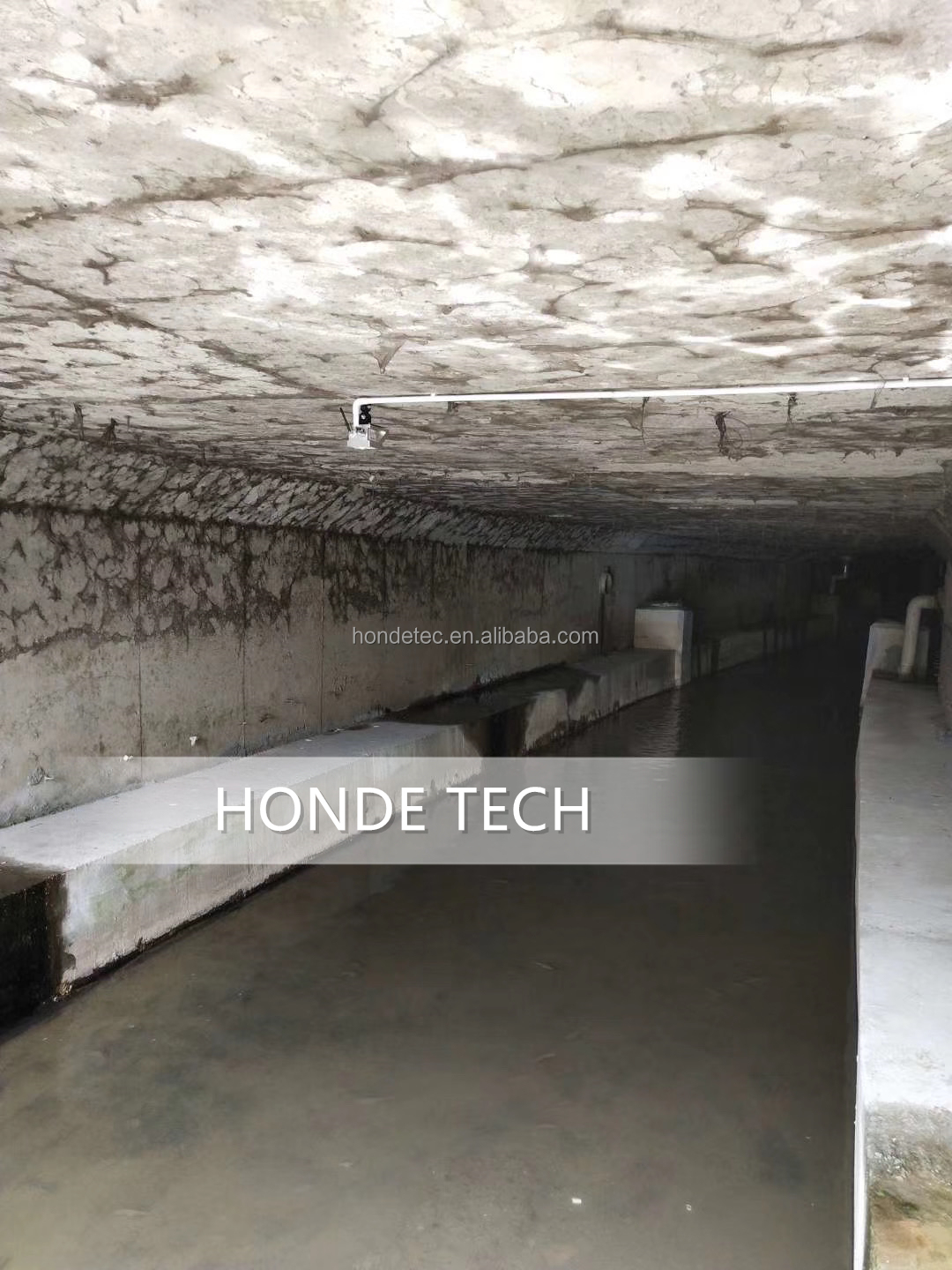

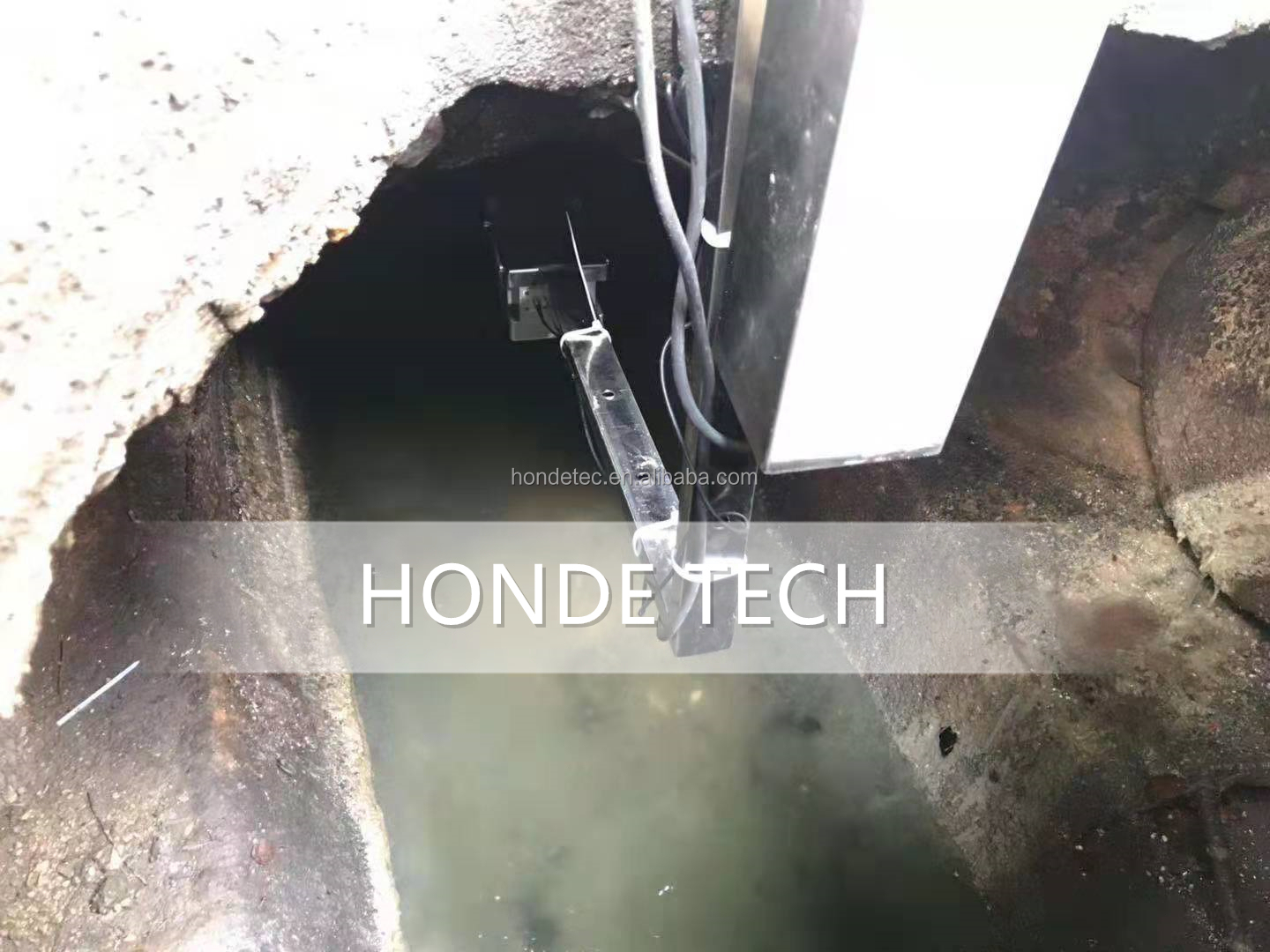

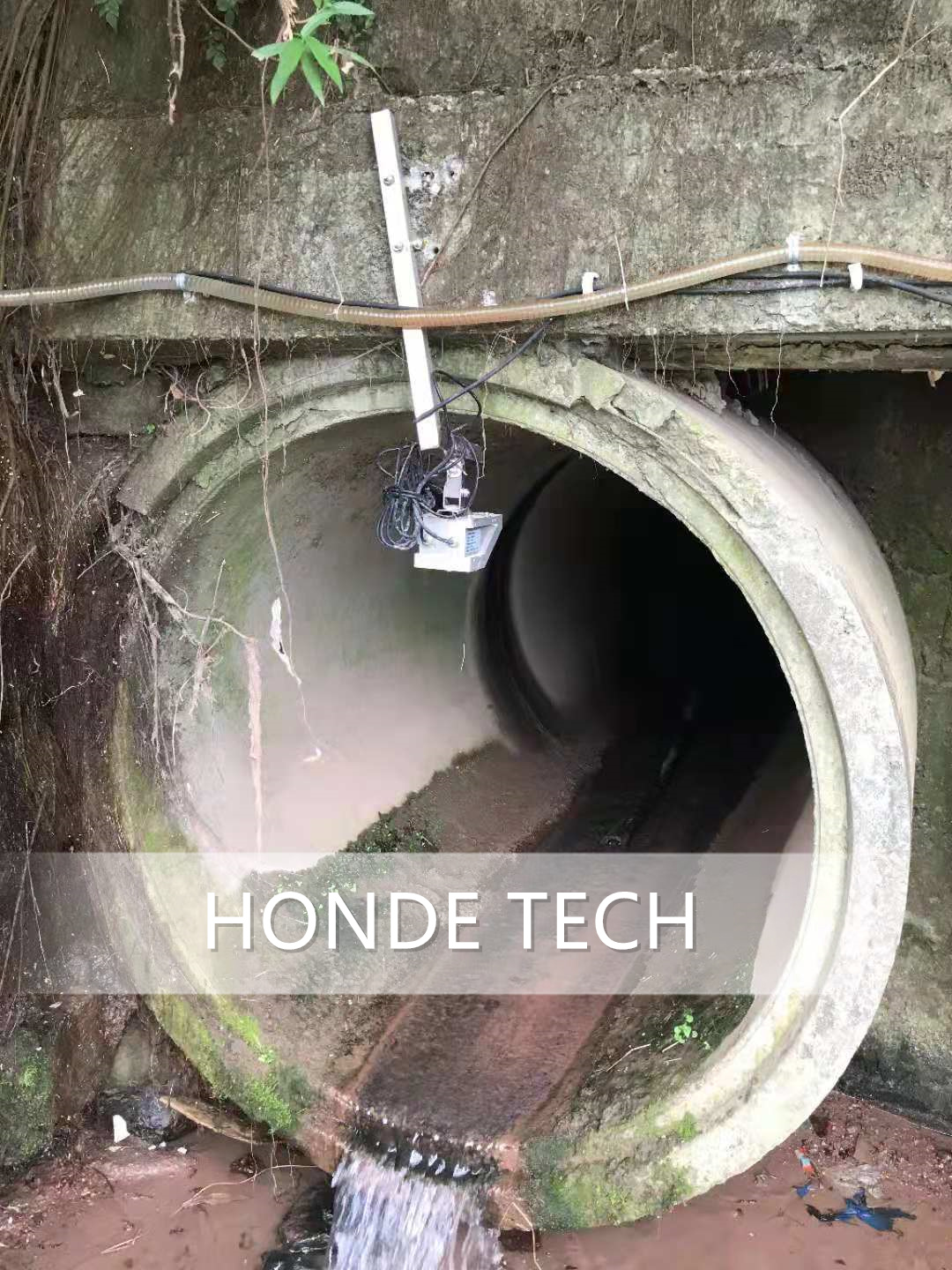

Applications

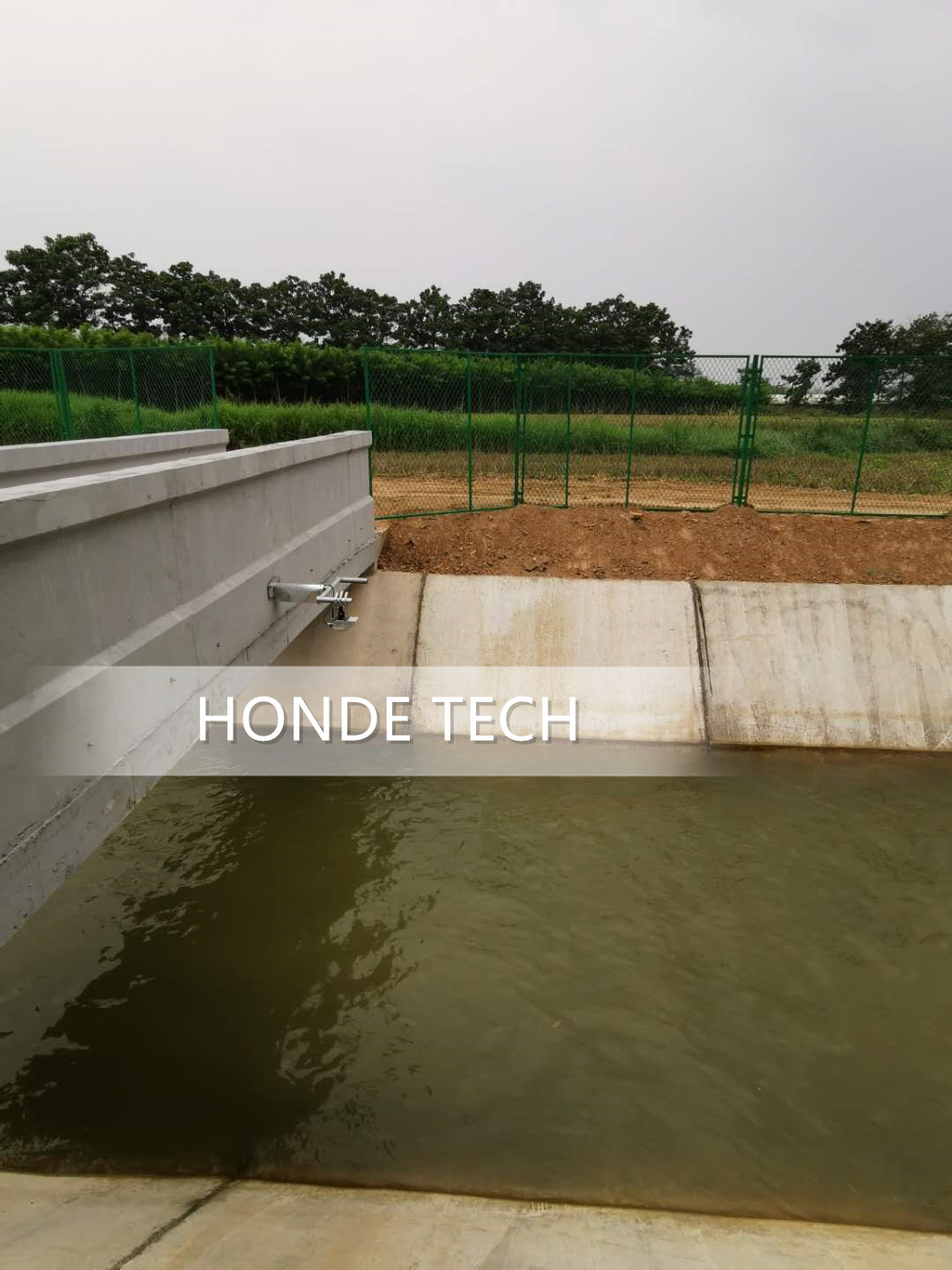

1. Monitor open channel water level, water flow speed, and water flow rate

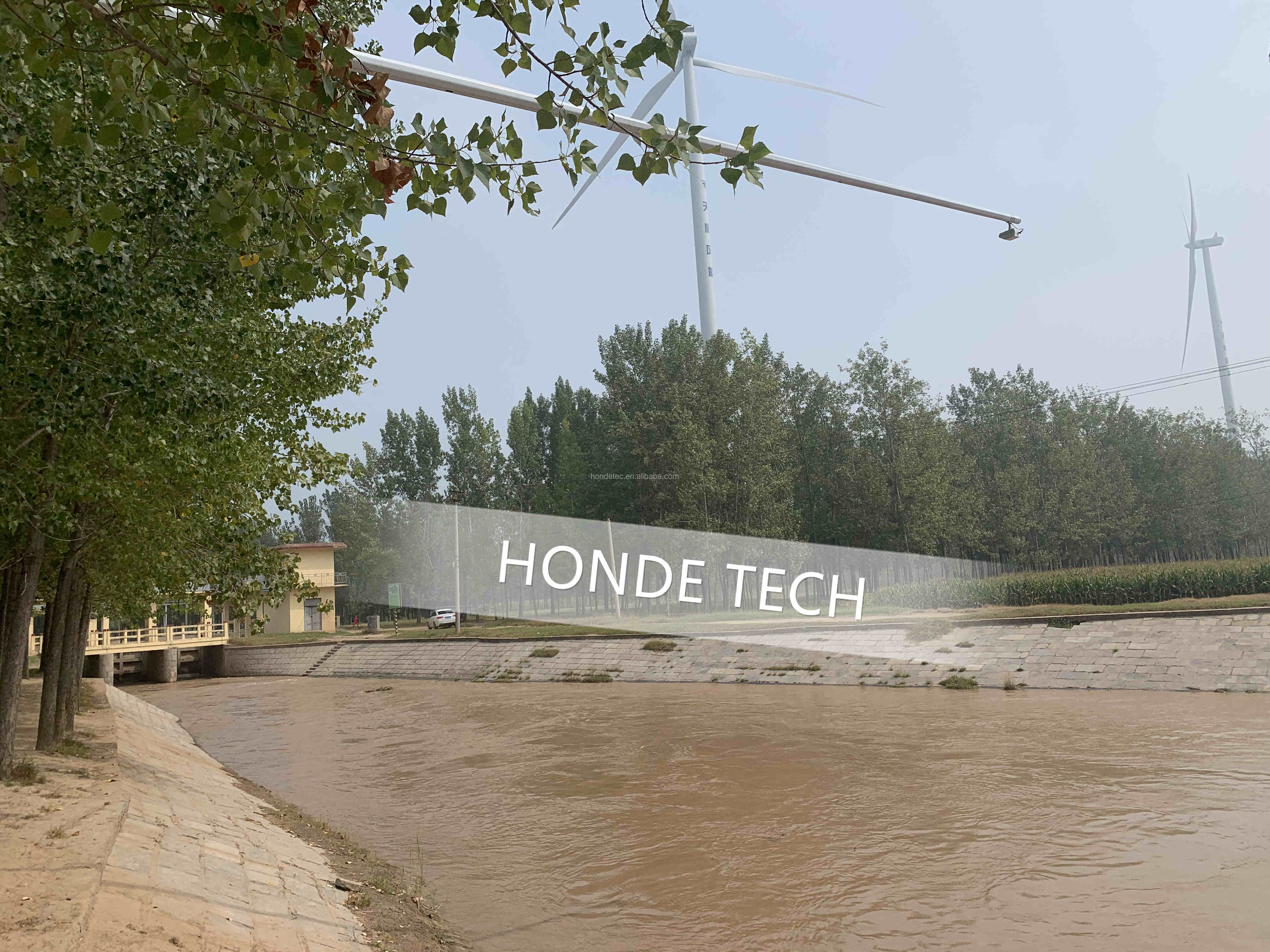

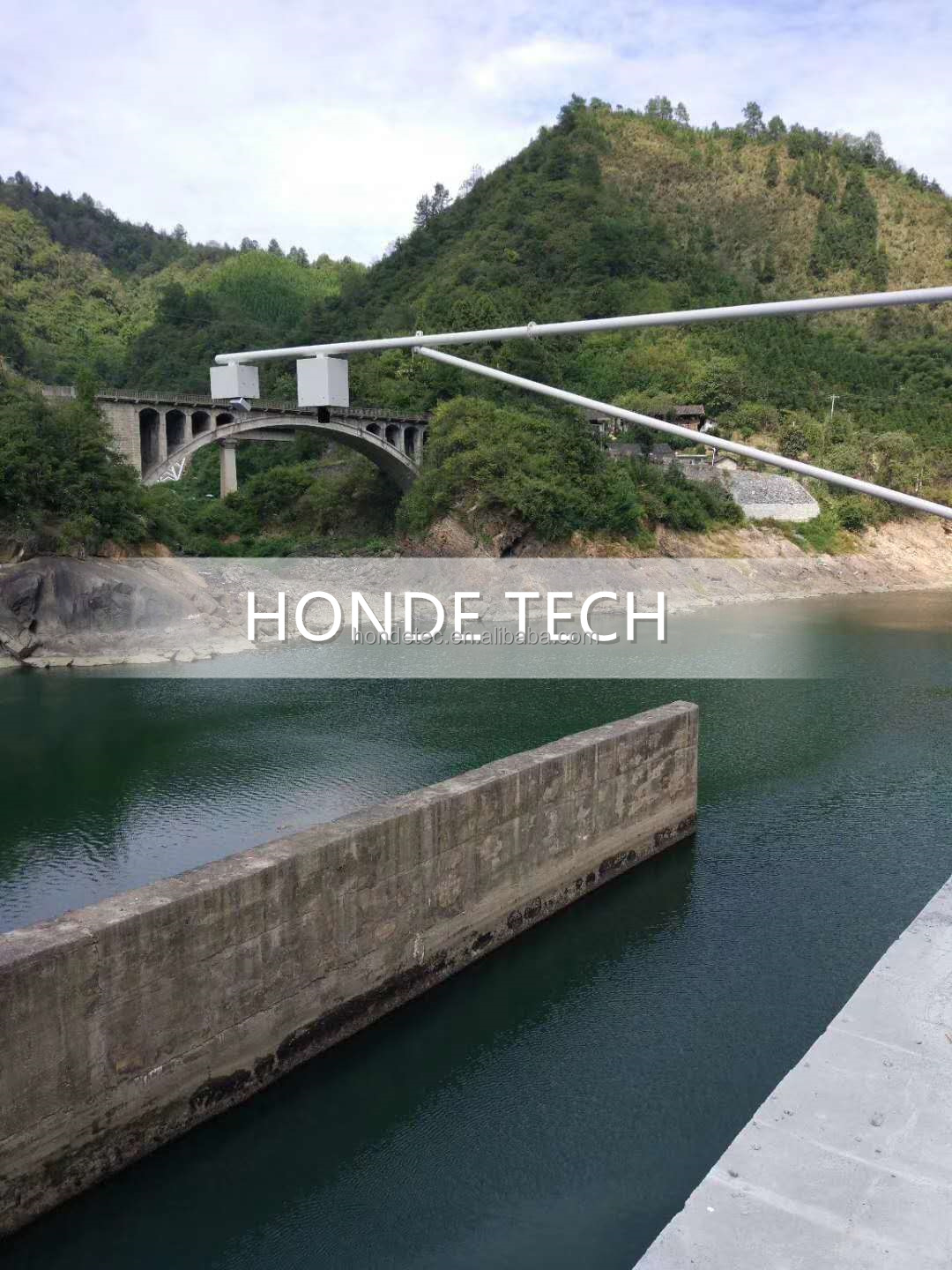

2. Monitor river water levels, water flow speed, and water flow
3. Monitor groundwater level, water flow speed, and water flow rate
