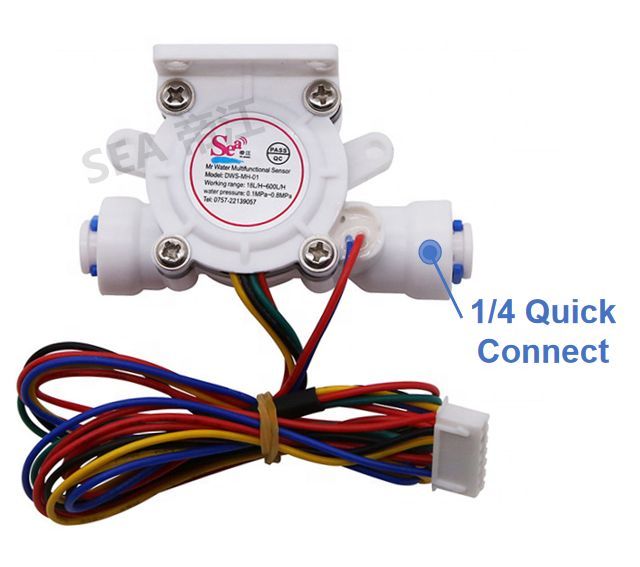

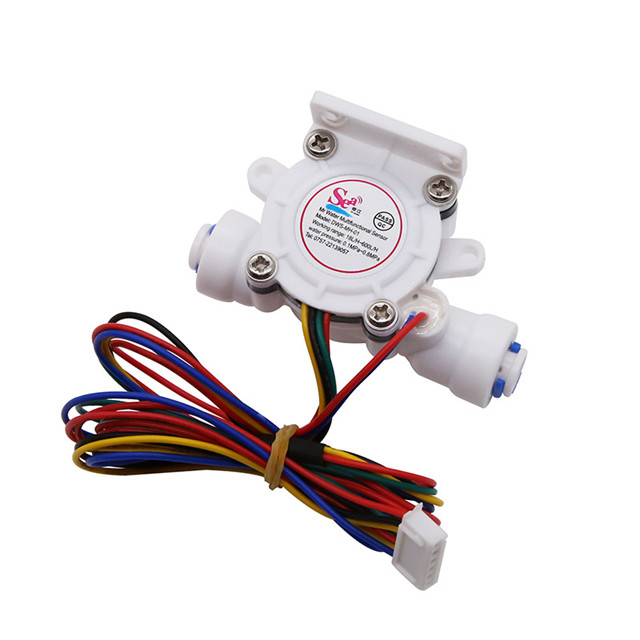

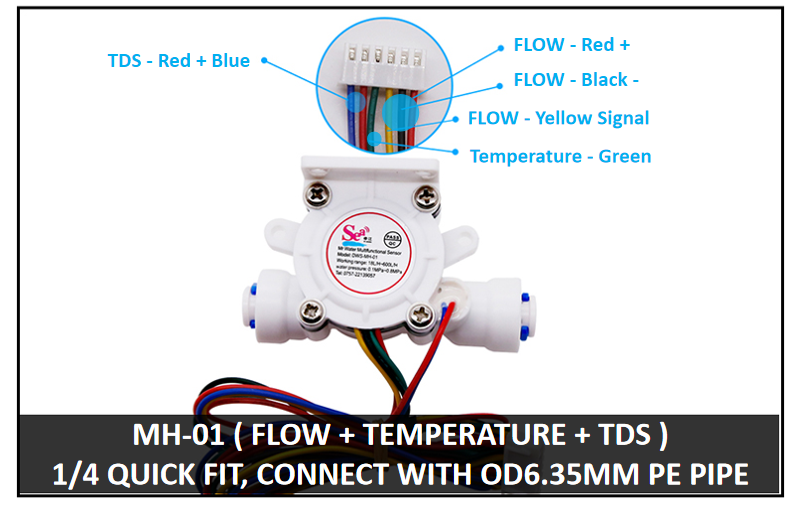

MH-01 Coffee Beet Tea Flow Sensor Hall Effect Pulse Signal 1/4 Quick Connect POM Sensor 3 in 1 Flow/Temperature/TDS XH-6P 45cm

Product details

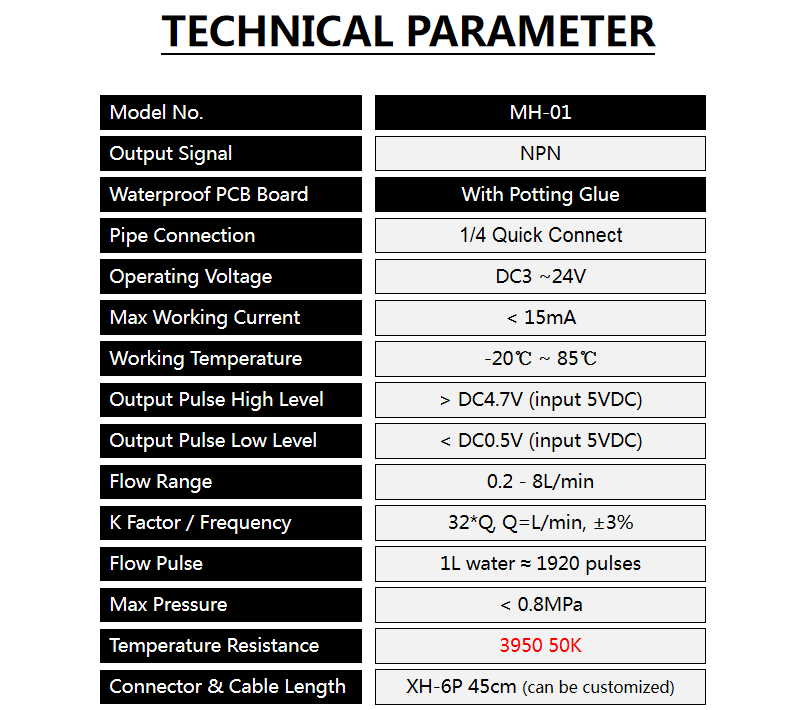

K-Factor/Frequency:32*Q, Q=L/minOrigin:Guangdong, China
brand:oceanMaterial:POM
Temperature resistance:3950 50KGross weight per piece:0.150 kg
Flow pulse:1L water = 1920 pulsestype:Flow Sensors
model. :MH-01model:MH-01
Water pressure:<0.8MPaWarranty:no warranty
Customization support:OEM、ODMproduct name:Three-in-one multifunctional flow sensor
Package preview:Flow range:0.2 - 8 l/min
Sales unit:single productSingle pack size:11X11X9 cm
Operating Voltage:DC 3-24VPipe connection:1/4 quick connect





contact us





Certificate

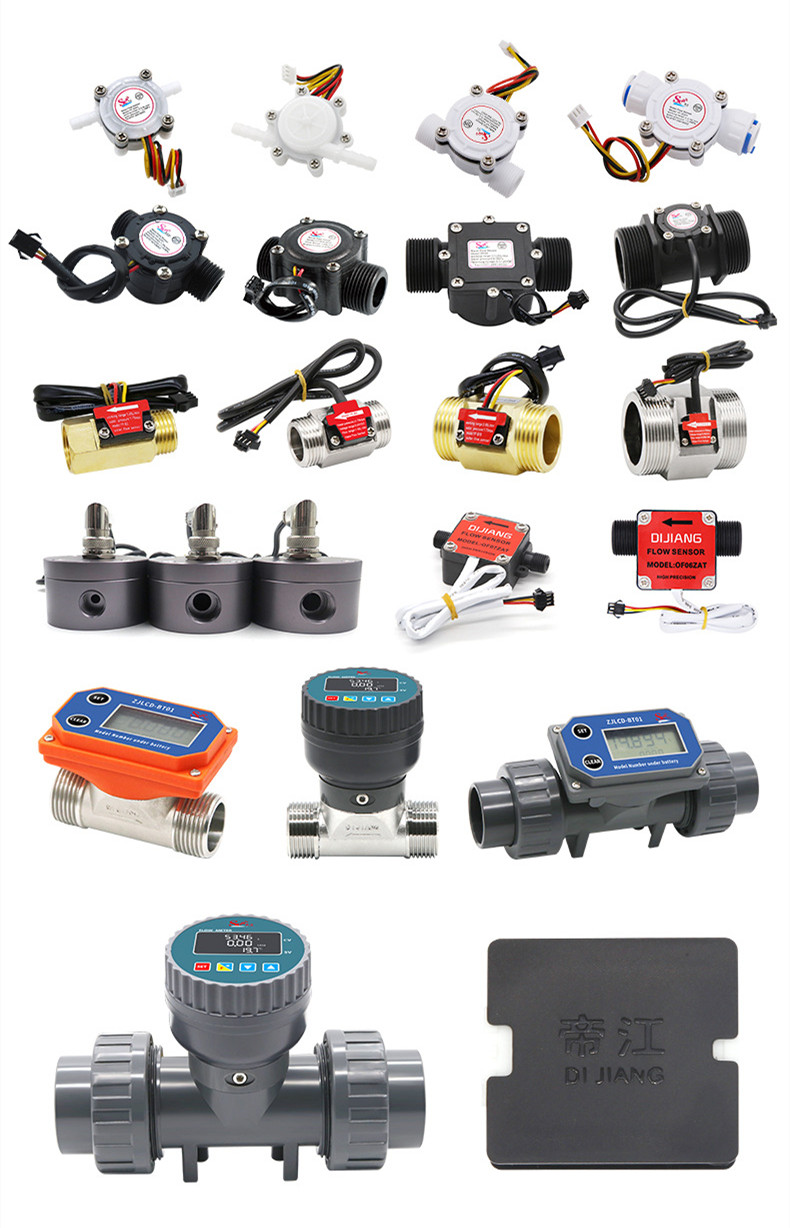

branded product

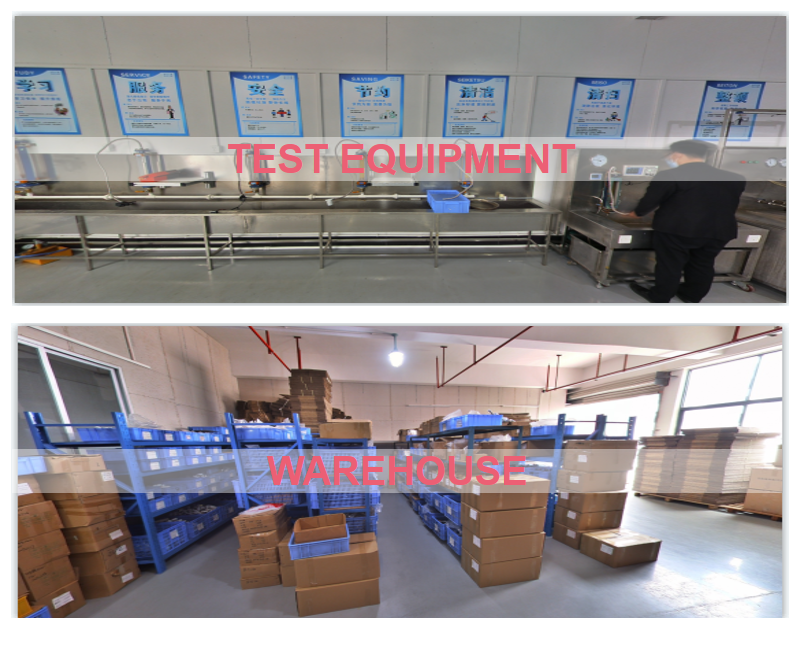

Southeast Asia factory

Model: MH-01
sensor
Hall Effect; Pulse Signal
water pressure
< 0.8MPA
1/4 pipe connection
3/8 Sports

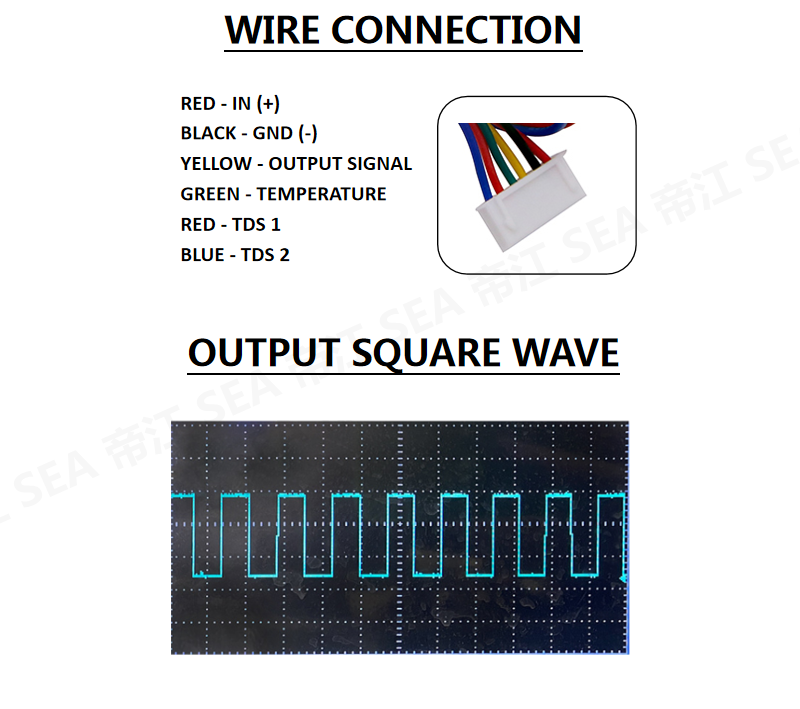

Output pulse high level
>DC 4.7V
