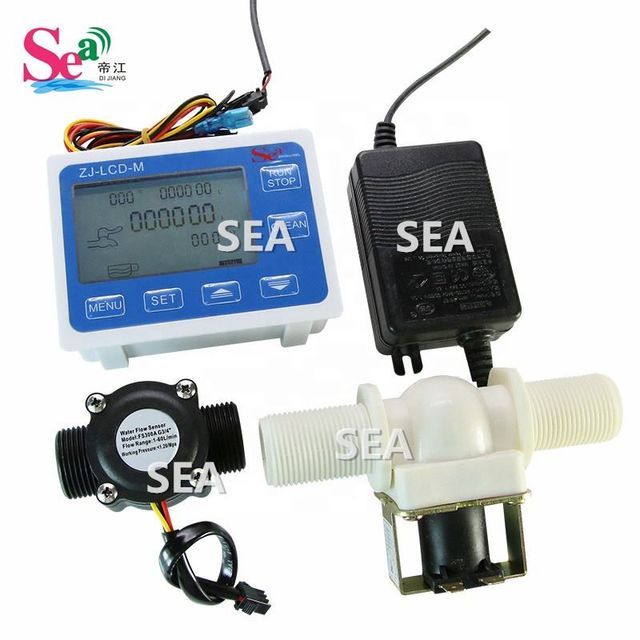

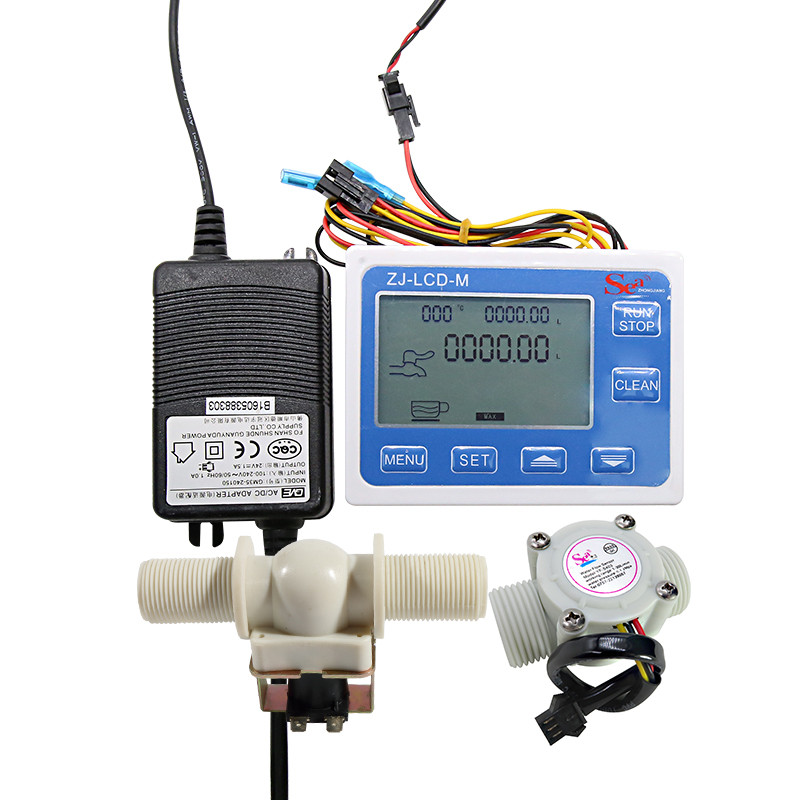

SEA 3/4'' DN20 water meter quantity controller LCD-M (FS300A)

Product details

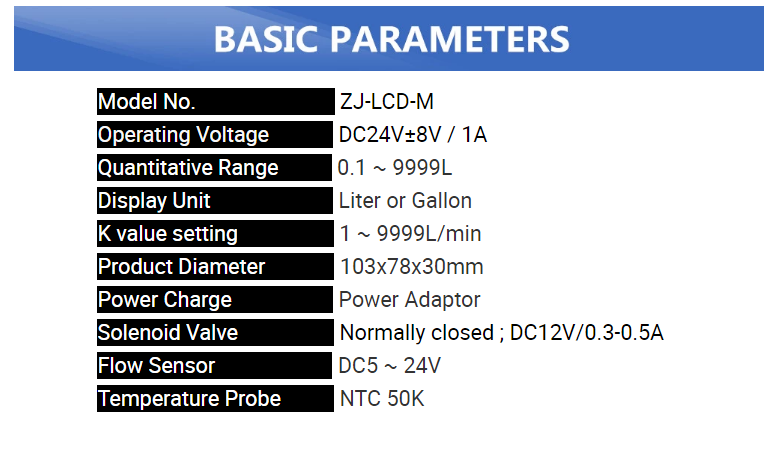

charging method:power chargerGross weight per piece:0.800 kg
Display units:Liter/gallonSolenoid valve operating voltage range:DC12V/0.3A-0.5A (normally closed)
Single pack size:23X12X19 cmbrand:Dijiang/Southeast Asia
Customization support:OEM、ODMPipe connection:G3/4
Quantitative range:0.1-9999L/minWorking voltage range:DC24V±8V/1A

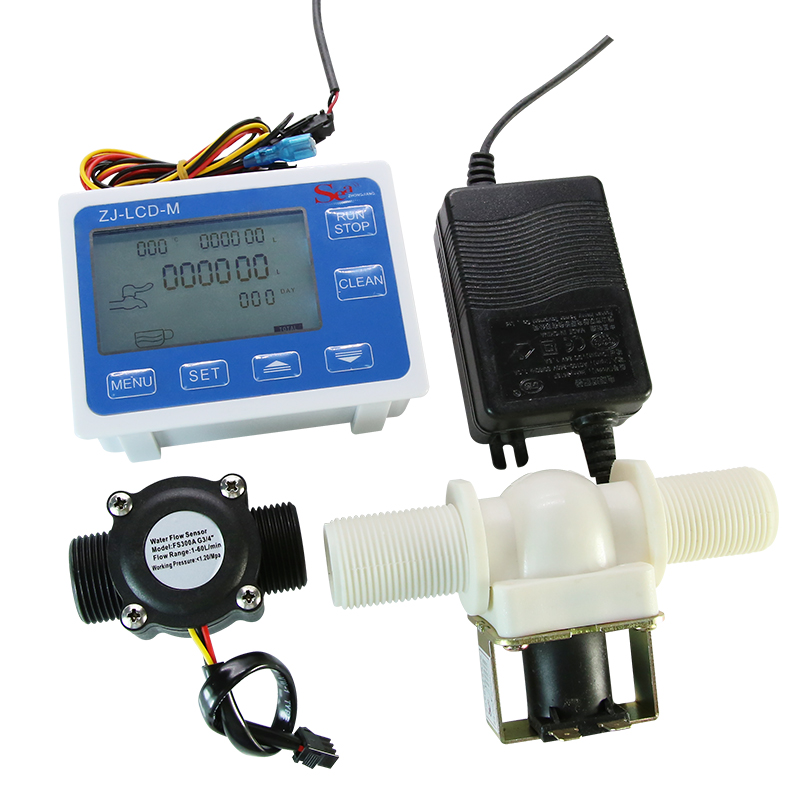

model:Full Set (FS300A + LCD-M)Origin:China
Sales unit:single producttype:Multi-flow water meter, composite water meter, turbine water meter, electromagnetic water meter, prepaid water meter
product name:Farmland Irrigation Quantitative ControllerTemperature sensor:NTC 50K
Flow probe voltage:DC 5Vmodel. :Full Set (FS300A + LCD-M)

Quantitative Measuring Instruments

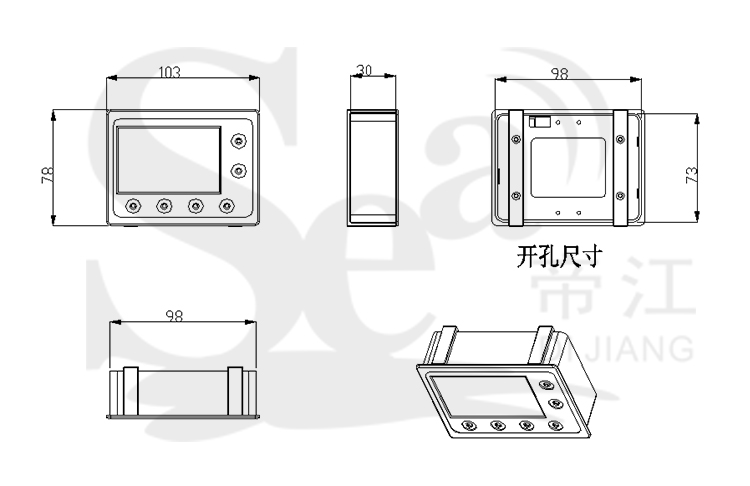

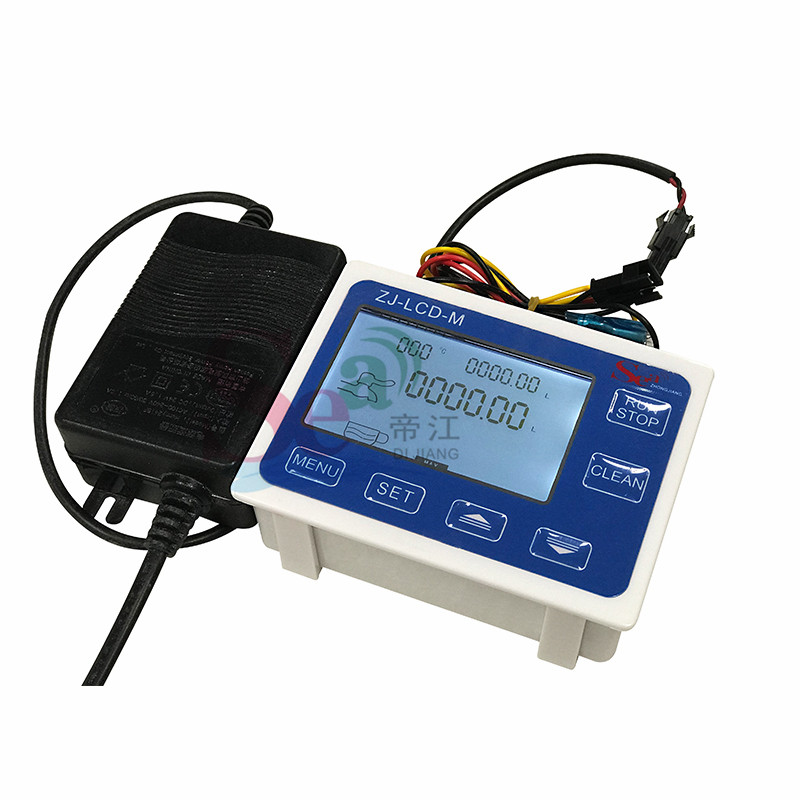

LCD-M

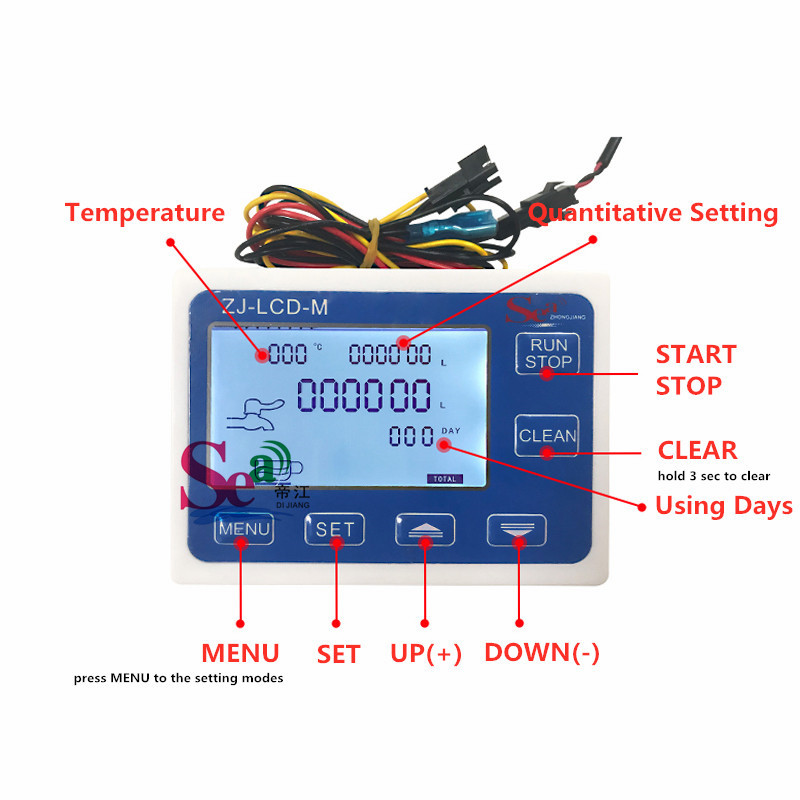

"Cumulative flow and instantaneous flow, single quantitative and total quantitative,
and water temperature detection"





Used for quantitative management of various industrial liquid flows






All raw materials comply with ROHS standards
Using advanced single-chip technology.

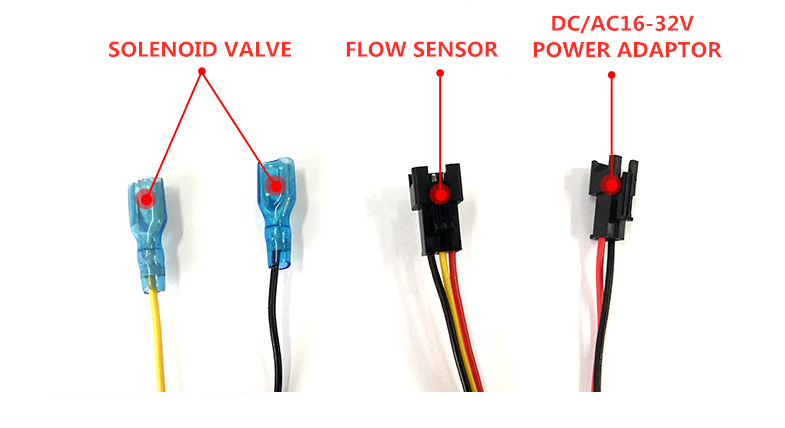

It is connected with NPN signal flow sensor and solenoid valve to form a liquid flow control system.

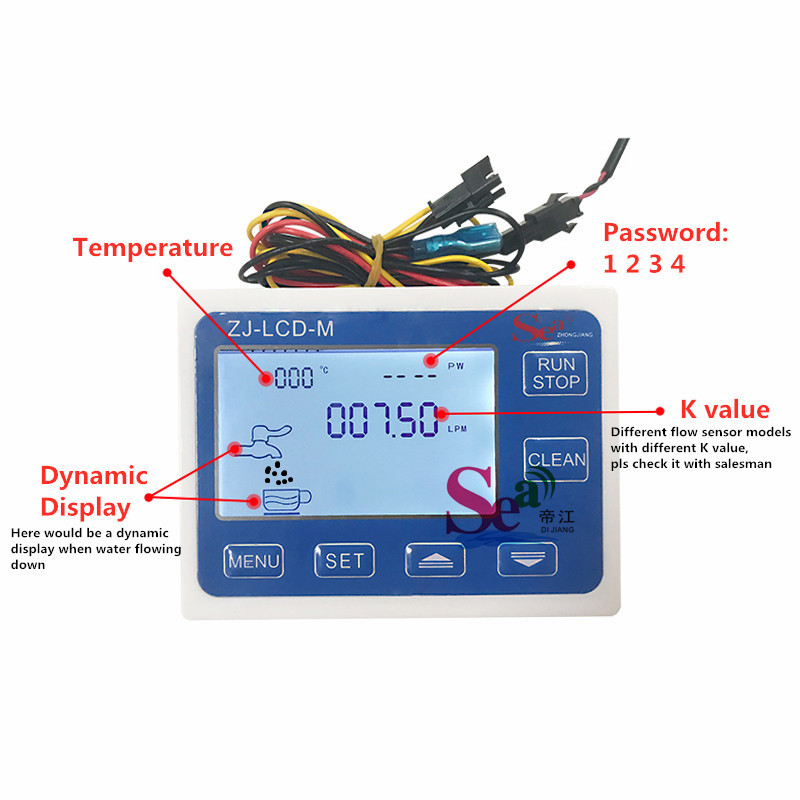

* Parameter setting introduction

The pulse characteristic of the flow sensor model FS300A is 6*Q=K value setting: 006.00LPM

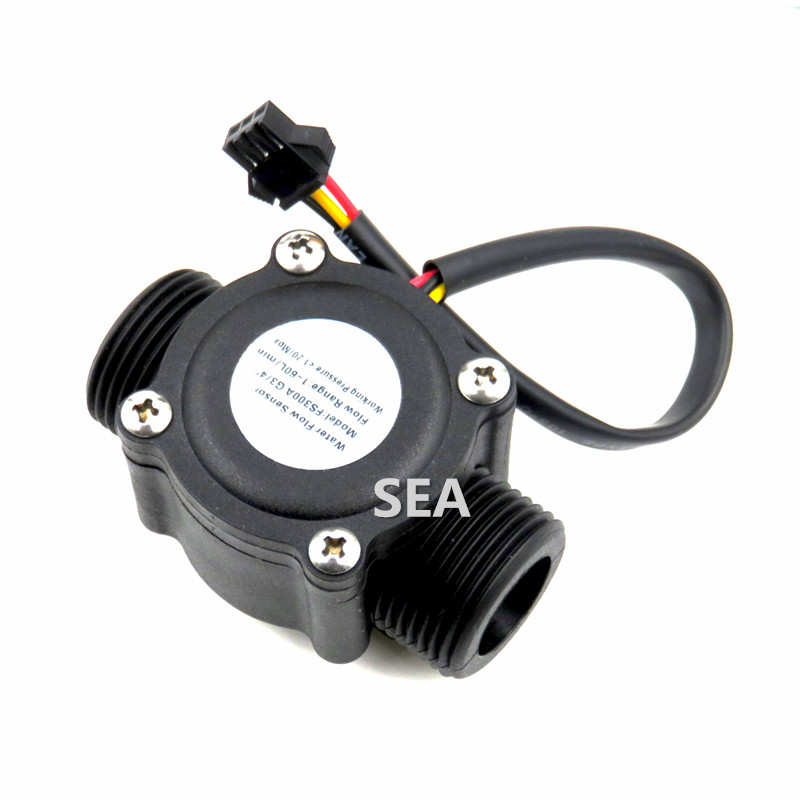

Model: FS300A

1 sensor: Hall effect; signal output
2 pipe connection: DN20
3 Product material: PNylon+glass fiber
4. Working range: DC5~24V
4. Working current: >10mA
6 Rated voltage: DC5V
7 Flow range: 1-60L\min
8 Accuracy: F=6*Q ±2% (Q=L/min=60) 【F =6x60 = 360 pulses/liter/min】

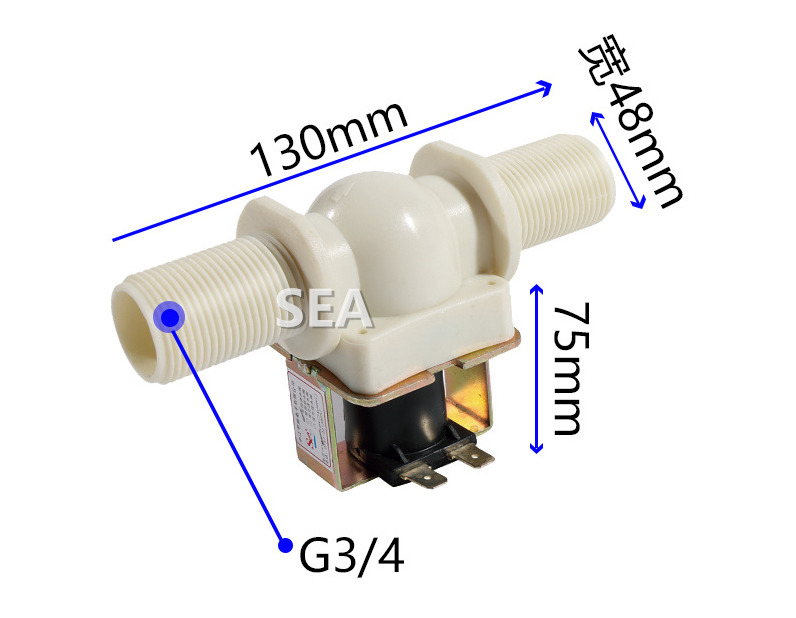

Model: FPDJ-08

1 Pipe connection: G3/4''
2 Working voltage: DC12V/24V/AC220V
3. Working current: 420mA
4 coil resistance: 27.7Ω
5 Rated power: 5W
6 Medium temperature: 0~100℃
7. Water pressure: 0.02~0.8MPA
