brand: | Youyou | Place of origin: | Shandong Province, China |
Supply capacity: | 100 pieces per day | Remote meter reading: | custom made |

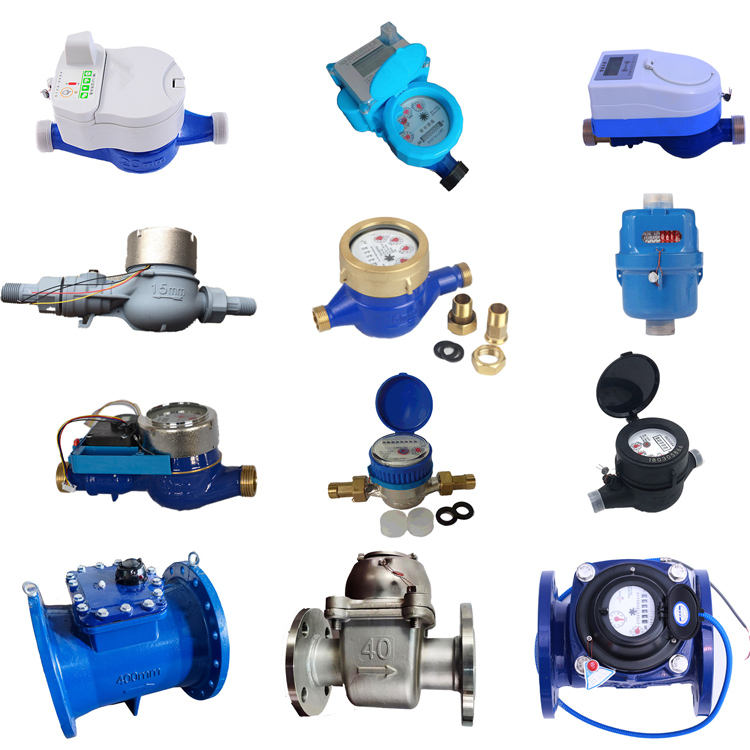

Customization support: | OEM, ODM | type: | Multi-flow water meter, composite water meter, turbine water meter, electromagnetic water meter, ultrasonic water meter, prepaid water meter |
Packaging details: | wooden box | Specification: | LXLC-100E |
payment terms: | L/C, Western Union, T/T | Package Size: | 310*250*340mm |
Material: | iron | Package weight: | 17kg |
color: | blue/customized | Warranty: | 3 years |
Packing: | wooden box |
application:
--Measuring the amount of cold (hot) water passing through the pipe.
feature:

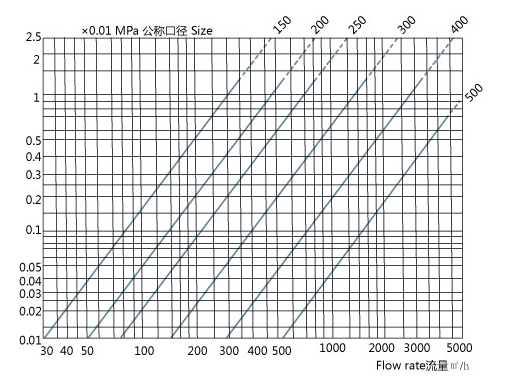

--Detachable component structure, easy installation and maintenance, long-term clear readings, interchangeable spare parts, magnetic transmission, small pressure loss, long service life, etc.
--Data output options: 10 L/pulse, 100 L/pulse or 1000 L/pulse
--Measurement accuracy reaches ISO4064 level B, R50.
Working conditions:
Water temperature: cold water meter 0.1℃~40℃.
Hot water meter 0.1℃~90℃.
Water pressure: ≤1.0Mpa
Comply with standards: ISO4064(GB/T778.1-1996 JB/T8802-1998) ISO4064(GB/T778.1-2007)
Maximum allowable error:
(1) In the lower limit area, the range from Qmin(Q1) (inclusive) to Qt(Q2) (exclusive) is ±5%.
(2) The upper zone from Qt (Q2) to Qs (Q4) is ±2%; (hot water meter ±3%)
Main technical data:
Comply with ISO4064 (GB/T778.1-1996) standard
type |
size mm |
class |
asks overload flow |
askp Everlasting flow |
askt transition process |
askminute at the lowest limit flow |
at the lowest limit read |
maximum read |
rice3/H |
Liters/hour |
rice3 |
||||||
LXLC-50E |
50 |
Second |
30 |
15 |
3000 |
450 |
0.01 |
999,999 |
LXLC-65E |
65 |
Second |
50 |
25 |
5000 |
750 |
0.01 |
999,999 |
LXLC-80E |
80 |
Second |
80 |
40 |
8000 |
1200 |
0.01 |
999,999 |
LXLC-100E |
100 |
Second |
120 |
60 |
12000 |
1800 |
0.01 |
999,999 |
LXLC-125E |
125 |
Second |
200 |
100 |
20000 |
3000 |
0.01 |
999,999 |
LXLC-150E |
150 |
Second |
300 |
150 |
30000 |
4500 |
0.1 |
999,999 |
LXLC-200E |
200 |
Second |
500 |
250 |
50000 |
7500
|
0.1 |
999,999 |
LXLC-250E |
250 |
Second |
800 |
400 |
80000 |
12000 |
0.1 |
999,999 |
LXLC-300E |
300 |
Second |
1200 |
600 |
120000 |
18000 |
0.1 |
9,999,999 |
Comply with ISO4064 (GB/T778.1-2007) standard
Q3/Q1 | fourth quarter | the third quater | Q2 | Q1 | at the lowest limit | maximum | ||
type | Dimensions (mm) | overload traffic | permanent mobility | transitional | at the lowest limit | read | read | |
flow | flow | |||||||
cubic meters/hour | cubic meter | |||||||
LXLC-50E | 50 | 50 | 31.25 | 25 | 0.8 | 0.5 | 0.01 | 999,999 |
LXLC-65E | 65 | 50 | 50 | 40 | 1.28 | 0.8 | 0.01 | 999,999 |
LXLC-80E | 80 | 50 | 78.75 | 63 | 2.016 | 1.26 | 0.01 | 999,999 |
LXLC-100E | 100 | 50 | 125 | 100 | 3.2 | 2 | 0.01 | 999,999 |
LXLC-125E | 125 | 50 | 200 | 160 | 5.12 | 3.2 | 0.01 | 999,999 |
LXLC-150E | 150 | 50 | 312.5 | 250 | 8 | 5 | 0.1 | 999,999 |
LXLC-200E | 200 | 50 | 500 | 400 | 12.8 | 8 | 0.1 | 999,999 |
LXLC-250E | 250 | 50 | 787.5 | 630 | 2.16 | 12.6 | 0.1 | 999,999 |
LXLC-300E | 300 | 50 | 1250 | 1000 | 32 | 20 | 0.1 | 9,999,999 |

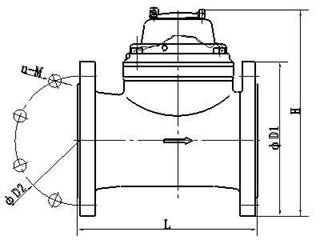

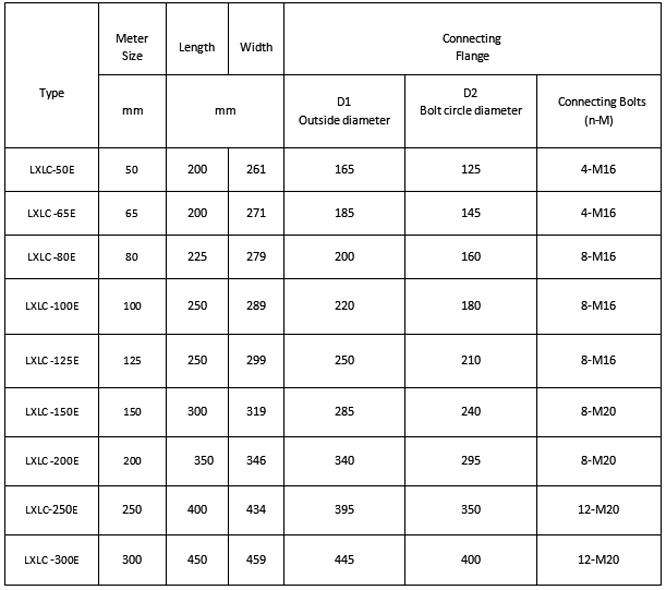

Dimensions and weight
1. Can I get free samples?
A: Yes, we can provide you with free samples, but you need to bear your own shipping costs.
2. Can I request to change the packaging and shipping form?
A: Yes, we can change the form of packaging and shipping according to your requirements, but you must bear the costs and price differences incurred during this period.
3. Can I request for early shipment?
A: It should depend on whether we have enough stock in our warehouse.
4. Can I have my own logo on the product?
A: Yes, you can send us your drawings and we can make your logo, but you have to bear your own costs.
5. Can you produce products according to my own drawings?
A: Yes, we can produce the product that most satisfies you according to your drawings.
6. What price conditions are acceptable?
A: FOB and CIF are both acceptable.
