Packaging Details: | Export standard packaging/carton packaging | model: | LXSG-13 |
brand: | original design manufacturer | Origin: | Zhejiang, China |
type: | Turbine flowmeter | South American market: | low price |
port: | Ningbo/Shanghai | Supply capacity: | 5000 pieces per month |
payment terms: | L/C, Western Union, T/T, MoneyGram |
application:

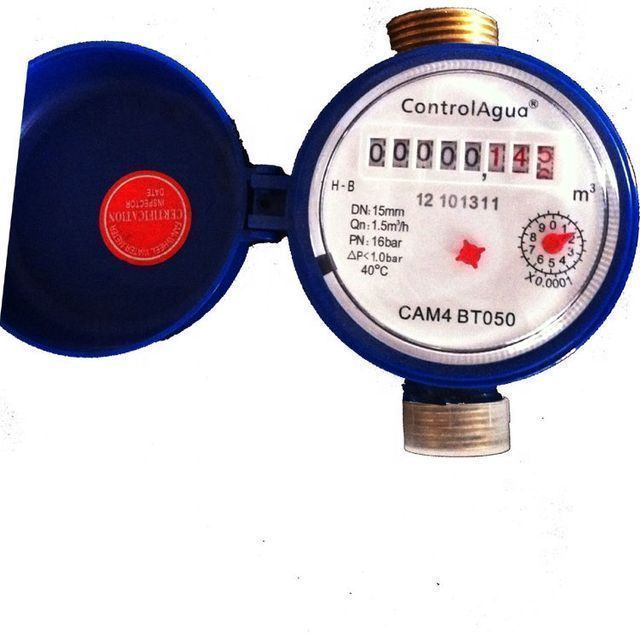

Measure the volume of cold or hot water passing through a pipe
quality:
•Dry, single spray, small, light, 8-bit, magnetic drive, magnetic resistance, 360-degree free rotation counter, corrosion-resistant body, inlet filter, low head loss, easy and long-term clear readings, etc.
• Plastic painted or chrome plated, or nickel plated available
• Counter vacuum sealed, no frosting. Suitable for cold and hot water. Protective covers are available upon request.
•Technical data comply with international standard ISO4064 Class B
work rules
•Water flows through the meter, causing the turbine to turn.
• The rotation of the turbine is transmitted magnetically to the register where the reading is taken.
• Readouts are accomplished with high-resolution pointers and numbered cylinders. Shock resistant dial.
Working conditions:
temperature:
≤40℃ cold drinking water meter
≤90℃ hot water meter
Pressure: ≤1.6Mpa
Maximum allowable error:
Qmin→Qt(ex Qt)=±5%;
Qt→Qs (both included) = ±2% or ±3% (hot water)
Qmin=minimum flow, Qt=transition flow, Qs=maximum flow.
o size | mm | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
R | Q3/Q1 | R160 horizontal installation | |||||
fourth quarter | m3/hour | 3,125 | 5 | 7,875 | 12, 5 | 20 | 31, 25 |
Q3 | m3/hour | 2, 5 | 4 | 6, 3 | 10 | 16 | 25 |
Q2 | L/h | 25 | 40 | 63 | 100 | 160 | 250 |
Q1 | L/h | 15,625 | 25 | 39,375 | 62, 5 | 100 | 156, 25 |
maximum. read | m3 | 99999.9999 | 999999.9999 | ||||
minutes to read | Lift | 0.05 | |||||
pressure loss | ΔP | ΔP< 63 in Q3 | |||||
maximum. pressure | map | map 16 | |||||
maximum. temperate zone | Celsius | T30 or T50 |
