Operating Voltage: | DC3.5-24V | port: | FOB Shunde |
Flow range: | 50-750L/min | brand: | ocean |
model: | PPFL--01 | Warranty: | no warranty |
Supply capacity: | 10 per day | Customization support: | OEM production |
Material: | Polypropylene | payment terms: | Western Union, D/P, D/A, T/T, MoneyGram |
product name: | Paddle wheel flow sensor flange connection | Pipe connection: | DN40-DN600 |
type: | Flow Sensors | model. : | PPFL-01 |
Origin: | Guangdong, China |

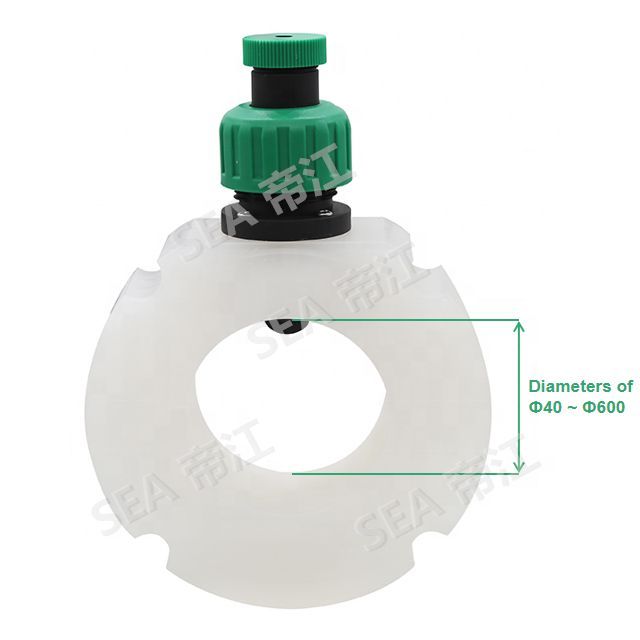

SEA BRAND paddle wheel flow sensor customized DN40-600 flange connection PP flowmeter for acid fluid meter 50-750L/min
diameter | ||||
Flange outlet diameter | Bolt pitch | Bolt diameter | Number of bolts | Flange thickness |
DN40 | 150 | 110 | 4 | 18 |
DN50 | 165 | 125 | 4 | 20 |
DN65 | 185 | 145 | 4 | 20 |
DN80 | 200 | 160 | 8 | 20 |
DN100 | 220 | 180 | 8 | twenty two |
DN125 | 250 | 210 | 8 | twenty two |
DN150 | 285 | 240 | 8 | twenty four |
DN200 | 340 | 295 | 8 | twenty four |
DN250 | 395 | 350 | 12 | 26 |
DN300 | 445 | 400 | 12 | 28 |
DN350 | 505 | 460 | 16 | 30 |
DN400 | 565 | 515 | 16 | 32 |
DN450 | 615 | 565 | 20 | 35 |
DN500 | 670 | 620 | 20 | 38 |
DN600 | 780 | 725 | 20 | 42 |
type | Paddle wheel flow sensor flange connection |
Material | PP (can be customized) |
Operating Voltage | DC3.5-24V |
flow range | 50 - 750 l/min |
Flange tube | DN40 - DN600 |
