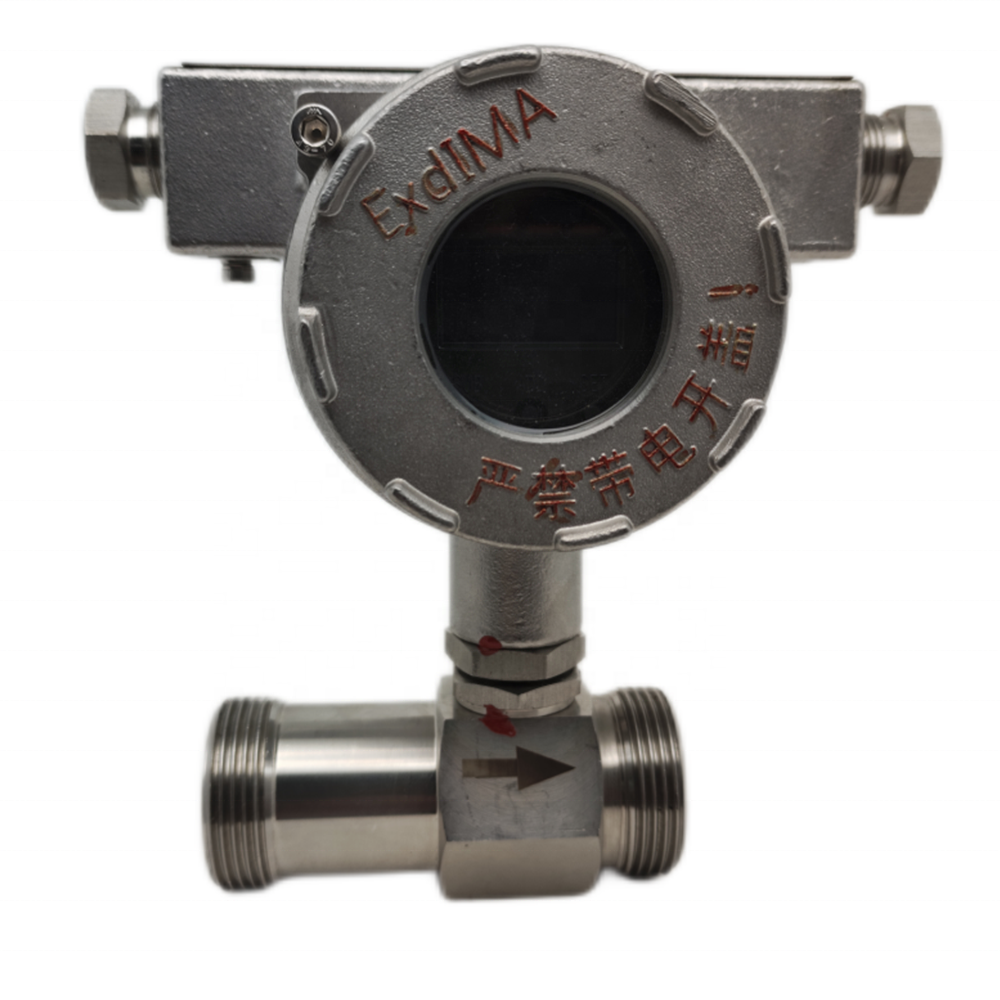

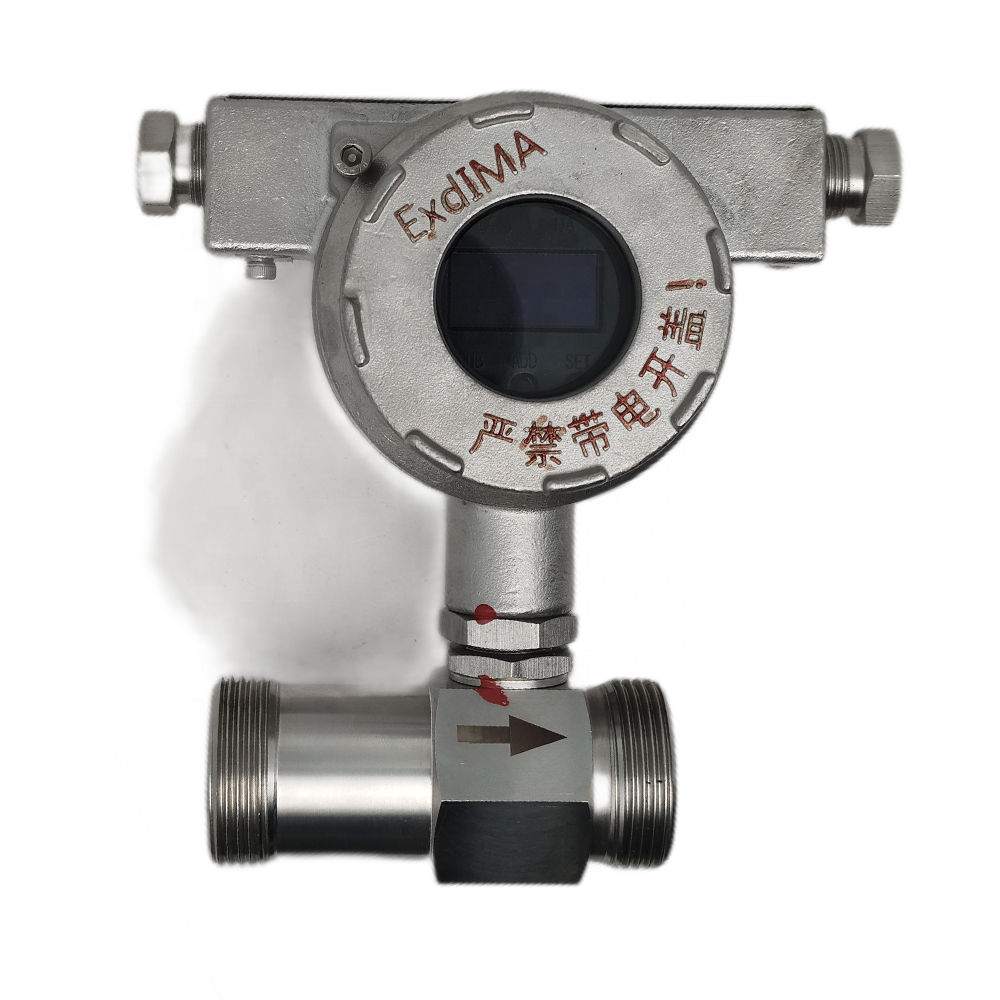

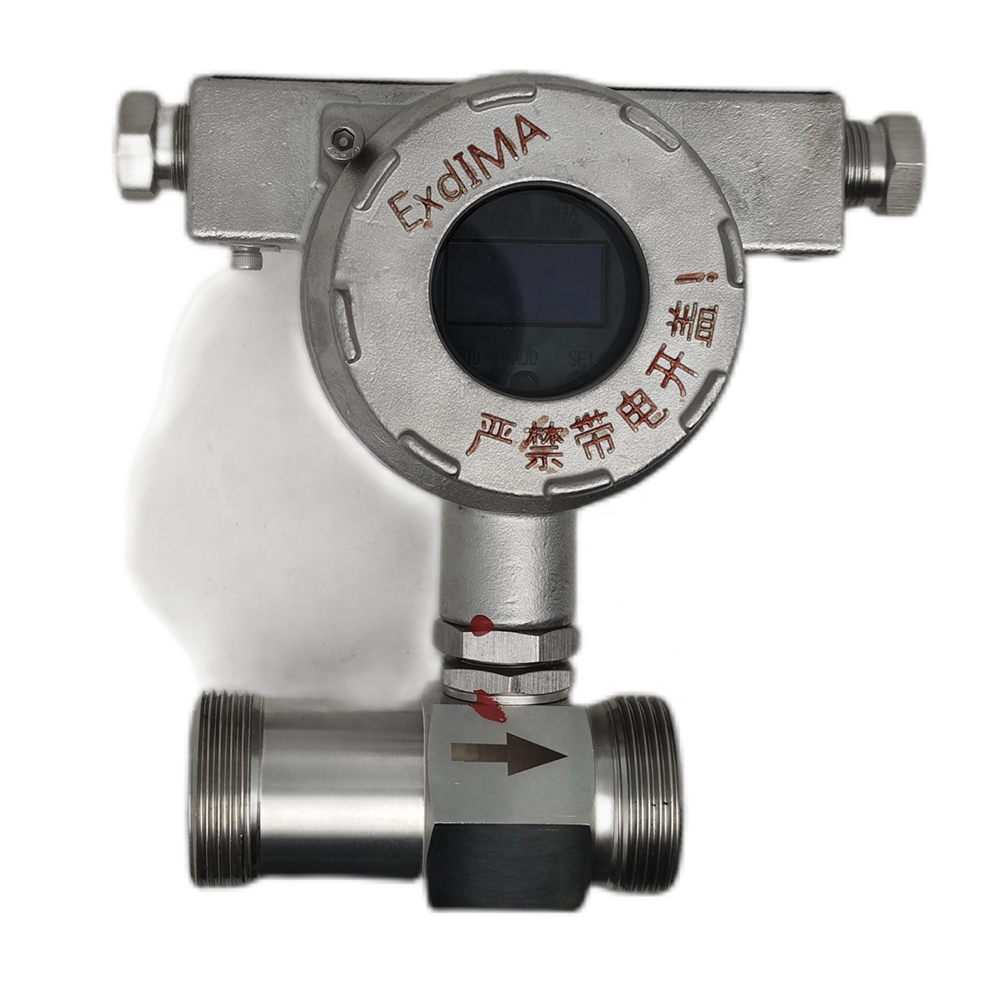

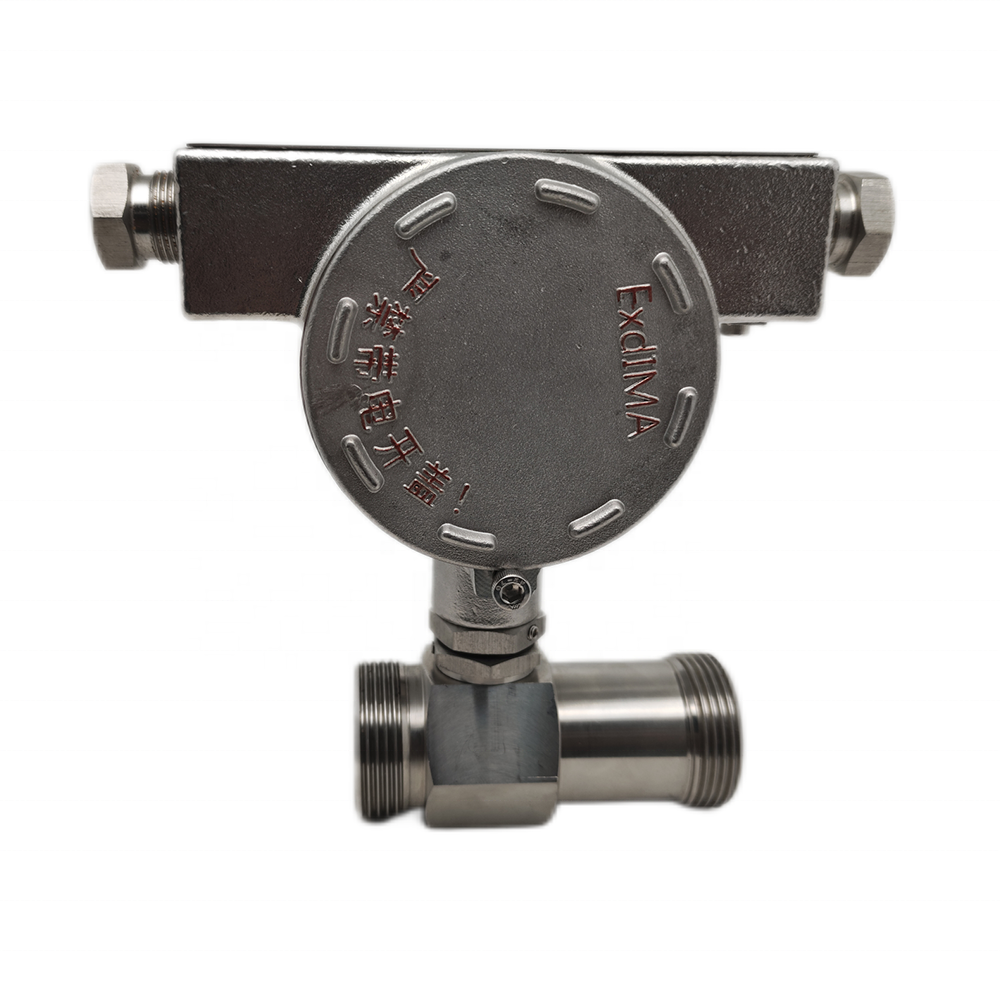

Sample Free Mine Explosion Type Turbine Flow Sensor Explosion Proof Pressure Transmitter Pressure Sensor
-
Supplier: Yichang Zhaofeng Automation Instrument Co., Ltd. -
Region: Hubei, China -
Contact: Mr Shaohua Zhang -
Price: $320.00 / 1 - 19 units
$300.00 / 20 - 49 units
$280.00 / >=50 units -
Min. Order: 1 unit
Product details
| Operating Voltage: | Standard: 18 to 36 V.DC | Protection class: | IP54 |
| Anti-seismic performance: | <20m/square meter | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Customization support: | OEM,ODM,OBM | Building materials: | Shell material |
| place of origin; place of origin: | Hubei, China | exhibit: | organic light emitting diode |
| type: | Flow Sensors | energy consumption: | <3W |
| Signal output: | 4 to 20 meters ADC | Explosion-proof mark: | Exd I Mb |
| brand: | original equipment manufacturer | port: | Shanghai |
| Packaging Details: | Standard packaging or according to customer requirements. | Warranty: | 1 year |
| accuracy: | 1% | application: | liquid, gas |
| model: | GLW25/10 | Package preview: | |
| Supply capacity: | 500 pieces per month |
Specification
Mine Diesel/Gas/Hydraulic Turbine Flow Sensors | ||
accuracy | 1% of standard range, 1.5% with range variation | |
Working power | Standard: 18-36 VDC, Maximum: 9-45 VDC | |
signal output | 4-20mADC | |
change | Explosion Proof Exml Relay, Passive Switch | |
control output | Switch capacity: AC: rated capacity ≤ 250VA, rated current ≤ 3A, rated pressure ≤ 250V DC: rated capacity ≤ 150W, rated current ≤ 2A, rated withstand voltage ≤ 125V | |
exhibit | organic light emitting diode | |
energy consumption | <3W | |
Explosion-proof mark | Exd I Mb | |
degree of protection | IP54 | |
Seismic performance | <20m/square meter | |
application | liquid, gas | |
building materials | Stainless steel | |
Connection Type | flange or thread | |

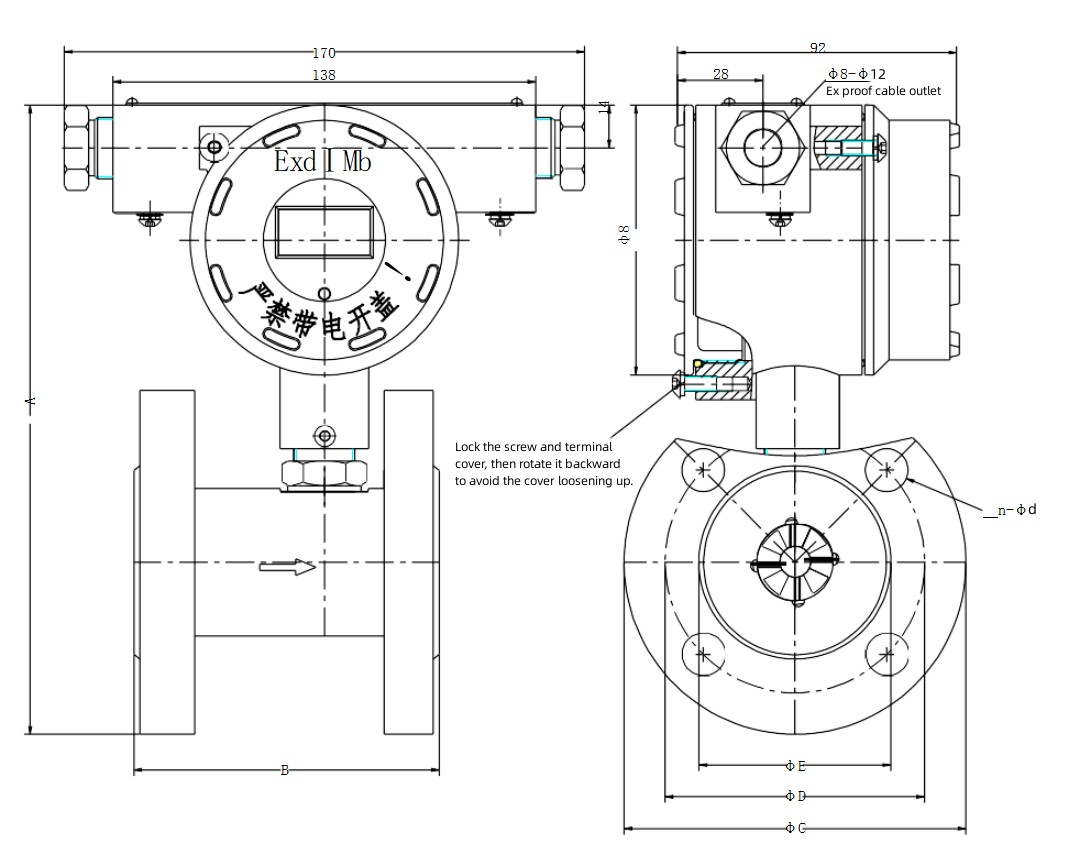

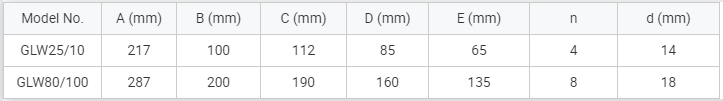

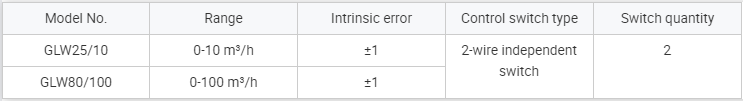

Model Specifications
Electrical connections
Product Description
application
