Response time (T 90 ): | <5 seconds | Baseline offset: | <20μV |
payment terms: | L/C, D/A, T/T, MoneyGram | weight: | 40g (nominal) |
usage: | gas detection | range of working temperature: | 0°C to +50°C |
output: | 9 - 13 mV in air, please contact us | Connector: | 3-pin Molex connector |
External Load Resistor: | ≥10kΩ | Origin: | Guangdong, China |
Linearity: | Linear 0-100%Vol.O2 | Measuring range: | 0 - 100%Vol.O2 |
brand: | Xunster | model: | XST-YQ-AO2 |
theory: | Oxygen concentration detection | type: | Air quality sensor, gas sensor |
Response time (T 99.5): | <40 seconds | describe: | ao2 oxygen sensor |

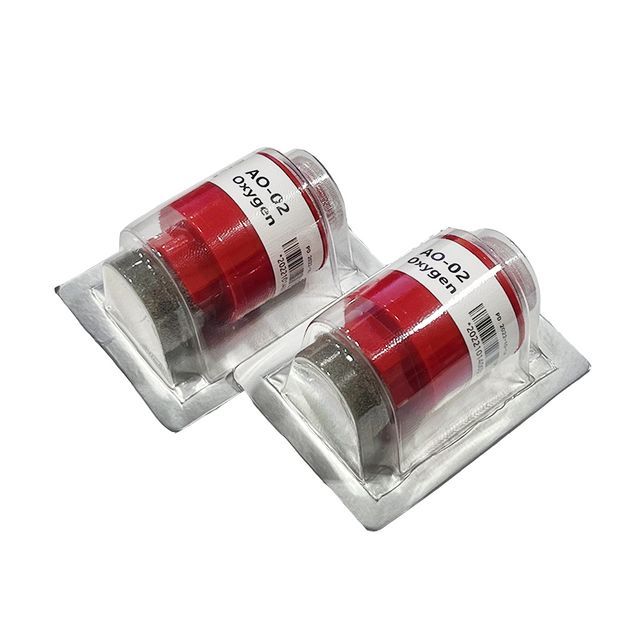

The AO2 oxygen sensor is designed to be used in various instruments related to oxygen detection, such as motor vehicle exhaust gas detection equipment, exhaust gas environmental protection detection equipment, oxygen index detection equipment, etc., and its use is limited to system monitoring. The data presented in this document is valid for 3 months from the date of manufacture of the sensor at 20°C, 50% RH and 1013 mBar. Please strictly follow the operating instructions of the oxygen analyzer and replace the oxygen sensor.

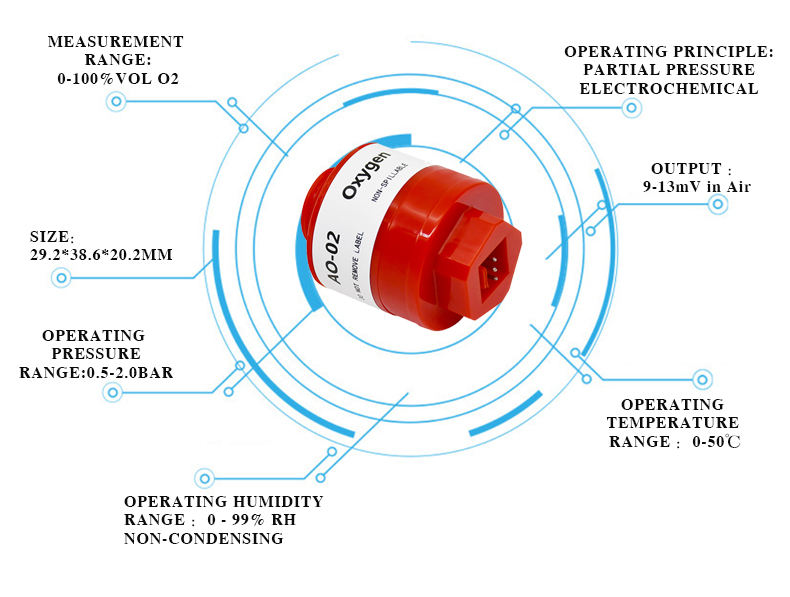

Measurement | |
working principle | partial pressure electrochemistry |
output | 9 - 13 mV in air |
Measuring range | 0 - 100%Vol.O2 |
Response time (T 90 ) | <5 seconds |
Response time (T 99.5 ) | <40 seconds |
baseline shift | <20μV |
Linearity | Linear 0-100%Vol.O2 |
electric | |
Temperature compensation | <2% change in O2 equivalent from 0 °C to 40 °C |
external load resistor | ≥10kΩ |
Connector | 3-pin Molex connector (MOLEX 22-29-2031) |
Recommended mating parts | Molex 3-Way Housing (MOLEX 22-01-2035) Molex Crimp Terminals (MOLEX 08-45-0110) |
