Package preview: | Main selling points: | long lasting | |
weight: | 2200 kg | After-sales service provided: | Engineers available to repair machinery overseas |
Processing capacity: | 400-500 cubic meters per hour | Flip pile height: | 600-800mm |
brand: | Cheng Xiang | Applicable industries: | Manufacturing plants, fertilizer processing |
Mechanical test report: | if | Voltage: | 380V/220V |
Stacking spacing: | 600-800mm | port: | Qingdao, Tianjin, Shanghai, Chinese ports |
Production capacity: | 98% | Warranty: | 12 months |
application: | Chicken manure, etc. | Packaging Details: | Standard export wooden box |
Video outbound inspection: | if | Turning width: | 2000 mm |
Material major diameter: | 200 mm | Marketing Type: | 2020 New Products |
Origin: | Henan, China | feature: | walk, turn, break, etc. |
Supply capacity: | 300 sets per month | Core component warranty: | 1 year |
Health status: | new | Name: | Compost Turner |
Showroom location: | Egypt, Turkey, Italy, Saudi Arabia, Indonesia, Pakistan, Mexico, Spain, Thailand, Morocco, Argentina, Bangladesh, Kazakhstan, Ukraine, Uzbekistan, Malaysia | Speed of work: | 7.5-8m/min |
Dimensions (L*W*H): | 3100*2500*2800mm | Core components: | PLC, engine, gearbox, motor |
payment terms: | L/C, T/T | Working knife rotation diameter: | 600mm |
Maximum speed: | 2000 rpm |

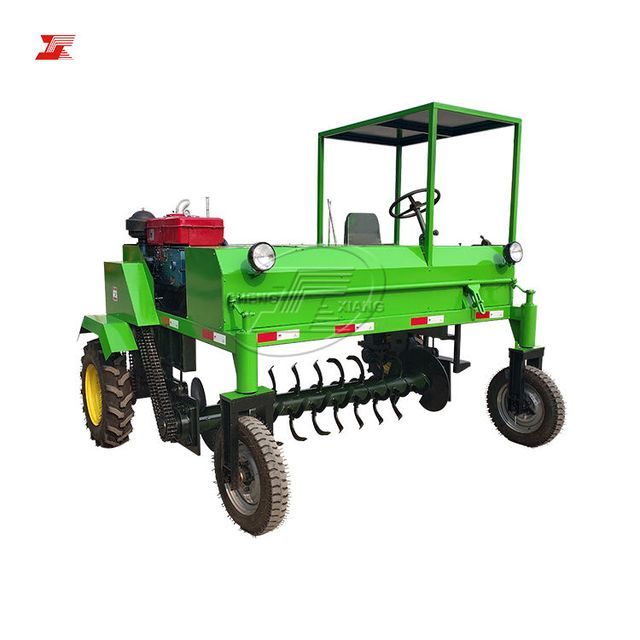

CXFD-2000 wheeled compost turner is used in bio-organic fertilizer plants to shovel manure piles into ditch to accelerate fermentation.
The equipment has the advantages of low investment, low energy consumption, fast composting speed and high output.
The wheeled compost turner is an ideal equipment for converting agricultural waste, livestock and poultry manure, and organic domestic waste into high-quality bio-organic fertilizers by using modern technology.
Its main features are: save a lot of construction projects and manpower, and make the scale of fertilizer production more random.
1. Improve the crushing efficiency and reduce the cost of fertilizer making.
2. It can not only stir the base material and zymogen evenly, but also effectively break the agglomeration of the fermented material.
3. It has various functions such as walking, turning and braking.
4. It is easy to operate, movable, and not limited by the site.
Turn width |
Flip pile height |
Pile distance
|
Material maximum. diameter. |
maximum. speed |
strength |
Speed of work |
Tool turning diameter |
processing power |
2000 mm |
600-800 mm |
600-800 mm |
200 mm |
2000 rpm |
30 hp Water-cooled electric start
|
7.5-8 m/min |
Φ600 mm |
400-500 cubic meter/hour |
