Factory sales DVI VGA S-video CVBS YPbPr to HD-MI SDI analog to digital online video converter

Supplier: TCHD Digital Video Technology Development (Beijing) Ltd.
Region: Beijing, China
Contact: Mr Leo Chen
Price: $310.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Plug & Play:	YES;	DC In:	7.5V-15V;
Application:	video format conversion, video display, TV wall, image display;	Model Number:	Analog2digital;
Supply Ability:	300 Piece/Pieces per Month video converter;	Feature:	plug and play, up/down scaling;
Audio:	independent audio;	Input:	DVI VGA S-video, CVBS, YPbPr, Component, composite;
Audio Output Format:	HDMI/SDI: Up to 8 channels,24bit,48KHz;	Output:	SDIX2,HDMIX1;
Place of Origin:	Beijing China (Mainland);	Port:	Beijing;
Payment Terms:	T/T,Paypal;	Packaging Detail:	Carton box;
Supported Video Input Format:	Composite/SVideo, NTSC/PAL;	Resolution:	1920x1080P60;
Brand Name:	TCHD;

Factory sales DVI VGA S-video CVBS YPbPr to HD-MI SDI analog to digital online video converter

Introduction

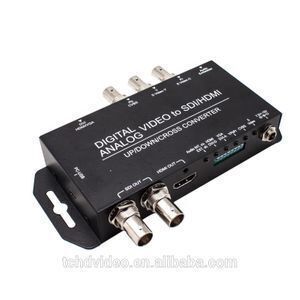

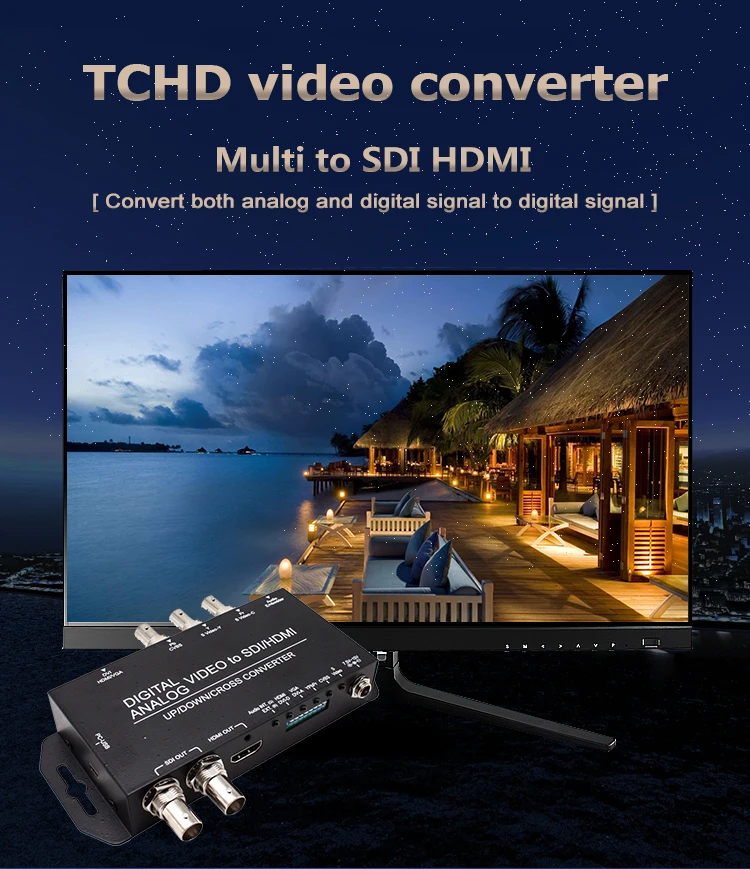

TCHD Multi to SDI HDMI video converter is a high-quality, high-performance video signal conversion product. It Supports Support 3 BNC(YPbPr, S-Video, CVBS) + 1 DVI(HDMI/DVI /VGA) inputs and 1channel HDMI + 2 channels SDI outputs.Unlike the traditional converter products in current market, our Multi to SDI HDMI Converter which built in a professional image conversion processing chip, support the user-adjustable to set the saturation / brightness / contrast, and through automatic scaling and frame rate conversion, any input format video signal can be converted to a standard SD/HD/3G-SDI or HDMI signal, compatible with all common analog and digital signal.

Multi to SDI/HDMI Up/Down Converter (MULTI to SDI/HDMI)
Description	Convert from DVI-D/VGA or Component/S-Video/Composite to 3G/HD/SD-SDI and HDMI output
Feature	Built in up/down conversion engine Video enhancement with anti-aliasing and 3D deinterlacer Simultaneous 2 x SDI plus 1 x HDMI output Hot-keys for video mode and device configurations Mini-USB portfor configurations and software upgrade Region of interest Test pattern Test label
Input	DVI-I x 1(Support DVI-D and VGA) BNC x 3 for Component/S-video/Composite 3.5mm Phone jack for analog audio
Output	SDIX2 HDMIX1
Supported Video Input Format	Composite/SVideo NTSC/PAL Component 480i,576i,480p,576p 720p,1080i,1080p DVI/VGA 800X600@60HZ,1024X768@60HZ,1280X1024@60HZ 1366x768@60Hz,1400x1050@60Hz,1600x1200@60Hz
Supported Video Output Format	SDI 1080p60/50,1080i60/50,1080p30/25/24,720p60/50 1080p59.94,1080159.94,720p59.94,1080p29.97,1080p23.98 525i,625i
Audio Input Format	DVI-D(Converted to HDMI): Up to 8 channels,24bit,192KHz 3.5mm Phone Jack: Stereo.24bit,48KHZ
Audio Output Format	HDMI/SDI: Up to 8 channels,24bit,48KHz
Plug & Play	YES
DC In	7.5V-15V
