Distance education and training H.264 Multiple interfaces iptv streaming server hd mi video encoder

Supplier: TCHD Digital Video Technology Development (Beijing) Ltd.
Region: Beijing, China
Contact: Mr Leo Chen
Price: $440.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Carton box;	Application:	Live streaming, webcasting,distance education and training;
Output:	RTMP/RTSP/UDP/HTTP/TCP;	Input:	HD MI/SDI/VGA/YPbPr/S-video/CVBS;
Model:	6C0;	Supply Ability:	300 Piece/Pieces per Month Video encoder;
Audio:	Independent audio;	Resolution:	1920x1080P60;
Model Number:	6C0;	Payment Terms:	T/T,Paypal;
Place of Origin:	Beijing China (Mainland);	Recording Mode:	Hardware Compression, Real-Time Mode;
Brand Name:	TCHD;	Max. FPS:	60/50fps @ 1920x1080p;
Port:	Beijing;	Feature:	Ethernet streaming;
Product name:	H.264 Multiple interfaces iptv streaming server encoder;

Distance education and training H.264 Multiple interfaces iptv streaming server hd mi video encoder

Details

Introduction

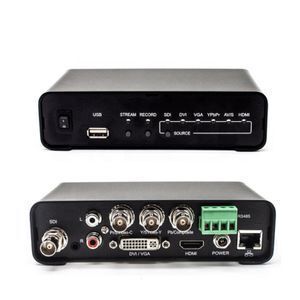

TC-6C0 live streaming video encorder is a professional audio and video encoding product, which
supports HDMI/DVI/VGA/AV/Component/CVBS/Left and Right audio channels inputs,compatible with different audio and video signal output devices, H.264 encoding. The code rate is adjustable, and the picture quality can be controlled. This device has only 1 Frame Delay,which ensures the Live streaming frequently.
It is easy to install, plug&play, and there is no computer hardware compatibility issues.Support HTTP/RTSP/RTMP/TCP/UDP streaming.

6C0 Product Series Hardware Specification
Model	6C0
Max. FPS	60/50fps @ 1920x1080p
Recording Mode	Hardware Compression, Real-Time Mode
Input Interfaces	Video 1 x BNC for 3G / HD / SD-SDI 3 x BNC for YPbPr /CVBS/S-Video 1 x DVI-I for DVI-D /HDMI and DVI-A/ VGA 1 x HDMI Audio 1xStereo audio through 1x RCA for Analog L/R audio SDI/HDMI/DVI-D embedded audio 1 x 3.5 mm phone jack
Video Feature	H.264/AVC , Main / High Profile Configurable bit rate up to 10Mbps Supported Resolutions Input: 1920x1080(P60/P50/P30/P25/P24/i60/i50),1280x720(P60/P50), 1280x1024(P60),1280x960(P60),1024x768(P60),800x600(P60), 720x480(P60/i60),640x480(P60),720x576(P50/i50) Output: Resize Range from 128x128 to 1920x1080 *Output Include Down Scaling.
Audio Feature	AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate : 48KHz, 16bit
Network Feature	1x RJ45 for 100/1000Mbps Ethernet DHCP client
Supported Streaming Protocol	TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP (RTSP Elementary Stream) RTMP(Publish)
Misc. Features	1 Frame Delay Dynamic Parameter setting RS-485 1x USB 2.0 Host for USB storage Web UI for system configuration Firmware upgradable LED indicator Status With Power Recycle
Record Format	TS
System Requirement
Power Supply	DC 12V (With DC Adapter)
