2019 HOT resistivity meters for ground water exploration underground water detection finder locator detector

Supplier: Chongqing Huibo Lab Instrument Co., Ltd.
Region: Chongqing, China
Contact: Ms Michelle Li
Price: $3000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Operating Temperature:	-10°C~50°C, 95%Rh;	Supply Ability:	100 Piece/Pieces per Month underground water detector;
Packaging Detail:	1 Wooden Box package for underground water detector;	Port:	Chongqing, Shenzhen, Shanghai;
Product name:	underground water detection;	Maximum Withstand Voltage:	500V DC;
Maximum Allowable Current:	2A;	Keyword:	underground water detection;
Brand Name:	GOLD;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Function:	underground water detection;	Conversion Electrodes:	60 channels or 120 channels;
Model Number:	DUK-2A;	Place of Origin:	Chongqing China (Mainland);

2018 HOT resistivity meters for ground water exploration underground water detection finder locator detector

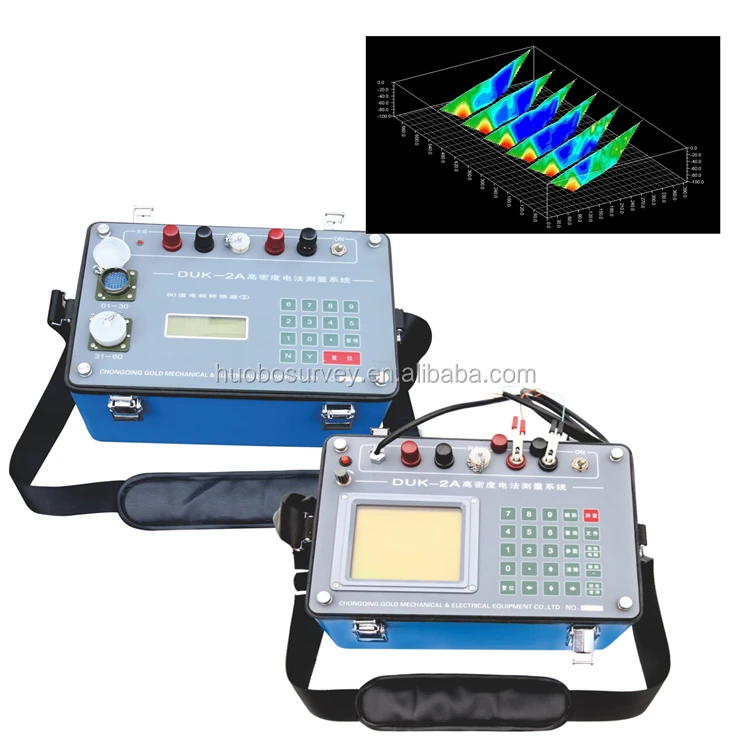

1. Equipment Show:

2. Technical Specification:

Model & Name:	Multi-electrode Converter
Conversion Electrodes:	60 channels or 120 channels
Supported manual configuration:	Schlumberger,Dipole-Dipole,Combined Profiles, Differential,Pole-Pole,
Supported manual configuration:	Triple-Pole Rolling,
Operating Mode:	16-key keypad with 90 character LCD display
Operating Mode:	combines to form man-machine dialogue operation.
Maximum Allowable Current:	2A
Maximum Withstand Voltage:	500V DC
Insulating Property:	500MΩ
Electroshock Break-over Resistance:	smaller than 0.1Ω
Power Consumption	50 mA (Standby)
Power Supply:	1# Dry Cell (or rechargeable battery with the same specification) 8pcs.
Weight:	7 kg (60 channels), 7.5kg (120 channels)
Operating Temperature:	-10°C~50°C, 95%Rh
Size:	305×200×202mm (60 channels)
Size:	324×200×245mm (120 channels)

3. Application:

1. Widely used for high-resolution research, tomography and monitoring applications.

2.Coal mining gobs, caves of Custer area, geological disasters survey like landslides other geological disasters.

3.High resolution engineering geological exploration like factory foundations, highways, bridges, railways, civil engineering, hydrology, engineering, environmental.

4.For landslides and other geological disaster exploration.

5.Metal and non-metallic mineral resources exploration and geothermal exploration.

4. Feature:

1.Multiple function in one machine: The instrument has four functions including long lead IP instrument, 2D high density resistivity meter, 2D high-density IP instrument, and medium-power short lead transmitter.

2.Easy for Operation: The instrument adopts all-digital automatic measurement, thus can execute automatic compensation for spontaneous potential, drift and electrode polarization. By adopting large screen LCD display in Chinese characters, more than fourteen types of wiring working mode can be directly displayed in high-density measurement mode; in DZD-6A stand-alone mode, nine types of electrode arranging methods can be directly displayed; meanwhile, real-time curve display can be realized during working.

3.Extra-large Storage: In high-density mode, the instrument can store the measured data at 120,000 measuring points; in DZD-6A stand-alone mode, the instrument can store the measured data at 4,800 measuring points; there are 22 digits at each measuring points, provided with RS-232 serial interface, and the stored data can be directly transferred to the computer by means of appropriate software to carry out digital interpretation for various methods.

5. System Composition:

One DAZ-6A multi-functional DC resistivity instrument as the survey and control unit in the system, equipped with a DUK-2A type 60-channel or 120-channel multiplex electrode switch manufactured by our factory, and cables, electrodes and other related accessories, together to form the resistivity imaging system.

6. Why Choose Us?

(1) Gold Supplier on Alibaba —— Reliable Supplier with Good Reputation

(2) Factory Direct Sale —— Competitive Price & Full Stock

(3) Quality Control —— High Quality

(4) Low MOQ —— Accept 1 Piece

(5) Accept OEM —— Supply Products as Customers' Requirements

(6) Fast Delivery —— Delivery within 1-5 Working Days

(7) Various Payment Terms —— T/T, Wstern Union, L/C ……

(8) Changing or Refunding —— Accept Returns

7. Warmly Welcome to Visit Our Company and Factory!!
