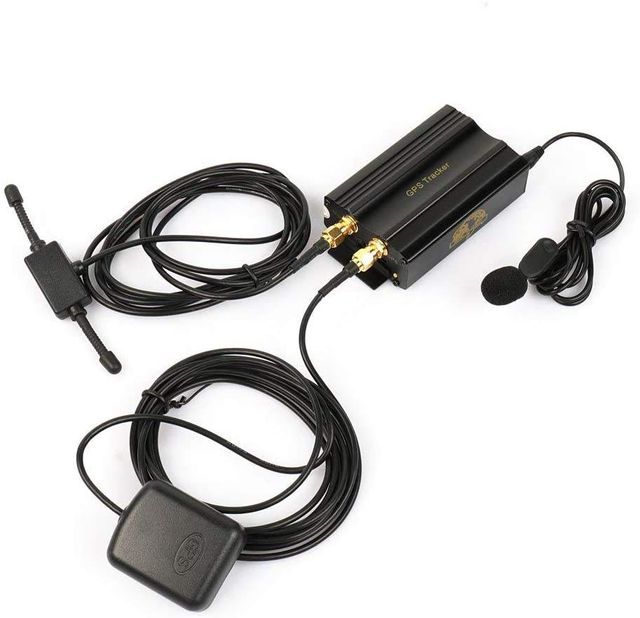

GPS Car Engine TK103 TK103A TK103B 4G GPS Tracker with Shock Sensor and Door Opening Alarm System

Supplier: Shenzhen Jingwei Xingyun Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Nancy yang
Price: $47.99 / 10 - 499 pieces
$46.99 / 500 - 999 pieces
$44.99 / 1000 - 2999 pieces
$41.99 / >=3000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

brand:	Global Positioning System	Chip type:	GPS chip
Gross weight per piece:	0.300 kg	Single pack size:	12X10X6 cm
Warranty:	12 months	Function:	Support 4G, LTE, 3G, WCDMA. UMTS, 2G, GSM, fleet management
product name:	Tracking Device 4g GPS Tracker with Camera Fuel Sensor	Certification:	CE ROHS FCC
input Output:	1RS232+1AD+3 input+2 output	Voltage:	12-24V
Sales unit:	single product	thing:	4g gps tracker
style:	real-time tracking	Packaging Details:	Neutral packing
usage:	car alarm	frequency band:	L1, 1575.42 MHz

Product Description

Car Motor GPS TK103 TK103A TK103B 4G GPS Tracker with Shock Sensor and Door Open Alarm System

Optional accessories

Specification

project	Specification
product	Car Motor GPS TK103 TK103A TK103B 4G GPS Tracker with Shock Sensor and Door Open Alarm System
power supply	DC 12V-24V
spare battery	3.7V/350mAh
aspect	81.8mm x 35.7mm x 60.3mm
weight	0.2 kg
work belt	UMTS 2100/900MHz LTE-FDD:B1/B3/B8, LTE-TDD:B38/B39/B40/B41, WCDMA:B1/B8,TD:B34/B39 CDMA:BC0,GSM:900/1800MHz
data transmission	SMS, GPRS
Operating temperature	-40℃～+85℃
humidity	5% to 95% non-condensing
GPS sensitivity	-159dBm
GPS frequency	L1, 1575.42 MHz
Position accuracy	<10 meters
fuel power voltage	0~15.5V
voltage fuel signal	0~24V
Standby working current	DC24V<20mA
Hot Start	1 second, average
Hot Start	average 35 seconds
Cold start	42 seconds average
altitude limit	Up to 18,000 m (60,000 ft)
interface	1RS232+1AD+3 input+2 output

Features

Product Usage

tracking platform

The project supports GT06 protocol) XY (Hongyuan protocol and JT808 can be supported on gpsgate platform and tracksource platform.

Platform: http://www.18gps.net
