Large Capacity Diesel Wood Superfine Sawdust Machine For Sale YuXi

Product details
Voltage:380V;Applicable Industries:Construction works ;
Port:Any Port of China;Warranty:2 Years;
Power(W):41000;Dimension(L*W*H):7000*1200*1800MM;
Weight:3500KG;Brand Name:YUXI;
After-sales Service Provided:Online support;Certification:CE;
Condition:New;Packaging Detail:Wooden Package.;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Alibaba Trade Assurance;Supply Ability:100 Set/Sets per Month Superfine Sawdust Machine;
Place of Origin:Henan China (Mainland);

Large Capacity Diesel Wood  Superfine Sawdust Machine For Sale YuXi

Product Description

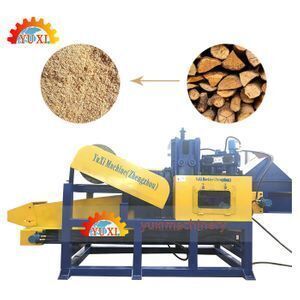

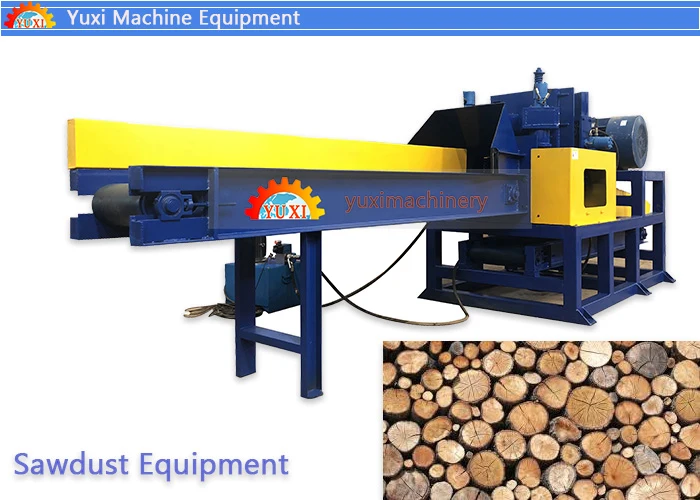

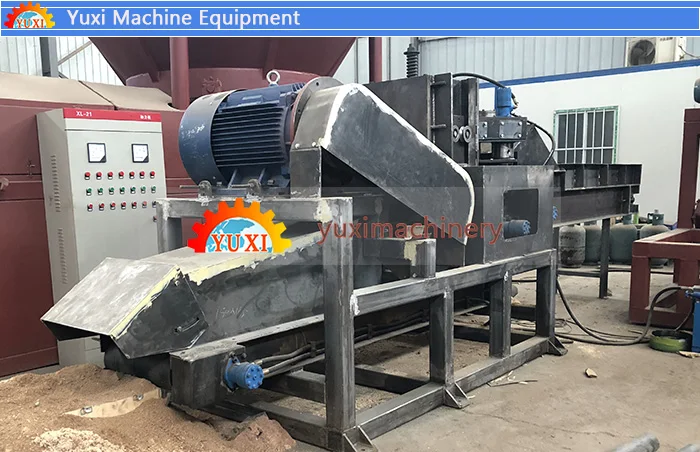

Description of Superfine Sawdust Machine

The supfine sawdust machine is a kind of machinery specially used for finely shredded wood. Diesel wood sawdust machine is also called “sawdust wood machine”.
It is just a more rigorous name called sawing machine. The sawdust processed by the sawdust wood machine is quite versatile and can be used to cultivate edible fungi, produce high-density boards, and make paper.
This product was first introduced abroad. China has successively improved its imitation, and the newly improved sawdust wood machine fully utilizes the principles of impact, shearing, impact, and rolling. From the principle of crushing, the softer the material, the harder it is to crush, such as fiber materials such as thatch and bamboo.

+
Advantages of Superfine Sawdust Machine For Sale

This wood sawdust machine can process all kinds of wood raw materials into sawdust products at one time, which has the advantages of low investment, low energy consumption, high productivity, good economic benefit, convenient use and maintenance.
The pulverized wood chips have the advantages of small particle size, obvious wood fiber and uniform discharge.
The whole set of sawdust equipment is driven by only one motor. The structure is simple, the arrangement is compact, the price is cheap, the work is stable, the energy consumption is low, the output is high, the finished product quality is good, and the processing cost is low.

+
Installation and Maintenance Of Wood Sawdust Machine For Sale

1. The shaft bears the full load of the negative machine, so good lubrication has a great relationship with the bearing life. It directly affects the service life and operation rate of the machine. Therefore, the required oil must be cleaned and the seal must be good.
2. The newly installed tires are prone to loosening and must be inspected frequently.
3. Pay attention to whether the work of all parts of the machine is normal.
4. Pay attention to the degree of wear of the wear parts and pay attention to replace the worn parts.
5. Place the bottom plane of the movable device, and the dust should be removed to prevent the movable bearing from moving on the chassis when the machine encounters unbreakable materials, resulting in serious accidents.
6, The bearing oil temperature rises, should be stopped immediately to check the reasons to eliminate.
7. If there is impact sound when the rotating gear is running, it should be stopped immediately to check and eliminate.

+
Technical Parameters of Large Capacity Diesel Wood Sawdust Machine



+
ModelYX-210YX-2150YX-350YX-3550
Power(kw)4175132160
Capacity10m³/h12m³/h35m³/h45m³/h
Feed port size210*210210*500350*350500*350
Roller shaft size420*220500*410450*400500*450
Voltage380v/50HZ380v/50HZ380v/50HZ380v/50HZ
Machine size7000*1200*18007300*1400*22007000*1400*22008000*1600*2200
Weight3500400050006000



+
How to Solve the Problem That The Sawdust Machine Is Working Too Hot

As the temperature rises in the summer, the sawdust machine will be produced in this hot environment, and the surface temperature of the internal components will continue to rise. This will cause serious damage to the service life of the components. Is there any way to solve it?
We can properly keep the sawing machine idling for a few minutes, reduce the internal temperature, and then carry out the production work, or inject lubricant into the surface of the blade to reduce the temperature.

Customer Visiting

We are a professional manufacturer of sawdust machines. Many customers visit our factory to visit the test machine. Below are some customer visit maps. If you are interested in our machines, please visit our factory.

Company Information

Yuxi Machinery is a professional sawdust crusher manufacturer with rich design experience and equipment processing technology in the field of wood crushing. Yuxi Machinery Factory has a professional Sawdust R&D team and a professional wood crushing equipment technical team. For many years, it has been committed to providing more efficient, stable and intelligent sawdust crushing solutions for the Chinese and international markets.
