Henan Car Crushing Copper Aluminum Can Crushers Recycling Machine Hummer Mill Price Scrap Steel Metal Crusher

Supplier: Zhengzhou Yuxi Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Alice Wu
Price: $17520.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Standard export plywood packing for Scrap metal hammer crusher;	Marketing Type:	Ordinary Product;
Showroom Location:	None;	Payment Terms:	L/C,Western Union,T/T,MoneyGram,Alibaba Trade Assurance;
Supply Ability:	20 Sets per Month Scrap metal hammer crusher;	Warranty of core components:	2 years;
Condition:	New;	Brand Name:	YUXI;
Video outgoing-inspection:	Provided;	Core Components:	Engine,Bearing;
Power (kW):	30;	Material / Metal Processed:	Stainless Steel;
Warranty:	2 years;	Place of Origin:	Henan, China;
Machinery Test Report:	Provided;	Weight (KG):	5630;
Applicable Industries:	steel mill;	Key Selling Points:	Multifunctional;
Port:	Qingdao,Tianjin,Shanghai or customized.;

Products Description

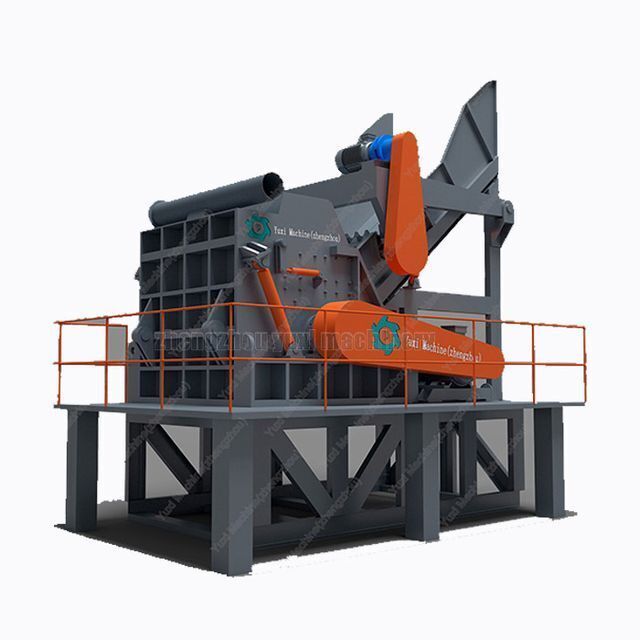

Scrap Metal Crusher

Processing the scrap steel by using the crusher, then using a sorting system for broken scrap sorting to obtain purse high-quality scrap iron steel.

Technical Parameter

Model	Power	Rotating speed	Capacity(t/h)	Weight(t)
YXJ-800	37-55	1250	0.7-1	3.2
YXJ-1000	45-75	1250	0.8-1.5	7.6
YXJ-1300	90-150	860	2-4	11.5-26
YXJ-1600	200-280	750	4-6	16.6-35
YXJ-1800	220-450	650	6-10	32-48
YXJ-2000	315-630	650	8-12	35-65
YXJ-2200	500-900	650	15-20	35-65
YXJ-2400	1250-2250	650	20-45	85-120
YXJ-2800	1600-3300	650	70-100	145-230
YXJ-3000	3300-4400	650	110-140	280-760

Tell us your capacity

Application

For crushing bicycles, waste cars, refrigerators, washing machines, computer hard disk, motherboard, iron, aluminum skin, aluminum cans, aluminum products, light bulbs, waste paint cans, cans, beer bottles and other.

Details Images

Forced Feeding Machine

Efficient feeder to increase feed speed and increase productivity.

Scrap Metal Crusher Rotor

The rotor disc drives the hammerhead, and the hammerhead rotates at high speed to continuously hit the material.

Configuration Line

Equipment Configuration

1.Feeding conveyor;

2. Crusher;

3.Discharge conveyer; 4.Vibrating conveyor;

5. Magnetic separator;

6.Output conveyer.

Flow Chat

Working Principle

1. Scrap iron and steel raw material through the chain conveyor is transported to the metal crusher inlet slope, the biaxial or uniaxial rotational speed, the cutter head on the material is cut, torn and pulled, so that the material enters, and is squeezed, torn and sheared at the same time, so all kinds of metal. 2. Using the high speed rotation of the impeller will long metal stirring tear break, the crushed metal from the top of the mouth into the metal crusher cavity, by the high-speed rotating plate gear wring, tearing into small pieces, the outflow from the bottom of the screen, mesh size can be selected according to user of metal particle size requirements.
