Stevia sugar factory sugar extraction machine in stevia sugar production line

Product details
product name:multifunctional extraction tankAfter-sales service provided:Engineers available to repair machinery overseas, online support
Mechanical test report:ifOrigin:Zhejiang, China
brand:FumioMain selling points:high productivity
payment terms:L/C, Western Union, D/P, D/A, T/TCore components:engine
Applicable industries:Food and Beverage Factoryapplication:liquid
type:extractorWarranty:5 years
Video outbound inspection:ifExtract type:vacuum extraction
model:pharmaceutical machineCertification:International Organization for Standardization CE certification
type:pharmaceutical machineHealth status:new
Packaging Details:normal export packagingFunction:Extraction and concentration
Showroom location:United States, ColombiaLocal service locations:Peru, Argentina, United States, Mexico, Colombia, Brazil, Chile
process:custom madeAfter Warranty Service:online support
Core component warranty:5 yearscapacity:50L-500L
port:NingboMaterial:304/316L stainless steel
Supply capacity:50 sets per monthMarketing Type:2020 New Products
Product Description

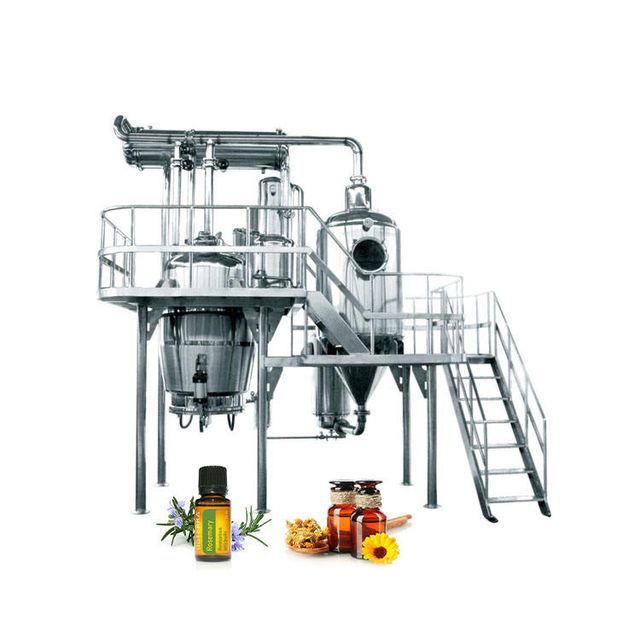

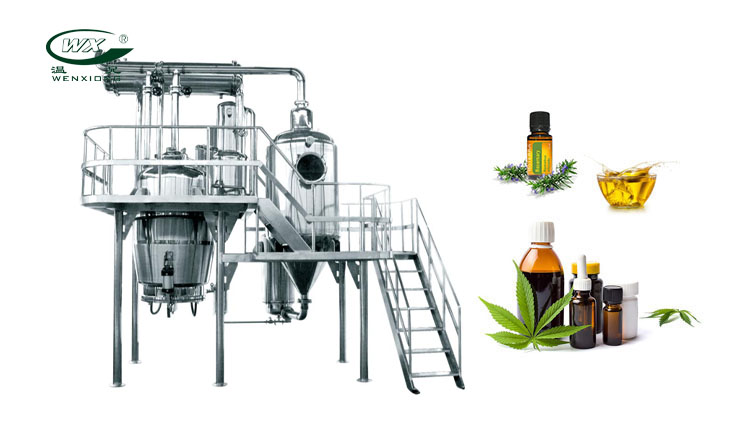

usage:This machine is an extraction and concentration machine newly developed by our company, which is developed on the basis of the heat reflux extraction and concentration machine, and is very suitable for the extraction process of pharmaceutical companies.Machine Composite:The machine includes the following units: extraction tank, single-effect concentrator, condenser, automatic drainage system, oil-water separator, filter, sanitary pump and pipeline.Machine operation mode:Manual operation and automatic operation.
data
Model
DNT-1.0
DNT-2.0
DNT-3.0
DNT-4.0
extraction tank
Concentrator
extraction tank
Concentrator
extraction tank
Concentrator
extraction tank
Concentrator
Jacket pressure (Mpa)
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
Internal pressure (Mpa)
≤0.09
-0.084
≤0.09
-0.084
≤0.09
-0.084
≤0.09
-0.084
Jacket temperature (°C)
142
132
142
132
142
132
142
132
Chamber temperature (°C)
≤100
60
≤100
60
≤100
60
≤100
60
Evaporation (kg/h)
500
800
1000
2000
Dimensions (L*W*H)
4000*1800*4400
4500*2200*4800
5200*2400*6000
6600*2800*7000
feature
1. This machine can be used as an atmospheric extractor and atmospheric concentrator for solvent-based heat reflux extraction processes, and can also be used for atmospheric pressure extractors and vacuum cryogenic concentrators for multiple water-based extraction processes. The problem that temperature-sensitive medicines are easily destroyed under high temperature is solved.

2. This machine can load more raw materials than ordinary extraction tanks, and can save solvent solution consumption, low evaporation temperature and energy saving.

3. The machine is equipped with an automatic drainage system to save labor and ensure machine safety.
