Inventory hydrocarbon extraction system machinery and equipment

Supplier: Labfirst Scientific Instruments (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Alex Huang
Price: $14500.00 / 1 - 2 sets
$13500.00 / 3 - 4 sets
$12500.00 / 5 - 29 sets
$3500.00 / >=30 sets
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	New Products for 2022	Keyword 2:	high security
Warranty:	1 year	capacity:	5 lbs/10 lbs/20 lbs/40 lbs/80 lbs per batch
Certificate:	C1D1, PSI, ATEX, ASME, GMP	Showroom location:	USA
Video outbound inspection:	if	Origin:	China Shanghai
Keyword 3:	Cost-effectiveness	Operating pressure:	150PSI
design pressure:	200 psi	Core component warranty:	1 year
brand:	laboratory one	brand:	laboratory one
Main selling points:	Safe and cost-effective	Health status:	new
Dimensions (LWH):	3100x910x1550	Core components:	pressure vessel

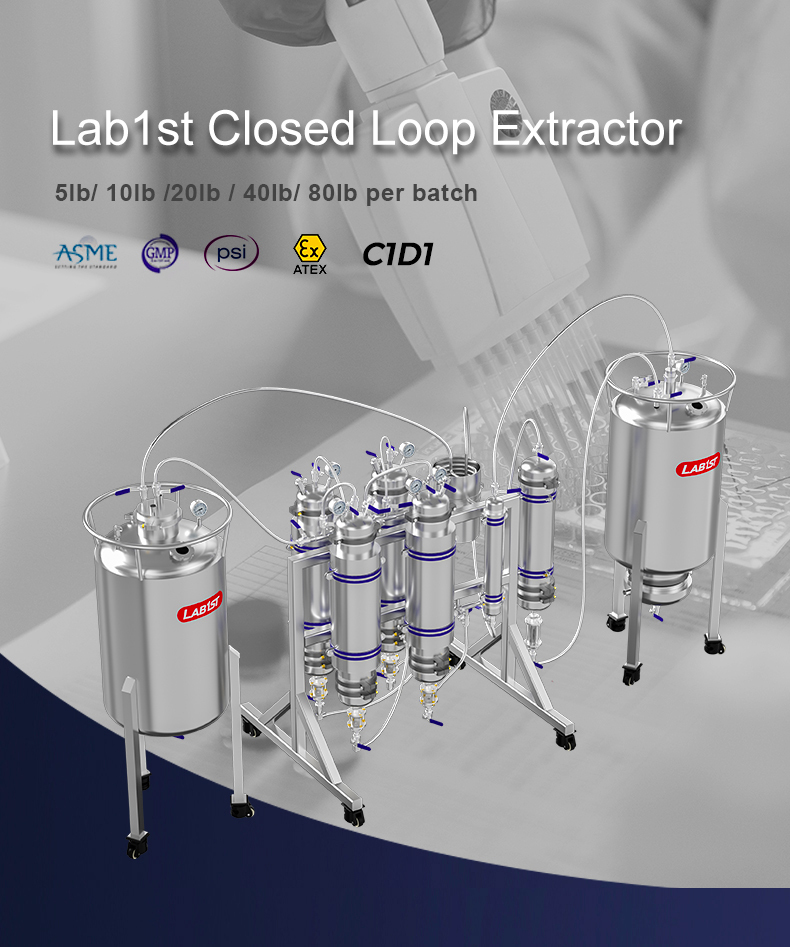

Solvent:	100% Butane, 100% Propane & Isobutane Solvents	product name:	Closed Loop Hydrocarbon Extractor
Package preview:		Keyword 1:	High efficiency, continuous work
payment terms:	L/C, Western Union, D/A, MoneyGram	Weight (kg):	500
Applicable industries:	manufacturing plant	model:	5-80 lbs
Mechanical test report:	if

Product Description

Technical data

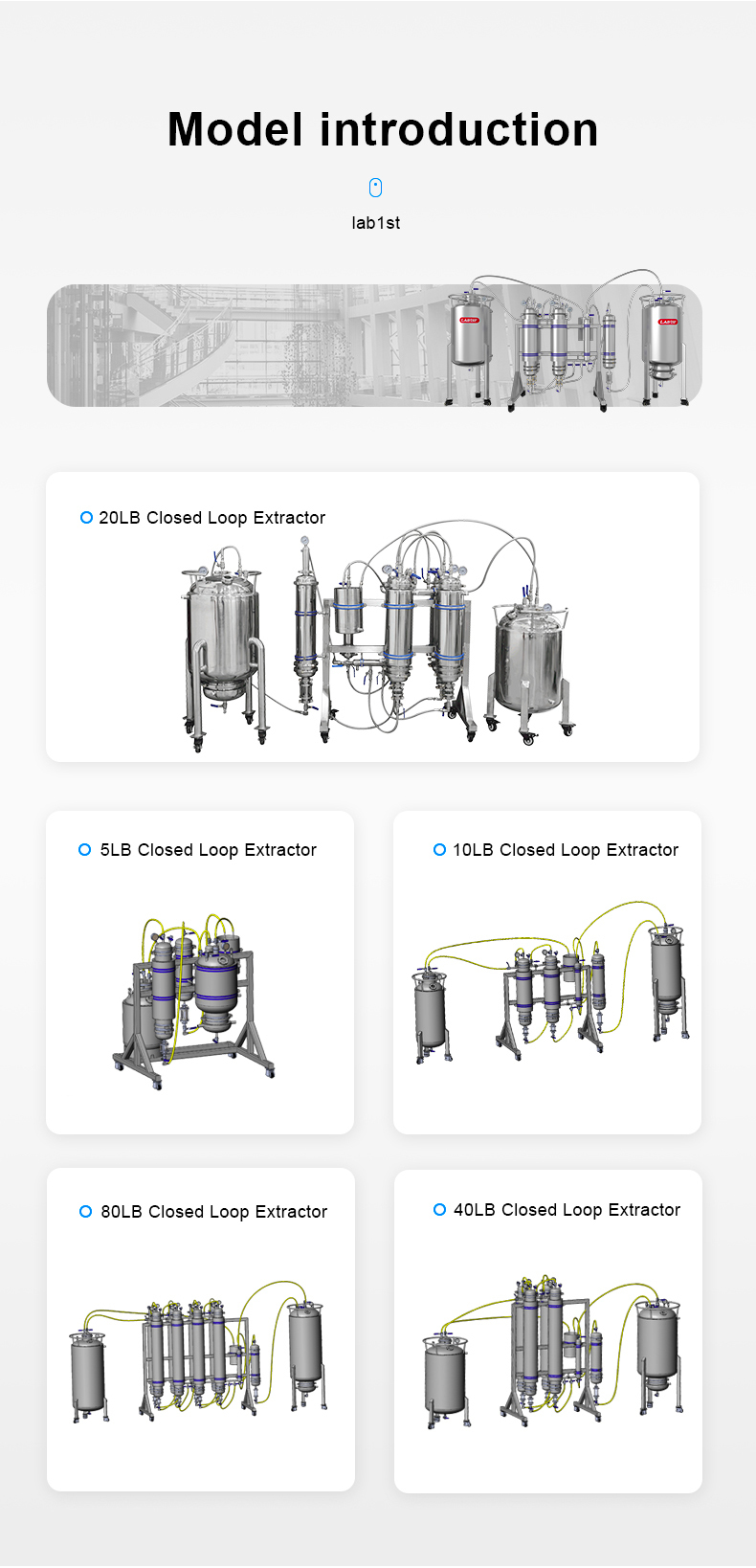

Model	5 pounds	10 pounds	20 pounds	40 pounds	80 pounds
Installation size["]	44x55x36	118x61x36	122x61x36	124x79x36	157x79x36
Installation size [mm]	1120x1400x910	3000x1500x910	3100x1550x910	3150x2000x910	4000x2000x910
solvent tank
Full capacity [L]	36	60	128	182	239
Use volume [L]	25	50	100	150	200
Theoretical capacity (butane \| water) [lb]	35 \| 35 79	68 \| 68 132	136 \| 136 Chapter 282	193 \| 193 400	253 \| 253 Chapter 526
Usage capacity (butane \| water) [lbs]	25 \| 25 55	50 \| 50 110	100 \| 100 220	150 \| 150 Chapter 331	200 \| 200 Chapter 441
Extraction column
size["]	Φ6×24	Φ6×24	Φ6×24	Φ6×48	Φ6×48
Feed material [lbs]	5	5	5	10	10
quantity	1	2	4	4	8
Filtration [μm]	125	125	125	125	125
CRC
size["]	Φ6×12	Φ6×12	Φ6×24	Φ6×24	Φ6×24
quantity	1	1	1	1	2
Filtration [μm]	5	5	5	5	5
collection tank
Full capacity [L]	41	65	136	190	Chapter 247
Use volume [L]	25	50	100	150	200
Theoretical capacity (butane \| water) [lb]	26 \| 26 90	53 \| 53 163	144 \| 144 299	201 \| 201 Chapter 418	262 \| 262 Chapter 543
Usage capacity (butane \| water) [lbs]	25 \| 25 55	50 \| 50 110	100 \| 100 220	150 \| 150 Chapter 331	200 \| 200 Chapter 441
molecular filter
size["]	Φ3×18	Φ3×18	Φ3×18	Φ3×18	Φ3×18
quantity	1	1	1	1	1
Filtration [μm]	5	5	5	5	5
condenser
size["]	Φ8×12	Φ8×12	Φ8×12	Φ8×12	Φ8×12
Condensation area[㎡]	0.3	0.3	0.3	0.3	0.3
