Material: | Borosilicate 3.3 glass; | Distillation head: | standard 34/45; |
chiller: | 220v single-phase; | Single package size: | 0X0X0 cm; |
Warranty: | 1 year; | Power source: | electric; |
Application: | distillation; | Place of Origin: | Shanghai China; |

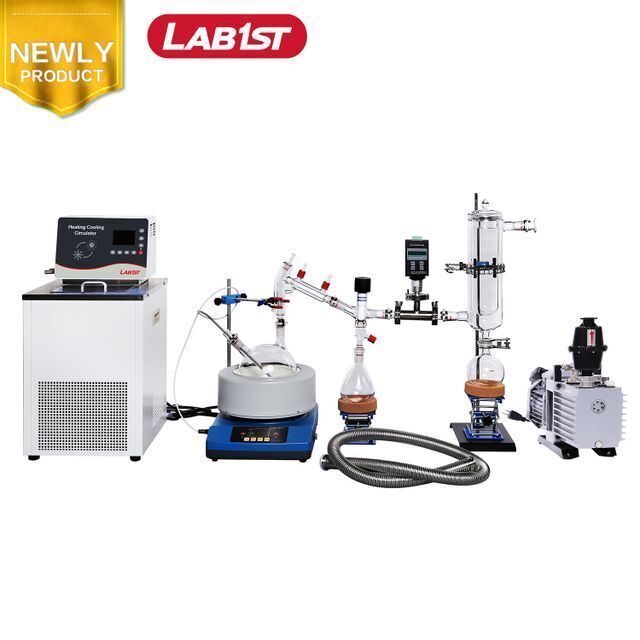

Selling Units: | Single item; | Model Number: | Newest design short path distillation 20l,SPD-02N; |
Customized support: | OEM; | Brand Name: | Lab1st; |
Single gross weight: | 1.0 KG; | Packaging Detail: | short path distillation can be packeted IN WOODEN; |
Magnetic stirring heating mantle: | 20L available 110v and 220v; | Certificate: | CE , ISO; |
Classification: | Other; |

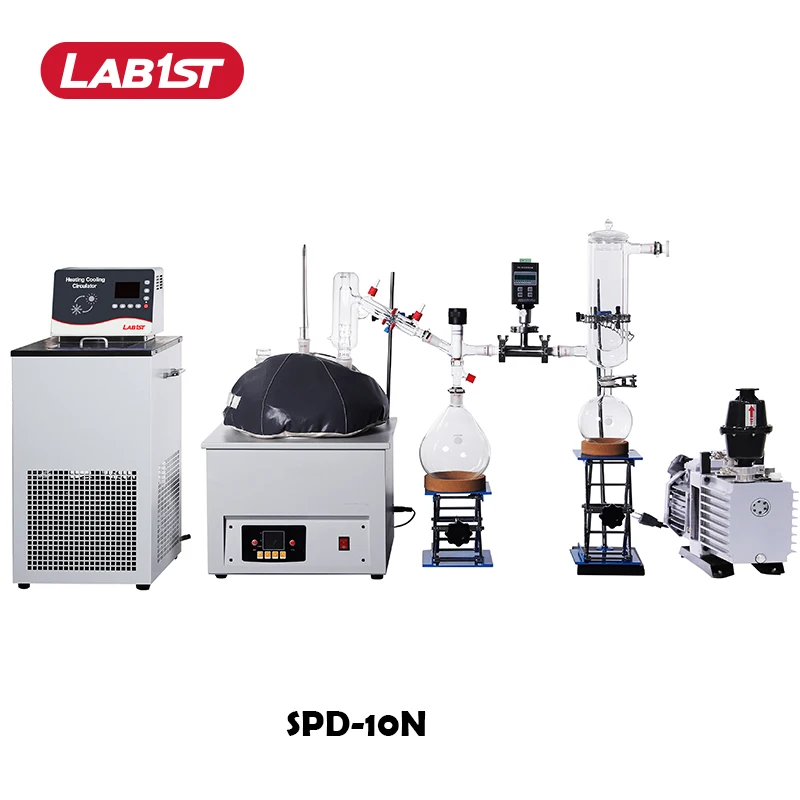

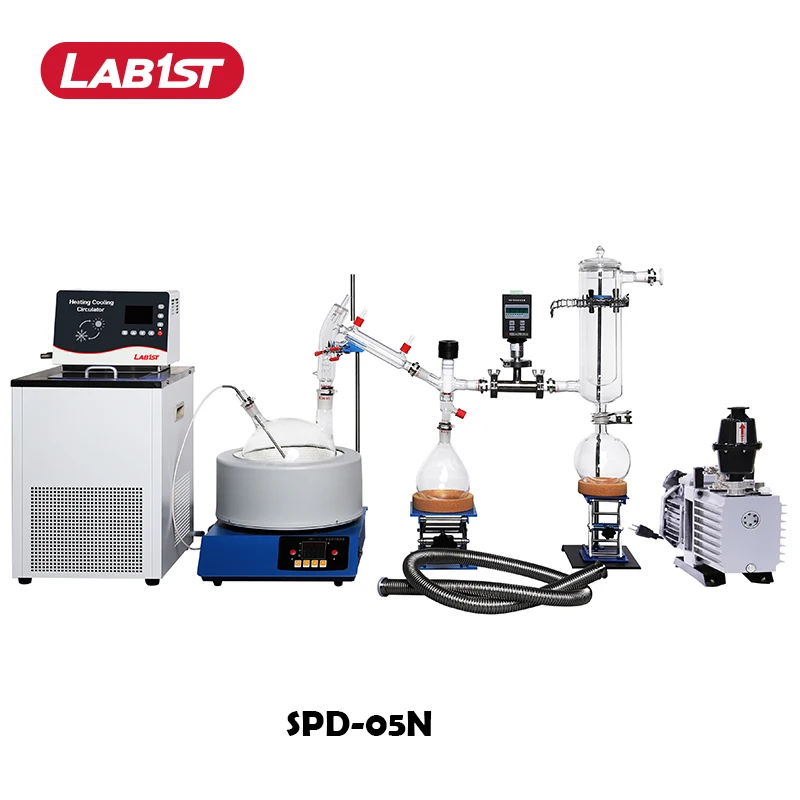

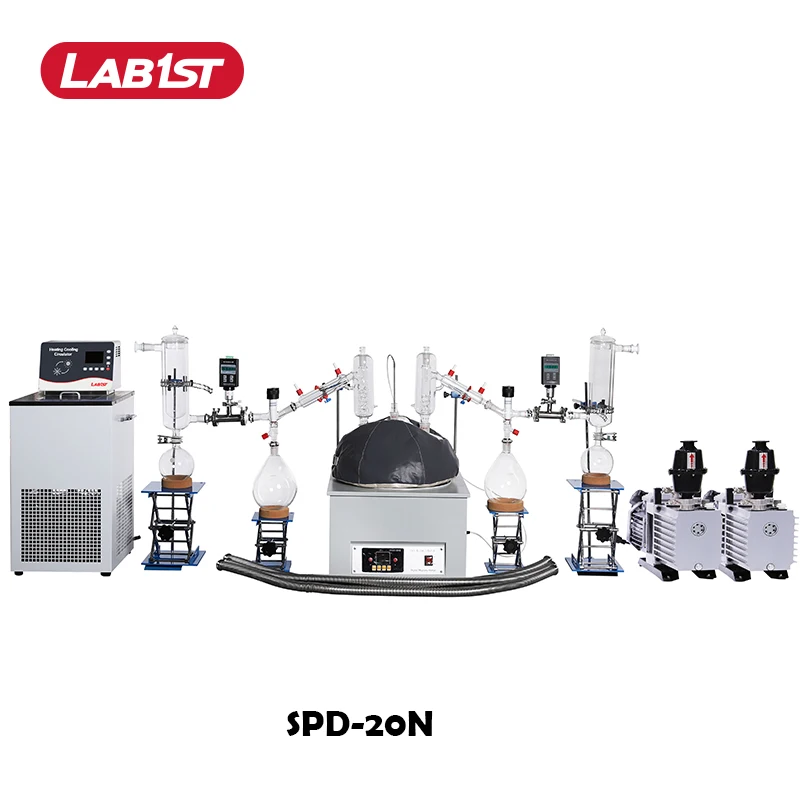

Model | SPD-02N | SPD-05N | SPD-10N | SPD-20N | |||||
Material | Borosilicate Glass 3.3 | ||||||||
Heating Temperature | Ambient to 300℃ | ||||||||
Working Pressure | Around 5 Pa | ||||||||
Distillation Vessel | Volume (L) | 2 | 5 | 10 | 20 | ||||
Interface Specification | 2 x 24/40 joint | 34/45 joint, 24/40 joint | 24/40 join, 2 x 34/45 joint | 24/40 joint, 2 x 34/45 joint | |||||
Receiving Vessel | Volume (mL) | 2 x 500mL | 2 x 1000mL | 2 x 2000mL | 4 x 2000mL | ||||
Interfac | 24/40 joint | 24/40 joint | 24/40 joint | 24/40 joint | |||||
Cold Trap | Dry Ice Volume (L) | 1L | 1L | 1L | 2 pcsx 1L | ||||
Heating Mantle | Heating Power (w) | 650 | 1100 | 2100 | 3000 | ||||
Roating Speed (rpm) | 50-1800 | 50-1800 | 50-1800 | 50-1800 | |||||
Motor Power (w) | 40 | 40 | 40 | 40 | |||||
Vacuum Pump | Pumping Rate (CFM) | 10 | 10 | 10 | 15 | ||||
Cooling Circularor | Cooling Temperature | -5℃ ~ 85℃ | -5℃ ~ 85℃ | -5℃ ~ 85℃ | -5℃ ~ 85℃ | ||||
General | Voltage | 110V 60Hz or 220V 50/60Hz, 1-Phase |
