Hot sale Vacuum Drying Oven with 5 shelves and 4 sided Heating for BHO extractioin

Supplier: Labfirst Scientific Instruments (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Alex Huang
Price: $1150.00 / 1 - 2 sets
$1000.00 / 3 - 4 sets
$950.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	LAB1ST;	Temperature Accuracy:	+/- 0.5C;
Local Service Location:	United States;	Marketing Type:	Ordinary Product;
Chamber Material:	Mirror Surface Stainless Steel 304;	Machinery Test Report:	Provided;
After-sales Service Provided:	Online support;	Key Selling Points:	Long Service Life;
Port:	Shanghai;	Warranty:	1 Year;
Vacuum Port:	10mm Hose Barb (Optional KF 25);	Place of Origin:	Shanghai China;
Packaging Detail:	carefully packed in wood crates with sufficient cushion. Optional packaging in heavy-duty card board box for lower cost in air freight.;	Applicable Industries:	Manufacturing Plant,Food & Beverage Shops;
Core Components:	Pump,Motor,PLC;	Warranty of core components:	1 Year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Supply Ability:	500 Set/Sets per Month vacuum oven;
No. of Plate Holders:	5;	No. of Plates:	2 (up to 5);
Overall Dimension:	730 x 560 x 550 mm;	Chamber Dimension:	415 x 370 x 345 mm;
Certification:	CE ISO;	Voltage:	110V, 60Hz or 230V, 50Hz,120V/220V;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;
Showroom Location:	United States;	Power:	1500W;
Condition:	New;	Video outgoing-inspection:	Provided;
Type:	Drying Oven;	Temperature Range:	Ambient + 10C to 250C;
Dimension(LWH):	730 x 560 x 550 mm;

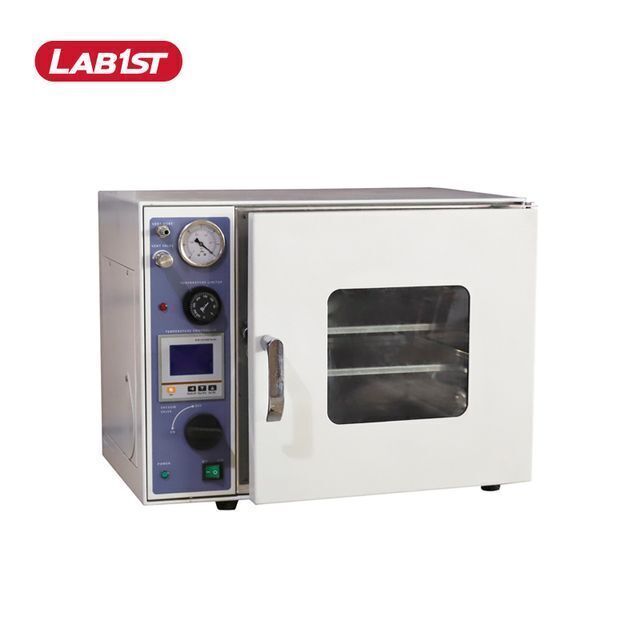

Hot sale Vacuum Drying Oven with 5 shelves and 4 sided Heating for BHO extractioin

The VO-series vacuum ovens from LAB1ST are economical alternatives to those expensive vacuum drying ovens made in EU or US. We offers all digital forced air and vacuum drying oven, built with polished stainless steel interior, removable racks, overheat protection, inert gas inlet, temp calibration, timing and password functions. All ovens are CE compliant. We offer OEM and customization service.

Product Description

In a vacuum drying oven, the thermal processes occur in an airtight chamber where a desired level of vacuum has been applied using an external vacuum pump. With a vacuum oven the entire application can take place under vacuum or a controlled atmosphere can be created through the introduction of an inert gas. Vacuum ovens can help in the prevention of surface reactions (such as oxidation), decontaminating samples (removing lubricants for example) as well as for speeding up the out gassing process.

When determining the process you will use for a vacuum oven bear in mind that you will need to size a pump to meet this application. This requires defining the appropriate chamber size, the level of vacuum desired, and how quickly you will need to reach that desired vacuum level. Please feel free to call or email us to request any further assistance.

Photo Gallery

Product Features

New secondary over-temp protection with visual alarm
Fine tuning SS304 needle valve with graduation for accurate and repeatable inert gas/air backfill or chamber pressure control.
The standard oven can hold up to 5 plates. Contact us if you need more.
Easy-to-clean and corrosion resistant SS304 mirror surface internal vacuum chamber.
Intelligent temperature controller with advanced PID algorithm maintains high accuracy (+/- 1°F or 0.5°C) in a wide dynamic range of 480°F (250°C).
Temperature display can be switched between Celsius and Fahrenheit.
Electro-plated cast aluminum handle which is almost unbreakable.
Mechanical vacuum gauge with stainless steel 304 Bourdon tube provides more accurate reading, longer gauge life and minimizes shipping damage.
Double scale vacuum reading in bar and inHg.
We use aluminum plates, which has 12x better thermal conductivity than stainless steel.
Dual layer observation window with adaptive 1/2" tempered safety glass, as well as force-adjustable door handle, to maintain constant vacuum level even for long-term operation.
A thick layer of thermal insulation outside vacuum chamber for low energy consumption.
Electrical components are isolated from the inner chamber for the protection of user.
Various options (programmable controller, independent temperature switch, digital pressure indicator, etc) for your own customized system.
Modular design for easy and cost-effective maintenance and future upgrades.
Built-in timer of 9999 minutes/hours.
All ovens come with one year warranty and lifetime components and service support.
Free phone and email customer support/consultation from our application engineers.

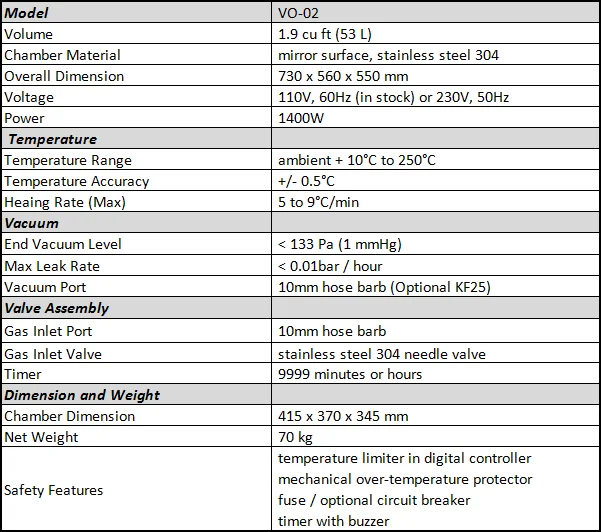

Specifications

Accessories

We offer different types of vacuum pumps: rotary vane oil pump, water-jet aspirator (chemically resistant), and PTFE diaphragm pump

Pump adapter, silicone vacuum hose, KF25 vacuum supplies, cold traps, etc.

Packaging & Shipping

All products will be carefully packed in wood crates or heavy duty card-board boxes, with proper cushion inside the package.
We will be responsible for any shipping damages (unless otherwise specified).
We ship to worldwide customers, via UPS, DHL, air freight or sea freight.
