Applicable Industries: | evaporator; | Power Source: | Electric; |
Condition: | New; | Warranty of core components: | 1 Year; |
Dimension(L*W*H): | 600*620*480mm; | Machinery Test Report: | Provided; |
Condenser: | Main & Auxiliary Triple-Circulating Cold Traps, Vertical; | Showroom Location: | United States; |
Evaporation Flask: | round-bottom 0L; | After-sales Service Provided: | Overseas third-party support available; |
Local Service Location: | United States; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Medium Temperature of Chiller: | -25C ~ 30C; | Core Components: | Engine,Motor,Pump; |
Bath Type: | Oil / Water Bath; | Port: | Shanghai; |
Key Selling Points: | Easy to Operate; | Video outgoing-inspection: | Provided; |
Voltage: | 110V&220V,220V/110V; | Receiving Flask: | round-bottom 30L; |
Supply Ability: | 1000 Set/Sets per Month 10l rotovap(rotary evaporator) with chiller and vacuum pump; | Packaging Detail: | Carefully packed in cartons; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; | Bath Temp Range: | Room Temp to 299C; |
Place of Origin: | Shanghai China; | Brand Name: | LAB1ST; |
Power: | 4000w; | Pumping Rate: | 50L/min (1.8 CFM); |
Warranty: | 12 Months; | Marketing Type: | New Product 2020; |
Process: | Vacuum Distillation; | Weight: | 120-200KG; |
Certification: | CE ISO; | Product name: | 10l rotovap(rotary evaporator) with chiller and vacuum pump; |

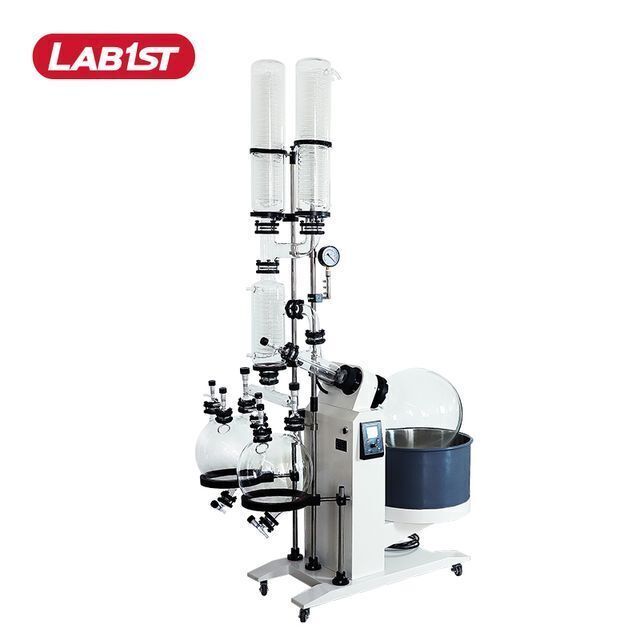

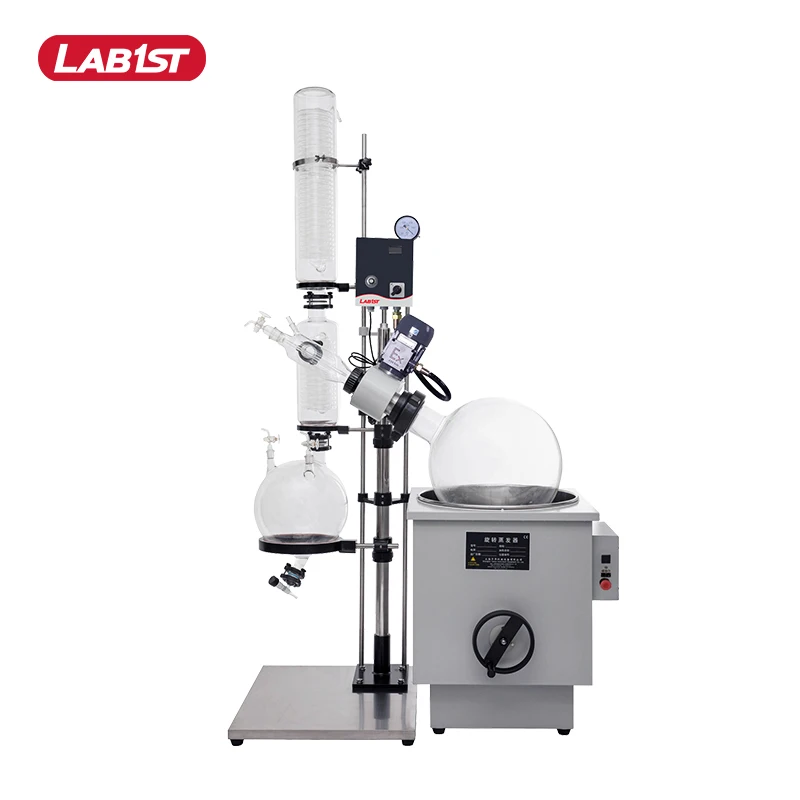

The LAB1ST RE1-series rotary evaporators feature a simple and reliable modular design, making it one of the most reliable rotary evaporators in industry. Their open and straight-forward structure also makes them extremely easy to maintain and repair. Moreover, these evaporators are designed with various safety features (dry-heating shut off, over temperature protection, soft start of rotation, over-current protection).
For hazardous environment, our RE1-series EX (explosion proof) model is rated for Exd IIB T4, which is equivalent to Class I, Division 1,Group C T4. For extreme condition, we are able to customize the system to air-driven motor and steam-heated bath, which totally eliminate risks from electrical sparks.
1.All the wetted components are made of high quality boro 3.3 glass and PTFE, for excellent corrosion resistance.
2.High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).
3.Modular and straight-forward structure for extremely easy maintenance.
4.High torque motor, high precision worm-gear gearbox and hand lift components for years of quiet and reliable operations.
5.Easy and straight forward operation of speed and temperature controller.
6.1-year hassle-free warranty and life-long parts and phone support.
7.Heavy-duty SS304 support frame and epoxy-coated water/bath enclosure guarantees vibration-free operation.
8.2-stage triple-coil condenser design with extra large cooling surface for outstanding cooling efficiency.
9.1-way check valve automatically turns off when draining the receiving flask. The pressure inside evaporator won't be changed during draining.10.The VFD speed controller keeps the motor's torque at its maximum even during low speed range.
11.The temperature controller comes with a built-in over-temp monitor, which shuts off heating when bath temperature is 15C higher than set value.

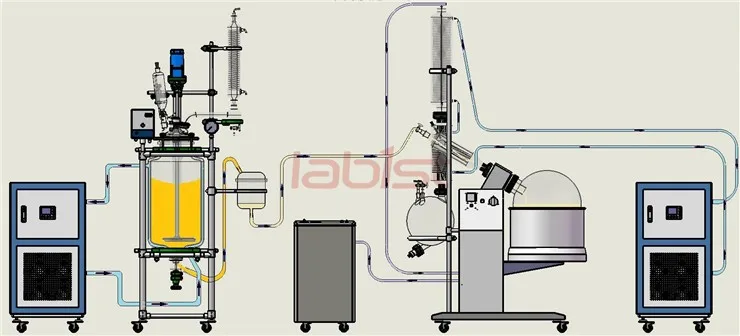

12.Various options and accessories are available (vacuum pump, chiller, vacuum controller, cold trap, etc)
Model | RE-510 | RE-520 | RE-550 | ||
Rotary flask | 10L | 20L | 50L | ||
Collect flask | 5L | 10L | 20L | ||
Motor speed controller | AC motor, stepless controller | ||||
Rotation speed | 20-110 rpm | ||||
Motor power | 250W | ||||
Bath | stainless steel , water RT-99℃, oil RT-180℃ | ||||
End vacuum | 399.9 pa | ||||
Evaporating speed (water) | 3.2L/h | 5L/h | 9L/h | ||
Evaporating speed ( alcohol) | 6.5L/h | 11L/h | 19L/h | ||
Lift | electric lift | ||||
Bath power | 3.8kw | 6.3kw | 6.3kw | ||
Voltage | single phase, 220v/50Hz | ||||
External Dimension | 1100x550x1200mm | 1100x550x1200mm | 1220x660x1450mm |
For a lab equipment, the most valuable is the quality configuration and after sales support!
1.All glassware test by china authorities certification, our products get Green product certification,China famous product certification and ISO9001 quality management system certification.
2.All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment. to guarantee each machine working perfect before delivery! 20L Multi Effect Rotary Evaporator with Chiller Pump
3.Each machine will deliver with User manual, machine label, Serier No. to guarantee the customer can get the machine without quality problem, custom clearance problem and delivery problem. also we provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time
